Xamarin Forms - Validations Made Simple

, 19 Jan 2019
Rate this:
Please Sign up or sign in to vote.
This article will assume you have basic knowledge of C# and Xamarin Forms and shows how to implement the Xamarin Form Validations using simple Data Annotations applied on the models.

Introduction

Recently, for one of our customers, we have started building a mobile application using Xamarin Forms to support both iOS and Android Devices. One of the design aspects which we need to consider is form validations.

We have the following design goals for the form validations:

  1. All the field validations (like required, email) should be done on submit of a form. The validation messages should be shown under each field if it fails.
  2. Since we had the developers who came from ASP.NET MVC technology and they are new to Xamarin Forms, the validation design should be simple to implement and consistent across the technology.
  3. Like ASP.NET MVC, Data Annotations validation should be followed in Xamarin Forms.

This article will assume you have basic knowledge of C# and Xamarin Forms and shows how to implement the Xamarin Form Validations using simple Data Annotations applied on the models.

Pre-requisites

You will need the latest version of Visual Studio 2017 with Xamarin workloads and emulators installed.

Step 1 – Create a New Xamarin Forms Project

Let's start creating a new Xamarin Forms project using Visual Studio 2017 and choose File-->New-->Project.

In the New Project windows, Choose Cross-Platform-->Mobil App (Xamarin Forms) as shown below:

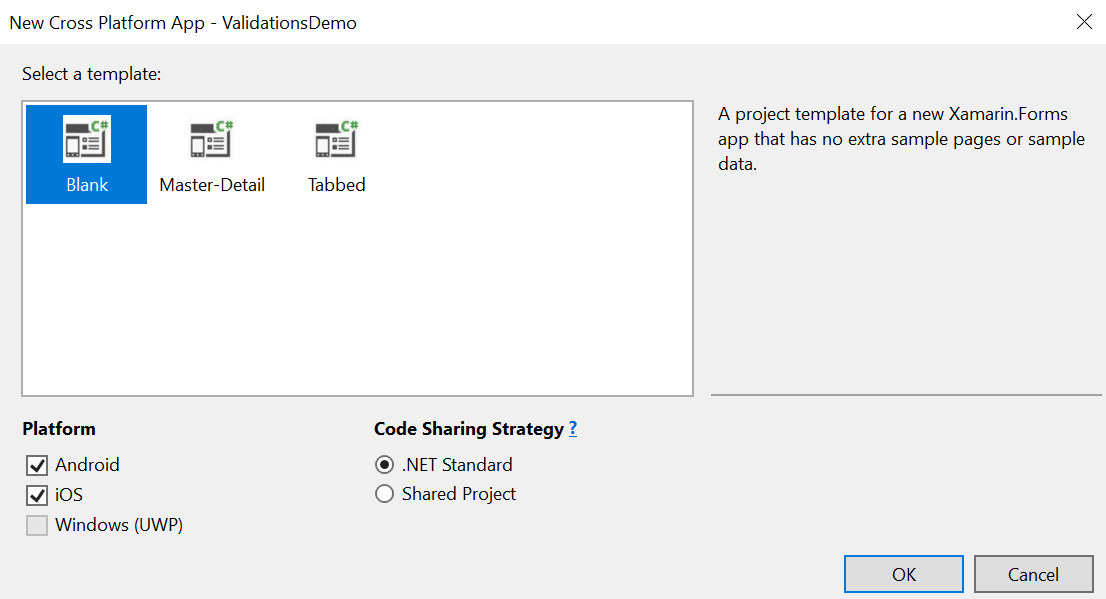

Enter the project name as Validation Demo and Click OK, the below option dialog will be displayed:

In the above screen, select Blank Project and click OK, the below project will be created.

Select the emulator and run the project, you should be able to see the Main Page with welcome text as below:

Step 2 – Create a Login Page using XAML

For our validation example, we will add two entry fields (Username and Password) along with Login button to our MainPage.xaml.

We will implement the below validation logic when we submit the form:

  1. The field Username is required
  2. The field Username should be a valid email address
  3. The field username should be of maximum length of 20 characters
  4. The field Password is required

Let's open the MainPage.xaml and modify the XAML as below:

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"

             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"

             xmlns:local="clr-namespace:ValidationsDemo"

             x:Class="ValidationsDemo.MainPage">
    <StackLayout Padding="20">
        <Label Text="Login" HorizontalOptions="Center" FontSize="50"/>
        <Label Text="{Binding Message}"

        IsVisible="False" TextColor="Red"/>
        <Label Text="Username"/>
        <Entry Text="{Binding LoginModel.Username}"/>
        <Label x:Name="LoginModel_UsernameError"

        IsVisible="False" TextColor="Red" />
        <Label Text="Password" />
        <Entry IsPassword="true" Text="{Binding LoginModel.Password}"/>
        <Label x:Name="LoginModel_PasswordError"

        IsVisible="False" TextColor="Red" />
        <StackLayout Orientation="Horizontal">
            <Switch IsToggled="{Binding LoginModel.RememberMe}"

            HorizontalOptions="Start" />
            <Label Text="Remember"

            HorizontalOptions="FillAndExpand" VerticalTextAlignment="Center"/>
        </StackLayout>
        <Button Text="Login"

        Command="{Binding LoginInCommand}" BackgroundColor="LightBlue" />
    </StackLayout>
</ContentPage>

Note: For our validations to work, we are adding error labels under each entry fields with naming convention Entry Binding Field Name Error. The "." Is replaced with "_".

Step 3 – Create Login Model Class

Create the Login Model class which holds our validation logic as below. Make sure to add System.ComponentModel.Annotations Nuget Package to the project.

using System.ComponentModel.DataAnnotations;
namespace ValidationsDemo.Model
{
    public class LoginModel
    {
        [Required, MaxLength(20), EmailAddress]
        public string Username { get; set; }
        [Required]
        public string Password { get; set; }
        public bool RememberMe { get; set; }
    }
}

Note: In the above model, all our validation requirements are applied as data annotations using Required, MaxLength(20) and EmailAddress attributes.

Step 4 – Create View Model Class

Since Xamarin forms recommend to use MVVM patterns, we will create a View Model Class with name MainPageViewModel.cs as shown below:

namespace ValidationsDemo.ViewModel
{
    public class MainPageViewModel
    {
        public LoginModel LoginModel { get; set; } = new LoginModel();
        public ICommand LoginInCommand { get; }
        private Page _page;
        public MainPageViewModel(Page page)
        {
            _page = page;
            LoginInCommand = new Command(async () => await LoginAsync());
        }

        private async Task LoginAsync()
        {
            if (!ValidationHelper.IsFormValid(LoginModel, _page)) { return; }
            await _page.DisplayAlert("Success", "Validation Success!", "OK");
        }
    }
}

Note: In the above code, in LoginAsync command, we have a ValidationHelper.IsFormValid(LoginModel, _page) code which will do all the magic of validation to the form based on the validation attributes. We will look into the details of Validation Helper class in the next section.

Step 5 – Bind the View Model Class to Page

Open the MainPage.xaml.cs file and just assign the ViewModel class instance to Main Page Binding Context as shown below:

using ValidationsDemo.ViewModel;
using Xamarin.Forms;
namespace ValidationsDemo
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
            this.BindingContext = new MainPageViewModel(this);
        }
    }
}

Step 6 – Create Validation Helper Class

Create a new class called ValidationHelper and add a public method IsFormValid with signature as below:

public static class ValidationHelper
    {
        public static bool IsFormValid(object model, Page page)
        {
            HideValidationFields(model, page);
            var errors = new List<ValidationResult>();
            var context = new ValidationContext(model);
            bool isValid = Validator.TryValidateObject(model, context, errors, true);
            if (!isValid)
            {
                ShowValidationFields(errors, model, page);
            }
            return errors.Count() == 0;
        }
        private static void HideValidationFields
            (object model, Page page, string validationLabelSuffix = "Error")
        {
            if (model == null) { return; }
            var properties = GetValidatablePropertyNames(model);
            foreach (var propertyName in properties)
            {
                var errorControlName =
                $"{propertyName.Replace(".", "_")}{validationLabelSuffix}";
                var control = page.FindByName<Label>(errorControlName);
                if (control != null)
                {
                    control.IsVisible = false;
                }
            }
        }
        private static void ShowValidationFields
        (List<ValidationResult> errors,
        object model, Page page, string validationLabelSuffix = "Error")
        {
            if (model == null) { return; }
            foreach (var error in errors)
            {
                var memberName = $"{model.GetType().Name}_{error.MemberNames.FirstOrDefault()}";
                memberName = memberName.Replace(".", "_");
                var errorControlName = $"{memberName}{validationLabelSuffix}";
                var control = page.FindByName<Label>(errorControlName);
                if (control != null)
                {
                    control.Text = $"{error.ErrorMessage}{Environment.NewLine}";
                    control.IsVisible = true;
                }
            }
        }
        private static IEnumerable<string> GetValidatablePropertyNames(object model)
        {
            var validatableProperties = new List<string>();
            var properties = GetValidatableProperties(model);
            foreach (var propertyInfo in properties)
            {
                var errorControlName = $"{propertyInfo.DeclaringType.Name}.{propertyInfo.Name}";
                validatableProperties.Add(errorControlName);
            }
            return validatableProperties;
        }
        private static List<PropertyInfo> GetValidatableProperties(object model)
        {
            var properties = model.GetType().GetProperties().Where(prop => prop.CanRead
                && prop.GetCustomAttributes(typeof(ValidationAttribute), true).Any()
                && prop.GetIndexParameters().Length == 0).ToList();
            return properties;
        }
    }

Step 7 – Run the Project and Test the Validations

We are done with the basic form validation implementation and it is time to test. Let’s run the project by targeting available emulator and you should be seeing the below Login screen. To execute various test cases, click on Login button.

Test Case 1: Test for required field validation

Test Case 2: Test for valid email address validation

Test Case 3: Test for max-length validation

Test Case 4: Test for success validation

Points of Interest

Inserting an error label below each entry field with proper naming conventions in XAML page and calling ValidationHelper.IsFormValid will accomplish our validations.

History

  • 19th January, 2019: Initial version

This is my first article, and I hope you will like to save your time by using validation helper.
