An Improved Version of AGauge (A fast and performing gauge)

Rate me:
Please Sign up or sign in to vote.
4.93/5 (9 votes)
28 Aug 2012Zlib1 min read
An improved version of WinForms gauge control based on AGauge.


This is an improved version of AGauge, a WinForm gauge control created by A.J Bauer. A few changes are made to original codes, details as below. contains compiled DLL and a demo application. Please note that changes are not backward compatible with original code.


Dynamic Gauge Label and Gauge Range

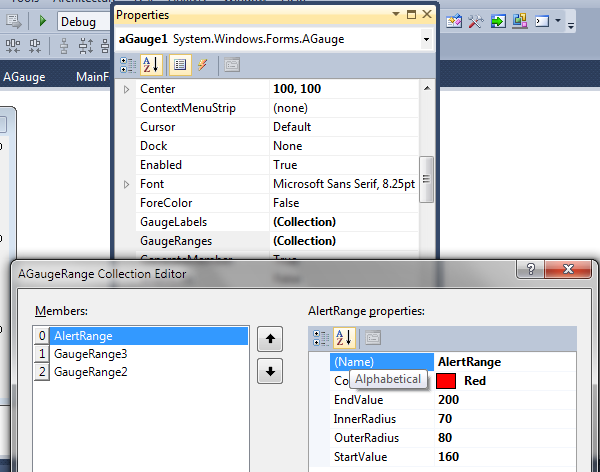

Properties for gauge label (previously known as CapText) and range are grouped into GaugeRanges and GaugeLabels which allow us to create any number of range and label as we wish. Range and label can be edited either from code or using the collection editor from the properties window.

System.ComponentModel.Description("Gauge Ranges.")]
public AGaugeRangeCollection GaugeRanges { get { return _GaugeRanges; } }
private AGaugeRangeCollection _GaugeRanges;

System.ComponentModel.Description("Gauge Labels.")]
public AGaugeLabelCollection GaugeLabels { get { return _GaugeLabels; } }
private AGaugeLabelCollection _GaugeLabels;

Image 1

Besides, each label can use different Font settings since label is an instance of AGaugeLabel.

Added NeedleType Enumeration

AGauge control has two different type of needle design selectable from NeedleType property. Type of NeedleType property waschanged from Int32 (0 or 1) to enumeration type (NeedleType.Advance or NeedleType.Simple) to avoid invalid entry from user.

Image 2


Update ValueInRangeChangedEvent

ValueInRangeChangedDelegate was changed to ValueInRangeChangedEvent to allow multiple subscriptions. The event is changed to trigger only if value is entering or leaving a defined range. Besides, ValueInRangeChangedEventArgs was updated to hold current range and gauge value.

[Description("This event is raised if the value is entering or leaving defined range.")]
public event EventHandler<ValueInRangeChangedEventArgs> ValueInRangeChanged;
private void OnValueInRangeChanged(AGaugeRange range, Single value)
    EventHandler<ValueInRangeChangedEventArgs> e = ValueInRangeChanged;
    if (e != null) e(this, new ValueInRangeChangedEventArgs(range, value, range.InRange));

/// <summary>
/// Event argument for <see cref="ValueInRangeChanged"/> event.
/// </summary>
public class ValueInRangeChangedEventArgs : EventArgs
    /// <summary>
    /// Affected GaugeRange
    /// </summary>
    public AGaugeRange Range { get; private set; }
    /// <summary>
    /// Gauge Value
    /// </summary>
    public Single Value { get; private set; }
    /// <summary>
    /// True if value is within current range.
    /// </summary>
    public bool InRange { get; private set; }
    public ValueInRangeChangedEventArgs(AGaugeRange range, Single value, bool inRange)
        this.Range = range;
        this.Value = value;
        this.InRange = inRange;

Added ValueChangedEvent

The ValueChanged event is added to notify user whenever gauge value is updated. Note that attempting to set gauge value out of defined gauge range will not trigger this event.

[Description("This event is raised when gauge value changed.")]
public event EventHandler ValueChanged;
private void OnValueChanged()
    EventHandler e = ValueChanged;
    if (e != null) e(this, null);


  • 28/08/2012: Initial release (version 2.0.0).
