Automatic Route All Pages in ASP.NET WebForms (AutoRoute)

Rate me:
Please Sign up or sign in to vote.
5.00/5 (7 votes)
13 Nov 2022CPOL2 min read 7.3K   76   10   1
Easily route all pages at once in single line.
A quick and easy way to route all pages in ASP.NET WebForms

Introduction

There are a few factors that affect the path of URL in ASP.NET.

In order to organize the pages, they are normally being grouped with folders.

Here is one of the typical URLs for a page.

/pages/admin/setup/user/v2/EditUser.aspx

The page "EditUser.aspx" located within the folder of "v2", which falls in the folder "user", which falls in the folder "setup", which falls in another folder "admin", which... again falls into yet another folder called "pages".

As the project grows larger, more and more root folders will be scattered all over within the projects.

Since the folder path ties strictly to the path of URL of the file, it will make the URL become very long.

ASP.NET provides a useful function call "Routing" that can solve the long URL problem.

Here's how it is implemented.

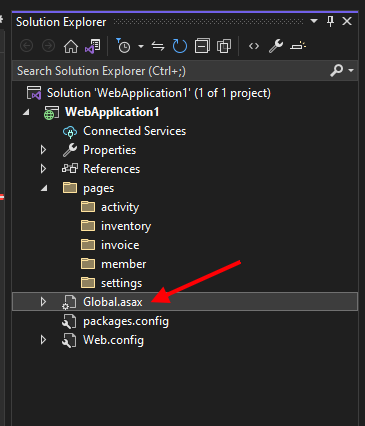

At the root of the project, add a "Global Application Class" file, so called "Global.asax".

Image 1

Open the file "Global.asax".

Image 2

Import the library of routing by adding a using statement:

C#
using System.Web.Routing;

At the method Application_Start:

C#
protected void Application_Start(object sender, EventArgs e)
{

}

Type the routing code:

C#
protected void Application_Start(object sender, EventArgs e)
{
    RouteTable.Routes.MapPageRoute("EditUser", "EditUser",
                                    "~/admin/setup/user/v2/EditUser.aspx");
}

This will make the following URL:

/admin/setup/user/v2/EditUser.aspx

shorten to:

/EditUser

Looks good so far....

What if... there are a lots (yeah... a huge lots) of pages?

Well, ends up you are going to route them all one by one... for example:

RouteTable.Routes.MapPageRoute("UserEdit", "UserEdit",
"~/admin/setup/user/v2/UserEdit.aspx");

RouteTable.Routes.MapPageRoute("UserList", "UserList",
"~/admin/setup/user/v2/UserList.aspx");

RouteTable.Routes.MapPageRoute("UserCategory", "UserCategory",
"~/admin/setup/user/v2/UserCategory.aspx");

RouteTable.Routes.MapPageRoute("UserCategoryEdit", "UserCategoryEdit",
"~/admin/setup/user/v2/UserCategoryEdit.aspx");

RouteTable.Routes.MapPageRoute("InvoicePreview", "InvoicePreview",
"~/invoice/user/v3/InvoicePreview.aspx");

RouteTable.Routes.MapPageRoute("InvoiceSarch", "InvoiceSarch",
"~/invoice/user/v3/InvoiceSarch.aspx");

// ...
// continue for yet another lots of... lots of pages...
// ....

And yeah, you get the idea. That would be a hell lot of lines. The huge lines of routing code will make the maintenance work painful. Bugs can be hard to be monitored.

But, how about... route all the pages automatically in a single line?

Here Is What We Are Going to Do

Use only one single root folder to organize all pages.

For example, instead of having multiple root folders like this:

/settings
/user
/activity
/invoice
/member
/inventory
....

Put them altogether in a single folder like this:

/pages/settings
/pages/user
/pages/activity
/pages/invoice
/pages/member
/pages/inventory

Then, go back to the "Global.asax" file to code the routing commands.

At the Application_Start method, type the following routing command:

C#
protected void Application_Start(object sender, EventArgs e)
{
   RouteFolder("~/pages");
}

Here's the content of RouteFolder method:

C#
public static void RouteFolder(string folder)
{
    // Obtain the root directory path:
    // example: D:\wwwroot\mywebsite\
    string rootFolder = HttpContext.Current.Server.MapPath("~/");

    // ensure the "folder" is prefixed with "~/"
    if (folder.StartsWith("~/"))
    { }
    else if (folder.StartsWith("/"))
    {
        folder = "~" + folder;
    }
    else
    {
        folder = "~/" + folder;
    }

    // obtain the physical folder path
    // example: D:\wwwroot\mywebsite\pages\
    folder = HttpContext.Current.Server.MapPath(folder);

    // Start routing the in another separate method
    MapPageRoute(folder, rootFolder);
}

The MapPageRoute method. First obtain the sub-folders:

C#
static void MapPageRoute(string folder, string rootFolder)
{
    // obtain sub-folders within the 'folder' directory
    string[] folders = Directory.GetDirectories(folder);

    // loop through each sub-folder
    foreach (var subFolder in folders)
    {
        // perform a recursive loop call on every sub-folder
        MapPageRoute(subFolder, rootFolder);
    }

    // obtain all files within the 'folder' directory
    string[] files = Directory.GetFiles(folder);

    // loop through each file
    foreach (var file in files)
    {
        // if the file is an asp.net web page, skip the file
        if (!file.EndsWith(".aspx"))
            continue;

        // convert the file path into web-relative path
        // example:
        // input  >> D:\wwwroot\mywebsite\pages\Member.aspx
        // output >> ~/pages/Member.aspx
        string webPath = file.Replace(rootFolder, "~/").Replace("\\", "/");

        // extract the filename without the extension from the file path
        // example:
        // input  >> D:\wwwroot\mywebsite\pages\Member.aspx
        // output >> Member
        var filename = Path.GetFileNameWithoutExtension(file);

        // check if the file belons to default landing page
        // this file usually existed multiple times within a website
        if (filename.ToLower() == "default")
        {
            // skip routing for the default landing page
            continue;
        }

        // finally, perform the routing mechanism
        // example of input:
        // filename = Member
        // webPath  = ~/pages/Member.aspx
        RouteTable.Routes.MapPageRoute(filename, filename, webPath);
    }
}

So now, instead of doing this:

C#
protected void Application_Start(object sender, EventArgs e)
{
    RouteTable.Routes.MapPageRoute("UserEdit", "UserEdit",
    "~/pages/admin/setup/user/v2/UserEdit.aspx");
    RouteTable.Routes.MapPageRoute("UserList", "UserList",
    "~/pages/admin/setup/user/v2/UserList.aspx");
    RouteTable.Routes.MapPageRoute("UserCategory", "UserCategory",
    "~/pages/admin/setup/user/v2/UserCategory.aspx");
    RouteTable.Routes.MapPageRoute("UserCategoryEdit", "UserCategoryEdit",
    "~/pages/admin/setup/user/v2/UserCategoryEdit.aspx");
    RouteTable.Routes.MapPageRoute("InvoicePreview", "InvoicePreview",
    "~/pages/invoice/user/v3/InvoicePreview.aspx");
    RouteTable.Routes.MapPageRoute("InvoiceSarch", "InvoiceSarch",
    "~/pages/invoice/user/v3/InvoiceSarch.aspx");

    // ...
    // continue for yet another lots of... lots of pages...
    // ....
}

All you need is just one single line:

C#
protected void Application_Start(object sender, EventArgs e)
{
   RouteFolder("~/pages");
}

and Voila! It's done, like magic. All pages are routed without supervision (coding the route command 1 by 1).

All these pages with confusing, complicated URL path (due to organizing pages):

/pages/admin/setup/user/v2/EditUser.aspx
/pages/admin/system/settings/AppConfig.aspx
/pages/user/ViewUserProfile.aspx
/pages/activity/ActivityEventList.aspx
/pages/invoice/v3/PrintInvoice.aspx
/pages/member/group/EditMemberList.aspx
/pages/departments/inventory/setup/InventoryCategory.aspx

will now all shorten to:

/EditUser
/AppConfig
/ViewUserProfile
/ActivityEventList
/PrintInvoice
/EditMemberList
/InventoryCategory

You just need to be careful not to repeat (re-use) the same filename in different folders.

For example (Don't do this):

/pages/member/Search.aspx
/pages/team/Search.aspx

Instead, put the section name within the filename, like this:

/pages/member/SearchMember.aspx
/pages/team/SearchTeam.aspx

and the pages will be routed to as follow:

/SearchMember
/SearchTeam

Okay, that's all for this article.

Thanks for reading and happy coding.

History

  • 14th November, 2022: Initial version
