Introduction
Window docking is a familiar functionality in multi-windows applications. As a user interface developer, this behavior has always charmed me and so I thought of developing the same functionality in my own WPF toolkit. I know there are many implementations of similar solutions out there, some even open source, but my aim was to take this personal project as a challenge and learning opportunity.
I should also mention that the docking solution I have implemented is part of a bigger WPF toolkit that I am building on an ongoing basis under my company MixModes Inc, however I intend to keep it open source and royalty free project. To preview the full feature set of this library, you can visit my blog here.
Many existing implementations of window docking solutions have floating windows as separate windows managed under MDI parent window. However I have kept floating windows contained strictly within parent window as I intend to port this code to Silverlight soon.
I have also hosted this project on CodePlex at: http://mixmodessynergy.codeplex.com/.
Anatomy of Synergy Toolkit
MixModes Synergy toolkit consists of the following top level projects:
MixModes.Synergy.Resources – Contains image and language resources MixModes.Synergy.Themes – Defines default themes for user controls, custom windows, colors, brushes and text themes MixModes.Synergy.Utilities – Common utilities MixModes.Synergy.VisualFramework – Contains behaviors, adorners, commands, user controls, docking framework and other WPF specific functionality Synergy – Sample project highlighting features of the toolkit
Anatomy of Dockable Window
To understand window docking solution, it is necessary to understand the very primitive control that drives it all – the dockable window. A dockable window is a special window that in addition to content and title can be in the following several states:
- Pinned state – Dockable window can be pinned to the side of parent window to have consistent visibility. Usually frequently used content is pinned for easier and constant access.
- Auto hidden state – Less frequently used windows can be auto hidden so when mouse is not hovering over them, they collapse into a condensed form (which I refer to as header). When mouse hovers over the headers, full window slides out from the docked side.

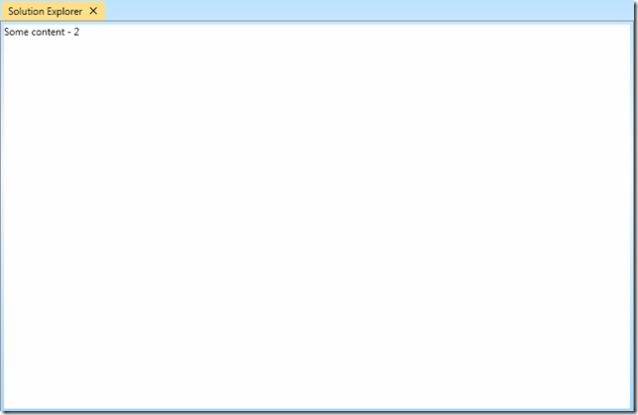

- Document state – When used as a document, dockable windows can merge as tab items within a tab control.
- Floating – Usual floating windows
Docking window support is provided by DockPane control that is derivative of HeaderedContentControl. In addition to Header and Content properties that it inherits from HeaderedContentControl, it also contains the following properties:
Icon – Icon for the docked window CondencedDockPanelTemplate – Template for condensed DockPane CondencedDockPanel – Condensed form of DockPane DockPaneState – State of the dock pane
DockPane also contains the following events:
Close – Close event TogglePin – Toggling of pin / auto-hide button HeaderDrag – Notification that user has started to drag header (title) of the DockPane
Default theme for DockPane is defined in the DockPane.xaml resource dictionary within MixModes.Synergy.Themes project.
Document Containers
DockPane(s) are contained within document containers. Document container is modelled via DocumentContainer class which is derivative of ContentControl. DocumentContainer can be in one of the following (mutually exclusive) states:
Empty – DocumentContainer does not contain any DockPane ContainsDocuments – DocumentContainer contains one or more DockPane(s) as documents SplitHorizontally – DocumentContainer is split horizontally SplitVertically - DocumentContainer is split vertically
DocumentContainer is complex in terms of its template since it is required to represent either a split view or a tabbed view. I have used a persistent TabControl within the template that is hidden if Content property is ever non-null. Content of-course is used exclusively to contain split views via Grid with two children DocumentContainer.
DocumentContainer contains the following properties:
State – State of the DocumentContainer Documents – Contains documents represented in TabControl DocumentsTab – TabControl containing documents DockIllustrationPanel – This is a panel which contains docking illustration points indicating to the user where a content should be docked. If user drags a DockPane to any one of these points, it gets docked at the respective position. The image below shows content of the DockIllustrationPanel:
DocumentContainer contains the following methods:
AddDockPane(DockPane, ContentDockPoint) – Adds a DockPane as a docked window AddDocumentContainers(IEnumerable<DocumentContainer>, bool) – Splits and add child DocumentContainers AddDocument(DockPane) – Adds a DockPane as a tabbed document RemoveDocument(DockPane) – Removes a DockPane as a tabbed document
The template of DocumentContainer contains the following visuals in layers (bottom visuals are in increasing Z-Order):
TabControl (PART_DOCUMENTS) – Bound to Documents property of DocumentContainer ContentPresenter – This is where split children are added Grid (PART_DOCK_POINTS) – Panel for hosting dock illustration points Grid (PART_DOCK_ILLUSTRATION) – DockIllustrationPanel for illustrating future docking via cues
Windows Manager
Windows manager is the component that binds DockPanel(s) and DocumentContainer(s) together to provide window management functionality in applications. In addition, window manager contains auto-hide and pinned dock points on all four window sides so DockPane(s) can be pinned or auto hidden outside of the DocumentContainer(s). WindowsManager also contains the root DocumentContainer that can host documents in tab control or nested-split DocumentContainer instances hosting documents.
WindowsManager has the following properties:

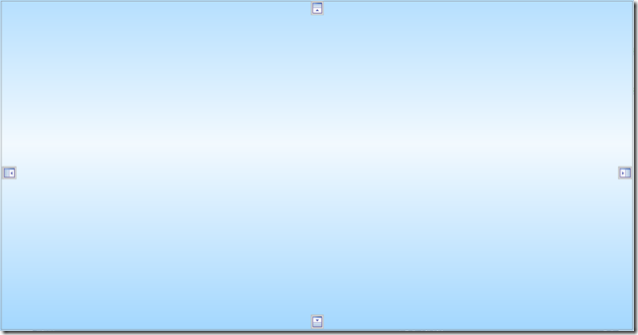

DockPaneIllustrationStyle – Illustration for docking a window within WindowsManager or DocumentsContainer DockIllustrationContentStyle – Illustration for merging documents while dragging a DockPane in TabControl ActiveWindowsManager – Static property indicating a WindowsManager undergoing the drag operation DraggedPane – DockPane that is being dragged <Orientation>WindowHeaders – StackPanel containing condensed auto-hidden DockPane(s) <Orientation>PinnedWindows – DockPanel containing pinned DockPane(s) DocumentContainer – Root document container DockingIllustrationPanel – Docking illustration panel for future pinned DockPanel(s) PopupArea – DockPanel where auto-hidden DockPane(s) slide out when mouse hovers upon the condensed headers FloatingPanel – Canvas that contains floating DockPane(s) DockingPanel – DockPanel that contains dock points for pinned windows as shown in image below:
WindowsManager has the following methods:
AddPinnedWindow(DockPane, Dock) – Adds a pinned DockPane AddAutoHideWindow(DockPane, Dock) – Adds an auto-hidden DockPane AddFloatingWindow(DockPane) – Adds a floating DockPane RemoveDockPane(DockPane) – Removes a DockPane from (pinned, auto-hidden or floating portion of ) WindowsManager Clear – Clears the WindowManager of all DockPane(s) StartDockPaneStateChangeDetection – Starts state monitoring for DraggedPane StopDockPaneStateChangeDetection – Stops state monitoring for DraggedPane
How It All Works Together

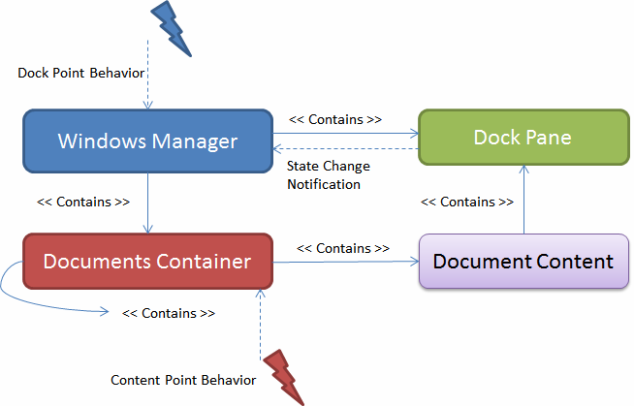

The image below illustrates the relationship between various components of the docking solution:

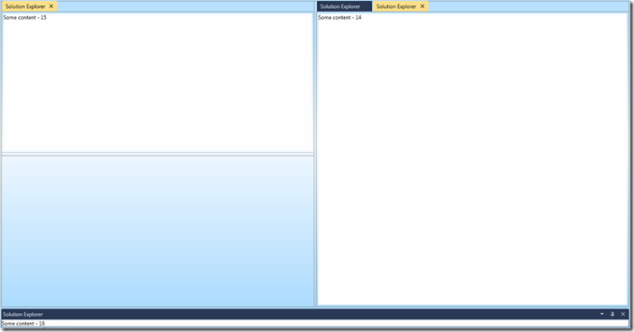

Structurally WindowsManager is the encompassing component that contains pinned and auto-hidden DockPane(s). It also contains the root DocumentContainer. DocumentContainer on the other hand can either contain documents in the tab control by wrapping DockPane within DocumentContent instance or it can contain split windows where a grid holds child DocumentContainer(s), each of which recursively can either contain documents or further child DocumentContainer(s).
WindowsManager constantly monitors the state change of DockPane. When a DockPane drag is detected, it is placed on the FloatingPanel canvas of WindowsManager as a floating window that can be dragged around. During a drag of a DockPane hit testing is turned off on the DockPane so mouse events can flow down to controls below it such as WindowsManager and DocumentContainer.
For orchestrating drag and drop and docking functionality, I have used a behavior driven approach. The idea is to expose functional end-points (such as methods and properties) on visual entities such as DockPane, DocumentContainer and WindowsManager and use behaviors to orchestrate and call these functional end-points. This approach also resulted in manageable-encapsulated components that were easier to trace and test.
DockPointBehavior monitors the dragged DockPane over WindowsManager and pops up dock points for pinning it. ContentPointBehavior on the other hand, injects similar functionality within DocumentContainer for splitting and tab merging purpose.
Both WindowsManager and DocumentContainer have dock illustration grid containing the docking behavior. DockPointBehavior behavior illustrates pinned docking illustration on WindowsManager whereas ContentDockBehavior illustrates splitting and tab merging illustration on DocumentContainer.
Using the Code
Using WindowsManager is extremely simple:
- Import the namespace in the XAML:
xmlns:visualFx="http://mixmodes.com/visualFx"
- Drop the
WindowsManager in the XAML:
<visualFx:WindowsManager x:Name="WindowsManager"/>
- Start creating
DockPane and insert them within WindowsManager / DocumentContainer:
DockPane pane = new DockPane();
pane.Header = …
pane.Content = ….
WindowsManager.AddPinnedWindow(pane, Dock.Top);
WindowsManager.AddAutoHideWindow(pane, Dock.Left);
WindowsManager.DocumentContainer.AddDocument(pane);
Serializing Window State
Out of the box, Synergy provides XML serialization of window states through XmlWindowsManagerSerializer and XmlWindowsManagerDeserializer classes. Custom serialization is supported via specialization of base classes WindowsManagerSerializer and WindowsManagerDeserializer respectively.
XML serialization of WindowsManager using XmlWindowsManagerSerializer requires two pieces of information during construction:
-
DockPane writer – An Action<XmlElement, DockPane> instance that can write additional metadata about a DockPane to the XmlElement.
-
Document writer – A Func<DocumentContent, string> instance that takes in a DocumentContent and returns a string representation of the content. Note: DocumentContent.DockPane property returns the associated DockPane, however the Header and Content properties of DockPane are set to null. To access Header and Content property, use the Header and Content properties of DocumentContent instance directly.
Once XmlWindowsManagerSerializer instance is created, a call to Serialize(Stream, WindowsManager) method serializes WindowsManager to the stream.
Similar to serialization process, deserialization process requires an instance of Action<DockPane, string> within the constructor of XmlWindowsManagerDeserializer to de-serialize a DockPane from previously saved string representation. Deserialization does not require additional Action to realize DocumentContent since DocumentContent is inherently a serialization wrapper for DockPane.
Once XmlWindowsManagerDeserializer instance is created, a call to Deserialize(Stream, WindowsManager) deserializes the WindowsManager to previously saved state.
All the docking functionality can be exercised by using the sample app (Synergy project) with the source code. Any comments or suggestions or bug-reports are as usual always welcome. Happy coding!
