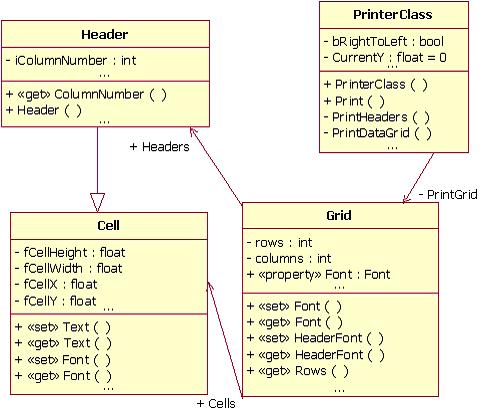

UML Design

Sample Image - Preview.jpg

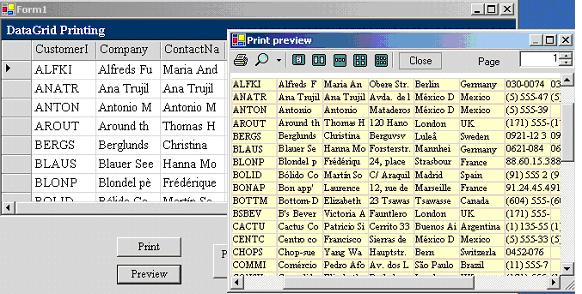

Preview

Introduction

The DataGrid control is one of the worst things to work with, yet very needed. The real problem about this control is printing the grid. This class supports RightToLeft printing, colored and aligned grid printing.

Background

I had to do a project that supports RightToLeft grid printing using VB.NET, but all the printing classes I found just didn't do the job. I found a project but it was written using C# and I had to write the project using VB.NET. So I have rewritten the same project in DataGrid Printing Class V1.0b by nashcontrol in VB.NET.

Implementation

The main class is PrinterClass, it does the actual print. Grid is a class holding the DataGrid data, it's made of cells and headers. Cell represents a single cell in a grid with location, font alignment, etc. Header represents a single header cell (inherits cell).

Using the Code

Grid Creation: Creating the Constructor for the Grid

Public Sub New(ByVal TheGrid As DataGrid)
  Try
      '//get the Data in the grid
      Dim TableGrid As DataTable = Nothing
      If (TheGrid.DataSource.GetType() Is GetType(DataView)) Then
          Dim ViewGrid As DataView = CType(TheGrid.DataSource, DataView)
          TableGrid = ViewGrid.Table
      Else
          TableGrid = CType(TheGrid.DataSource, DataTable)
      End If

      '//set number of rows
      row = TableGrid.Rows.Count

      'set number of columns
      'first check if the grid has tablestyle and columnstyle
      'check for table styles
      If (TheGrid.TableStyles.Count = 0) Then
          '//create table style and column style
          CreateColumnStyles(TheGrid, TableGrid)
      Else
          '//create column styles if there are none
          If (TheGrid.TableStyles(TableGrid.TableName).GridColumnStyles.Count=0) Then
              CreateColumnStyles(TheGrid, TableGrid
          End If
      End If

      '//set number of columns
      column = TheGrid.TableStyles(TableGrid.TableName).GridColumnStyles.Count
      Cells = New Cell(Rows, Columns) {}
      'Copy Cells
      Dim i As Integer
      For i = 0 To Rows - 1
          Dim j As Integer
          For j = 0 To Columns - 1
            Cells(i, j) = New Cell(i, j, TheGrid.Font, _
              TheGrid.TableStyles(TableGrid.TableName).GridColumnStyles(j).Alignment,_
              New RectangleF(0, 0, TheGrid.GetCellBounds(i, j).Width, _
              TheGrid.GetCellBounds(i, j).Height), TheGrid(i, j).ToString())
          Next
      Next

      'init number of columns to headers
      Headers = New Header(column) {}
      SetHeaders(TheGrid, TableGrid)
      'define grid colors
      SetColors(TheGrid)

  Catch e As Exception
      Console.WriteLine(e.Message)
  End Try
End Sub

Grid Printing

Private Function PrintDataGrid(ByVal g As Graphics) As Boolean
  Dim sf As StringFormat = New StringFormat
  PageCounter = PageCounter + 1
  'if we want to print the grid right to left
  If (bRightToLeft) Then
    CurrentX = PrintDoc.DefaultPageSettings.PaperSize.Width_
               - PrintDoc.DefaultPageSettings.Margins.Right
    sf.FormatFlags = StringFormatFlags.DirectionRightToLeft
  Else
    CurrentX = PrintDoc.DefaultPageSettings.Margins.Left
  End If

  Dim i As Integer
  For i = CurrentRow To PrintGrid.Rows - 1
    Dim j As Integer
    For j = 0 To PrintGrid.Columns - 1
      'set cell alignment
      Select Case (PrintGrid.Cell(i, j).Alignment)
        'left
        Case HorizontalAlignment.Left
          sf.Alignment = StringAlignment.Near
        Case HorizontalAlignment.Center
          sf.Alignment = StringAlignment.Center
        'right
        Case HorizontalAlignment.Right
          sf.Alignment = StringAlignment.Far
      End Select

      'advance X according to order
      If (bRightToLeft) Then
        'draw the cell bounds (lines) and back color
        g.FillRectangle(New SolidBrush(PrintGrid.BackColor), _
            CurrentX - PrintGrid.Cell(i, j).Width, CurrentY, _
            PrintGrid.Cell(i, j).Width, PrintGrid.Cell(i, j).Height)
        g.DrawRectangle(New Pen(PrintGrid.LineColor), _
            CurrentX - PrintGrid.Cell(i, j).Width, CurrentY, _
            PrintGrid.Cell(i, j).Width, PrintGrid.Cell(i, j).Height)

        'draw the cell text
        g.DrawString(PrintGrid.Cell(i, j).CText, _
            PrintGrid.Cell(i, j).Font, New SolidBrush(PrintGrid.ForeColor),_
            New RectangleF(CurrentX - PrintGrid.Cell(i, j).Width, _
            CurrentY, PrintGrid.Cell(i, j).Width, _
            PrintGrid.Cell(i, j).Height), sf)

        'next cell
        CurrentX -= PrintGrid.Cell(i, j).Width
      Else
        'draw the cell bounds (lines) and back color
        g.FillRectangle(New SolidBrush(PrintGrid.BackColor), _
          CurrentX, CurrentY, PrintGrid.Cell(i, j).Width, _
          PrintGrid.Cell(i, j).Height)
        g.DrawRectangle(New Pen(PrintGrid.LineColor), CurrentX, _
          CurrentY, PrintGrid.Cell(i, j).Width, _
          PrintGrid.Cell(i, j).Height)
        'Draw text by alignment
        g.DrawString(PrintGrid.Cell(i, j).CText, _
          PrintGrid.Cell(i, j).Font, New SolidBrush(PrintGrid.ForeColor),_
          New RectangleF(CurrentX, CurrentY, _
          PrintGrid.Cell(i, j).Width, PrintGrid.Cell(i, j).Height), sf)

        'next cell
        CurrentX += PrintGrid.Cell(i, j).Width
      End If
    Next

    'reset to beginning
    If (bRightToLeft) Then
      'right align
      CurrentX = PrintDoc.DefaultPageSettings.PaperSize.Width_
                 - PrintDoc.DefaultPageSettings.Margins.Right
    Else
      'left align
      CurrentX = PrintDoc.DefaultPageSettings.Margins.Left
    End If

    'advance to next row
    CurrentY += PrintGrid.Cell(i, 0).Height
    CurrentRow += 1
    'if we are beyond the page margin (bottom)
    'then we need another page,
    'return true
    If (CurrentY > PrintDoc.DefaultPageSettings.PaperSize.Height_
              - PrintDoc.DefaultPageSettings.Margins.Bottom) Then
      Return True
    End If
  Next
  Return False
End Function

Current Todo

  1. Fix - When grid is empty, header is not printed well.
  2. When grid is larger than the width of the page, continue to next.

Other DataGrid Printing Classes

Acknowledgements

Thanks to nashcontrol who has given me permission to upload the project converted into VB.NET.
