CodeProject.AI Server 2.1.8 is now available!
With 2.1.8 we're hoping to get rid of hangs, have better resource usage, and some other general bug fixes.
If you were experiencing a hang on the CodeProject.AI Dashboard, or noticing some additional CPU, memory, or GPU usage, 2.1.8 should resolve those issues.
In addition, if you are a Blue Iris user and were experiencing error 500, please try the latest Blue Iris release, version 5.7.5.6, which should resolve the problem.
As always, please check our README if you are having issues, and if none of those are your issue, please leave a message on our CodeProject.AI Server forums.
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
CodeProject.AI Server is now available on the most popular version of Home Assistant, Home Assistant Operating System!
Technically CodeProject.AI Server has been available on Home Assistant since March as a custom repository, but that implementation and the article demonstrating the installation was on Home Assistant Container.
Home Assistant OS is by far the most popular installation choice of Home Assistant users, according to Home Assistant Analytics, with 68.2% of users opting to use Home Assistant OS.
Now we have an article that walks through, step by step, installing Home Assistant OS on a Raspberry Pi 4, setting up CodeProject.AI Server as a custom repository on Home Assistant OS, and demonstrating a practical use case where CodeProject.AI detects a person and HAOS sends a snapshot of the detected person and notification to Home Assistant Companion, the Home Assistant mobile app.
If you're looking for an artificial intelligence solution for Home Assistant, CodeProject.AI Server is constantly being updated, and we'll be releasing more articles demonstrating how to set up various detection scenarios and automations in Home Assistant.
Thanks,
Sean Ewington
CodeProject
modified 1-May-23 15:10pm.
|
|
|
|
|
CodeProject.AI Server 2.1 is released[^]! The big thing in 2.1 is module control. When you first launch CodeProject.AI Server 2.1, Object Detection (Python and .NET), as well as Face Processing, are automatically installed (rather than the installer installing them), but these modules can now be uninstalled. Every other module can installed, re-installed, uninstalled, or updated from the Modules tab.
We've also added a module for Object Detection on a Raspberry Pi using Coral and a module to Cartoonise images (for fun).
There are a heap of other improvements like better logging, half-precision support checks on CUDA cards, bug fixes, and we’ve made it so that modules are versioned so that our module registry will now only show modules that fit your current server version.
Thanks to everyone for all the support and usage of CodeProject.AI Server so far. We're dedicated to making further improvements so please feel free to give your feedback on our CodeProject.AI Discussions[^] forum. And please give 2.1 a try[^]!
Thanks,
Sean Ewington
CodeProject
modified 21-Apr-23 13:27pm.
|
|
|
|
|
Inspired by this I decided see how hard it would be to add a cartooniser to CodeProject.AI Server

Pretty easy!
Module is due out today.
cheers
Chris Maunder
|
|
|
|
|

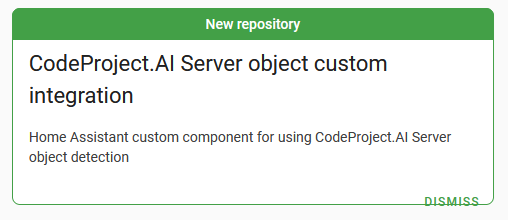

Home Assistant is an IoT home automation tool with a lot of possibilities because it can integrate with various devices and services. With Home Assistant and the right devices you can have things like: a dashboard with all your cameras visible (from your phone, too), an auto-lock for the front door after it’s been closed for three minutes, an alarm system that arms when all the registered users are away, and the ultimate (for some reason) a garage door that automatically closes if it’s been open for a period of time.
There are a lot of potential applications of CodeProject.AI Server and Home Assistant. I’m currently finishing an article that using CodeProject.AI and Home Assistant, detects when a person is in a camera frame, starts recording, and takes a snapshot and sends it to your phone.
For now though, check out the CodeProject.AI-HomeAssist repository[^]. Read up on how to use it, what it can do. Or, you can go straight to the guide that shows, step by step, How to Setup CodeProject.AI Server with Home Assistant Container[^].
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
|

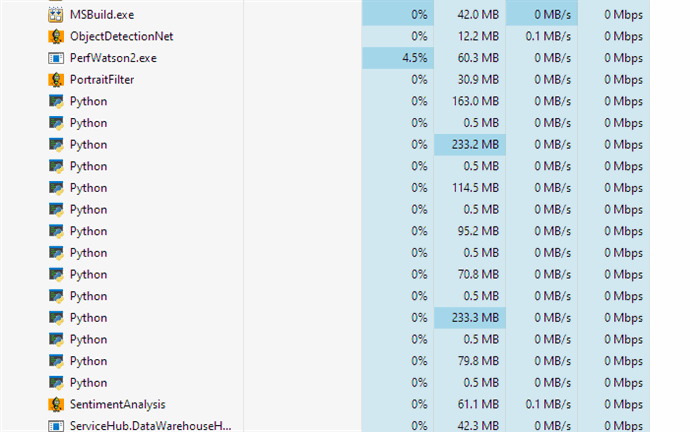

When shutting down CodeProject.AI Server we kept seeing processes remain alive. One of the issues was that if you terminate a Python process from a virtual environment you need to be aware that there are actually two processes running. Here's our solution: Terminating Python Processes Started from a Virtual Environment.
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
One of the great perks of CodeProject.AI Server 2.0 is that it now allows analysis modules to be downloaded and installed at runtime.
In previous versions, we would include a number of modules, which, if we're honest, made the install quite large. Now that we're expanding the modules we offer (Automated License Plater Reader, Optical Character Recognition, Coral support), it made sense to make this more customizable. As of 2.0, the only modules CodeProject.AI Server installs by default are Object Detection, and Face Processing.
In fact there are actually two Object Detection modules. One is a .NET implementation that uses DirectML to take advantage of a large number of GPUs, including embedded GPUs on Intel chips. The other is a classic Python implementation that targets CPU or NVidia GPUs. Each module performs differently on difference systems, so the inclusion of both allows you to easily test which one suits you best.

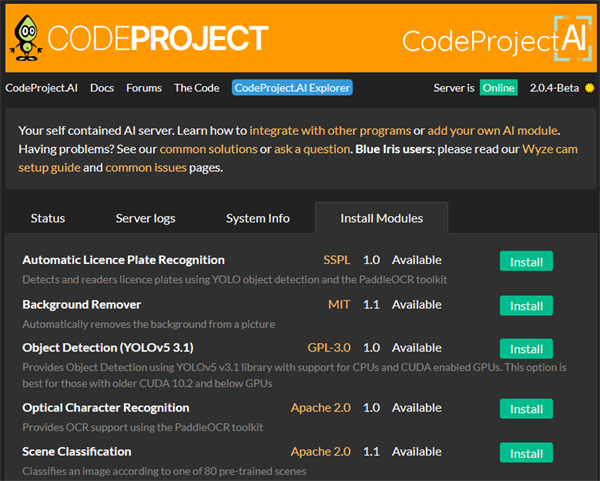

To install a module you want, simply go to the Install Modules tab, and click the Install button. That's it! The module automatically pulls and installs for you.
If you no longer want a module installed, simply click Uninstall, and the module will be removed.

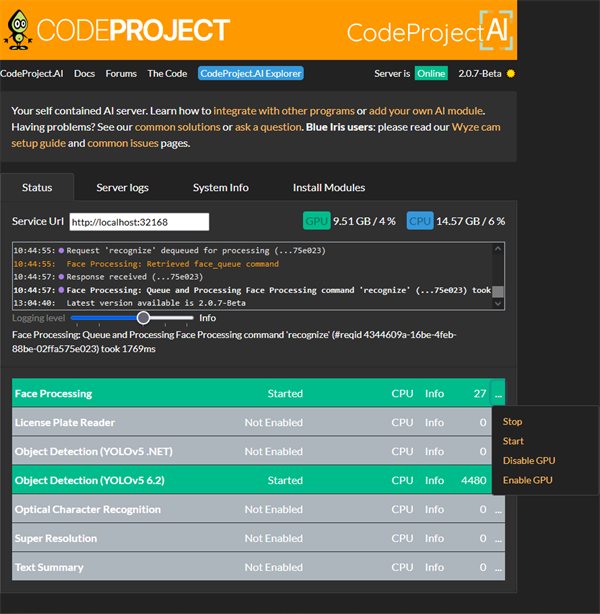

As always, you can still toggle which modules you want active from the Status tab. Simply click on the ... dropdown in the desired module and hit Start or Stop.
In addition, if a module needs an updated, simply go to the Install Modules tab, and click the Update button.
Our goal is to make AI as accessible and easy to use as possible. If you've struggled to play around with AI in the past, give version 2.07 a try.
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
CodeProject.AI Server 2.0.5 is officially released! This version has a plethora of additions and we're hoping will be a greater foundation for AI functionality moving forward.
The biggest part of CodeProject.AI Server 2.0.5 is the runtime ability to install / uninstall modules.
We have a new Module Repository which allows us to add, update and remove modules separately from the main server installation is more compact, it also provides more options for module use. For example, version 2.0.5 now includes a module (Object Detection YOLOv5 3.1), based on an older version of PyTorch, which is ideal for those with older CUDA 10.2 and below GPUs.
In addition, CodeProject.AI Server now includes an Automatic License Plate Recognition (ALPR) module for detecting and reading license plates and an Optical Character Recognition module.
We have also improved our .NET based Object Detection module with increases in detection speeds by up to 20%. This modules uses ML.NET, which provides support for a wide range of non-CUDA GPU cards, including embedded Intel GPUs.
If you're interested in learning, or getting involved in AI, download CodeProject.AI Server version 2.05 today.
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
Tweaking the install / setup scripts on a Raspberry Pi by running VS Code and our installers on the Raspberry Pi natively. Same experience as a Mac or Windows box. Same tools, same scripts, same models. All in a teeny tiny little not-so-toy computer.
cheers
Chris Maunder
|
|
|
|
|
The ‘server’ part of CodeProject.AI Server is now .NET 7, with all the wonderful teething problems and workarounds that make a developer’s life so much fun.
While our server is only a very small part of the overall system, it’s crucial that it’s fast, easy to debug, and runs everywhere we need it to. With .NET 7 there are a bunch of performance improvements and some new features that will benefit us in the future. .NET 6 will be a distant memory for everyone soon enough so we’ve gone through the upgrade pain now to save us later on.
The upgrade raised several errors and warnings about null references or using nulls inappropriately, due in part to additional features in C# and .NET 7. A few easy fixes later and ... the application didn't run properly.
It turns out there's a bug in .NET 7.0.0 where loading a dictionary from a configuration file fails. More specifically, option binding for a ConcurrentDictionary works fine in .NET 6, but fails in .NET 7. I have a workaround which I’ve posted on CodeProject here: Workaround for ServiceCollection.Configure<t> failing where T is ConcurrentDictionary<string, tmyconfig=""> in NET7. This issue will be resolved in .NET 7.0.1.
"Time flies like an arrow. Fruit flies like a banana."
|
|
|
|
|
Some Blue Iris users who are using CodeProject.AI Server want to know how to detect objects at night. Or some Blue Iris users are able to detect objects at night, but the detection is unreliable. In one case a user from the ipcamtalk forum experienced issues detecting cars at night. The user finds if the car drives fast enough, CodeProject.AI Server can detect it, if the car drives too slow, CodeProject.AI Server only scans the headlights.
The user tried changing their Artificial Intelligence settings to check live images at various intervals: 100 ms, 200 ms, 500 ms, and 750 ms, but to no avail. However, the issue is not in the intervals of checking the live images, but instead the number of real-time images to analyze.
Under the setting +real-time images, simply increase this number until detection is no longer a problem, and in the To cancel box, put an item like giraffe or banana. This will stop Blue Iris sending CodeProject.AI Server images as soon as it finds something in the To confirm box. The To cancel box forces Blue Iris to send CodeProject.AI Server every image.
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
We've hit 50,000 downloads of CodeProject.AI Server!
Thank you to everyone who downloaded CodeProject.AI Server, and an extra special thank you to those that tried it, are using it, have posted bugs, suggestions, encouragements, ideas and wisdom. Most of all, thanks for giving it a go and supporting us in this crazy fun journey.
CodeProject.AI Server has come a long way since its release in January of this year. We've added support for custom models, GPU support including integrated GPUs and the Apple Silicon M chips, and we’re adding more Docker containers including our latest which support Arm64 on Apple and Raspberry Pi devices. We’re also proud to be the AI service of choice for Blue Iris. And with the improved integration with Blue Iris, we’re now running live for tens of thousands of Blue Iris users.
And this is just the beginning. We're committed to making our fast, free, self-hosted, AI server as easy to use as possible, everywhere you need to use it.
If you're interested in learning, or getting involved in AI, download CodeProject.AI Server today.
Thanks,
Sean Ewington
CodeProject
|
|
|
|
|
A number of people are using CodeProject.AI Server with Blue Iris, a video security software package. Our server supplies the AI smarts to detect things like vehicles, people, and custom objects from the video feeds.
Last month we got an error from a Blue Iris user who was using GPU processing. The error Blue Iris gave them was "AI: not responding."
In their error report, the user indicated they were using an NVIDIA GeForce GTX 1070 Ti which, we discovered, is not able to use half precision in its image processing for AI.
When doing a prediction (or inference) of an image to determine what's in it, this prediction process uses a model. Within the model there is a set of weights that are basically the coefficients that are assigned to various points in the model. When you download a model, you are downloading (among other things) a series of weights that have been trained for a particular process or AI task such as detecting raccoons. The weights assist in considering the input, like an image, to help determine the values of a set of outputs, one of which could be whether a raccoon was detected in the image.
This training process uses a set of inputs with known outputs. It runs the detection process and measures the error of the output to the expected known output. The training process tries to minimize the error by backwards propagating and adjusting all the weights all the way back, then doing it over and over again until it converges to an acceptable error rate. This process takes a lot of time and processing power.
The detection process uses the trained model’s weights to take an input - in this case an image - and calculates the probability that an object was trained to detect is in the image, and where it is located.
Part of this processing time has to do with your graphics card. Some graphics cards use half precision floating-point format, or FP16. If the card does not support half precision, or the processing is being done on the CPU, 32-bit floating point (FP32) is used. These are the number formats that are used in image processing.
For image processing, FP16 is preferred. Newer NVIDIA GPUs have specialized cores called Tensor Cores which can process FP16.
But for those with graphics cards that do not have Tensor Cores and are trying to use Blue Iris with CodeProject.AI Server, they would get an error message that read "AI: not responding."
In order to address this, we determined which models of the NVIDIA GPUs actually supported FP16 and created a table which says, "these graphics cards don't support FP16 and so don't try and use FP16 for those GPUs anymore." Hopefully we've got a comprehensive list. We may not and we'll have to adjust it if we find any more, but for now, here is our list:
- TU102
- TU104
- TU106
- TU116
- TU117
- GeoForce GT 1030
- GeForce GTX 1050
- GeForce GTX 1060
- GeForce GTX 1060
- GeForce GTX 1070
- GeForce GTX 1080
- GeForce RTX 2060
- GeForce RTX 2070
- GeForce RTX 2080
- GeForce GTX 1650
- GeForce GTX 1660
- MX550
- MX450
- Quadro RTX 8000
- Quadro RTX 6000
- Quadro RTX 5000
- Quadro RTX 4000
- Quadro P620
- Quadro P400
- T1000
- T600
- T400
- T1200
- T500
- T2000
- Tesla T4
"Time flies like an arrow. Fruit flies like a banana."
|
|
|
|
|
Way, way more fiddly than I expected but there you have it.
Here are the quick notes on this:

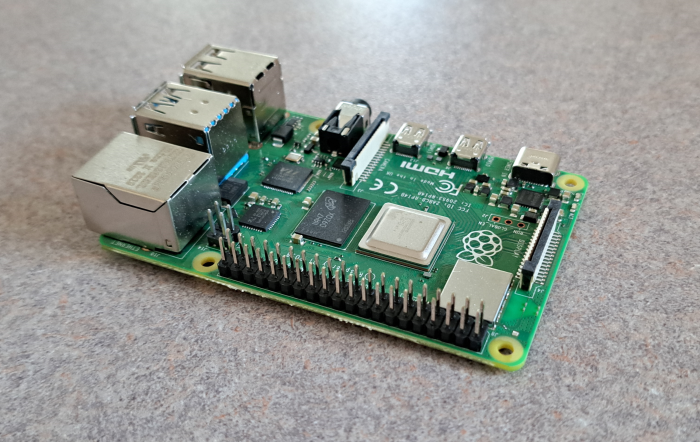

- The Raspberry Pi 400 is a self contained quad core 64bit Arm-based Raspberry Pi built into a keyboard.
It comes preinstalled with a 32bit OS. Sigh. Download the imager from Raspberrypi.com and make yourself a 64bit OS installer. It's easy, just annoying.
- Building a docker container for Arm is easy, sort of. Once you have the correct base image, you have the build targets correct, you get things to build and then the image builds properly, then it's all smooth sailing. We settled with using arm64v8/ubuntu:22.04 as the base Docker image. I built using an M1 mac mini because the thing is so crazy fast for such a seemingly modest machine.
- Fitting everything into a Docker image that will fit on a Pi means making hard calls. For this demo I only included the Python Face detector, Object detector and scene classifier. This made it almost pocket sized at 1.5Gb. Build, push, move back to Pi...
- Back to the Raspberry Pi, you'll note Raspberry Pi's don't come with Docker. Update your system and install Docker:
sudo apt update
sudo apt upgrade
curl -fsSL <a href="https://get.docker.com">https://get.docker.com</a> -o get-docker.sh
sudo bash get-docker.sh
- Pull the RaspberryPi image:
sudo docker pull codeproject/ai-server:rpi64-1.6.8.0
- Run the Docker image:
docker run -p 32168:32168 --name CodeProject.AI-Server -d codeproject/ai-server:rpi64-1.6.8.0
- Launch the dashboard: http://localhost:32168
Memory is a huge issue and this docker image is not exactly useable at this point. What you're seeing here is literally the first run - a proof of concept that it all works give or take resource constraints. The servers are up, the queues are being polled, the logs are being written, the model layers are being fused.
Small steps, but another small hill climbed. Onto the next.
cheers
Chris Maunder
|
|
|
|
|
Recently for CodeProject.AI Server we were looking to increase the number of frames per second we can handle (throughput) as well as figure out how to be able to analyze frames from a video stream on the backend.
Here's the flow of how CodeProject.AI Server works. Someone writes an application that calls CodeProject.AI Server with a request for data that gets put into a queue for the backend module. The backend module requests data from the queue, gets it, figures out what it supposed to do with it, processes it, and then it sends the response back, which gets sent back to the original caller.
See Adding new modules to CodeProject.AI - CodeProject.AI Server v1.6.5 for more details on the system architecture.
So, what we're doing is looking at the part between the frontend and the backend module, trying to reduce the communication time there.
To help do this we looked at SignalR, Microsoft's library which can establish a permanent or semi-permanent connection. The nice thing about SignalR is that it's got all the infrastructure built in for handling reconnects, doing remote procedure calls, and streaming data.
We hunted around for an existing Python package to handle SignalR for Python using asynchronous calls. Unfortunately, there wasn't much. There was one Python package, signalr-async, that looked promising, but it required Python 3.8 or higher. Currently CodeProject.AI Server is running Python 3.8 for Linux, and Python 3.7 for Windows for some modules.
Ultimately, we ended up pulling the code from that Python package and getting it to work on Python 3.7 and 3.8.
We had some trouble getting it to work properly, so we wrote a little .NET client (because it's easier to debug and understand), which helped us realize we were using the Python package incorrectly.
In our Python code, we're running multiple tasks. And it turns out that each of those tasks needed a separate SignalR connection, as opposed to sharing that connection across all the tasks.
Once we made that change things were working, but it was slower than the existing http request/response method we currently use.
So, we went back to the aiohttp Python package documentation. It turns out we’re already doing the best we can in terms of communication speed between the frontend and the backend module. This is because the session object maintains a pool of connections for reuse, eliminating most of the overhead of making a request.
But that's how it goes. Not all experiments are successful, but the result is important. It tells us where our limits are and helps us move on to doing things better and faster.
We're still going to be looking at getting streaming working in the most efficient manner so we can process video streams at a higher rate. It appears aiohttp can handle streams in addition to standard request/response communication, but more on that later.
"Time flies like an arrow. Fruit flies like a banana."
|
|
|
|
|
I know your using SignalR as per the article, but did you ever consider looking into using the "WAMP" protocol?
The Web Application Messaging Protocol — Web Application Messaging Protocol version 2 documentation
I've been using it for a number of years now for everything from web messaging, to replacing all those horrible Grpc calls from proto-buf.
There's a really great implementation of it in C#, in the form of "Wamp Sharp"
WampSharp
and if you look at the protocol page in the first link there are top class frameworks for all the mainstream languages, including python (See the implementations page on the first site link)
|
|
|
|
|
Last week was Docker week.
Last week was meant to be, "Let's completely revamp the installer in preparation for new modules," but we're all software developers so we know how that goes.
Some back story:
CodeProject.AI Server is, well, a server. It's deployed as a standalone service, doesn't need a built-in UI, and is perfect for Docker. Especially since those who employ CodeProject.AI Server will often have other services in other Docker containers alongside.
For those new to Docker, Docker is a system that allows you to create an entire system - OS, applications, data, the lot - inside a single container. That container can then be run anywhere Docker runs, which is almost everywhere. So I build a Docker container that has Ubuntu installed as the base OS, add CodeProject.AI Server, the analysis modules, the AI models, and drivers if needed, and then I can run that Docker image on my PC, my Mac, my Raspberry Pi, or my QNAP storage device. One container, any platform.
Tip 1. It's important to note that when running Docker, performance depends on the difference between the OS and architecture in the container and the OS and architecture of the system upon which you run that container. This is called foreshadowing.
We want our CodeProject.AI system to be able to add and update modules at runtime. That's not too hard. But we need it to be fast and efficient. We also need it to work on the hardware many users will have. And we want to use the tools we know and love.
Tip 2: Tools for cross platform development will work perfectly well for most, but not all, environments. This is also foreshadowing.
The first step in improving the installer is that we need to ensure CodeProject.AI Server runs in Docker nicely. CPU only is perfect on Intel Mac, Linux and Windows. Our Nvidia GPU Docker image works on Windows and Linux perfectly (macOS doesn't support Nvidia anymore. It's a long sordid story...). M1 / M2 macOS... doesn't work.
Tip 3: When building cross-platform solutions with cross-platform aware tools and compilers you generally shouldn't need to worry about the hardware and OS architectures you're targeting. The tools should be self-aware enough to handle that for you. Yeah, foreshadowing.
So we want to
- allow CodeProject.AI Server to be updateable at runtime
- ...and to do this while running in a Docker container
- ...on any platform
- ...using the tools generally availble to developers
Which means
- Our code should work with Visual Studio Code and VS 2022
- ... in Linux, macOS, and Windows, both x64 and Arm64
- ... and be able to generate Docker images that work on these platforms
- ... and allow updates and installs to happen at runtime.
See how the goal of the week has been pushed to the bottom?
Long story short is that we hit these issues:
- VSCode works really well cross platform, except when it comes to Intel macOS vs Apple Silicon macOS. You have to do some workarounds
Your tasks.json file, for instance, allows you to apply conditionals based on whether you're in Windows, Linux or OSX. But OSX is now split between Intel and Apple Silicon. No real drama, but it means you can no longer have a one-task-fits-all solution. Break it up into Intel and M1 and make sure you choose the right one each time.
- Docker containers built using x64 OSs don't run efficiently on the Apple Silicon Arm64 (and we assume, any Arm64 OS like Raspberry Pi OS)
Again not a terrible hassle because there are Arm64 base Docker images for Ubuntu available. Instead of "from ubuntu:22.04" you do "from arm64v8/ubuntu:22.04" and your image will start off on the right footing.
- When you build for a given platform you need to include the correct libraries (eg Nuget) for your platform, and for this you need your compilers to get the correct information from their environment. For .NET this means ensuring the correct Runtime Identifier is specified in the project file.
This killed us. Some features simply aren't available on some platforms, or available as dev builds, so you need to specify different packages based on different OSs and hardware. You also need to ensure (in .NET) your RuntimeIdentifiers are correct so the package managers will hook up the correct builds of the packages.
What we did was include the following in each project file:
<PropertyGroup>
<IsWindows Condition="'$([System.Runtime.InteropServices.RuntimeInformation]::IsOSPlatform($([System.Runtime.InteropServices.OSPlatform]::Windows)))' == 'true'">true</IsWindows>
<IsLinux Condition="'$([System.Runtime.InteropServices.RuntimeInformation]::IsOSPlatform($([System.Runtime.InteropServices.OSPlatform]::Linux)))' == 'true'">true</IsLinux>
<IsOsx Condition="'$([System.Runtime.InteropServices.RuntimeInformation]::IsOSPlatform($([System.Runtime.InteropServices.OSPlatform]::OSX)))' == 'true'">true</IsOsx>
<IsArm64 Condition="'$([System.Runtime.InteropServices.RuntimeInformation]::OSArchitecture)' == 'Arm64'">true</IsArm64>
</PropertyGroup>
<PropertyGroup>
<RuntimeIdentifier Condition="'$(IsArm64)'!='true' And '$(IsWindows)'=='true'">win-x64</RuntimeIdentifier>
<RuntimeIdentifier Condition="'$(IsArm64)'=='true' And '$(IsWindows)'=='true'">win-arm64</RuntimeIdentifier>
<RuntimeIdentifier Condition="'$(IsArm64)'!='true' And '$(IsLinux)'=='true'">linux-x64</RuntimeIdentifier>
<RuntimeIdentifier Condition="'$(IsArm64)'=='true' And '$(IsLinux)'=='true'">linux-arm64</RuntimeIdentifier>
<RuntimeIdentifier Condition="'$(IsArm64)'!='true' And '$(IsOsx)'=='true'">osx-x64</RuntimeIdentifier>
<RuntimeIdentifier Condition="'$(IsArm64)'=='true' And '$(IsOsx)'=='true'">osx.12-arm64</RuntimeIdentifier>
</PropertyGroup>
<PropertyGroup>
<TargetFramework>net6.0</TargetFramework>
<TargetFramework Condition="'$(IsWindows)'!='true'">net6.0-windows</TargetFramework>
</PropertyGroup>
<Target Name="SettingsCheck" AfterTargets="BeforeBuild">
<Message Importance="High" Text="TargetFramework: $(TargetFramework)" />
</Target>
`
This gives us the platform (Windows, Linux or OSX, and the hardware (Arm64 or x64).
For the Microsoft.ML.OnnxRuntime package we know that it's compatible everywhere using the basic Microsoft.ML.OnnxRuntime. For general GPU support on Windows, use Microsoft.ML.OnnxRuntime.DirectML, and for CUDA GPU support (Windows and Linux) use Microsoft.ML.OnnxRuntime.Gpu. For Docker we're running Linux, x64, except for M1 chips where we use Linux, Arm64.
So to handle running our code natively as well as handling Docker builds, we get
<PackageReference Include="Microsoft.ML.OnnxRuntime.DirectML" Version="1.12.1" Condition="'$(IsWindows)'=='true'" />
<PackageReference Include="Microsoft.ML.OnnxRuntime.Gpu" Version="1.12.1" Condition="'$(IsLinux)'=='true' And '$(IsArm64)'!='true'" />
<PackageReference Include="Microsoft.ML.OnnxRuntime" Version="1.12.1" Condition="'$(IsLinux)'=='true' And '$(IsArm64)'=='true'" />
<PackageReference Include="Microsoft.ML.OnnxRuntime" Version="1.12.1" Condition="'$(IsOsx)'=='true'" />
We're not quite there yet for the M1 Docker image, but we're close. Once we have that done we can get back to starting our goal from 9AM last Monday morning.
cheers
Chris Maunder
modified 23-Oct-22 9:26am.
|
|
|
|
|
We’ve been working with Blue Iris to provide them the best AI support we can. Blue Iris is a video security and webcam software that does an amazing job of managing multiple cameras without overloading your system. It’s insanely full featured, and the addition of Object Detection using AI enables specific triggers in Blue Iris to be fired intelligently.
Last week Blue Iris included CodeProject.AI Server as part of its startup. Now when you install version Blue Iris 5 (versions 5.6.2.1 or higher) you will receive a popup that asks if you want to download and install CodeProject.AI Server, which will take you the CodeProject.AI Server download page.
To use CodeProject.AI Server with Blue Iris, simply install Blue Iris and CodeProject.AI Server, go to the AI tab in Blue Iris settings and check the box "Use AI server on IP/port." From here you can open the AI control panel which will load the CodeProject.AI Server console (which will also let you know if you're using the latest version or not).
Thanks,
Sean Ewington
CodeProject
modified 19-Oct-22 19:59pm.
|
|
|
|
|
Apple released their M series chips a few years ago, but it's only relatively recently that libraries such as PyTorch have provided support.
The benefits are dramatic. Some benchmarks show an over 20X increase in speed for the M1 GPU over just the CPU when running AI training and inference on an M1 Mac using the GPU vs the CPU.
So naturally I dug in and added M1/M2 GPU support to CodeProject.AI. From reading the docs it seemed super simple:
1. Install torch and torchvision via pip
2. use torch.backends.mps.is_available to test for MPS (Metal Performance Shaders)
3. set the torch device as "mps"
4. Bask in GPU awesomeness
Yeah, nah. It won't work out of the box.
First, PyTorch has M1 GPU support. Sort of, kind of. There's lots and lots of things that haven't yet been included, and it's a rapidly evolving library meaning you will want to include the nightly builds in your requirements.txt file (for PIP installs)
--pre
--force-reinstall
--extra-index-url https://download.pytorch.org/whl/nightly/cpu
torch
--pre
--force-reinstall
--extra-index-url https://download.pytorch.org/whl/nightly/cpu
torchvision
This allows PIP to use pre-release, it forces a reinstall to avoid caching, and it tells PIP where to find this magical nightly build version.
Second, Python is cross platform so if you only run the code on a machine where MPS has been included in the pytorch package you install, you're fine. The rest of the world needs something like
use_MPS = hasattr(torch.backends, "mps") and torch.backends.mps.is_available()
Third, you may need to adjust your code and force some things to use the CPU instead of the GPU. For example, currently TorchVision for Apple M1 doesn't support nms, so our YOLO code must be changed from
pred = non_max_suppression(pred, confidence, 0.45, classes=None, agnostic=False)[0]
to
pred = non_max_suppression(pred.cpu(), confidence, 0.45, classes=None, agnostic=False)[0]
The list of not-yet-supported methods is on GitHub[^]. If you have a fave issue go and vote for it.
So far I've seen a roughly doubling of performance for inference using the YOLOv5 model in CodeProject.AI, which is a nice boost for just a couple of hours of work. The changes are integrated into the 1.5.7.4 codebase of CodeProject.AI.
cheers
Chris Maunder
|
|
|
|
|
I feel like we're discussing how to install a fridge when all you want is a nice, cold beer but we're nothing without solid infrastructure.
In CodeProject.AI we support adding backend analysis modules in any language and tech stack, as long as that module can be installed (and uninstalled) neatly.
Python is obviously the biggest player in the AI space so supporting Python is critical. It's also tricky, and we rely on Python Virtual Environments to keep things clean. Clean-ish.
A Python Virtual Environment can lead one to think of a sandbox, or virtual machine where the environment is completely encased in a leak-proof container that protects it from interference from the outside, and protects the outside from harmful processes on the inside.
This isn't a Python Virtual Environment.
To create a a Python Virtual Environment for a given version of Python you must first have that version of Python installed in your environment. You run the command to create the a virtual environment (python -m venv) and what you get is a folder that contains a copy of, or symlink to, your original Python interpreter, as well as a folder to any Python packages you need to install into that a virtual environment.
This is your Python Virtual Environment.
The secret sauce is the "Activate" script which simply sets environment variables so that when you type "Python" at the command line, the Python interpreter inside your a Virtual Environment will be launched, not the system-wide version. Deactivate the Virtual Environment and the environment variables are reset, and your OS-default version of Python is now the default.
The details of this are not important.
The important part is that when you "activate" the virtual environment and then install packages via pip install, those packages will live inside the Virtual Environment's folder, and not inside the OS's global python package folder. This allows you to have different versions of the same package installed in different virtual environments.
Python installed in your OS with package A, package B
and also Python installed in Virtual Environment 1 with package A 2.0, package B
and also Python installed in Virtual Environment 2 with package A, package B 2.0
Installing Python in CodeProject.AI
When we install Python in a CodeProject.AI setup we either XCOPY in the Python executables (for Windows), or use apt-get or brew (Linux / macOS) to ensure we have a base Python installation, and then we create the Virtual Environment using the standard python -m venv and install the python packages.
But we do it like this:
"[PythonFolder]python.exe" -m venv "[PythonFolder]venv"
"[PythonFolder]venv\scripts\pip.exe" --no-cache-dir install -r requirements.txt --target "[PythonFolder]venv\Lib\site-packages"
Where [PythonFolder] is \src\AnalysisLayer\bin\Windows\Python37\ for Windows and Python 3.7
This calls the python interpreter and the pip utility from within the Virtual Environment directly, and ensures the output of these commands will also be within the Virtual Environment. No need to activate the Virtual Environment during this.
Even more importantly: You do not need to have Python or any Python tools setup on your machine for this to work. The whole point of our installer (and our dev installation scripts) is to allow you to be up and running with no prep. We do all that for you.
Using Python in CodeProject.AI
We create a virtual environment for each version of Python that we install. We still do not need to activate those environments. This is partly because we're calling the Python process from our server directly, and not from a command terminal. Calling a script to set environment variables prior to launching Python is a little cumbersome.
We could set the PATH variables directly, but we don't need to: we call the specific Python and Pip executables from the virtual environment using their full paths. On top of this, in our codeprojectAI.py module wrapper we add the path to the virtual environment's packages directory to sys.path in the code itself.
This means that
- The correct version of Python will be called
- The packages installed in the virtual environment will be used in preference to the packages installed globally
So there is no need to activate the Virtual Environment.
What we gain from this approach
We control the environment, we gain the flexibility of virtual environments, and we can add as many versions of python and as many combinations of installation packages as we need
What we lose from this approach
The biggest is size. Each Virtual Environment contains copies of packages probably installed elsewhere. PyTorhc, for instance, can be well over 1.3GB in size for the GPU enabled version. While size can be important, the size of Python modules will quickly pale in comparison to AI models, and even more so when one considers the data being input to these models. Video footage, for instance, gets really big, really fast.
The other downside is that modules installed in CodeProject.AI must use our module wrapper Python module to ensure the PATH is set correctly for the import statements to work, or they need to do that themselves. It's a small tradeoff given that using our SDK means 90% of the plumbing is done for you.
cheers
Chris Maunder
|
|
|
|
|
The only issue for us is the size of the models so we'll have to work out a simple way to allow you to pick and choose what, if anything, comes down the wire when you install. Still: this opens up a fun world of opportunities for us.
New release first thing next week.
cheers
Chris Maunder
|
|
|
|
|
Blue Iris Software has just announced the release of their first version that uses senseAI as their AI provider. This is very cool.
On top of that we've had word on senseAI and Agent DVR integration.
We'll be needing Custom model support and GPU support to ensure we can provide their end-users with the best experience possible. The timeline is within 2 weeks at the outside. Who needs sleep.
cheers
Chris Maunder
|
|
|
|
|
According to a recent StackOverflow survey 45% of developers use Windows, 25% macOS, and 71% use Visual Studio Code.
I've been trying, for years, to make a mac my primary machine and I've gone to many painful and frustrating lengths to get there. Except I've never quite got there.
I'm happy to announce, though, that as of tonight we have the senseAI development experience on Windows and macOS essentially on par (give or take the .NET WinForms demo app). If you live in VS Code you won't see any difference.
The caveat here is that we're talking macOS on Intel. macOS on Apple Silicon is a whole different bag of broken parts and we're still waiting for libraries such as the ONNX runtime to support Apple Silicon, and we still have issues with some .NET image libraries on the new chips.
Things will progress and with the release of the new M2 chips I'm sure everything will catch up sooner rather than later. It was announced just a few days ago that even Visual Studio 2022 would run natively on Arm64, meaning Visual Studio running in parallels on a new mac may now be an option for the times when one wants a little arm-chair style comfort in their development day.
cheers
Chris Maunder
|
|
|
|
|
We've just released senseAI v1.4.0 and we fell into the trap of "just one more thing" while working to get the release out.
Here's a timeline you've probably had yourself:
- We need to add feature X. Let's go!
- We hop on a Zoom call and start brainstorming ideas on how to do this.
- We settle on an idea and go for it
- One of us, deep in the bowels of the code, realises there's refactoring that could be done
- To release, then refactor, then re-release? Or refactor, since I'm here anyway, and then release?
And you know what happened. The urge to release the best code beat the urge to provide our users with new functionality.
Maybe we've been burned too many times by rushed releases. Visual Studio seems to be less and less stable and more and more bloated. Apple's iOS has an exciting history of chaos. CodeProject itself has broken things left, right, and centre more times than I care to remember.
But here's the issue with waiting till it's perfect.
It will never be perfect. We'll be lucky if it will be stable and useable. If we're really, really lucky it will be useful. That's simply the reality of software development.
So by holding off on releasing the code we ended up making the engine run smoother, a little faster, a little more efficient, but (to stretch the analogy) we're not letting anyone drive a perfectly functional car. And the purpose of writing software is to provide something your users can use. Hence the term. Users.
Having said here's a little more background to our decision.
The change we made, instead of releasing the code, was in the manner in which you add a module. One of the core pieces of senseAI is to make it easy for developers to integrate AI into their apps by taking wonderful Open Source projects and aggregating them into senseAI's environment. We make sure the runtime is sorted out, the packages are installed, the API is solid, the installer works, and developers just provide the fun stuff.
Our change was that we took a process that required maybe a little too much understanding of the mechanics of how it all works, and turned it into a process that required writing a single callback function. 240+ lines of reasonably complex code down to 65 lines of very straightforward code.
So our decision was wasn't "do we release new functionality" but rather "do we continue to encourage developers to use a painful way of adding modules when we know full well that in a week we'll have a much, much better way".
It's these sorts of decisions that have to be weighed against your users, your marketing objectives, your budget and your stakeholders. Maybe marketing needs something, anything to talk about. Maybe Marketing can't handle the complaints when poor release decisions are made. Maybe you need to demonstrate progress or maybe you need to know whether it's even worth continuing in a certain direction before even thinking about refactoring.
Development time is super, crazy expensive, so these decisions are important.
cheers
Chris Maunder
|
|
|
|
|
General
News
Suggestion
Question
Bug
Answer
Joke
Praise
Rant
Admin
Submit an article or tip
