Working with Excel Using C#

, 18 Dec 2013
Rate this:
Please Sign up or sign in to vote.
Demonstration of Excel manipulations using C#

Introduction

This article targets at understanding Excel file manipulations programmatically using C#. As this article is intended for the beginner/intermediate level, a quick demonstration of read/write operations on Excel files is supplied with the help of a sample WinForms application.

Background

Very often we work with MS Office tools like Word, Excel, PPT, etc.. And there is a definitive way to work with these applications using the .NET Framework.

The features implemented in the attached app include:

  1. Loading an Excel file
  2. Read/Write from/to Excel
  3. Search contents of Excel using various filters

Let's find out how the above operations are implemented in the below sections.

Assumptions

This app can only manipulate Excel with four columns, i.e., Name, Emp_ID, Email_ID, and Mobile_No.

Description

In order to use Excel operations in VS, the first and foremost thing to do is to include the Microsoft.Office Object Library reference to the project. Doing so will enable us to use the namespace Microsoft.Office.Interop.Excel. This namespace is widely referred in the project, hence I have assigned an alias name 'Excel'.

using Excel=Microsoft.Office.Interop.Excel;

Classes used

  • Excel.Application -Top level object in the Excel object model, used to specify application level properties and application level methods
  • Excel.Worbook - Represents a single workbook within the Excel application
  • Excel.Worksheet - A member of the Worksheets collection in the Workbook object

Let's declare these variables for further usage.

private static Excel.Workbook MyBook = nullprivate static Excel.Application MyApp = null;
private static Excel.Worksheet MySheet = null;

Initialize the Excel

MyApp = new Excel.Application();
MyApp.Visible = false;
MyBook = MyApp.Workbooks.Open(DB_PATH);
MySheet = (Excel.Worksheet)MyBook.Sheets[1]; // Explicit cast is not required here
lastRow = MySheet.Cells.SpecialCells(Excel.XlCellType.xlCellTypeLastCell).Row;

Please note that the Workbooks.open(string) method is used to open an Excel workbook by passing the file path as a parameter to this method. By default, every workbook created has three worksheets. In this example, we have opened the first worksheet using MyBook.Sheets[1]

The last used row in Excel can be calculated using the SpecialCells method with the xlCellTypeLastCell parameter.

Reading From Excel

The below piece of code demonstrates reading of Excel sheet cells and storing each row in an Employee object.

BindingList<Employee> EmpList = new BindingList<Employee>();
for (int index = 2; index <= lastRow; index++)
{
    System.Array MyValues = (System.Array)MySheet.get_Range("A" +
       index.ToString(), "D" + index.ToString()).Cells.Value;
    EmpList.Add(new Employee {
      Name = MyValues.GetValue(1,1).ToString(),
      Employee_ID = MyValues.GetValue(1,2).ToString(),
      Email_ID = MyValues.GetValue(1,3).ToString(),
      Number = MyValues.GetValue(1,4).ToString()
    });
}

To my surprise, here we have used BindingList for Employee objects rather than a normal List. The reason behind this usage is that, any modification to BindingList will cause the component model object to refresh (if the data source of the UI element is set as a BindingList object). This feature is not achievable using a traditional list.

The get_Range(string, string) method takes the start cell (e.g., A1 ) and end cell (e.g., G4) as parameters and returns all the cell values in this range as a two dimensional array. Therefore, the values are added to the Employee BindingList as an Employee object.

Writing to Excel

lastRow += 1;
MySheet.Cells[lastRow, 1] = emp.Name;
MySheet.Cells[lastRow, 2] = emp.Employee_ID;
MySheet.Cells[lastRow, 3] = emp.Email_ID;
MySheet.Cells[lastRow, 4] = emp.Number;
EmpList.Add(emp);
MyBook.Save();

The employee details captured in the UI are passed in the form of an object. These values are assigned to the appropriate cells [row_number, column_number]. The Workbook.Save() method is used to save the applied changes to the opened file.

Points of Interest

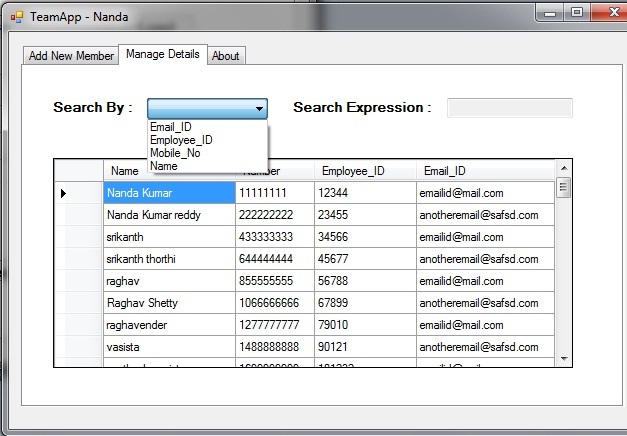

Filtration of employee details using emp_name, emp_id, email_id, and mobile is also featured in this app. Many more methods area available in the Application, WorkBook, and Worksheet classes. Do check them out!
