# Aggregation explained

, 1 Feb 2007
 Rate this:
Article describing the steps involved to attain aggregation relation between COM components

## Introduction

Let's have a look at the reuse technique "Aggregation" and how we can implement this in COM.

## Definition

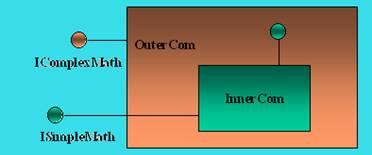

In this reuse mechanism, The Outer COM directly exposes the Inner COM's interfaces to the client. I will try to explain the steps involved to attain Aggregation relation between the InnerCom and OuterCom in the simplest way possible, so that beginners in COM can understand and workout.

Let's work on an example to establish aggregation relation between the Calculator Component (InnerCom), which already is available with us and ComplexCalculator, which we are going to build now.

Download the Calculator.dll from the source and register it.

## Steps:

• Create a new Project of type Atl COM, name it `ComplexCalculator` and select the type as "dll".
• Insert a new Atl Object, select the Simple Object option and Name it `ComplexMath`.
• Add a new method to the `IComplexMath` interface.

Method Name: Divide

Parameters: [in] int x, [in] int y, [out, retval] int* z

Add the following code:

```STDMETHODIMP CComplexMath :: Divide (int x, int y, int *z)
{
*z= x/y;

return S_OK;
}
```

Do the following changes to CalculatoeEx.idl:

Copy the object section and the interface section of the Calculator.idl to ComplexCalculator.idl

```[
object,
uuid(1E48B0F0-010D-4658-A0B6-70300FDA56F1),
dual,
helpstring("ISimpleMath Interface"),
pointer_default(unique)

]

interface ISimpleMath : IDispatch
{
HRESULT Add([in] int x, [in] int y,
[out, retval] int* z );
};
```

In the `coclass` part of ComplexCalculator.idl, add the interface name that we want to aggregate.

Note: Changes that need to be done are indicated in bolds.

```coclass ComplexMath
{
[default] interface IComplexMath;
interface ISimpleMath;
};
```

Do the following changes to the ComplexCalculator.h:

Copy the CLSID of the `SimpleMath` from Calculator_i.c to ComplexCalculator.h

```const CLSID CLSID_SimpleMath = {0xF58218E0,0x645A,0x473D,
{0x84,0x4B,0x30,0x78,0x65,
0x03,0x8D,0x9E}};
```

Do the following change in the COM MAP.

Note: Changes that need to be done are indicated in bolds.

```BEGIN_COM_MAP(CComplexMath)
COM_INTERFACE_ENTRY (IComplexMath)
COM_INTERFACE_ENTRY_AGGREGATE (IID_ISimpleMath, ptrUnk)
COM_INTERFACE_ENTRY (IDispatch)
END_COM_MAP ()
```

Add the following macro, `finalconstruct` and `release` methods

```DECLARE_GET_CONTROLLING_UNKNOWN()
IUnknown* ptrUnk;

HRESULT FinalConstruct()
{
return CoCreateInstance(CLSID_SimpleMath,
GetControllingUnknown(),CLSCTX_ALL,
IID_IUnknown, (void**)&ptrUnk);
}

void FinalRelease()
{
ptrUnk->Release();
}
```

Search for "Aggregation" in the source code to find code that is inserted to build the relationship between the "Calculator" and "ComplexCalculator".

Note: Register the Calculator.dll and ComplexCalculator.dll before using the demo project.
