CColor - RGB and HLS combined in one class

, 11 Dec 1999
Rate this:
Please Sign up or sign in to vote.
A class that provides simple color manipulation in RGB and HLS space
  • Download demo project - 61 Kb
  • Download source files - 32 Kb
  • Sample Image - CColor.jpg

    <!-- Article Starts -->

    The CColor class emerged from the need to manipulate color in the HLS model, meaning I needed the ability to directly change attributes like luminance or saturation. The HLS model makes it very easy to draw such things as color gradients between any color. Perhaps Windows 2000 will support the HLS (or the similary HSB) color model, but I do not want to wait until the release. On the other hand my code should also work under NT 4.0 and Win95/98. The CColor class encapsulates the long known type COLORREF and extends it with the HLS color model. A CColor object represents a color, whose RGB and HLS properties can be directly read and manipulated. It makes the use of type COLORREF and the associated macros superfluous.

    Another handy feature, which I miss in the Win32 API, are named colors: frequent common colors can be used by name (instead of using a RGB value). If you use only a small number of colors, for example to emphasize portions of text, the use of named colors makes code more understandable (in my humble opinion). X11 supports named colors since I remeber X11, though optimal use of the limited hardware palette was probably the original motive in those days. In the HTML documentation of Internet Explorer I discovered again name colors and decided to integrate exactly the same into the CColor class.

    CColor supports the serialization in a user friendly text format, which is specially useful for the registry or databases.

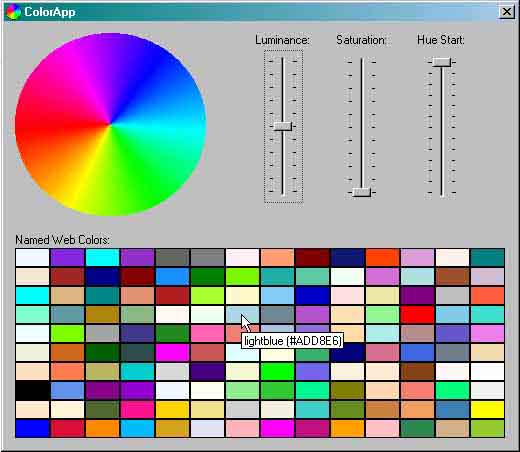

    The sample application demonstrates the use of the CColor class. In the upper area the parameters for drawing the color circle could be controlled. The lower area shows all named colors. Tool tips over the color circle and the named colors show the color name and the RGB value. The sample applications also uses/demonstrates some tricks in MFC-tooltip-handling. The whole mechanism is implemented through the virtual function  OnToolHitTest. Watch and admire (or shudder Wink | ;-)

    Sample: Drawing of a color gradient with CColor

    void DrawGradient(CDC& dc, int x, int y,
                     CColor c1, CColor c2, int width, int height)
    {
      ASSERT(width > 0);

      float dh = (c2.GetHue() - c1.GetHue()) / width;
      float dl = (c2.GetLuminance() - c1.GetLuminance()) / width;
      float ds = (c2.GetSaturation() - c1.GetSaturation()) / width;

      for (int i = 0; i < width; ++i)
      {
        CPen pen(PS_SOLID, 1, c1);
        CPen* pOld = dc.SelectObject(&pen);
        dc.MoveTo(x + i, y);
        dc.LineTo(x + i, y + height);
        dc.SelectObject(pOld);
        c1.SetHue(c1.GetHue() + dh);
        c1.SetLuminance(c1.GetLuminance() + dl);
        c1.SetSaturation(c1.GetSaturation() + ds);
      }
    }

    Copyright © 1999 by Christian Rodemeyer

    CColor Method overview

    The class CColor encapsulates the GDI color value (COLORREF) and adds some comfortable functions: direct manipulation of RGB and HSL attributes, conversion to string values for storage (registry, databases) and user-friendly color names. By userdefined constructors and conversions is it possible to use a CColor object everywhere a COLOREF value is expected.

    The attributes red, green and blue can be separatly accessed. This is an improvement compared with the use of macros like RGB, GetRValue, GetBValue and GetGValue. Likewise the attributes of the HLS color model (hue, luminance and saturation) can be separatly read and manipulated. In this manner it is very easy to draw color gradients like the title bars of Windows98 application or a "Choose Color" dialog. The MSDN Library provides an article which describes the HLS color model under the title "HLS Color Spaces".

    Colors could principially be stored in the registry or in databases numerically as DWORDs, but their manipulation through regedit like tools or SQL is unneccessarily complicated in this form. But it is more clever to store colors as text in the hexadecimal format RRGGBB. This text could be, in the worst case, manipulated by hand from some experienced user or system administrator. To get and set the text representation of a color you can use the handy GetString and SetString methods. You can construct a CColor-object from a string by using the static method FromString.

    Under X11 you can use named colors since long. HTML (respectively Internet Explorer) supports them too. Constants and strings are defined for every named color supported by Internet Explorer. Using named colors makes code more readable, because the constant "chocolate" is more understandable than the expression "RGB(0xD2, 0x69, 0x1E)". The name of a color could also be determined as a string data type. It can be used as a means of communication between program and user.

    Remark: The CColor class does not support palettes and has therefore the greatest use, if windows is be used with more than 256 colors (color depth greater or equal 15/16bit)

    Method Overview

    CColor Consturctor for COLORREF compatibility.
    operator COLORREF Conversion operator for COLORREF compatibility.
    RGB
    SetRed Sets the red portion of the color (0 - 255).
    SetGreen Sets the green portion of the color (0 - 255).
    SetBlue Sets the blue portion of the color (0 - 255).
    SetRGB Sets the red, green and blue portion of the color in one step.
    GetRed Gets the red portion of the color (0 - 255).
    GetGreen Gets the green portion of the color (0 - 255).
    GetBlue Gets the blue portion of the color (0 - 255).
    HSL
    SetHue Sets the hue (0.0 - 360.0, angle in color circle).
    SetLuminance Sets the luminance (0.0 - 1.0).
    SetSaturation Set the saturation (0.0 - 1.0).
    SetHLS Sets the hue, luminance and saturation in one step.
    GetHue Gets the hue (0.0 - 360.0, angle in color circle).
    GetLuminance Gets the luminance (0.0 - 1.0).
    GetSaturation Liefert die Farbsättigung (Wertebereich: 0.0 - 1.0).
    String
    SetString Sets the color through extracting it from a string in the hexadecimal format RRGGBB
    GetString Gets a string which describes the color as a value in the hexadecimal format RRGGBB.
    Named Colors
    GetName Gets the user friendly name of the color Farbe.
    Static
    GetNameFromIndex Gets the name belonging to a value of ENamedColorIndex .
    GetColorFromIndex Gets a CColor object, which is initialized with the color represented by a value of ENamedColorIndex
    GetNumNames Gets the number of named colors.
    FromString Constructs a CColor object from a RRGGBB string (see SetString/GetString)

    Konstanten

    CColor::ENamedColor

    For 140 colors names are defined. The same names are used in html, the names and corresponding color values are copied from the Internet Explorer documentation (MSDN January 99: "Platform SDK/Internet/DHTML/Additional References/Color Table"). Because the elements of an enumeration are implicitly converted to integer and a COLOREF is only a typedef for an integer, ENamedColor values can be used everywhere a COLORREF value or a CColor object is expected. Example:

    [...]
    CClientDC dc(this)
    dc.SetTextColor(CColor::blueviolet);

    [...]
    CToolTipCtrl* pToolTip = AfxGetThreadState()->m_pToolTip;
    pToolTip->SetTipTextColor(CColor::gold);

    The following color table is copied from Internet Explorer documentation and slightly modified ("fuchia" bug correkted and color values stripped):

    aliceblue antiquewhite aqua aquamarine
    azure beige bisque black
    blanchedalmond blue blueviolet brown
    burlywood cadetblue chartreuse chocolate
    coral cornflower cornsilk crimson
    cyan darkblue darkcyan darkgoldenrod
    darkgray darkgreen darkkhaki darkmagenta
    darkolivegreen darkorange darkorchid darkred
    darksalmon darkseagreen darkslateblue darkslategray
    darkturquoise darkviolet deeppink deepskyblue
    dimgray dodgerblue firebrick floralwhite
    forestgreen fuchsia gainsboro ghostwhite
    gold goldenrod gray green
    greenyellow honeydew hotpink indianred
    indigo ivory khaki lavender
    lavenderblush lawngreen lemonchiffon lightblue
    lightcoral lightcyan lightgoldenrodyellow lightgreen
    lightgrey lightpink lightsalmon lightseagreen
    lightskyblue lightslategray lightsteelblue lightyellow
    lime limegreen linen magenta
    maroon mediumaquamarine mediumblue mediumorchid
    mediumpurple mediumseagreen mediumslateblue mediumspringgreen
    mediumturquoise mediumvioletred midnightblue mintcream
    mistyrose moccasin navajowhite navy
    oldlace olive olivedrab orange
    orangered orchid palegoldenrod palegreen
    paleturquoise palevioletred papayawhip peachpuff
    peru pink plum powderblue
    purple red rosybrown royalblue
    saddlebrown salmon sandybrown seagreen
    seashell sienna silver skyblue
    slateblue slategray snow springgreen
    steelblue tan teal thistle
    tomato turquoise violet wheat
    white whitesmoke yellow yellowgreen

    [Method overview]


    CColor::ENamedColorIndex

    Meta application it could be handy to get the name of a color by its index in the above color table. This is the cause for the existence of the enumeration ENamedColorIndex. The names are driven from ENamedColor: set the prefix "i_" before them. The index for the color "snow" is therefore "i_snow".

    [Method overview]


    CColor::CColor

    CColor(COLORREF cr = black)

    Constructs an object of the class CColor and initializes it with the passed color cr. The use of a default parameter implements in one step the default constructor and the conversion constructor from type COLORREF to type CColor. Because of this, the following code is legal, although no special assignment operator is defined:

    CColor black;                // intitialized to black by default
    CColor c1(RGB(255, 0, 0));   // initialized to red
    CColor c2(CColor::seagreen); // CColor::ENamedColor is COLORREF compatible

    COLORREF r = RGB(200, 50, 200);

    c1 = r;                  // legal, implicit call of CColor::CColor(r)
    c2 = RGB(100, 150, 200); // dito, evaluates to CColor::CColor(RGB(100, 150, 250));

    [Method overview]


    operator COLORREF

    operator COLORREF() const

    Implements typeconversion from CColor to COLORREF. In this way it is possible to use  a CColor Object eveywhere a COLORREF is expected. The following code is by this legal:

    CColor color(CColor::yellow);
    [...]
    COLORREF cr = color; // legal, calls implicitly CColor::operator COLORREF()

    Attention: Functions which expect a non constant reference to COLORREF (COLORREF&) modify the returned tempory COLORREF value, not the original CColor object!

    [Method overview]


    SetRed

    void SetRed(int red)

    Sets the red portion of the color. Values must be in the range from 0 to 255.

    [Method overview]


    SetGreen

    void SetGreen(int green)

    Sets the green portion of the color. Values must be in the range from 0 to 255.

    [Method overview]


    SetBlue

    void SetBlue(int blue)

    Sets the blue portion of the color. Values must be in the range from 0 to 255.

    [Method overview]


    SetRGB

    void SetRGB(int red, int green, int blue)

    Combines the methods SetRed, SetGreen and SetBlue in one step.

    [Method overview]


    GetRed

    int GetRed() const

    Gets the red portion of the color. The return value lies in the range from 0 to 255.

    [Method overview]


    GetGreen

    int GetGreen() const

    Gets the green portion of the color. The return value lies in the range from 0 to 255.

    [Method overview]


    GetBlue

    int GetBlue() const

    Gets the blue portion of the color. The return value lies in the range from 0 to 255.

    [Method overview]


    SetHue

    void SetHue(float hue)

    Sets the hue. The parameter is interpreted as an angle in the color circle(0.0 - 360.0 Degree). Red is positioned at 0 degree, green at 120 degree and blue at 240 Degree.

    [Method overview]


    SetLuminance

    void SetLuminance(float luminance)

    Sets the luminance of the color. The parameter is normed, its value must be in the range between 0.0 (black) and 1.0 (white).

    [Method overview]


    SetSaturation

    void SetSaturation(float saturation)

    Sets the saturation of the color. The parameter is normed, its value must be in the range between 0.0 (gray, absence of all color) and 1.0 (pure colors).

    [Method overview]


    SetHLS

    void SetHLS(float hue, float luminance, float saturation)

    Combines the methods SetHue, SetLuminance and SetSaturation in one step.

    [Method overview]


    GetHue

    float GetHue() const

    Gets the hue. The return value is interpreted as an angle in the color circle(0.0 - 360.0 Degree). Red is positioned at 0 degree, green at 120 degree and blue at 240 Degree.

    [Method overview]


    GetLuminance

    float GetLuminance() const

    Gets the luminance of the color. The return value is normed, its value lies in the range between 0.0 (black) and 1.0 (white).

    [Method overview]


    GetSaturation

    float GetSaturation() const

    Gets the saturation of the color. The return value is normed, its value lies in the range between 0.0 (gray, absence of all colors) and 1.0 (pure color).

    [Method overview]


    GetString

    CString GetString() const

    Gets the RGB color value as text in a hexadecimal representation int the format "RRGGBB". Example: red is returned as "FF0000", green as "00FF00" and blue as "0000FF".

    [Method overview]


    SetString

    bool SetString(LPCTSTR pcColor)

    Initializes the object with the color, whose RGB color value is scanned from the passed string pcColor. It should contain a string in the hexadecimal format RRGGBB. If no valid color could be scanned from the string, the method returns false, else true. Example: "FF0000" sets the color to red,  "00FF00" to green and "0000FF" to blue.

    [Method overview]


    GetName

    CString GetName() const

    Gets the user friendly name of the color. When no name is known for the color, a string in the html format "#RRGGBB" will be returned.

    [Method overview]


    GetNumNames

    static int GetNumNames()

    Gets the number of named colors (the number of values enumerated in ENamedColor and ENamedColorIndex).

    [Method overview]


    GetNameFromIndex

    static LPCSTR GetNameFromIndex(int i)

    Gets the user friendly name for the index i.

    [Method overview]


    GetColorFromIndex

    static CColor GetColorFromIndex(int i)

    Gets the color for the index i.

    [Method overview]


    FromString

    static CColor FromString(LPCSTR pcColor)

    Constructs a CColor object from the string pcColor. The string must be of the format RRGGBB, where RR, GG, BB are two digits hex values.
