Displaying Bitmap with Scrolling

Rate me:
Please Sign up or sign in to vote.
4.83/5 (84 votes)
9 Nov 20029 min read 389.8K   15.8K   145   72
An article showing how to display a picture within a dialog, and add scrollbars where needed to view the whole image.

Introduction

Displaying large Bitmap files on a Dialog, in its original size is quite difficult in the VC++ Environment. However, it is possible to display a large bitmap to a predefined area of the dialog using the StretchBlt( ) function. The major disadvantage of this is that some of the image's clarity will be lost. This article explains how to display large bitmaps in the desired area of your dialog in its original size with a scrolling technique used to show the entire bitmap.

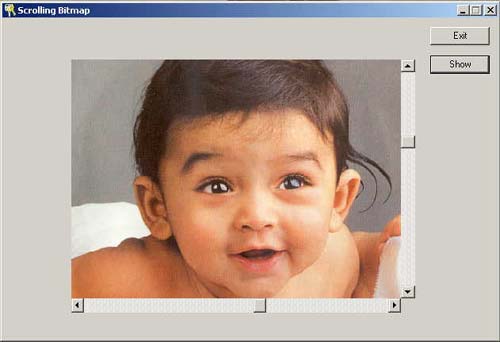

Demo application

Although the primary aim of this article is to display a bitmap with scrolling, it also covers the following three main objectives.

  1. Loading a Bitmap in to the Dialog During Run-time.
  2. Displaying Bitmap in its Original size by using Scrolling technique.
  3. Implementing Flicker free drawing Using Double Buffering technique.

Loading Bitmap in to the Dialog During Run-time:

Sometimes the user may require different bitmaps to be loaded in to the dialog depending on the requirements of his GUI. This can be achieved by calling the LoadImage( ) function. The implementation of this is explained below

Place a Picture control in your dialog. Adjust its size as you wish. Remember, you are going to display the bitmap in this control. Big bitmaps will confine to the entire area of this control with a vertical scroll bar on Right side ( the scroll bar will be displayed if the height of the image is greater than the height of this control) and a horizontal scroll bar at the bottom of this control (the scrollbar will be displayed if the width of the image is greater than the width of this control). Small bitmaps will be displayed at the centre of this control without scrollbars, with equal clearance to the left & right, and top & bottom with respect to the control. So place your control with an artistic touch to give your dialog a nice appearance.

Take the properties of the picture control. Change its ID to IDC_STATIC1 and Type as Frame and Colour as Gray. Also uncheck the Visible check button so that the tick mark is removed from it.

Properties window

Using Class Wizard, create a control variable of type CStatic for IDC_STATIC1. Let it be m_st1.

In your dialog's header file (say MyDlg.h), add the following code:

public:
    CRect rectStaticClient;
    int sourcex, sourcey,offsetx,offsety;
protected:
    CDC m_dcMem;            // Compatible Memory DC for dialog
    HBITMAP m_hBmpOld;    // Handle of old bitmap to save
    HBITMAP m_hBmpNew;    // Handle of new bitmap from file
       BITMAP m_bmInfo;        // Bitmap Information structure
In your dialog's implementation file (say MyDlg.cpp), add the following code:
BOOL CMyDlg::OnInitDialog()
{

// TODO: Add extra initialization here
    CClientDC dc(this);
     m_dcMem.CreateCompatibleDC( &dc );
return TRUE;  // return TRUE  unless you set the focus to a control
}

Override the else part of your dialog's ::OnPaint() function:

void MyDlg::OnPaint()
{
    if (IsIconic())
    {
        CPaintDC dc(this); // device context for painting

        SendMessage(WM_ICONERASEBKGND, (WPARAM) dc.GetSafeHdc(), 0);

        // Center icon in client rectangle
        int cxIcon = GetSystemMetrics(SM_CXICON);
        int cyIcon = GetSystemMetrics(SM_CYICON);
        CRect rect;
        GetClientRect(&rect);
        int x = (rect.Width() - cxIcon + 1) / 2;
        int y = (rect.Height() - cyIcon + 1) / 2;

        // Draw the icon
        dc.DrawIcon(x, y, m_hIcon);
    }
    else
    {
        //Add the following Code
        CPaintDC dc(this);
        dc.BitBlt(offsetx,offsety,m_size.cx,m_size.cy,
                   &m_dcMem, sourcex, sourcey,SRCCOPY);
        CDialog::OnPaint();
    }
}

Write the following code whenever you want to load a bitmap in to your dialog.

m_hBmpNew = (HBITMAP) LoadImage(
    AfxGetInstanceHandle(),   // handle to instance
    filename,  // name or identifier of the image .say"C:\\NewFolder\\1.bmp"
    IMAGE_BITMAP,        // image types
    0,     // desired width
    0,     // desired height
    LR_LOADFROMFILE);

    if( m_hBmpNew == NULL )
    {
        AfxMessageBox("Load Image Failed");
    }

    // put the HBITMAP info into the CBitmap (but not the bitmap itself)
    else {
        m_st1.GetClientRect( &rectStaticClient );
        rectStaticClient.NormalizeRect();
        m_size.cx=rectStaticClient.Size().cx;
        m_size.cy=rectStaticClient.Size().cy;
        m_size.cx = rectStaticClient.Width();    // zero based
        m_size.cy = rectStaticClient.Height();    // zero based

        // Convert to screen coordinates using static as base,
        // then to DIALOG (instead of static) client coords
        // using dialog as base
        m_st1.ClientToScreen( &rectStaticClient );
        ScreenToClient( &rectStaticClient);

        m_pt.x = rectStaticClient.left;
        m_pt.y = rectStaticClient.top;
        GetObject( m_hBmpNew , sizeof(BITMAP), &m_bmInfo );
        VERIFY(m_hBmpOld = (HBITMAP)SelectObject(m_dcMem, m_hBmpNew )  );
        offsetx= m_pt.x;
        offsety=m_pt.y;
        InvalidateRect(&rectStaticClient);

This much code will display a bitmap directly on to the picture control during run time. Remember the scrolling capability and alignment adjustments haven't been done yet and so the image will be displayed at the top corner of the Picture control, and if its size is bigger than that of the picture control, it will be clipped to the picture control's size. If the image is smaller than the size of the picture control it will be displayed without clipping, but without centre alignment. The following section describes how scrolling capability and alignment can be achieved.

Displaying the Bitmap at its original size using scrolling

Add a vertical scroll bar control to your dialog and place it touching the right edge of your picture control. Make its length to that of the height of your picture control. Add a Horizontal scroll bar control to your Dialog and place it touching the bottom edge of your picture control. Make its length to that of the width of your picture control.

Using Class Wizard, create member variables of type CScrollBar for your horizontal & vertical scrollbars. Let them be

CScrollBar m_vbar; //For vertical Scroll Bar
CScrollBar    m_hbar; //For Horizontal Scroll Bar.

You need to create two SCROLLINFO structures for storing scroll bar parameters for both the vertical and horizontal Scroll Bars, so declare two SCROLLINFO Structures in your dialog's header file.

public:
    CRect rectStaticClient;
    int sourcex, sourcey,offsetx,offsety;
    SCROLLINFO horz,vert;

You only need to show the scrollbars if the size of the bitmap is greater than that of the size of your picture control. So hide the scrollbars initially by writing the following code in your dialog's OnInitDialog() function.

BOOL CMyDlg::OnInitDialog()
{
    // TODO: Add extra initialization here
    CClientDC dc(this);
    m_dcMem.CreateCompatibleDC( &dc );
    m_vbar.ShowWindow(false);  //Hide Vertical Scroll Bar
    m_hbar.ShowWindow(false);  //Hide Horizontal Scroll Bar
    return TRUE;  // return TRUE  unless you set the focus to a control
}

Four situations arise when you are loading a bitmap in to your pre-defined picture control. They are:

Case 1: Both the width and height of the loaded bitmap is greater than that of the picture control. In such situations both the horizontal and vertical scrollbars are necessary to show the entire bitmap. The bitmap is displayed using the scrolling technique. The vertical scrolling range is equal to the height of bitmap-height of the picture control. The height and width of the bitmap is obtained by the following code, which is incorporated in the code which is needed for displaying bitmaps, which is reproduced here again as:

m_size.cx = rectStaticClient.Width();    // zero based
m_size.cy = rectStaticClient.Height();    // zero based
GetObject( m_hBmpNew , sizeof(BITMAP), &m_bmInfo );

The maximum vertical scrolling range is m_bmInfo.bmHeight - m_size.cy, and the maximum horizontal scrolling range is m_bmInfo.bmWidth - m_size.cx. Make the horizontal and vertical scrollbars visible by calling

m_hbar.ShowWindow(true);
m_vbar.ShowWindow(true);

Case 2:THe width of the loaded bitmap is greater than that of the picture control and height is equal to or less than that of picture control. In such situations the horizontal scroll bar is necessary to show the entire bitmap. The bitmap is displayed using the scrolling technique. The horizontal scrolling range is given by m_bmInfo.bmWidth-m_size.cx.

In this case vertical scroll bar is not needed, but for displaying the bitmap centralised with respect to the picture control, the Bitmap should be drawn at an offset from the top corner of the picture control given by

offsety = m_pt.y + ((m_size.cy - m_bmInfo.bmHeight)/2);

Where offsety is the offsetted 'y1' co-ordinate in the (x1,y1) (x2,y2) co-ordinate system and m_pt.y is the original 'y1' co-ordinate.

A clearance of (m_size.cy - m_bmInfo.bmHeight)/2) is also produced from the bottom of the picture control. So the horizontal scrollbar should be shifted up by an amount (m_size.cy - m_bmInfo.bmHeight)/2 using the MoveWindow( ) function as explained below.

m_hbar.MoveWindow(offsetx,offsety+m_bmInfo.bmHeight,m_size.cx,18);

Make the horizontal scrollbar visible and the vertical scrollbar invisible by calling

m_hbar.ShowWindow(true);
m_vbar.ShowWindow(false);

Case 3: The height of the loaded bitmap is greater than that of the picture control and the width is equal to or less than that of picture control. In Such situations the vertical scrollbar is necessary to show the entire bitmap. The bitmap is displayed using scrolling technique. The vertical scrolling range is given by m_bmInfo.bmHeight-m_size.cy.

In this case horizontal scrollbar is not needed, But for displaying the bitmap centralised with respect to the picture control, the Bitmap should be displayed at an offset from the top corner of the picture control given by:

offsetx= m_pt.x + ((m_size.cx - m_bmInfo.bmWidth)/2);

Where offsetx is the offseted 'x1' co-ordinate in (x1,y1) (x2,y2) co-ordinate system and m_pt.x is the original 'x1' co-ordinate.

A clearance of ( (m_size.cx - m_bmInfo.bmWidth)/2) is also produced from the extreme right side of the picture control. So the vertical scroll bar should be shifted left of the right edge of picture control by an amount (m_size.cx - m_bmInfo.bmHeight)/2 using the MoveWindow( ) function as explained below.

m_vbar.MoveWindow(offsetx+m_bmInfo.bmWidth,offsety,18,m_size.cy);

Make the vertical scrollbar visible and horizontal scrollbar invisible by calling

m_hbar.ShowWindow(false);
m_vbar.ShowWindow(true);

Case 4: The height and width of the loaded bitmap is equal to or smaller than that of the picture control. In Such situations the vertical and horizontal scrollbars are not needed to show the entire Bitmap. The Bitmap is displayed centrally, as such, in the picture control. For displaying the bitmap centrally with respect to the picture control, the bitmap should be displayed at an offset from the top corner of the Picture control given by:

offsetx= m_pt.x + ((m_size.cx-  m_bmInfo.bmWidth)/2);
offsety= m_pt.y + ((m_size.cy - m_bmInfo.bmHeight)/2);

Where 'offsetx' is the offseted z co-ordinate, the 'x1' co-ordinate is in the (x1,y1) (x2,y2) co-ordinate system where m_pt.x is the original 'x1' co-ordinate and offsety is the offsetted y co-ordinate, and 'y1' co-ordinate is in the (x1,y1) (x2,y2) co-ordinate system and m_pt.y is the original 'y1' co-ordinate.

Make the vertical and horizontal scrollbars invisible by calling

m_hbar.ShowWindow(false);
m_vbar.ShowWindow(false);

Fill up the SCROLLINFO structure for horizontal scrollbar and vertical scrollbar as given below.

//Horizontal Scroll Info Structure
horz.cbSize = sizeof(SCROLLINFO);
horz.fMask = SIF_ALL;
horz.nMin = 0;
horz.nMax = m_bmInfo.bmWidth-m_size.cx;
horz.nPage =0;
horz.nPos = 0;
horz.nTrackPos=0;
m_hbar.SetScrollInfo(&horz);

//Vertical Scroll Info Structure
vert.cbSize = sizeof(SCROLLINFO);
vert.fMask = SIF_ALL;
vert.nMin = 0;
vert.nMax = m_bmInfo.bmHeight-m_size.cy;
vert.nPage = 0;
vert.nTrackPos=0;
m_vbar.SetScrollInfo(&vert);

Now display the picture by invalidating the picture control.

InvalidateRect(&rectStaticClient);

Remember, depending on the requirements of your loaded image, the positions of the scrollbars may be changed. So before displaying another bitmap in to your dialog, release the memory holding the current bitmap and reset the positions of scrollbars to their original location, i.e. to the positions where you placed them during the design of your dialog, by calling

if(m_hBmpNew != NULL )
    DeleteObject(m_hBmpNew);         //Release Memory holding Bitmap

// Reset position of Vertical Scroll Bar
m_vbar.MoveWindow(offsetx+m_size.cx,offsety,18,m_size.cy);

// Reset position of Horizontal Scroll Bar
m_hbar.MoveWindow(offsetx,offsety+m_size.cy,m_size.cx,18);

The code given below summarizes the things explained above:

    if(m_hBmpNew != NULL )
        DeleteObject(m_hBmpNew);    //Release Memory holding Bitmap

    sourcex=sourcey=0;        // Set starting Position of Source Bitmap to
                              //be copied to (0,0)
    m_hBmpNew =    (HBITMAP) LoadImage(AfxGetInstanceHandle(), // handle to instance
        "Path of Bitmap",  // name or identifier of the image (say "C:\\bitmap.bmp")
        IMAGE_BITMAP,        // image types
        0,     // desired width
        0,     // desired height
        LR_LOADFROMFILE);

    if( m_hBmpNew == NULL ) {
        AfxMessageBox("Load Image Failed");
    }
    // put the HBITMAP info into the CBitmap (but not the bitmap itself)
    else {
        m_st1.GetClientRect( &rectStaticClient );
        rectStaticClient.NormalizeRect();
        m_size.cx=rectStaticClient.Size().cx;
        m_size.cy=rectStaticClient.Size().cy;
        m_size.cx = rectStaticClient.Width();    // zero based
        m_size.cy = rectStaticClient.Height();    // zero based

        // Convert to screen coordinates using static as base,
        // then to DIALOG (instead of static) client coords
        // using dialog as base
        m_st1.ClientToScreen( &rectStaticClient );
        ScreenToClient( &rectStaticClient);

        m_pt.x = rectStaticClient.left;
        m_pt.y = rectStaticClient.top;
        GetObject( m_hBmpNew , sizeof(BITMAP), &m_bmInfo );
        VERIFY(m_hBmpOld = (HBITMAP)SelectObject(m_dcMem, m_hBmpNew )
    );

    offsetx= m_pt.x;
    offsety=m_pt.y;

    // Reset position of Vertical Scroll Bar
    m_vbar.MoveWindow(offsetx+m_size.cx,offsety,18,m_size.cy);

    // Reset position of Horizontal Scroll Bar
    m_hbar.MoveWindow(offsetx,offsety+m_size.cy,m_size.cx,18);
    horz.cbSize = sizeof(SCROLLINFO);
    horz.fMask = SIF_ALL;
    horz.nMin = 0;
    horz.nMax = m_bmInfo.bmWidth-m_size.cx;
    horz.nPage =0;
    horz.nPos = 0;
    horz.nTrackPos=0;
    if(m_bmInfo.bmWidth<=m_size.cx)
    {
        if((m_size.cx-m_bmInfo.bmWidth)==0)
            offsetx= m_pt.x;
        else
            offsetx= m_pt.x+((m_size.cx-m_bmInfo.bmWidth)/2);
        m_vbar.MoveWindow(offsetx+m_bmInfo.bmWidth,offsety,18,m_size.cy);
        m_hbar.ShowWindow(false);
    }
    else
        m_hbar.ShowWindow(true);

    m_hbar.SetScrollInfo(&horz);
    vert.cbSize = sizeof(SCROLLINFO);
    vert.fMask = SIF_ALL;
    vert.nMin = 0;
    vert.nMax = m_bmInfo.bmHeight-(m_size.cy);
    vert.nPage = 0;
    vert.nTrackPos=0;
    if(m_bmInfo.bmHeight<=m_size.cy)
    {
        if((m_size.cy-m_bmInfo.bmHeight)==0)
            offsety= m_pt.y;
        else
            offsety= m_pt.y+((m_size.cy-m_bmInfo.bmHeight)/2);
        m_hbar.MoveWindow(offsetx,offsety+m_bmInfo.bmHeight,m_size.cx,18);
        m_vbar.ShowWindow(false);
    }
    else
        m_vbar.ShowWindow(true);

    m_vbar.SetScrollInfo(&vert);

    InvalidateRect(&rectStaticClient);
}

Now your bitmap is ready to be displayed on the dialog with scrollbars (if needed). But still it's not able to scroll to show the remaining portions. We need to handle the WM_VSCROLL and WM_HSCROLL messages to re-draw the bitmap depending on the scroll bar positions for this.

Using Class Wizard, handle WM_VSCROLL and WM_HSCROLL messages and write the following code in their handler.

void CMyDlg::OnVScroll(UINT nSBCode, UINT nPos, CScrollBar* pScrollBar)
{
    // TODO: Add your message handler code here and/or call default
    switch (nSBCode)
    {
    case SB_TOP:
        sourcey = 0;
        break;
    case SB_BOTTOM:
        sourcey = INT_MAX;
        break;
    case SB_THUMBTRACK:
        sourcey = nPos;
        break;
    }

    m_vbar.SetScrollPos(sourcey);
    InvalidateRect(&rectStaticClient);
    CDialog::OnVScroll(nSBCode, nPos, pScrollBar);
}

void CMyDlg::OnHScroll(UINT nSBCode, UINT nPos, CScrollBar* pScrollBar)
{
    // TODO: Add your message handler code here and/or call default
    switch (nSBCode)
    {
    case SB_TOP:
        sourcex = 0;
        break;
    case SB_BOTTOM:
        sourcex = INT_MAX;
        break;
    case SB_THUMBTRACK:
        sourcex= nPos;
        break;
    }
    m_hbar.SetScrollPos(sourcex);
    InvalidateRect(&rectStaticClient);
    CDialog::OnHScroll(nSBCode, nPos, pScrollBar);
}

Now you can scroll your bitmap and the remaining portions of it can be viewed by horizontal and vertical scrolling. Still there exists a problem. The screen will flicker continuously when you scroll the bitmap. Here comes another technique to tackle this problem. The finishing touch to this Project. Nothing but "Double buffer technique for flicker free drawing", which we will adopt.

Implementing Flicker free drawing Using Double Buffering technique

To eliminate flicker in drawing you need to draw everything on a memory DC, and then copy it to the real DC using BitBlt or StretchBlt functions. This technique is called double buffering. The drawing technique used in this article is double buffering. It is explained in the earlier sections. Secondly, you need to override the OnEraseBackground( ) event. The default implementation of this event clears the background of the control with the current value of the BackColor property. However, it is not always necessary to repaint the entire area of the control, and doing so unnecessarily can cause flickering. Bypass the OnEraseBackground( ) event while you re-paint your dialog with InvalidateRect(&rectStatcClient). This can be achieved by signalling a global variable. Declare a global variable of type BOOL, say BOOL erase, and initialise it to false. Map the WM_ERASEBKGND message and override it as

BOOL MyDlg::OnEraseBkgnd(CDC* pDC)
{
    // TODO: Add your message handler code here and/or call default
    if(erase)
        return false;
    else
    return CDialog::OnEraseBkgnd(pDC);
}

Before you call the InvalidateRect & rectStatcClient functions, set the variable 'erase' to true. Now OnEraseBkgnd( ) is bypassed.

Reset 'erase' flag to false at the end of your OnPaint function. This will remove the bypassing of OnEraseBkgnd(pDC) event and the background will be erased when WM_ERASEBKGND is sent by other events other than InvalidateRect( &rectStaticClient ).

else
{
    CPaintDC dc(this);
     dc.BitBlt(offsetx,offsety,m_size.cx,m_size.cy,
                &m_dcMem, sourcex, sourcey,SRCCOPY);
    erase=false;
    CDialog::OnPaint();
}

I hope that you are now able to draw a bitmap with scrolling capability in your dialog. Go through the demo project and learn more from it.

NOTE: This code has been tested on the Windows 2000 platform and it is found to work properly. Your valuable suggestions and corrections are always welcomed. Refer to the MSDN Documentation for more details on 'Double Buffering', 'MoveWindow( )' and 'BitBlt()'.

License

This article has no explicit license attached to it but may contain usage terms in the article text or the download files themselves. If in doubt please contact the author via the discussion board below.

A list of licenses authors might use can be found here


Written By
Architect Infosys Technologies
India India
Currently working with the Embedded Systems & DSP Lab of Infosys Technologies, Thiruvananthapuram Development unit (www.infosys.com)

Comments and Discussions


QuestionAfxHookWindowCreate(this) causes attempted installation of Roxio! Pin
Howard Anderson12-Oct-20 13:38
Howard Anderson12-Oct-20 13:38
Questionwrong return value in OnEraseBkgnd() function Pin
kissLife21-Feb-13 16:37
kissLife21-Feb-13 16:37
GeneralMy vote of 5 Pin
ShilpiP12-Nov-10 1:41
ShilpiP12-Nov-10 1:41
QuestionDoubt in Initializing Handlers.. Pin
Khathar28-Jan-09 17:02
Khathar28-Jan-09 17:02
Generalgood work Pin
luyi979897981-Sep-08 22:01
luyi979897981-Sep-08 22:01
GeneralDisplay Large Images In the same object using the same scroll bitmap object Pin
paramesh26-Aug-08 5:59
paramesh26-Aug-08 5:59
Generalanother question Pin
rorirami19-Aug-08 19:18
rorirami19-Aug-08 19:18
GeneralRe: another question Pin
Shibu K V20-Aug-08 6:23
Shibu K V20-Aug-08 6:23
Questionplease help me!!!! Pin
rorirami18-Aug-08 19:29
rorirami18-Aug-08 19:29
AnswerRe: please help me!!!! Pin
Shibu K V18-Aug-08 19:49
Shibu K V18-Aug-08 19:49
Generalthe Demo project is broken Pin
crazystone20202-Jul-08 22:15
crazystone20202-Jul-08 22:15
Questionto work for How to use this scrolling in my prog Pin
lama madany12-Sep-07 9:09
lama madany12-Sep-07 9:09
QuestionHow to gather the details of an Image from Clipboard??? Pin
gloriousgopi2-Feb-07 22:30
gloriousgopi2-Feb-07 22:30
QuestionUnable To load Large BMP Images Pin
Member 374801021-Jan-07 19:01
Member 374801021-Jan-07 19:01
AnswerRe: Unable To load Large BMP Images Pin
Shibu K V21-Jan-07 19:21
Shibu K V21-Jan-07 19:21
GeneralUnable To load Large BMP Images Pin
Member 374801021-Jan-07 19:00
Member 374801021-Jan-07 19:00
GeneralUnable To load Large BMP Images Pin
Member 374801021-Jan-07 18:59
Member 374801021-Jan-07 18:59
Questionhow to reset pixel of picture control ? Pin
hansen.Xue8-Oct-06 17:38
hansen.Xue8-Oct-06 17:38
QuestionUndeclared identifier Pin
Igen117-Aug-06 4:32
Igen117-Aug-06 4:32
AnswerRe: Undeclared identifier Pin
Shibu K V17-Aug-06 20:53
Shibu K V17-Aug-06 20:53
QuestionNo SB_LINEDOWN handling????? Pin
sheebz1-Dec-05 18:03
sheebz1-Dec-05 18:03
AnswerRe: No SB_LINEDOWN handling????? Pin
andrew_joseph15-Dec-05 22:25
andrew_joseph15-Dec-05 22:25
QuestionCan one use the CStatic frame's own scrollbars? Pin
Jamaica21-Nov-05 12:39
Jamaica21-Nov-05 12:39
GeneralGood one Pin
G Haranadh6-Nov-05 20:10
G Haranadh6-Nov-05 20:10
Questionhelp , please ? Pin
dynamica12330-Sep-05 22:52
dynamica12330-Sep-05 22:52

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
