Genetic Algorithm for Knapsack Problem

, 18 Jun 2013 GPL3
Rate this:
Please Sign up or sign in to vote.
Solving knapsack problem using genetic algorithm

Introduction

This example demonstrates a genetic algorithm that is designed to solve the problem introduced by this xkcd comic. The genetic algorithm is going to be implemented using GALex library.

About the Problem

A group of people walk into a restaurant and want to spend exactly $15.05 on appetizers. They also want them as fast as possible. This leaves waiter with an NP-hard problem to solve, a variation of knapsack problem.

The problem waiter have to solve is selection of items from the menu, so they cost exactly the amount customers specified. This problem by itself is NP-hard, but that is not enough for the snarky customers. They want it as fast as possible. So the waiter cannot select any combination that satisfy price requirement. He must find all the combinations, so he can choose the one which will take the least amount of time to make.

Chromosome

Defining chromosome representation that is going to be used by the genetic algorithm as well as designing good crossover and mutation operations are crucial steps and they are most often specific to the problem that has to be solved.

Representation

One of the first things that should be done when designing a genetic algorithm is choosing the adequate representation for the solutions. There are several ways to encode a solution. Some of the possible representations are:

  • unordered linked list where list nodes contains items that should be served
  • array that stores count of items that should be served

Linked List Representation
Linked list representation

Array Representation
Array representation

Chosen representation will greatly influence the design of other genetic operations such as crossover or mutation operation. For this example the linked list representation is chosen.

One advantage of the representation is that it allows genetic algorithm to optimize representation itself. Crossover can shuffle blocks of items around the chromosome without affecting its fitness value. This way genetic algorithm can group good combinations of items close together. These combinations are known as building block. Such grouping reduces the chances of building blocks disruption, which is a good thing since such disruptions most often degrade quality of a solution and its fitness value.

Each node in the list will store index of the item on the menu. Since each node can have fixed set of values, GaAlleleGene are going to be used to represent genes. This gene stores allele set in addition to gene value. Allele set is a set of values that are allowed for gene to have them. GaAlleleGene is a complex type gene so GaAdvanceListChromosome class has to be used as chromosome type. So with a few typedefs chromosome representation is almost ready:

typedef Chromosome::Representation::GaAlleleGene<int> XkcdGene;
typedef Common::Data::GaList<XkcdGene> XkcdGeneList;

typedef Chromosome::Representation::GaAdvanceListChromosome<
  int, Chromosome::Representation::GaAlleleGene>::GaType XkcdChromosome;

Next thing that needs to be defined is chromosome configuration block (CCB). CCB will contain list of appetizers, with their prices and time required to make, as well as allele set for chromosomes' genes.

Definition of appetizer:

struct Appetizer
{
  std::string _name;
  float _price;
  float _time;

  Appetizer();
  Appetizer(const std::string& name,
    float price,
    float time);
};

Definition of CCB:

class XkcdConfigBlock : public Chromosome::GaChromosomeConfigBlock
{
private:
  Common::Data::GaSingleDimensionArray<Appetizer> _appetizers;
  Chromosome::Representation::GaIntervalAlleleSet<int> _interval;

public:
  XkcdConfigBlock(
    const Common::Data::GaSingleDimensionArray<Appetizer>& appetizers) :
  _appetizers( appetizers ),
  _interval (
    Chromosome::Representation::GaValueIntervalBounds<int>(
      0, appetizers.GetSize() - 1 ),
    Chromosome::Representation::GaValueIntervalBounds<int>(
      0, appetizers.GetSize() - 1 ),
    GaGlobalRandomIntegerGenerator ) { }

  XkcdConfigBlock(const XkcdConfigBlock& rhs) :
    GaChromosomeConfigBlock(rhs),
    _appetizers(rhs._appetizers),
    _interval(rhs._interval) { }

  virtual GaChromosomeConfigBlock* GACALL Clone() const
    { return new XkcdConfigBlock( *this ); }
};

XkcdConfigBlock class that inherits GaChromosomeConfigBlock represents CCB specific for this problem. Notice that user defined CCBs must implement Clone method and it has to have copy constructor.

Allele set that is used is GaIntervalAlleleSet. This set contains all values in the defined range. This is enough since the values should be indices of items in appetizer list. Every allele set also takes set of inverted values, required by some genetic operations. In this case it is the same set.

Now that the chromosome type is ready following genetic operations have to be defined:

  • chromosome initialization
  • chromosome comparator
  • fitness operation
  • crossover operation
  • mutation operation

Chromosome Initialization

The approach for chromosome initialization is simple: determine random number of items, and then randomly select items until the desired count is reached. In case that new chromosome is needed for crossover operation and empty chromosome is returned. The operation also sets the CCB for the chromosome.

XkcdInitializator class is responsible for creation of new chromosomes. It is inherited from GaInitializator which represents the base class for user-defined initializators. operator () is called by the library to create and initialize new chromosome.

class XkcdInitializator : public Chromosome::GaInitializator
{
public:
  virtual Chromosome::GaChromosomePtr GACALL operator ()(
    bool empty,
    const Chromosome::GaInitializatorParams& parameters,
    Common::Memory::GaSmartPtr<
      Chromosome::GaChromosomeConfigBlock> configBlock) const;

  virtual Common::GaParameters* GACALL CreateParameters() const
    { return NULL; }
};

Since operation parameters are not used by this implementation of the initializator CreateParameters returns NULL.

Chromosome Comparator

Chromosome comparator is implemented by XkcdChromosomeComparator class and it is inherited from XkcdChromosomeComparator which is base class for user-defined comparators.

class XkcdChromosomeComparator :
  public Chromosome::GaChromosomeComparator
{
public:

  virtual float GACALL operator ()(
    const Chromosome::GaChromosome& chromosome1,
    const Chromosome::GaChromosome& chromosome2,
    const Chromosome::GaChromosomeComparatorParams& parameters) const
  { return Equal( chromosome1, chromosome2, parameters ) ? 0.0f : 1.0f; }

  virtual bool GACALL Equal(
    const Chromosome::GaChromosome& chromosome1,
    const Chromosome::GaChromosome& chromosome2,
    const Chromosome::GaChromosomeComparatorParams& parameters) const
  { return ( (const XkcdChromosome&)chromosome1 ).GetGenes() ==
    ( (const XkcdChromosome&)chromosome2 ).GetGenes(); }

  virtual Common::GaParameters* GACALL CreateParameters() const
    { return NULL; }
};

This implementation use simple comparison method defined by the list container, and returns true/false (or 1/0). In case the fitness sharing scaling (GaShareFitnessScaling) should used by the algorithm, different implementation is required and comparison have to return rate of similarity between the chromosomes.

Fitness Operation

Fitness operation is responsible for calculating fitness value of a chromosome. Stated problem has two criteria: cost of appetizers and time needed to make them, so the genetic algorithm should take both of these into account when calculating fitness of the chromosome. Since price is more important criterion then time in this case, weights can be assigned to these values accordingly and real multi-objective optimization with pareto sets is not required. Taking into the account all the values and their weights fitness function should look like this:

Fitness function
Fitness function: f - fitness value, wp - weight of price criterion, wt - weight of time criterion, tp - target price, n - number of appetizer, api - price of i-th appetizer, ati - required time to make i-th appetizer

Since the price is more important higher weight should assigned to wp then to wt. In this example wp is set to 2.0 and wt is set to 1.0.

Wight-based fitness value representation, available in library and implemented by GaWeightedFitness class, is nicely fitted for this example. It can preserve values of both criteria (price and time) so they can be displayed, weights can be assigned to these values by the fitness parameters and the implementation calculates total fitness automatically by summing weighted values.

typedef Fitness::Representation::GaWeightedFitness<float, float> XkcdFitness;

That is enough to have fitness value representation that can be used by fitness operation and the rest of the library.

GALex has two different approaches to evaluate fitness value of chromosomes:

  1. population-based - fitness of all chromosomes in population is evaluated at once. This approach has to be used when fitness function of a chromosome is not independent from other chromosomes in population.
  2. individual-based - fitness of a chromosome is evaluated independently from other chromosomes. This approach is preferred as it allows library to optimize other genetic operations such as selection and coupling...

Fitness function for this problem is defined in such way that it can use individual based approach.

Operation is implemented by XkcdFitnessOperation class and it inherits GaChromosomeFitnessOperation which is base class for individual-based fitness operations. Since there is targeted price, it must be specified by operation parameters which are implemented by XkcdFitnessOperationParams class that uses GaFitnessOperationParams as base.

class XkcdFitnessOperationParams :
  public Fitness::GaFitnessOperationParams
{
private:
  float _targetPrice;

public:
  XkcdFitnessOperationParams(float targetPrice) :
    _targetPrice( targetPrice ) { }

  XkcdFitnessOperationParams(const XkcdFitnessOperationParams& params) :
    _targetPrice( params._targetPrice ) { }

  virtual GaParameters* GACALL Clone() const
    { return new XkcdFitnessOperationParams( *this ); }

  inline float GACALL GetTargetPrice() const { return _targetPrice; }

  inline void GACALL SetTargetPrice(float price)
    { _targetPrice = price; }
};

class XkcdFitnessOperation :
  public Chromosome::GaChromosomeFitnessOperation
{
public:
  virtual Fitness::GaFitness* GACALL
    CreateFitnessObject(
    Common::Memory::GaSmartPtr<
      const Fitness::GaFitnessParams> params) const
  { return new XkcdFitness( params ); }

  virtual void GACALL operator ()(const GaObjectType& object,
    Fitness::GaFitness& fitness,
    const Fitness::GaFitnessOperationParams& operationParams) const;

  virtual Common::GaParameters* GACALL CreateParameters() const
    { return new XkcdFitnessOperationParams(); }
};

CreateFitnessObject is called by the library when it needs to creating fitness value object and code operator () is responsible for evaluationg fitness value of the chromosome.

Crossover Operation

The purpose of crossover operation is to produce new solution by combining existing ones. Implementation of crossover operation depends on the representation. As it was already discussed, the algorithm uses linked-list representation, so simple single-point crossover operation can be used:

Crossover Operation
Crossover operation

The library already has implementation of such crossover operation. It is represented by GaListMultipointCrossover class.

Mutation Operation

Mutation operation is responsible for retaining genetic diversity of the chromosomes in the population. It is done by randomly changing genes in newly produced chromosomes:

Mutation Operation

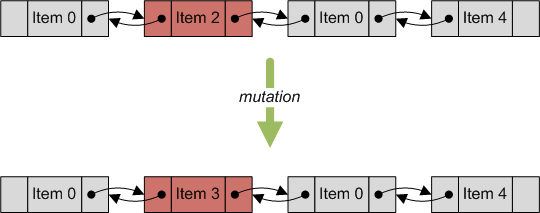

Mutation operation

The operation is implemented by XkcdMutationOperation class. It inherits GaMutationOperation which is base for all user-defined mutation operations. operator () is responsible for performing mutation on the chromosome. This operation requires parameters that tell it how many genes it should change for which GaMutationSizeParams class is used.

class XkcdMutationOperation : public Chromosome::GaMutationOperation
{
public:

  virtual void GACALL operator ()(Chromosome::GaChromosome& chromosome,
    const Chromosome::GaMutationParams& parameters) const;

  virtual Common::GaParameters* GACALL CreateParameters() const
    { return new Chromosome::GaMutationSizeParams(); }
};

Mating Operation

Mating operation controls production cycle of new chromosomes. Cycle includes all the genetic operations that should executed to produce new chromosome and their parameters. Basic cycle consists of invoking crossover operation to produce new chromosomes and invoking mutation operation on those chromosomes. This cycle is implemented in the library by GaBasicMatingOperation class. User can customize production cycle by implementing custom mating operation. GaMatingOperation is base class for all mating operations.

Putting the Pieces Together

The final stage is to a define population, select the appropriate algorithm and chose selection and replacement operations. Algorithm configuration and parameters:

mutation probability:30%
mutation size:1 gene
only accept mutations that improve fitness:yes
crossover probability:80%
crossover points:1
algorithm type:incremental (overlapping population)
population size:32 chromosomes
sorted population:yes
fitness sorting:maximization
fitness weights:2.0, 1.0
selection type:roulette wheel
selection size:8
coupling type:none (selection performs mating)
number of offspring to produce:8
scaling type:no scaling
replacement type:replace worst
chromosomes to replace:8
stop criterion type:fitness change
stop criterion depth:1000 generations

The code that puts all the pieces together to create genetic algorithm looks like this:

// create mating operation with:
// crossover - 80% probability, 2 offspring, 1 crossover point
// mutation - 30% probability, accept only improving mutations, 1 gene
Chromosome::CrossoverOperations::GaListMultipointCrossover crossover;
Problems::XKCD::XkcdMutationOperation mutation;
Chromosome::MatingOperations::GaBasicMatingOperation mating;
Chromosome::GaMatingConfig matingConfiguration(
  Chromosome::GaCrossoverSetup( &crossover,
    &Chromosome::GaCrossoverPointParams( 0.8f, 2, 1 ), NULL ),
  Chromosome::GaMutationSetup( &mutation,
    &Chromosome::GaMutationSizeParams( 0.3f, true, 1L ), NULL ) );

Problems::XKCD::XkcdConfigBlock::Appetizer appetizers[] =
{
  Problems::XKCD::XkcdConfigBlock::Appetizer("mixed fruit", 2.15f, 3),
  Problems::XKCD::XkcdConfigBlock::Appetizer("french fries", 2.75f, 2),
  Problems::XKCD::XkcdConfigBlock::Appetizer("side salad", 3.35f, 5),
  Problems::XKCD::XkcdConfigBlock::Appetizer("hot wings", 3.55f, 3),
  Problems::XKCD::XkcdConfigBlock::Appetizer("mozzarella sticks", 4.20f, 4),
  Problems::XKCD::XkcdConfigBlock::Appetizer("sampler plate", 5.80f, 7),
};

// create chromosome initializator
Problems::XKCD::XkcdInitializator initializator;
Chromosome::GaInitializatorSetup initializatorSetup( &initializator,
  NULL, &Chromosome::GaInitializatorConfig(
    &Problems::XKCD::XkcdConfigBlock(
      Common::Data::GaSingleDimensionArray<
        Problems::XKCD::XkcdConfigBlock::Appetizer>( appetizers, 6 ) ) ) );

// create fitness comparator for maximizing fitness value
Fitness::Comparators::GaSimpleComparator fitnessComparator;
Fitness::GaFitnessComparatorSetup fitnessComparatorSetup(
  &fitnessComparator,
  &Fitness::Comparators::GaSimpleComparatorParams(
    Fitness::Comparators::GACT_MAXIMIZE_ALL ), NULL );

// fitness operation
Problems::XKCD::XkcdFitnessOperation fitnessOperation;
Population::GaCombinedFitnessOperation populationFitnessOperation(
  &fitnessOperation );

// create population statistics trackers
// for fitness values and population size
Population::GaPopulationSizeTracker sizeTracker;
Population::GaRawFitnessTracker rawTracker;
Algorithm::Stubs::GaSimpleGAStub::GaStatTrackersCollection trackers;
trackers[ Population::GaPopulationSizeTracker::TRACKER_ID ] =  &sizeTracker;
trackers[ Population::GaRawFitnessTracker::TRACKER_ID ] =  &rawTracker;
trackers[ Population::GaScaledFitnessTracker::TRACKER_ID ] =  &scaledTracker;

// create selection operation that:
// uses roulette wheel method and
// selects 8 parents and produces 8 offspring chromosomes
// using defined mating
Population::SelectionOperations::GaRouletteWheelSelection selection;
Population::GaSelectionSetup selectionSetup( &selection,
  &Population::SelectionOperations::GaDuplicatesSelectionParams( 8, 1, 2 ),
  &Population::GaCouplingConfig(
    Chromosome::GaMatingSetup( &mating, NULL, &matingConfiguration ) ) );

// create replacement operation that:
// replaces 8 worst chromosomes in the population
Population::ReplacementOperations::GaWorstReplacement replacement;
Population::GaReplacementSetup replacementSetup( &replacement,
  &Population::GaReplacementParams( 8 ),
  &Population::GaReplacementConfig(
    Chromosome::GaChromosomeComparatorSetup(
      &chromosomeComparator, NULL, NULL ) ));

// creates scaling operation that just copies raw fitness value
Population::ScalingOperations::GaNoScaling scaling;
Population::GaScalingSetup scalingSetup( &scaling, NULL,
  &Population::GaScalingConfig() );

// weights used to calculate fitness value
float fitnessWights[] = { 2.0f, 1.0f };

// create simple algorithm stub:
// population - 32 chromosomes, 0 crowding size, sort by raw fitness
Algorithm::Stubs::GaSimpleGAStub simpleGA(
  WDID_POPULATION,
  WDID_POPULATION_STATS,
  initializatorSetup,
  Population::GaPopulationFitnessOperationSetup(
    &populationFitnessOperation,
    &Problems::XKCD::XkcdFitnessOperationParams( targetPrice ),
    &Fitness::GaFitnessOperationConfig(
      &Fitness::Representation::GaWeightedFitnessParams<float>(
        fitnessWights, 2 ) ) ),
  fitnessComparatorSetup,
  Population::GaPopulationParams( 32, 0,
    Population::GaPopulationParams::GAPFO_FILL_ON_INIT ),
  trackers,
  Chromosome::GaMatingSetup(),
  selectionSetup,
  Population::GaCouplingSetup(),
  replacementSetup,
  Population::GaScalingSetup(),
  Population::GaFitnessComparatorSortingCriteria( fitnessComparatorSetup,
    Population::GaChromosomeStorage::GAFT_RAW ) );

// create workflow
Common::Workflows::GaWorkflow workflow( NULL );
workflow.RemoveConnection(
  *workflow.GetFirstStep()->GetOutboundConnections().begin(), true );

// connect algorithm stub to workflow
Common::Workflows::GaWorkflowBarrier* br1 =
  new Common::Workflows::GaWorkflowBarrier();
simpleGA.Connect( workflow.GetFirstStep(), br1 );

Common::Workflows::GaBranchGroup* bg1 =
  (Common::Workflows::GaBranchGroup*)workflow.ConnectSteps(
    br1, workflow.GetLastStep(), 0 );

// create stop criteria that will stop the algorithm if:
// raw fitness of the best chromosome in the population
// has not been changed for the last 1000 generations.
Algorithm::StopCriteria::GaStatsChangesCriterion stopCriterion;
Algorithm::StopCriteria::GaStopCriterionStep* stopStep =
  new Algorithm::StopCriteria::GaStopCriterionStep(
    Algorithm::StopCriteria::GaStopCriterionSetup(
      &stopCriterion,
      &Algorithm::StopCriteria::GaStatsChangesCriterionParams(
        Population::GADV_BEST_FITNESS, 1000), NULL ),
    workflow.GetWorkflowData(), WDID_POPULATION_STATS );

// connect stop criterion to workflow and algorithm stub
Common::Workflows::GaBranchGroupTransition* bt1 =
  new Common::Workflows::GaBranchGroupTransition();
bg1->GetBranchGroupFlow()->SetFirstStep( stopStep );
bg1->GetBranchGroupFlow()->ConnectSteps( stopStep, bt1, 0 );
workflow.ConnectSteps( bt1, simpleGA.GetStubFlow().GetFirstStep(), 1 );

// subscribe handler to event raised before new generation cycle begins
Common::Workflows::GaDataCache<Population::GaPopulation> population(
  workflow.GetWorkflowData(), WDID_POPULATION );
population.GetData().GetEventManager().AddEventHandler(
  Population::GaPopulation::GAPE_NEW_GENERATION, &newGenHandler );

// start algorithm and wait for it to finish
workflow.Start();
workflow.Wait();

Results

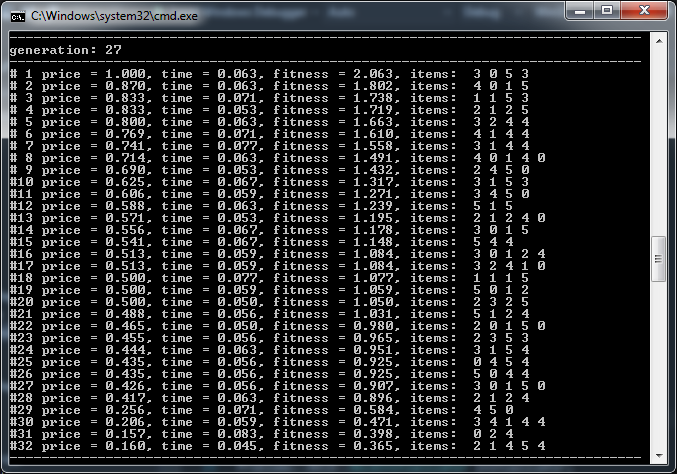

The following section presents results of a single run for target price of $15.05. It shows progress of chromosomes' fitness values and their components during the run. X-axis represents generations of the population and Y-axis represents fitness value or one of its component.

xkcd_fitness_graph
Weighted fitness value of the best chromosome and the worst chromosome in population and average value

xkcd_price_graph
Price component of the best chromosome in the population - how far it is off the targeted price

xkcd_time_graph
Time component of the best chromosome in the population - how much time it is needed to make appetizers

History

  • 18 Jun 2013 - Results and statistics added
  • 17 Jun 2013 - Original article posted

License

This article, along with any associated source code and files, is licensed under The GNU General Public License (GPLv3)

Share

About the Author

Mladen Janković
Software Developer
Serbia Serbia
No Biography provided

Comments and Discussions


GeneralMy vote of 5 PinprofessionalMihai MOGA13-Jul-13 20:39

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

| Advertise | Privacy | Mobile
Web04 | 2.8.141022.2 | Last Updated 18 Jun 2013
Article Copyright 2013 by Mladen Janković
Everything else Copyright © CodeProject, 1999-2014
Terms of Service
Layout: fixed | fluid
