Simple BizTalk Project without Orchestration

Introduction

Most Techies have a perspective of BizTalk as an Orchestration based solution. But designing the solution with orchestration makes a round trip to Message box.

Whenever complex business logic needs to be designed, the Orchestration is the best approach to follow.

But, if you need to implement simple transformations with no business logics, The Best approach would be the Message-only Solution, which avoids the round trip to Message box and increases the through-put of the solution.

Let us quickly create a message only solution without orchestration J

Steps

• Creating a BizTalk Input & Output Schema

• Creating a Map

• Creating the instance of the Input message

• Deploy the Solution

• Pre Deployment Steps

• Deployment

• Configuring Application

• Post Deployment Checks

• Configuring Receive Port/Location

• Configuring Send Port

• Configure map in send port

• Configuring Filters in send Port

• Post-Configuration Tasks

• Testing the Solution

• Trouble shoot on Failures

Creating a BizTalk Input & Output Schema

1. Start>>Visual Studio 2010 >> BizTalk >> Empty BizTalk Server Project

Rename the Name and Solution Name as MessageOnlySln

1. In Solution Explorer, Right Click the project and Add>>New Item



2. Select the schema from the Items and Rename the schema as ReceiveSchema.xsd

3. A new schema will be formed with the root element as ‘root’, just rename the root as ‘Input’

BizTalk Identifies the Messages through the Message Type. Message type is an integral part of ‘NameSpace#Root’

1. Now create two child field elements as FirstName and LastName as string(default) datatype

At last the ReceiveSchema should be like this

1. Follow the above steps 2,3,4,5 and create a SendSchema.xsd with one child field element as ‘FullName’

Creating a Map

Map is a Message Transformational object in BizTalk. The Conversion of schema ReceiveSchema and SendSchema will be carried here. Maps are internally a XSLT Transformation.

Let us create a simple map

1. Create a new map and name it as ConcatenateMap.btm

1. Map will be created with links as Open Source Schema and Open Destination Schema

1. Click on those links and Select the Source(ReceiveSchema.xsd) and Destination Schema(SendSchema.xsd)

1. After selecting the schemas, expand the root node to have a visibility of underlying elements

1. Let us do a simple concatenation of FirstName and LastName (Source Schema) to FullName(Destination Schema)

2. Drag and drop the String concatenate functoid

Functoids are ready-made logical functions which is available for transforming the data in map

You can see the warning shown in the functoid, because of no input/output is provided

For all the Functoids, there will be an description, which you can find once you double click the same

1. Now drag the Link from the FirstName and LastName elements from Source schema to the left side of Concatenate functoid and link the result(right side)to the FullName element of Output schema

2. Note that functoid warning symbol has been disappeared



   As said earlier Map is internally an XSLT… Let’s see how the xslt is formed for this map.

   Right click the ConcatenateMap.btm and click validate map



   If you click on the output link of XSLT



   You can see the xslt as below:



   With this we have created the functionality. But we should do unit test before deploying, for now I am skipping that part J

Creating the instance of the Input message

1. To create an instance, Right click the ReceiveSchema.xsd and Generate instance



   The schema’s instance will be generated in the location. The Output window will show the location as:

C:\Users\<PC-Name>\AppData\Local\Temp\_SchemaData\ReceiveSchema_output.xml

1. Open the instance file

1. As the Generate instance will be default field name will values, change it as desired



2. Keep this file ready before testing.

Deploy the Solution

We are done Lets Deploy the SolutionJ

Pre Deployment Steps

1. All the BizTalk Artifacts (Schemas,Maps,orchestration) or full projects has to be made the strongly named before deploying

2. Goto MessageOnlySln project in solution explorer and right click and click on properties

   And Navigate to signing Tab in the left pane



3. Click on sign the assembly and choose a strong name key file as ‘new’



4. Give the filename as ‘MessageOnlySlnKey’ and uncheck the ‘Protect my key file with a password’



5. A new Key will be created in the solution explorer as below



6. Now go to the Deployment tab



7. Now Create the application name as ‘MessageOnlyAppln’, this name will be used for creating application in BizTalk Admin Console.If this is not specified this solution will be deployed in the default application(BizTalk Application 1)



   Save all the unsaved artifacts…!

   Deployment

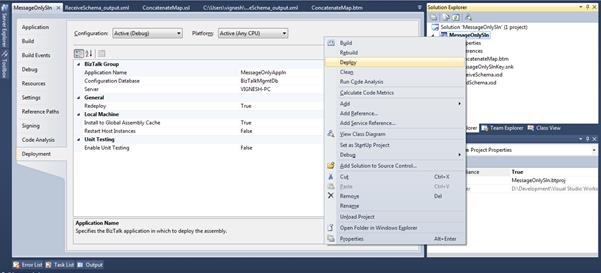

8. Now Right click on the Project in solution explorer and click on deploy



9. The deploy started text will be displayed on Visual studio left bottom



10. Deploy Succeeded after some time



11. New Application called MessageOnlyAppln is formed in BizTalk Admin console



    Note: In case of errors,

    1. Please ensure that Biztalk necessary services are up and running

    2. In case of Access Denied errors, Restart visual studio as administrator

    3. Also make sure you have not missed out any steps mentioned above

Configuring Application

Post Deployment Checks

1. Make sure the schema and maps are available in the respective areas in the console

Configuring Receive Port/Location

Ports are the sources of Publish subscribe model in BizTalk. All the Messages are published/Subscribed by the ports in BizTalk

Configuring Receive Port/Location

1. Create a new Receive port



2. In General tab Rename the port as InboundRcvPort



3. Create Receive Location

   Click on the Receive locations in the same window and click on new as shown below



4. Configure Receive Location as below



5. Click on Configure button and provide the location of Inbound folder



6. Click ok on all the underlying windows

7. Make sure Receive location is available as below



Configuring Send Port

The Message will be picked up by the File based Receive Adapter>> It will be transmitted to Receive port and Delivered to message box

Now we need to subscribe to this delivered message through any of the Context properties(BTS.ReceivedFileName) to apply the Outbound map. Here the map will be applied in the send port.

1. Create a Send port as below



2. Click on Static One-way send port and rename as ‘OutboundSendPort’ and make all configurations as below



3. Click on the Configure button and provide the Outbound folder location



Configure map in send port

1. Click on the outbound maps in the same window on the left pane

2. Select the map as shown below



3. Click on apply

Configuring Filters in send Port

Filters are the ones which subscribes to the messages from Message-Box

1. Go to filters tab on left pane in same window and select the context property

   ‘BTS.ReceivedPortName’ from drop down



2. Provide the value to the property as ‘InboundRcvPort’



3. We can select any context properties(like BTS.MessageType) based on your requirement

4. Apply all the settings and click on ok on all windows

Post-Configuration Tasks

The Receive Location and Send port will be in disabled state, Right click and enable the same

2. Make sure the host instance BizTalkServerApplication is up and running

Testing the Solution

As we are done with all configuration part, now it’s time to test the entire solution.

1. Copy the instance file which you have generated in the previous task



2. Place the file in the Inbound folder configured in receive location

1. The file will be immediately picked up and output will be transformed and placed in the output folder with unique MessageID as name



2. Output file will be formed as



   Ha!!! , We have done this JSolution is working as expected.

Trouble shoot on Failures

1. If the file has not been formed in the send folder,

   1. Double check the filter property and Value configured

   2. Make sure the Send Location is configured is valid

2. For more assistance check the Suspended Service instances to get the exact problem

With this we have learnt how to make a simple Message only solution in BizTalk.

Hope this helps…!
