WPF x FileExplorer3 x MVVM

, , 29 May 2014
Rate this:
Please Sign up or sign in to vote.
FileExplorer is a WPF based control that has most features of the Windows Explorer, you can use it to display shell objects or any hierarchical data.

Introduction

The FileExplorer project is a WPF based control that implements most aspects of Windows Explorer. It can be used to display shell objects or any hierarchical data.

The code presented here implements:

  • a standalone window,
  • a file open and file save dialog, and
  • a folder picker dialog.

The FileExplorer control is designed such that it can be embedded into the UI of other applications that you might develop.

Index

Background

I have created the first edition of WPF FileExplorer in 2008. This version just included a DirectoryTree and FileList, which delivered a lot of functionality required (but not provided by the framework). The next version, FileExplorer2, arrived in 2010. It supported different entity types, more controls, and improved performance through asynchronous loading (not using the async keyword) and bounty directory tree lookup.

The FileExplorer2 version was a real progress in the matter of implementing a custom file explorer control. But the problem of this implementation was that it is designed as a demo that has no room for customization. The design of FileExplorer2 has a tower of hierarchy, which makes it impossible to improve afterwards.

I recreated the 3rd version FileExplorer3 from scratch in spring 2014. This version provides more controls, supports different entry types in the same explorer, is enabled for touch, and can be customized. This article is focused on the FileExplorer3 project and describes its usage.

Features:

  • DirectoryTree, FileList, Navigation, Breadcrumb, Sidebar, Statusbar control.
  • NormalWindow, TabControl and ToolWindow display mode.
  • Support any hierarchical structure as entry, not necessarily IO based, and not just System.IO or DirectoryInfoEx.
    (Currently supports : System.IO, DirectoryInfoEx, GoogleDrive, OneDrive and DropBox)
  • Can combine different types of entries in one window.
  • Certain behaviors can be configured (e.g. Open or Select on double click) using ScriptRunner.
  • Drag and Drop and MultiSelect, this time it's refactored into a UIEventHub, a re-usable control that is MVVM compliant and supports touch.
  • FileList supports
    • Multiple views in same control, note that it uses the ListView.View property, instead of having an ItemsControl for each view.
    • Customizable Column (definable in ViewModel)
    • All views support Column sort and filter using GridViewHeader.
    • Virtual loading using VirtualStackPanel and VirtualWrapPanel are used to create a UIElement when needed.
    • Asynchronous entries loading using EntriesHelper
    • Refresh when filesystem raise changed.
  • Breadcrumb in an MVVM friendly tree like structure.

Note: Touch Drag n Drop support does not work in the shell, unless it is initialized. You can initialize this with a touch and hold (for 2 seconds) gesture before you start to drag.

Download

FileExplorer3 is released under MIT License and is available here:

Note: The MIT license is less restrictive than LGPL and MS-PL. Users can modify the library without making them open source.

Using the code

Compiling the source code

The FileExplorer3 project supports omline directories, such as, OneDrive or DropBox. These services require identification keys which are not included in the source code. You therefore, have to copy Copy Of AuthorizationKeys.cs (in TestApp.WPF) to AuthorizationKeys.cs in order to use OneDrive or DropBox. You can enable the GoogleDrive implementation if you obtain your gapi_client_secret.json and put it in TestApp.WPF project directory. Please review the Copy of AuthorizationKeys.cs file to find more information with regard to obtaining these keys.

if (System.IO.File.Exists("gapi_client_secret.json"))

   //For demo only, one should embed it in the binary in real world application.
   using (var gapi_secret_stream = System.IO.File.OpenRead("gapi_client_secret.json"))
   {
       _profileGoogleDrive = new GoogleDriveProfile(_events, _windowManager, gapi_secret_stream);
   }

Review the Section about disabling map/unmap buttons to use this project without a particular online directory service.

Bootstrapper

The FileExplorer project uses the Caliburn Micro framework internally. Whether you use thise framework in your project or not, depends on your project, but you will have to execute the Caliburn Micro BootStrapper in any case. Using the included class is in mot cases sufficient:

<Application x:Class="Nuget.FileExplorer.WPF.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                     xmlns:uc="http://www.quickzip.org/UserControls"
             StartupUri="MainWindow.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary>
                    <uc:FileExplorerBootStrapper x:Key="boot" />
                </ResourceDictionary>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

Caliburn Micro MVVM framework

The FileExplorer3 implementation is based on the Caliburn Micro framework. You can use the ExplorerViewModel or TabbedExplorerViewModel (for multi-tab explorer) and the framework finds the View automatically. The following code is, for example, in TestApp.WPF, AppViewModel.cs, line 110:

_windowManager.ShowWindow(new ExplorerViewModel(_events, _windowManager, RootModels.ToArray()));

This code uses the WindowManager in CaliburnMicro to show an explorer window. The Caliburn Micro framework finds the appropriate view (ExplorerView in this case) automatically. The association between view and viewmodel is imported in AppBootstrapper.cs using MEF.

container = new CompositionContainer(
  new AggregateCatalog(
      AssemblySource.Instance.Select(x => new AssemblyCatalog(x))
             .OfType<ComposablePartCatalog>()
             .Concat(new ComposablePartCatalog[] { new DirectoryCatalog(".") }))
 );

The automatic association of CaliburnMicro requires that all views are stored in FileExplorer3's View directory, using a naming convention based on {ViewModelName}View.xaml. The tool window (Explorer.ToolWindow.xaml) does not adhere to this rule since you can create it by passing a "ToolWindow" as context in the ShowWindow():

_windowManager.ShowWindow(new ExplorerViewModel(
  _events, _windowManager, RootModels.ToArray()), "ToolWindow");

You would want the ExplorerView to be part of your UI in most cases. This can be done by specifying the context with the cal:View.Context attached property.

<ContentControl Name="Explorer" DockPanel.Dock="Left" cal:View.Context="ToolWindow" />

The project includes also a FilePicker and DirectoryPickerViewModel.

var filePicker = new FilePickerViewModel(_events, _windowManager, FileFilter,
         FilePickerMode.Open, RootModels.ToArray());
if (_windowManager.ShowDialog(filePicker).Value)
{
    MessageBox.Show(String.Join(",", filePicker.SelectedFiles.Select(em => em.FullPath)));
}
//or...
new ScriptRunner().Run(new ParameterDic(),
  ScriptCommands.OpenFile(_windowManager, _events, RootModels.ToArray(), FileFilter, "demo.txt",
  (fpvm) => ScriptCommands.MessageBox(_windowManager, "Open", fpvm.FileName), ResultCommand.OK));

A user of the Explorer UserControl may has to initialize many fields before it can start. This can be done by using the ExplorerInitializer, which is reusable among all tabs in TabbedExplorerViewModel.

public static IExplorerInitializer getInitializer(IWindowManager windowManager,
    IEventAggregator events, IEntryModel[] rootModels, params IViewModelInitializer<IExplorerViewModel>[] initalizers)
{
    var retVal = new ExplorerInitializer(windowManager, events, rootModels);
    retVal.Initializers.AddRange(initalizers);
    return retVal;
}
...
var initializer = getInitializer(_windowManager, _events, RootModels.ToArray(),
        new BasicParamInitalizers(_expandRootDirectories, _enableMultiSelect, _enableDrag, _enableDrop),
        new ColumnInitializers(),
        new ScriptCommandsInitializers(_windowManager, _events, profiles),
        new ToolbarCommandsInitializers(_windowManager));

var sr = new ScriptRunner();
sr.Run(Explorer.NewWindow(initializer, context, null), new ParameterDic());

Other MVVM frameworks

You can also use the Explorer UserControl without the Caliburn Micro framework. Just use the Explorer UserControl and toggle properties with its ViewModel. A sample code for this is, for example, in ToolWindow.xaml:

<Window ...
        xmlns:uc="http://www.quickzip.org/UserControls"
        xmlns:conv="http://www.quickzip.org/Converters"
        xmlns:cal="http://www.caliburnproject.org" ...>
    <Grid>
        <Grid.Resources>
            <conv:EntryModelToStringConverter x:Key="emts" />
        </Grid.Resources>

        ....
        <!-- This is required to show dragging items -->
        <AdornerDecorator x:Name="PART_DragDropAdorner" Grid.ColumnSpan="3" />

        <uc:Explorer x:Name="explorer" Mode="ToolWindow" /> <!-- Explorer in tool window mode -->
        ...
        <StackPanel ...>
            <bc:UIEventAdapter.Processors>
                <bc:DragDropLiteEventProcessor />
            </bc:UIEventAdapter.Processors>

            ...<!--ViewModel.FileList.Selection.SelectedItems is IEntryModel-->
            <TextBlock Text="{Binding ViewModel.FileList.CurrentDirectory,
                Converter={StaticResource emts},
                ElementName=explorer}" />

            ...<!--ViewModel.FileList.Selection.SelectedItems is List<IEntryViewModel>-->
            <TextBlock Text="{Binding ViewModel.FileList.Selection.SelectedItems,
                Converter={StaticResource emts},
                ElementName=explorer}" />

            ...<TextBlock x:Name="testDroppable"
                   AllowDrop="True"
                   Text="{Binding Label}" >
              <bc:UIEventAdapter.Processors>
                <bc:DragDropEventProcessor EnableDrag="false" EnableDrop="true" />
                <bc:DragDropLiteEventProcessor EnableDrag="false" EnableDrop="true"
                                               EnableMouse="False" EnableTouch="True" />
              </bc:UIEventAdapter.Processors>

            </TextBlock>
        </StackPanel>
    </Grid>
</Window>

In either way, you will have to specify the root directory in IEntryModel. This can be parsed from the profile:
(IProfile provide FileExplorer to access the content of IO, WebStorage, or other store defined by user)

var _profileEx = new FileSystemInfoExProfile(events, windowManager);
rootDir = _profileEx.ParseAsync(System.IO.DirectoryInfoEx.DesktopDirectory.FullName).Result;

There is a profile for each file system/directory service:

  • FileSystemInfoProfile, - Access using System.IO namespace
  • FileSystemInfoExProfile, - Access using DirectoryInfoEx library
  • SkyDriveProfile, - Access Microsoft OneDrive storage using Microsoft.Live library
  • DropBoxProfile , - Access DropBox using DropNet library
  • and GoogleDriveProfile. Access Google Drive using gapi library

The web based profiles require a login and password. Please check the demo (and 'Using the Code' section) if you look for a 'how to' on this. It is possible to include or remove an online directory service into the UI interface by using the Map or Unmapbutton, respectively

UIEventHub

The WPF UIEventHub control registers a number of events and distributes them to registered elements: UIEventProcessor, available UIEventProcessor included MultiSelectEventProcessor and DragDropEventProcessor, which is an update for the SelectionHelper and FileDragDropHelper static class in FileExplorer2.
The documentation for UIEventHub is available here

Disable Map / Unmap buttons

You can disable the the map/unmap function altogether, if you don't want to use these online APIs at all. You can find the TestApp.WPF calls to the ScriptCommandsInitializers and ToolbarCommandsInitializers in the TabWindow() method.

 var profiles = new IProfile[] {
                _profileEx,
                //Comment these if you don't need them.
                _profileSkyDrive, _profileDropBox, _profileGoogleDrive
            };

            var initializer = getInitializer(_windowManager, _events, RootModels.ToArray(),
                ...
                new ScriptCommandsInitializers(_windowManager, _events, profiles),
                new ToolbarCommandsInitializers(_windowManager));

            var tabVM = new TabbedExplorerViewModel(initializer);

            _windowManager.ShowWindow(tabVM);

In ScriptCommandsInitializers.InitalizeAsync()

if (_profiles.Length > 0)
      explorerModel.DirectoryTree.Commands.ScriptCommands.Map =
          Explorer.PickDirectory(initilizer, _profiles,
          dir => Explorer.BroadcastRootChanged(RootChangedEvent.Created(dir)),
          ResultCommand.NoError);

And in ToolbarCommandsInitializers, you can find the following

 explorerModel.DirectoryTree.Commands.ToolbarCommands.ExtraCommandProviders = new[] {
       new StaticCommandProvider(
         ...
        new CommandModel(ExplorerCommands.Map)  {
             Symbol = Convert.ToChar(0xE17B),
             IsEnabled = true,
             IsHeaderVisible = false, IsVisibleOnToolbar = true
         },
         new CommandModel(ExplorerCommands.Unmap)  {
             Symbol = Convert.ToChar(0xE17A),
             IsVisibleOnMenu = true,
             IsVisibleOnToolbar = true
         }

You can remove these calls to disable the map functionality.

IProfile

You can implement the IProfile interface to display your own hierarchy information.

The IProfile interface includes:

  • CommandProvider (provide CommandModel),
  • PathHelper (System.IO.Path replacement),
  • HierachyComparer (Compare Hierarchy of two IEntryModels),
  • MetadataProvider(provide MetadataModel), and
  • DragDrop (Drag and drop support).

The Parse and Listing (IProfile.Parse/ListAsync()) methods can be used to return 1 or multiple IEntryModels. An IEntryModel includes only basic properties, but your implementation can define more properties (e.g. Size) since these are defined by user of the interface. The columns in FileList are fully customizable and cannot be hard-coded.

Custom Metadata

You can display different types of information in the sidebar or statusbar based on the currently selected item:

public enum DisplayType { Auto, Text, Number, Link, DateTime, TimeElapsed, Kb, Percent, Filename, Boolean, Image }
//These are defined in FileExplorer.WPF\Themes\Common\DisplayTemplatex.xaml
//Auto - (Default) Determine automatically depend on type of value
//Text - Given a string, display text.
//Number - Given a int/float, display ###,###,###,##0.##
//Link - Given a text, display Hyperlink
//DateTime - Given a DateTime, display "yyyy/MM/dd HH:mm:ss" editable in Converters.xaml
//TimeElapsed - Given a TimeSpan, display xx years xx days zz hours
//Kb - Given a long, display 12.34kb (also support Mb and Gb)
//Percent - Given a short, display Percentage bar
//Filename - Given a FilePath string, display FileName only
//Boolean - Given a boolean, display a CheckBox
//Image - Given an url or ImageSource, display a image.

/*
  FileBasedMetadataProvider is defined in FileSystem.IO, you can include your own MetadataProvider using the explorer view model.
  e.g.  explorerViewModel.Sidebar.Metadata.ExtraMetadataProviders = new [] {
                new DummyMetadataProvider()
            };
*/
public class FileBasedMetadataProvider : MetadataProviderBase
{
    public override async Task&l;IEnumerable<imetadata>> GetMetadataAsync(IEnumerable<IEntrymodel> selectedModels,
           int modelCount, IEntryModel parentModel)
    {
        ...
        if (selectedModels.Count() > 0)
        {
            ...
            //Display "Creation Time : 3 years 6 months 2 days ago" in sidebar
            retList.Add(new Metadata(DisplayType.TimeElapsed, MetadataStrings.strCategoryInfo,
                    MetadataStrings.strCreationTime, creationTime.ToLocalTime()) { IsVisibleInSidebar = true });

            //Display "Size : 1234kb" in sidebar.
            retList.Add(new Metadata(DisplayType.Kb, MetadataStrings.strCategoryInfo,
                    MetadataStrings.strSize, size) { IsVisibleInSidebar = true });
            ...
        }

        return retList;
    }

}

Custom Commands

The Profile class can define a CommandProvider, which provides a CommandModel that is used to implement commands in the context of a menu (MenuItem) and toolbar.
You can specify additional

/*
   ExCommandProvider is defined in FileExplorer.IO, you can define additional command provider using the following command:
   explorerModel.FileList.Commands.ToolbarCommands.ExtraCommandProviders = new[]
                new AdditionalCommandProvider(),
                ...
}
*/
public class ExCommandProvider : ICommandProvider
{
    FileSystemInfoExProfile _profile;
    public ExCommandProvider(FileSystemInfoExProfile profile)
    {
        _profile = profile;
    }

    public List GetCommandModels()
    {
        return new List()
                {
                    //Display OpenWith... Menuitem in Toolbar only and not in context menu.
                    new OpenWithCommandEx(_profile) { IsVisibleOnMenu = false, IsVisibleOnToolbar = true }
                };
    }
}

FileList

The FileList view displays items and directories in different view modes (settable via Parameters.ViewMode).
The grid column in the FileList is customizable and filterable. It is also visible not just in the GridView, but in all other ViewModes as well.
The FileList view display is not limited to columns. It can also be used to define new views and actions when clicked:

Custom Columns

All columns are defined in the ColumnList. We can use a Binding (e.g. Type) and define a DataTemplate:

explorerViewModel.FileList.Columns.ColumnList = new ColumnInfo[]
    {
        //From a template named GridLabelTemplate, this template should be placed in Themes\Common\ItemTemplates.xaml,
        //Or a place discoverable by the ListViewEx.
        ColumnInfo.FromTemplate("Name", "GridLabelTemplate", "EntryModel.Label",
             //You also need to define a comparer for sorting.
             new ValueComparer<IEntryModel>(p => p.Label), 200),
        //EntryModel.Label is only uses as identifier for column filter in this case.


        //Value from a bindings relative to the IEntryViewModel, e.g. EntryModel.Description in this case.
        ColumnInfo.FromBindings("Type", "EntryModel.Description", "", new ValueComparer<IEntryModel>(p => p.Description), 200),
        ...
    };

... and define the template accessible by the FileList:

<DataTemplate x:Key="GridLabelTemplate" >
        <StackPanel Orientation="Horizontal">
            <Image Source="{Binding Icon, Mode=OneWay}" Width="30" Height="30"  />

            <uc:EditBox x:Name="eb" Margin="5,0" DisplayValue="{Binding EntryModel.Label}"
                     ...
                        />

        </StackPanel>
    </DataTemplate>

Custom Column Filters

The FileExplorer3 provides ColumnFilters such that users can specify items to be shown on the file list.

explorerViewModel.FileList.Columns.ColumnFilters = new ColumnFilter[]
{
    //Label, Path relative to IEntryViewModel and a match func
    ColumnFilter.CreateNew("0 - 9", "EntryModel.Label", e => Regex.Match(e.Label, "^[0-9]").Success),
    ColumnFilter.CreateNew("A - H", "EntryModel.Label", e => Regex.Match(e.Label, "^[A-Ha-h]").Success),
    ...
    ColumnFilter.CreateNew("Today", "EntryModel.LastUpdateTimeUtc", e =>
    {
       DateTime dt = DateTime.UtcNow;
       return e.LastUpdateTimeUtc.Year == dt.Year && e.LastUpdateTimeUtc.Month == dt.Month && e.LastUpdateTimeUtc.Day == dt.Day;
    }),
 };

Custom Views

When IFileListViewModel.Parameters.View (string) changes, the file list looks for property + "View" in xaml, for example, Icon -> IconView.
All views are defined in Themes\Common\Views.xaml, e.g.

/*
  WPF's ListView support a <a href="http://msdn.microsoft.com/en-us/library/system.windows.controls.listview.view%28v=vs.110%29.aspx">View property that allow one to setting a ViewBase object in it.
  The ViewBase is DependencyObject so it's bindable, so though bindings the panel (e.g. VirtualWrapPanel) can assess properties
  in the View object, while it can bind to the view model to obtain properties.

  Note: MetroUI's ListView does not have View property.
*/
<uc:VirtualWrapPanelView x:Key="IconView"
                        ColumnHeaderContainerStyle="{StaticResource ListViewExColumnHeaderContainerStyle}"
                        SmallChanges="{Binding Path=ItemHeight, RelativeSource={RelativeSource Self}}"
                        CacheItemCount="5"

                        ItemTemplate="{DynamicResource IconItemTemplate}"
                        ItemContainerStyle="{StaticResource IconItemContainerStyle}"
                        ItemHeight="{Binding Parameters.ItemSize}"
                        ItemWidth="{Binding Parameters.ItemSize}"
                        HorizontalContentAlignment="Left" >
</uc:VirtualWrapPanelView>

Note: The Multi-Select function is now supported since the UIEventHub was updated. The works even on the non-IChildInfo supported panel. The UIEventHub uses HitTest in this case as mentioned in the first version of the MultiSelectHelper.

Custom ContextMenu and Toolbar Commands

The application commands can be defined in the profile, but they can also be defined in Commands.ToolbarComands.ExtraCommandProviders as shown in the following code sample:

explorerModel.FileList.Commands.ToolbarCommands.ExtraCommandProviders = new[] {
     //Invoke RoutedUICommand -
     //The following one shows Delete in menu, which execute ApplicationCommands.Delete when clicked.
     new CommandModel(ApplicationCommands.Delete) { IsVisibleOnMenu = true, Symbol = Convert.ToChar(0xE188) },

     //Multi Level -
     //The following one below shows New\Folder (caption is overrided) in Menu,
     //which execute ExplorerCommands.NewFolder when clicked.
     new DirectoryCommandModel(new CommandModel(ExplorerCommands.NewFolder) { Header = Strings.strFolder })
                        { IsVisibleOnMenu = true, Header = Strings.strNew, IsEnabled = true},

     //Separator
     new SeparatorCommandModel(),

     //User defined -
     //You can derive from CommandModel or DirectoryCommandModel to create your own command.
     new ViewModeCommand(explorerModel.FileList),
};

Note: A similar mechanism is possible for the DirectoryTree.Commands.ToolbarCommands.

Custom UICommands (ScriptCommandBindings)

The IFileListCommandManager interface defines a number of UICommands (Commands) that can be used in the UI.

//Call Command Manager (ch/this)'s ScriptCommands (DynamicDictionary).Open IScriptCommand when
//ApplicationCommmands.Open is called.
//Noted that ch.ScriptCommands.Open is editable by user.
ScriptCommandBinding.FromScriptCommand(ApplicationCommands.Open, this, (ch) => ch.ScriptCommands.Open,
   ParameterDicConverter, ScriptBindingScope.Local),
ScriptCommandBinding.FromScriptCommand(ExplorerCommands.NewFolder, this, (ch) => ch.ScriptCommands.NewFolder,
   ParameterDicConverter, ScriptBindingScope.Local),
ScriptCommandBinding.FromScriptCommand(ExplorerCommands.Refresh, this, (ch) => ch.ScriptCommands.Refresh,
   ParameterDicConverter, ScriptBindingScope.Local),
ScriptCommandBinding.FromScriptCommand(ApplicationCommands.Delete, this, (ch) => ch.ScriptCommands.Delete,
   ParameterDicConverter, ScriptBindingScope.Local),

Note: IFileListCommandManager implements IExportCommandBindings, which, in IFileListViewModel and IExplorerViewModel.OnViewAttached() method, export the RoutedUICommands (ExplorerCommands and ApplicationCommands) to the view, the scope determine where to export.

public interface IScriptCommandBinding : INotifyPropertyChanged
{
   //(Optional) Script command to run when Command is execute.
   IScriptCommand ScriptCommand { get; set; }

   //Command to execute when UICommandKey is executed, not necessary calling the script command.
   ICommand Command { get; set; }

   //RoutedUICommandBinding key (e.g. ApplicationCommands.Open).
   RoutedUICommand UICommandKey { get; }

   //Create <a href="http://www.google.com.hk/url?sa=t&rct=j&q=&esrc=s&source=web&cd=4&cad=rja&uact=8&ved=0CFIQFjAD&url=http%3A%2F%2Fmsdn.microsoft.com%2Fen-us%2Flibrary%2Fsystem.windows.input.commandbinding.aspx&ei=m2aDU8etOcXmkgXbzYD4CA&usg=AFQjCNHZmgFeS-Q6HkxC4hADnRO4nN203Q">binding for registered in UserControl.CommandBindings.
   CommandBinding CommandBinding { get; }

   //Determine which usercontrol (e.g. Explorer or FileList) to register the command bindings.
   ScriptBindingScope Scope { get; }
}

But some of this commands are actually not implemented (Delete):

//If Selection Count > 1
//  If Selection[0] is Directory
//     OpenSelectedDirectory
//  Else do nothing
//Else do nothing
ScriptCommands.Open = FileList.IfSelection(evm => evm.Count() == 1,
        FileList.IfSelection(evm => evm[0].EntryModel.IsDirectory,
            FileList.OpenSelectedDirectory,  //Selected directory
            ResultCommand.NoError),   //Selected non-directory
        ResultCommand.NoError //Selected more than one item.
        );
ScriptCommands.Delete = NullScriptCommand.Instance;

Some commands cannot be implemented since they are not IO specific. The double click on a file, for example, does nothing. So you will have to implement it.

explorerModel.FileList.Commands.ScriptCommands.Open =
    FileList.IfSelection(evm => evm.Count() == 1,
        FileList.IfSelection(evm => evm[0].EntryModel.IsDirectory,
            FileList.OpenSelectedDirectory, //Selected directory
            FileList.AssignSelectionToParameter(
                //This originally used by Toolbar (CommandModel), so it uses Parameter (selected entry)
                new OpenWithScriptCommand(null))),
        ResultCommand.NoError //Selected more than one item, ignore.
        );
explorerModel.FileList.Commands.ScriptCommands.Delete =
        FileList.IfSelection(evm => evm.Count() >= 1,
        ScriptCommands.IfOkCancel(_windowManager, pd => "Delete",
            pd => String.Format("Delete {0} items?", (pd["FileList"] as IFileListViewModel).Selection.SelectedItems.Count),
            ScriptCommands.ShowProgress(_windowManager, "Delete",
                        ScriptCommands.RunInSequence(
                            FileList.AssignSelectionToParameter(
                                DeleteFileBasedEntryCommand.FromParameter), //Same as above
                            new HideProgress())),
            ResultCommand.NoError),
        NullScriptCommand.Instance);

I have coded the IScriptRunner interface to make the implementation more reusable and easier to read. This interface runs the IScriptCommand interface and a number of pre-defined IScriptCommands is already available.

ScriptRunner

The ScriptRunner class runs script commands in sync or asynchronously. A ScriptCommand is basically a piece of code to execute. It can return another script command that is to be executed subsequently. There is session information which is passed through a ParameterDic. The ParameterDic is a Dictionary<string, object>.

The FileExplorer3 can be used to define ScriptCommands in 2 places as we discuss next.

ScriptCommand As CommandBindings (in UI)

A ScriptCommand can be used in a ContextMenu or Toolbar. This requires the Parameter (e.g. pd["Parameter"]) to be set as the selected entryModel(s). The UIParameterDic is stored in the ParameterDic to support this case. The UIParameterDic provides additional properties like Sender and EventArgs. A script command is registered to UICommand, using ScriptCommandBindings:

in FileListCommandManager

    ScriptCommands = new DynamicDictionary<IScriptCommand>();
    ...
    ScriptCommands.Paste = vm.ScriptCommands.RunInSequence(
         //pm["Destination"] = File list current directory.
         FileList.AssignCurrentDirectoryToDestination(
             //pm["Parameter"] = File list selection.
             FileList.AssignSelectionToParameter(
               //Get DataObject from Clipboard, then uses currentDirectory (from GetCurrentDirectoryFunc)
               //'s profile to get entry models from the dataObject, and call the TransferCommandFunc as shown below.
               ClipboardCommands.Paste(ExtensionMethods.GetFileListCurrentDirectoryFunc,
                  (dragDropEffects, src, dest) => new SimpleScriptCommand("Paste", (pm) =>
                  {
                    //dest responsible for the transfer.
                    dest.Profile.DragDrop.OnDropCompleted(src.ToList(), null, dest, dragDropEffects);
                    return ResultCommand.NoError;
                  })))
            )
    );

    ...
    exportBindingSource.Add(
        new ExportCommandBindings(
        ScriptCommandBinding.FromScriptCommand(ApplicationCommands.Paste, this, (ch) => ch.ScriptCommands.Paste,
            ParameterDicConverter, ScriptBindingScope.Local),
        ));

    IEntryModel _currentDirectoryModel = null;
    ToolbarCommands = new ToolbarCommandsHelper(events,
        ...
        {
            ExtraCommandProviders = new[] {
                new StaticCommandProvider(new CommandModel(ApplicationCommands.Paste))
            }
        };
}
in FileListViewModel

protected override void OnViewAttached(object view, object context)
{
    base.OnViewAttached(view, context);
        var uiEle = view as System.Windows.UIElement;
    Commands.RegisterCommand(uiEle, ScriptBindingScope.Local); //Register to UserControl.CommandBindings
}

As Runner for pre-defined commands (in VM)

The 2nd way of defining a ScriptCommand is through a viewmodel implementation. The code can call {VM}.Commands.ScriptCommands.Execute/ExecuteAsync(), in this case, to pass VMParameterDic. So the ScriptCommand can actually access the ViewModel of the caller from the ParameterDic (e.g. pd["FileList"] as IFileListViewModel).

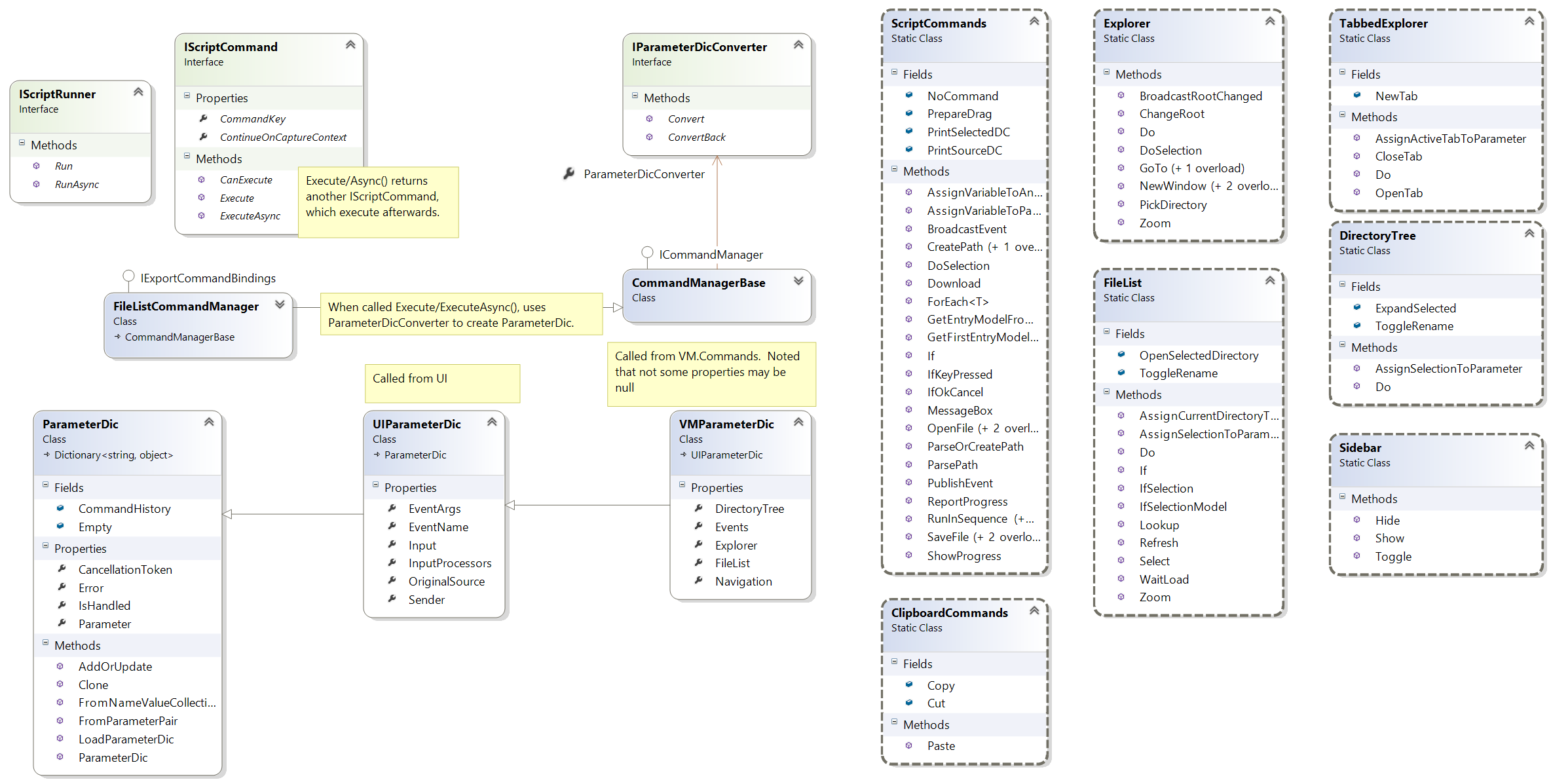

Most commands are defined in viewmodels. The screenshot contains a number of defined script commands. The Commands is based on the ICommandManager interface and can be run on VM.Commands.ExecuteAsync(), in this case.

Lets, for example, have a look at what happens when the Explorer received a root changed event message (when a user maps or unmaps a root directory). The Explorer executes Explorer.ChangeRoot() then Explorer.Goto().

public void Handle(RootChangedEvent message)
{
    Queue<IScriptCommand> cmds = new Queue<IScriptCommand>();

    cmds.Enqueue(Explorer.ChangeRoot(message.ChangeType, message.AppliedRootDirectories));
    if (message.Sender != this)
        cmds.Enqueue(Explorer.GoTo(CurrentDirectory.EntryModel));
    else
        switch (message.ChangeType)
        {
            case ChangeType.Created:
            case ChangeType.Changed:
                cmds.Enqueue(Explorer.GoTo(message.AppliedRootDirectories.First()));
                break;
            case ChangeType.Deleted:
                cmds.Enqueue(Explorer.GoTo(RootModels.FirstOrDefault()));
                break;
        }

    Commands.ExecuteAsync(cmds.ToArray());
}

The following view models:

  • TabbedExplorer,
  • Explorer,
  • DirectoryTree,
  • FileList,
  • and Sidebar

implement the ISupportCommandManager interface, which provides command properties that can call Execute/ExecuteAsync(), but you can also call the FileList, DirectoryTree based commands in the ExplorerViewModel class.

The UIEventHub class makes also frequently use of the IScriptCommand interface. It calls, for examples, the MultiSelectEventProcessor.

Other View Models

Explorer and TabbedExplorer (ExplorerViewModel)

The ExplorerViewModel is the view model that hosts everything. Each ExplorerViewModel has it's own FileList, DirectoryTree, Breadcrumb, Navigation, Statusbar and SidebarViewModel.

The file name filter is implemented in the ToolWindow or FilePicker. You can specify the FilterStr, which will set the SelectedFilter.

evm.FilterStr = "Texts (.txt)|*.txt|Pictures (.jpg, .png)|*.jpg,*.png|Songs (.mp3)|*.mp3|All Files (*.*)|*.*";

The CurrentDirectory is in the IEntryViewModel property type. You can get it's icon via the Icon property (ImageSource) or through it's EntryModel property of the actual entry (from profile).

The internal and external events of the ExplorerViewModel class are handled separately through different EventAggregators (from CaliburnMicro). Supported events include:

  • RootChange,
  • EntryChanged (file system changed),
  • DirectoryChanged (current directory)

Internal events can broadcast to external events through the BroadcastEvent aggregator.

There can only be one active explorer (SelectedItem) at any time in the tabbed explorer. It supports tab re-ordering (dragging one tab to another tab to re-order) by setting a DragHelper and DropHelper when creating new tab.

DragHelper = new TabControlDragHelper<IExplorerViewModel>(this);
//..when creating new tab
expvm.DropHelper = new TabDropHelper<IExplorerViewModel>(expvm, this);

These helpers are re-usable. You can use a similar method if you have a tabcontrol and want to support tab re-ordering.

DirectoryTree and Breadcrumb

The DirectoryTree class and the Breadcrumb(Tree) class so similar that I thought merging them into 1 class. But the problem is that the expand mode is different. The Breadcrumb displays, for example, unexpanded items in the root path while DirectoryTreedisplay them expanded:

//Breadcrumb
await Selection.LookupAsync(value,
    RecrusiveSearch<IBreadcrumbItemViewModel, IEntryModel>.LoadSubentriesIfNotLoaded,
    SetSelected<IBreadcrumbItemViewModel, IEntryModel>.WhenSelected,
    SetChildSelected<IBreadcrumbItemViewModel, IEntryModel>.ToSelectedChild);

//DirectoryTree
await Selection.LookupAsync(value,
    RecrusiveSearch<IDirectoryNodeViewModel, IEntryModel>.LoadSubentriesIfNotLoaded,
    SetSelected<IDirectoryNodeViewModel, IEntryModel>.WhenSelected,
    SetExpanded<IDirectoryNodeViewModel, IEntryModel>.WhenChildSelected);

Both ViewModels are hierarchically. The root viewModel has an EntriesHelper that contains items in the next level, and vice versa. Please review the the BreadcrumbTree article to understand how the EntriesHelperand BreadcrumbTree work.

Navigation, Statusbar and Sidebar

The Statusbar and Sidebar both use IEntriesHelper<IMetadataViewModel> to display metadata. The IsVisibleInSidebar property and IsVisibleStatusbar property define the actual display. There is a wide range of supported metadata. Modifying metadata is currently not supported.

Conclusion

The previous version (FileExplorer2) was always missing a feature to remove certain functions or change the behavior of how the FileExplorer works. There was no unified solution. I had to dig in the source code to tell everyone how to change it. One purpose of this update is to offer as much customization as possible. This customization should be possible with ease and without changing the source code to make this more than just a demo project. This implementation is designed for usage by other projects.

Reference

And a number of my projects that used:

History

  • 10 May 2014 - Initial article.
  • 29 May 2014 - Updated screenshots and text
  • 17 June 2014 - Updated binaries to v3.0.11.
  • 4 July 2014 - Updated binaries to v3.0.15.

License

This article, along with any associated source code and files, is licensed under The MIT License

Share

About the Authors


Dirkster99

Germany Germany
The Windows Presentation Foundation (WPF) and C# are one of my favorite past time hobbies since I started developing Edi:

https://edi.codeplex.com/

and a few other sub-projects on Codeplex. I am normally an algorithms and structure type person but WPF has such interesting sides that I cannot help myself but get into this and MVVM.

Comments and Discussions


GeneralMy vote of 5 PinmemberMember 1100593316-Aug-14 7:42
QuestionNice but.. Pinmemberre-flex29-May-14 20:55
AnswerRe: Nice but.. PinpremiumLeung Yat Chun2-Jun-14 8:20
GeneralMy vote of 3 Pinmemberbryce29-May-14 12:14
GeneralRe: My vote of 3 PinpremiumLeung Yat Chun30-May-14 0:07
QuestionMake it available through NuGet PinpremiumCarlos190712-May-14 0:56
AnswerRe: Make it available through NuGet [modified] PinpremiumLeung Yat Chun13-May-14 6:02
QuestionNice! PinpremiumVolynsky Alex11-May-14 14:47
QuestionGreat code contribution but the article could be improved ... PinpremiumDirkster9911-May-14 6:57
AnswerRe: Great code contribution but the article could be improved ... PinpremiumLeung Yat Chun11-May-14 8:48
GeneralRe: Great code contribution but the article could be improved ... PinpremiumDirkster9912-May-14 10:36
GeneralRe: Great code contribution but the article could be improved ... PinpremiumLeung Yat Chun13-May-14 8:19
GeneralRe: Great code contribution but the article could be improved ... PinpremiumDirkster9913-May-14 12:12

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

| Advertise | Privacy | Mobile
Web04 | 2.8.140827.1 | Last Updated 29 May 2014
Article Copyright 2014 by Leung Yat Chun, Dirkster99
Everything else Copyright © CodeProject, 1999-2014
Terms of Service
Layout: fixed | fluid
