.NET Remoting – Basic Maneuvers

• Download server source - 13.9 Kb
• Download client source - 8.16 Kb
• Download interface source - 4.45 Kb
• Download object source - 4.53 Kb

Contents

1. Introduction
2. Objectives.
3. Prerequisites.
4. Package.
5. To Run The Sample.
6. Configuration Files.
7. Assembly References from client assembly.
8. Code blocks in client source file CRemoteObjClient.cs
9. Code blocks in client source file CRemoteObjServer.cs
10. Walkthrough.
11. References.

Introduction

.NET Remoting is a framework for developing distributed applications. It is the successor to DEC/RPC/DCOM. Simply put, Remoting allows an application (Remoting Client) to instantiate a type (Remotable class) on a remote server (Remoting server) across network. Communication between client and server object (Instance of Remotable class) hosted by a Remoting Server is channeled through a "proxy" � representation of server object on client side.

Remoting Server can be a simple console application, a Windows Service or hosted on IIS. It's responsible for hosting server objects and publishes them to the outside world. A Remoting client is any application that consumes the published server object.

There're many tutorials on this broad subject. Unfortunately, most are lacking, in one way or another, in coverage of basic maneuvers a developer needs to know. The purpose of this article is to supplement MSDN and to provide a complete coverage of basic remoting tasks in one short article.

Objectives of the tutorial

The tutorial will cover the following topics.

• Basic Remoting , Programmatic Configuration (channel/type), Config files, LeaseTime, new, Activator.GetObject (server-activated object, or SAO) and Activator.CreateInstance (client activated object, or CAO)
• How to implement interface for remote class, and interact with remote object through interface.
• Passing custom/user-defined objects between remote object and client.
• Asynchronous method calls on remote object.
• Events and remoting: How client can subscribe to events generated by remote object.

This tutorial does not cover the following topics.

• Hosting server from IIS [Ref - 2,7]
• Delayed loading of channels
• Tracking services
• ClientSponsor and sponsoring mechanism [Ref 5]
• Custom formatter, sinks, channels � that's where things actually get complicated. [Ref 1]
• SoapSuds

Prerequisites

• .NET Delegates and events.
• Asynchronous programming. IAsyncResult, BeginInvoke, EndInvoke, WaitHandle... etc.

Package

• dnetremoting.zip

Overall Architecture

• ReadMe: dnetremoting.doc (That's this document.)
• Project folders, classes and overall structure:

[Editor Note - hyphens/spaces have been used in the table contents to prevent scrolling]

Module	Folder/Directory	Primary class	namespace	Remarks
Interface Dll	/CRemote-ObjInterface source: IRemoteObj.cs	CRemote-ObjInterface	nsCRemote-ObjInterface	Interface (IRemoteObj) for CRemoteObj. Three interface methods: Authenticate-Loser SetupUser UpdateProfile CProfile To illustrates how to pass custom object between remote object (CRemoteObj) and client. It's marked Serializable and is input/return parameter of CremoteObj. UpdateProfile. CStatusEventSink This is the event sink class to be instantiated in client's process. It's derived from MarshalByRefObject. The class has a public method StatusHandler. This method handles the events raised by CRemoteObj. AuthenticateLoser StatusEventArgs Serializable event argument. Refer to CremoteObj. evStatus. Delegate to evStatus event can be found in CRemoteObj class. Signature as follows: public delegate void StatusEvent( object sender, StatusEventArgs e);
Remote Object dll	/CRemoteObj source: CRemoteObj.cs	CRemoteObj	nsCRemoteObj	That's your remote object. This class implement IRemoteObj interface and exposes: Methods Authenticate-Loser � Demonstrates how to client can response to events generated by remote object. SetupUser � Demonstrates how to execute asynchronous calls and method parameters IO. UpdateProfile � Demonstrates how to pass instances of user-defined class in and out of remote object. Properties objID - Remote object's lifetime depends on the object's activation mode: Server activated - SingleCall Server activated - Singleton Client activated With Server- activated-SingleCall objects, a new instance of remote object is created every time client invoke a method through the proxy. For "Server-activated-Singleton" and "Client-activated" objects, lifetime of the remote object depends on server configurations (config file <lifetime> element or programmatically via LifeTimeServices), as well as when client invoke a method on the remote object. Default LeaseTime is 300 sec. The object ID is to demonstrate remote object lifetime by marking each object with a randomly generated ID. Pay attention to server console when invoking methods on remote object.
Server exe	/CRemote-ObjServer source: CRemote-ObjServer.cs Executable: \web_vdir\bin\ CRemoteObj-Server.exe (C# console app)	CRemote-ObjServer	nsCRemote-ObjServer	CRemoteObjServer hosts/publishes the remote object CRemoteObj. Config files cremoteobjserv (client). config � for client activation. cremoteobjserv (wellknown) .config � for server activation; WellKnown ObjectMode = SingleCall. You need to modify the config file if you wish to publish the remote object using Singleton mode. OPTION 2 loads config file as follows: Remoting Configuration. Configure( "cremoteobjserv. config"); Please be reminded that security setting in config files will be ignored unless file name comply to the following convention: AssemblyName. exe.config In this case: CRemoteObjServer. exe.config For this tutorial, rename config file name to: cremoteobjserv.config and place it in the same folder (\web_vdir\bin) as the exe.
Client exe	/CRemote-ObjClient source: CRemoteObj-Client.cs Executable: \ bin\Debug \CRemoteObj-Client.exe (C# console app)	CRemote-ObjClient	nsCRemote-ObjClient	NOTE: If it wasn't due to the fact that we used "new" keyword to instantiate remote object in <BLOCK 2-A>: CRemoteObj obj = new CRemoteObj(); We could have eliminated reference to CRemoteObj assembly � reference to interface CRemoteObjInterface would suffice. Config files (folder: /config file): cremoteobjclient (client).config � for client activation. cremoteobjclient (wellknown). config � for server activation; In <BLOCK 2-A>, we called Configure to load configuration file: RemotingConfiguration. Configure( "cremoteobjclient. config"); Please be reminded that security setting in config files will be ignored unless file name comply to the following convention: AssemblyName .exe.config In this case: CRemoteObjClient .exe.config For this tutorial, rename config file name to: cremoteobjclient.config and place it in the same folder (\web_vdir\bin) as the exe.

To run the sample

1. Run server executable.
2. Run client executable.

Server and client are both C# console apps. Pay attention to console output.

Configuration files

Before Remoting client and Remoting Server can begin to communicate, two pieces of information must first be properly configured, whether you're on server side or client side:

Communication channel

• Communication channel: port number, protocol, uri/url. <channel> tags in configuration files. (Both server and client side)

NOTE: You don't need to specify port number for client side.

Type (Remotable class) to be published or consumed:

• Resource to be published and activation mode (config file for remoting server) <service> tag in configuration files (Remoting server side).
• Resource to be consumed (config file for remoting client) <client> tag in configurations files (Remoting client side).

Two configuration options:

• Using XML configuration files:
  • RemotingConfiguration.Configure("cremoteobjserv.config");
• Configure setting programmatically:

  //Configure channel:

  ChannelServices.RegisterChannel(httpchannel);
  //Register TYPE for server-activated objects (SAO):

  RemotingConfiguration.RegisterWellKnownServiceType(
    typeof(nsCRemoteObj.CRemoteObj), //Type

    "CRemoteObjURI", //"object URI" (NOT URL to remoting server!)

    WellKnownObjectMode.SingleCall //Activation mode: SingleCall or Singleton

  );
  //Register TYPE for client-activated objects (CAO):

  RemotingConfiguration.RegisterActivatedType(
    Typeof(nsCRemoteObj.CRemoteObj) );

Note: There're two types of server object: SAO (server activated object) and CAO (client activated object). SAO can be further divided into two types: singlecall and singleton. Here's a brief description.

• Server-Activated Object (SAO) = Well-known Object.
• Client Activated Object (CAO).

SAO

SingleCall - A new instance of the remotable class is created every time a client invokes a method through proxy.

Lifetime: Instance remains in memory for duration of method call.

This is stateless.

Singleton - The Singleton Instance is created on first method call.

Lifetime: This instance stays in memory until "Lease" expires.

This is Stateful. Only one instance of Singleton-SAO is instantiated on remoting server. Multiple Remoting Clients are serviced by same Singleton-SAO. Multiple remoting clients can communicate through one instance of Singleton SAO.

CAO

• Instantiated on remote server as soon as the remoting client requests that an instance be created through Activator.CreateInstance or new keyword. This is in contrast to SAO where server objects are created upon first method call.
• Lifetime: Just as Singleton-SAO, object stays in memory until "Lease" expires.
• Stateful. Each CAO instance services only the remoting client responsible for its creation. Therefore, if you have multiple Remoting Client, each gets their own instance of CAO.

Single-call SAO is the most scalable option among the three and is most suitable in a load-balanced environment. Singleton-SAO and CAO offers more flexibility that:

• Remoting clients have complete control over a server object's lifetime.
• Server objects are stateful. CAO maintains states across multiple requests/method call. Singleton-SAO maintains states across multiple Remoting Client.

Sample configuration files

Server side

Server activated. File name: cremoteobjserv(wellknown).config

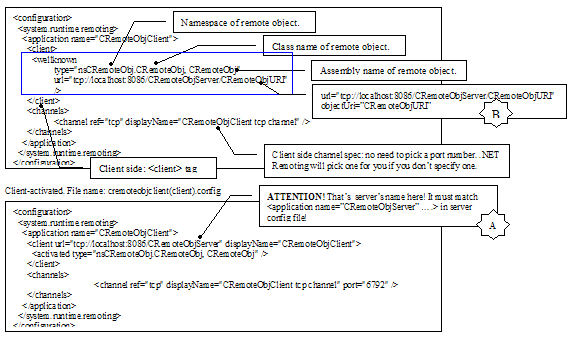

Client side

Server-activated. File name: cremoteobjclient(wellknown).config

In addition to type and channel information, configuration file may contain setting such as object lifetime, security... Example: lifetime of Singleton SAO and CAO remote object can be configured in <lifetime> tag in a config file:

Remote object lives as long as CurrentLeaseTime>0. When the object first got instantiated, CurrentLeaseTime = leaseTime. From this point on, CurrentLeaseTime starts decrementing until the next method call, or that a "sponsor" extend the "lease". On next method call (if lease has not yet expired), CurrentLeaseTime is reset to renewOnCallTime. On the other hand, if CurrentLeaseTime decrement to zero before next method call arrives, the object is marked for garbage collection. If this happens, the next method call will be serviced by a new instance of the remote class. In short, "server-activated Singleton" and "client activated" remote object lives for as long as CurrentLeaseTime>0. Lifetime setting can also be configured programmatically:

using System.Runtime.Remoting.LifetimeServices;
LifetimeServices.LeaseTime = TimeSpan.FromMinutes(3);
LifetimeServices.RenewOnCallTime = TimeSpan.FromMinutes(3);

For more information about leasing mechanism and sponsoring mechanism, refer to MSDN under the topic "Lifetime Leases" [Ref 5] and "Remoting Example: Lifetimes" [Ref 8].

Assembly References from "client" assembly

• Reference to interface assembly (i.e.. "Project" menu>"Add Reference">select interface CRemoteObjInterface.dll)

Now, since we use "new" keyword in BLOCK 2-A, we added reference to remote object assembly (CRemoteObj.dll) in addition to reference to interface assembly (CRemoteObjInterface.dll). In general however, we can retrieve proxy via Activator.GetObject or Activator.CreateInstance, thereby eliminating need to reference remote object assembly (i.e.. Client references ONLY interface assembly).

Code blocks in client source file CRemoteObjClient.cs

Basically, client source is separated into two mutually exclusive blocks � marked by the following tags in client's source code CRemoteObjClient.cs:

<BLOCK X-Y>

... code block ...

<BLOCK X-Y END>

You should comment out BLOCK 1 when you want to run code in BLOCK 2, and vice versa.

• BLOCK 1: remote object is published as server-activated object.
• BLOCK 2: remote object is published as client-activated object.

So, depending on setting in CRemoteObjServer, you may wish to comment out one of the blocks before you compile and execute. In addition, <BLOCK 2-A> and <BLOCK 2-B> are mutually exclusive.

• BLOCK 2-A configures channel/type information by loading the config file, then instantiate remote object with "new" keyword.
• BLOCK 2-B configures channel/type information programmatically. Proxy is retrieved with call to Activator.CreateInstance(..)

So, again, comment out one of the two before compile and execute.

namespace nsCRemoteObjClient

{ //nsCRemoteObjClient


class CRemoteObjClient

{ //CRemoteObjClient

1. Delegate to CRemoteObj.SetupUser()
2. Signature: public string SetupUser(string sname, string spasswd, out string sTime)
3. Refer to <BLOCK 1-C>

public delegate string SetupUserDelegate(...);
[STAThread]
static void Main(string[] args)
{ //Main()

//Scenario 1: "server-activated" remote object.

<BLOCK 1>

try

{ //try-A

<BLOCK 1-A>

Retrieve interface/proxy:

• Illustrates how to retrieve proxy via: Activator.GetObject(...)
• Cast proxy into IRemoteObj: further separation between provider and supplier.

<BLOCK 1-A END>

<BLOCK 1-B>

• LeaseTime
• Invoke method on remote object through interface.

<BLOCK 1-B END>

<BLOCK 1-C> Asynchronous programming/remoting

• Illustrates asynchronous calls on remote objects and how to pass parameters into/out of methods exposed by remote object using BeginInvoke, EndInvoke.
• Illustrates how to pass user defined object to/from remote object.

<BLOCK 1-C END>

} //try-A

catch(Exception err)
{
}

<BLOCK 1 END>

• Scenario 2: "client-activated" remote object.

<BLOCK 2>

try

{ //try-B

<BLOCK 2-A>

• Illustrates how to configure channel information using config file.
• Illustrates how to instantiate remote object with "new" keyword.

<BLOCK 2-A END>

<BLOCK 2-B>

Illustrates how to retrieve proxy to remote object via

Activator.CreateInstance(...)

<BLOCK 2-B END>

<BLOCK 2-C>

• Illustrate how to invoke method through proxy.
• Illustrates how to subscribe to events generated by remote object.

<BLOCK 2-C END>

} //try-B

catch(Exception err)
{
}

<BLOCK 2 END>

    } //Main()

  } //CRemoteObjClient

} //nsCRemoteObjClient

Code blocks in server source file

• Block 1: Option 1: programmatic registration of channel and type information thru:

ChannelServices.RegisterChannel
RemotingConfiguration.RegisterWellKnownServiceType

• Block 2: Option 2: Configure by loading xml config file:

RemotingConfiguration.Configure("cremoteobjserv.config");

Again, you comment out OPTION 1 if you're using OPTION 2, and vice versa.

Walkthrough

• Remoting Basic, configuration (channel/type): programmatic, config files. LeaseTime, "new", Activator.GetObject (for server-activated) and Activator.CreateInstance (for client activated)
• Config files: See previous section.

LeaseTime

• Change config file, and run application in different activation mode: server-activated SingleCall, server-activated Singleton, client-activated.

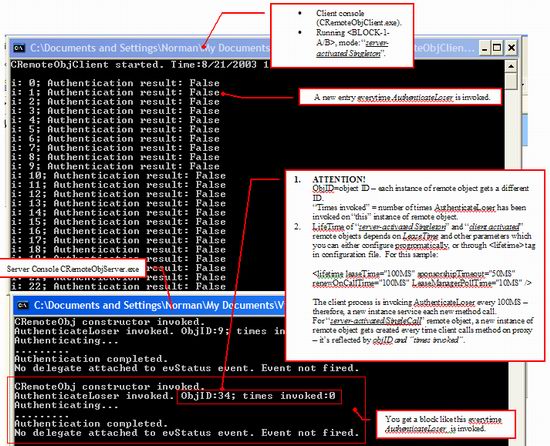

• Run the client. Comment out <BLOCK 2> and <BLOCK 1-C>. Pay attention that obj.AuthenticateLoser is invoked in <BLOCK 1-B>
• Monitor server console and objID. Default LeaseTime is 300-sec for Singleton, if time elapsed between method calls is greater than 300sec, a new instance of remote object gets created each call when remote object runs under the following mode:
  • server-activated Singleton.
  • Client-activated

Lease configuration can be found in server config file:

<lifetime leaseTime="100MS" sponsorshipTimeout="50MS"
    renewOnCallTime="100MS" leaseManagerPollTime="10MS" />

In <BLOCK 1-B>, time between consecutive method calls is 101 ms. That's a little over 100 sec. So, every method call should be serviced by a new instance � therefore a different objID. Adjust lease configuration and observe. For server-activated SingleCall, a new instance service every method call.

NOTE: objID is a randomly generated object ID assigned to an instance of remote object CRemoteObj � take a look at constructor.

"new" keyword: Instead of Activator.GetObject or Activator.CreateInstance, we can use "new" to instantiate the remote object. However, if you choose to configure channel and type information via config file, you may instantiate remote object using "new" keyword. However, "new" implies that you'll be instantiating CRemoteObj � as opposed to interface IRemoteObj. This further implies that your client assembly must reference CRemoteObj assembly.

Activator.GetObject: Take a look at CRemoteObjClient.cs <BLOCK 1-A>

IRemoteObj obj = (IRemoteObj) Activator.GetObject(
typeof(IRemoteObj),
"http://localhost:8085/CRemoteObjURI"
);

Activator.CreateInstance: Take a look at CRemoteObjClient.cs <BLOCK 2-B>

//Note that it references CRemoteObjServer � not the remote object.

object[] attrs = { new UrlAttribute(
  "tcp://localhost:8086/CRemoteObjServer") };
ObjectHandle handle = (ObjectHandle) Activator.CreateInstance(
  "CRemoteObj",
  "nsCRemoteObj.CRemoteObj",
  attrs);
CRemoteObj obj = (CRemoteObj) handle.Unwrap();

How to implement interface for remote class, and interact with remote object through interface.

Interface: IRemoteObj (CRemoteObjInterface.cs)

If we instantiate remote object via Activator's static methods, it'd be unnecessary for client assembly to reference remote object's assembly. This provides further separation between the remote object and the client. If client side settings are loaded from config file instead, remote object has to be instantiated using "new" keyword. This implies client has to reference remote object's assembly.

Take a look at the source code. Pay attention to the architecture and assembly references.

Passing custom/user-defined objects between remote object and client.

User defined class: CProfile (defined in CRemoteObjInterface.cs)

//ATTENTION: Must be marked Serializable to pass

//user-defined object in/out of remote object.

[Serializable]
public class CProfile
{
  public string fname;
  public string lname;
  public string user;
  public string passwd;
  //... other stuff...

};

Method: CRemoteObj.UpdateProfile (defined in CRemoteObj.cs)

The method takes a CProfile object as argument, and return a CProfile object.

public CProfile UpdateProfile(CProfile p)
{
//...other stuff...

return pout;
}

The method is also exposed by interface IRemoteObj, although it's not necessary. Call to method is trivial. Now, let's take a look at <BLOCK 1-C> in client's source file CRemoteObjClient.cs.

CProfile p = new CProfile("John", "Kennedy", "JFK", "ace");
CProfile p2 = obj.UpdateProfile(p);
Console.WriteLine("UpdateProfile completed. return p2 passwd: {0}",
    p2.passwd);

Asynchronous method calls on remote object.

Take a look at <BLOCK 1-C> in client's source file CRemoteObjClient.cs.

//ATTENTION:

//Delegate for CRemoteObj.SetupUser:

public delegate string SetupUserDelegate(
    string string1, string string2, out string string3);

//...other stuff...


Main(...)
{

<BLOCK 1-C>

Wrap SetupUser in a delegate before calling BeginInvoke:

• SetupUserDelegate d = new SetupUserDelegate(obj.SetupUser);

Invoke CRemoteObj.SetupUser asynchronously:

string sTime;
IAsyncResult ar = d.BeginInvoke(
  "Dexter",
  "AceInOpen",
  out sTime,
  null,
  null
);
//Blocks the current thread until obj.AuthenticateLoser completes.

ar.AsyncWaitHandle.WaitOne();
if(ar.IsCompleted)
{
  //Retrieving output:

  //(a) "output variable" sTime

  //(b) "return variable" value.

  string ret = d.EndInvoke(out sTime, ar);
  Console.WriteLine("obj.SetupUser return. sTime:{0}{1}" +
  "return value: {2}", sTime, Environment.NewLine, ret);
}

//...other stuff...

<BLOCK 1-C END>

//...other stuff...

}

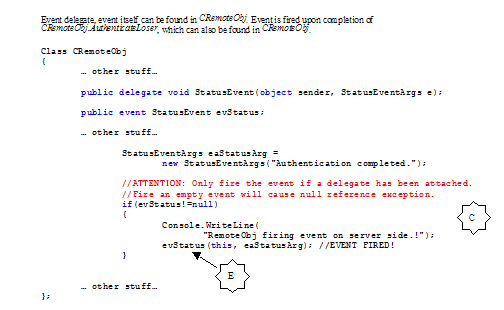

Events and remoting: How client can subscribe to events generated by remote object.

The event handler is declared in the interface module CRemoteObjInterface.

Routing mechanism: Here's the sequence of things that takes place when client invoke the AuthenticateLoser:

That's it. I hope this article provide a good coverage of most basic maneuvers that would be expected of a component developer. Go through the source code and play around with different configurations. You should be well on your way to building distributed applications and harness power offered by .NET Remoting.

References

• REF-1 .NET Remoting Customization Made Easy by Motti Shaked
  • http://www.codeproject.com/csharp/customsinks.asp
• REF-2 MSDN online: Remoting Example: Hosting in Internet Information Services (IIS)
  • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/cpguide/html/cpconremotingexamplehostinginiis.asp
• REF-3 MSDN online: Remote Object Configuration
  • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/cpguide/html/cpconremoteobjectschannels.asp
• REF-4 MSDN online: Asynchronous Programming Overview
  • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/cpguide/html/cpovrasynchronousprogrammingoverview.asp
• REF-5 Other MSDN references:
  • "Asynchronous Delegates Programming Sample"
  • "Asynchronous Remoting"
  • "Asynchronous Programming Overview"
  • "Lifetime Leases"
• REF-6 SoapSuds vs. Interfaces in .NET Remoting by Ingo Rammer
  • http://www.ingorammer.com/RemotingFAQ/SoapSudsOrInterfaces.html
• REF-7 Hosting Remote object in IIS � A Remoting sample by Sandeep Alur
  • http://www.developersdex.com/gurus/articles/573.asp?Page=3
• REF-8 MSDN online: Remoting Example: Lifetimes
  • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/cpguide/html/cpconremotingexamplelifetimes.asp

You must Sign In to use this message board.

FAQ    Noise Tolerance Very HighHighMediumLowVery Low   Layout Expand Posts & RepliesThread ViewNo JavascriptNo JS + Preview   Per page 102550

Msgs 1 to 25 of 26 (Total in Forum: 26) (Refresh) FirstPrevNext

ajax ghnnj1520 20:45 17 Jul '08   i want ajax for ASP.net material. Can you mail me the material. Sign In·View Thread·PermaLink 1.00/5 (1 vote) I'm Sure You Know... DRAYKKO 23:51 5 Sep '07   ...but just in case.... I tried printing this article so I could read it on the train (on the way in to work), and the chart in at the top of the article doesn't print in full. The text in the right-most column gets cut off. Is there a PDF or Word version of the article for download? Andre ======================= Every experience in life is a lesson to be learned A. Stevens B.S., Computer Science Sign In·View Thread·PermaLink tcp programmatic on client side Bob-ish 10:41 5 Oct '06   Did I miss it, or do you only show http config programmatically for the client side? Thanks ________ 42-Huh? Sign In·View Thread·PermaLink Thanks a lot HemalRathod 6:52 16 Aug '06   Great article there mate... do you know how can I run the server object on an internet website and the client on a desktop machine connecting to this server object? Any help is appreciated. Thanks in advanced. .Net all the way. Hemal Sign In·View Thread·PermaLink Is there any other way to get the remote refernce of the object? orbix 3:53 1 Nov '05   Hi all, I m using .NET remoting to get the refernce of the remote object but its too slow and i wants real time control of the remote desktop machine. Can anybody give me suggestion regarding to that. Thanx Sign In·View Thread·PermaLink Re: Is there any other way to get the remote refernce of the object? solandre 14:29 10 Apr '07   yes its really slow. you can use the tcp-sockets and bytestreams to transfer data across the network without the .net remoting overhead. i am not really into this but its a lot faster. but you have to write your own serializations or specify the data that you want to get piped through. Sign In·View Thread·PermaLink Calling .NET Remote object from VC or VB Client maharsoft 2:36 18 Jun '05   Hi All, I have create a .NET Remoting Server and I can to call from VC6/VB6 client. When I call from .NET client, it is OK. Please tell me how to do from VC6/VB6. Thanks, MaharSoft Sign In·View Thread·PermaLink CAO Activation LoveIndia 11:57 21 Apr '05   If we have to anyway reference the Interface and the server dll on the client side for achieving CAO, then how do we ensure that the call being made from the client side is not on a local dll copy of the server. In this case, why do I even need the config file. Sign In·View Thread·PermaLink Anyone tried this under Mono environment? exactt 5:51 3 Nov '04   Hello, has anyone tried this under the Mono environment? I can start the programs but don't come further then "Authentication result: false"... Maybe it is not a problem of Mono and I just mess it up. Although I thought things are hard-coded; where do I have to put the config-files? I put them together with the .exe-files but still the same. So if it works as is under Mono/Linux please tell me. thx max Sign In·View Thread·PermaLink Server hosting in a Service Marc Greisen 11:00 18 Dec '03   Thanks for the great article. I've been scoping the code down to my purposes and I find that when I host the server code (which is just the RemotingConfiguration.Configure() call), I get the error message File or assembly name CLoginObj, or one of its dependencies, was not found. CLoginObj is my remotable object. When I put the same code in a console application, everything works just fine. Both the console app and the service point to the same configuration file. Any ideas? Sign In·View Thread·PermaLink Documentation - larger diagrams Norman Fung 5:07 14 Oct '03   Documentation can be found here. Diagrams are larger, so, easier on the eyes: http://www.applied-algorithms.com/norm_page/norman_fung.html Sign In·View Thread·PermaLink 1.00/5 (1 vote) Re: Documentation - larger diagrams stef13 5:07 18 Dec '03   Your address doesn't work anymore Sign In·View Thread·PermaLink Clarifcation on remoting configuration norm 21:05 9 Oct '03   To configure remoting programmatically: Server Side: //STEP 1: Configure channel HttpServerChannel httpPublishingChannel new HttpServerChannel(nServerPort);                ChannelServices.RegisterChannel(httpchannel);                //STEP 2: Remoting Configuration.                //OPTION A: Register TYPE for server-activated objects (SAO):                RemotingConfiguration.RegisterWellKnownServiceType(                     typeof(nsCRemoteObj.CRemoteObj),          //Type                     "CRemoteObjURI",                     //”object URI” (NOT URL to remoting server!), *** (A) ***                     WellKnownObjectMode.SingleCall          //Activation mode: SingleCall or Singleton                     );           //OPTION B: Register TYPE for client-activated objects (CAO):           RemotingConfiguration.ApplicationName="RemoteObjApp.rem";     //*** (B) ***           RemotingConfiguration.RegisterActivatedType(                Typeof(nsCRemoteObj.CRemoteObj) );      Client Side:           //STEP 1: Configure channel (No need to specify port, Remoting will pick one on its own.)                HttpChannel channel = new HttpChannel();           ChannelServices.RegisterChannel( channel );           //STEP 2: Remoting Configuration           //OPTION A: SAO                RemotingConfiguration.RegisterWellKnownClientType(                     typeof(nsCRemoteObj.CRemoteObj),      "http://localhost:8085/CTransactionMasterURI" //*** (A) ***                     );                    //OPTION B: CAO                RemotingConfiguration.RegisterActivatedClientType(                     typeof(nsCRemoteObj.CRemoteObj),                     http://localhost:8085/RemoteObjApp.rem     //*** (B) ***                     ); norm Sign In·View Thread·PermaLink Way to go, great article !!! Guillermo Rivero 11:01 7 Oct '03   Finally someone wrote a good article about remoting. Congrats friend. Very Good. Free your mind... Sign In·View Thread·PermaLink Great work Erick Sgarbi 2:14 7 Oct '03   Top article, well written and i must admit you've put some quality work on the diagrams. Keep it on, Cheers Erick Sign In·View Thread·PermaLink Horizontal scrollbars... Uwe Keim 23:36 6 Oct '03   ...sigh... -- - Free Windows-based CMS: www.zeta-software.de/enu/producer/freeware/download.html - See me: www.magerquark.de Sign In·View Thread·PermaLink Re: Horizontal scrollbars... norm 0:14 7 Oct '03   Scrollbars? What do you mean? Anyway, apologize if the bitmaps are too small. There's a MS Word version of this article - which is easier on the eyes. Message for a copy: norman_lm_fung@hotmail.com norm Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Jörgen Sigvardsson 3:20 7 Oct '03   It's not that bad.. what resolution do you use? -- Only in english speaking countries: Schiessen = Scheissen. Every time Bush takes a dump, someone gets a bomb on their head. ;P Sign In·View Thread·PermaLink Re: Horizontal scrollbars... norm 5:06 7 Oct '03   I don't remember... Send me a message and I'd send you the MS Word document. Anyway, I'd message the editor and ask them to make the MS Word document available, right away. norm Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Jörgen Sigvardsson 5:17 7 Oct '03   For me the article format is just fine. I didn't get any horizontal scrollbars. I was just wondering what resolution Uwe was using, because it must be less than 800x600. -- Only in english speaking countries: Schiessen = Scheissen. Every time Bush takes a dump, someone gets a bomb on their head. ;P Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Uwe Keim 5:47 7 Oct '03   It is 1024x768. Now on IE6 I have no h-bar anymore. But on Firebird I do have. -- - Free Windows-based CMS: www.zeta-software.de/enu/producer/freeware/download.html - See me: www.magerquark.de Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Nishant S 7:26 7 Oct '03   Uwe Keim wrote: It is 1024x768. Now on IE6 I have no h-bar anymore. But on Firebird I do have. Uwe I edited this article and as usual I verfied that it does not scroll on IE6 under 800x600. I am astonished that on Firebird it scrolls under 1024x768. I am betting its Firebird's problem I mean had it scrolled for 800x600 I might have accepted it as due to a slight difference in the rendering of HTML, but if it scrolls at 1024 width, something about Firebird is wrong. Nish Extending MFC Applications with the .NET Framework [NW] (coming soon...) Summer Love and Some more Cricket [NW] (My first novel) Shog's review of SLASMC [NW] My photography efforts on Usefilm [NW] Come with me if you want to live This post was made from Trivandrum city, India on a 0.0001 KB/s net connection Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Thomas Freudenberg 8:09 7 Oct '03   Nishant S wrote: I edited this article and as usual I verfied that it does not scroll on IE6 under 800x600. Now I know how I can get my articles edited quickly... Regards Thomas Disclaimer: Because of heavy processing requirements, we are currently using some of your unused brain capacity for backup processing. Please ignore any hallucinations, voices or unusual dreams you may experience. Please avoid concentration-intensive tasks until further notice. Thank you. Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Uwe Keim 20:24 7 Oct '03   Hey Nish, relax! I did not want to put any extra work to you, I just wanted to say that this Mozilla Firebird shows a scrollbar Thanks Uwe -- - Free Windows-based CMS: www.zeta-software.de/enu/producer/freeware/download.html - See me: www.magerquark.de Sign In·View Thread·PermaLink Re: Horizontal scrollbars... Nishant S 7:28 7 Oct '03   Hmmmm I think I can make a pretty good guess as to why it scrolls for Mozilla. The href links are long. But IE breaks line when it sees a ?, perhaps Mozilla does not do this? Nish Extending MFC Applications with the .NET Framework [NW] (coming soon...) Summer Love and Some more Cricket [NW] (My first novel) Shog's review of SLASMC [NW] My photography efforts on Usefilm [NW] Come with me if you want to live This post was made from Trivandrum city, India on a 0.0001 KB/s net connection Sign In·View Thread·PermaLink

Last Visit: 3:48 4 Jul '09     Last Update: 3:48 4 Jul '09 12 Next »
