Client side validation using Validation Application blocks

Updated with links of Other Application Blocks

Table of Contents

• Introduction
• Other Application Blocks
• Problem
• Broader Level Solution
• The Actual Code

Introduction

Enterprise validation application provides us a ready made framework by which we can implement dynamic validation easily in our project. In case you are not aware of the basics you can watch my 20 minutes exclusive video on the same here.

By using enterprise validation blocks you can create validation in a dynamic fashion and the validations can be invoked depending on the user logged in. Now let’s understand one of the biggest drawbacks of the validation blocks and let’s see how we can address the same.

I have writing and recording videos on design pattern, UML, estimation and lot more, you can see my work here. If you think in any way I should improve please email me with suggestions at shiv_koirala@yahoo.com.

Other Application Blocks

Validation application blocks: - This article explains the 16 steps you need to perform to do validations using VAB.Validation application blocks

Dynamic validation: - This article explains how to build dynamic validation on scenario basis.Dynamic validation

Policy Application blocks: - This article talks how to implement plug and play mechanism using Policy application blocks.Policy application block

Logging application block: - This article explains the 5 basic steps of how to use logging application blocks.
Logging application block

Data application: - This article talks about the four steps you need to implement data application blocks.
Data application block

Exception application block: - This application talks how we can use exception application blocks to log exception from project.Exception application block

Unity application block: - This application talks about Unity Application Block in DI and IOC.Unity application block

UIP block: - This article talks about Reusable Navigation and workflow for both Windows and Web using Microsoft UIP blocks.UIP block

Problem

The biggest drawback with validation application blocks is it does not generate client code. In other way to put is that all validations happen on the server side. From my perspective I think the application block developers have done it right. I mean they have defined a generic server side framework and left the implementation of the client validation to the respective clients like Windows, ASP.NET, etc.

Broader Level Solution

So how do we solve the problem? First thing you can Google how much ever you want you will not find an easy way out for this. You need to develop your own adapter. That means you need to develop an adapter which will read the rules from the validation blocks API and create ASP.NET client side validator like required field, not null, etc.

If you find a better solution do email me at shiv_koirala@yahoo.com.

The Actual Code

Ok, now we know the problem let’s see how we can solve the same. If you have run through the video given on the top you will understand that all validations are stored in web.config file. So somehow we need to browse through the web.config file to get those validations. Once we get the validation we can then create ASP.NET validators depending on the validations present in web.config file.

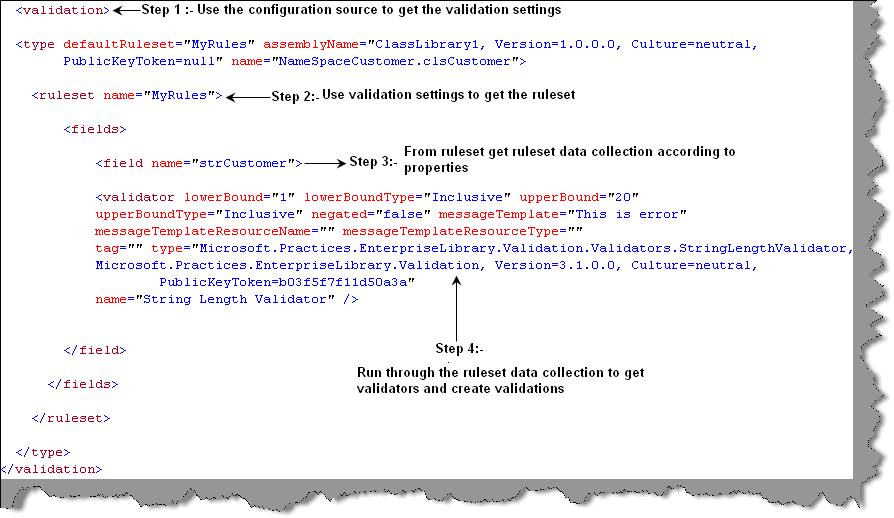

If you see your web.config which has validators defined using validation application block it would look something as shown below. All validations are enclosed the validation tag. It’s a four step process to browse to get the validation.

• Step 1:- Using the configuration source get the validation settings.
• Step 2:- Using the validation settings get all the ruleset from the validation tag.
• Step 3:- From the rule set get the rule set data collection.
• Step 4:- Browse through the rule set data and generate the corresponding ASP.NET validators.

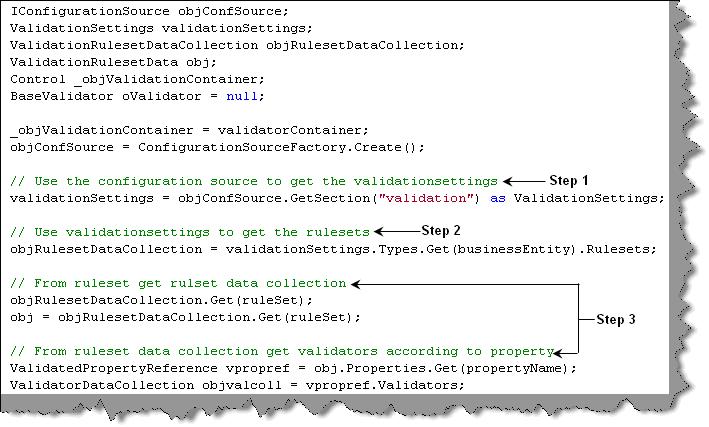

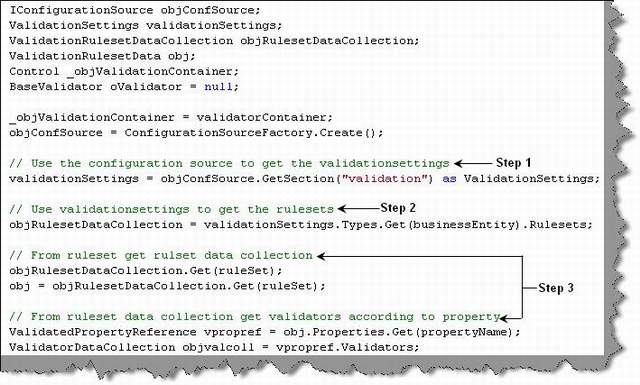

Below is the code for the above defined steps.

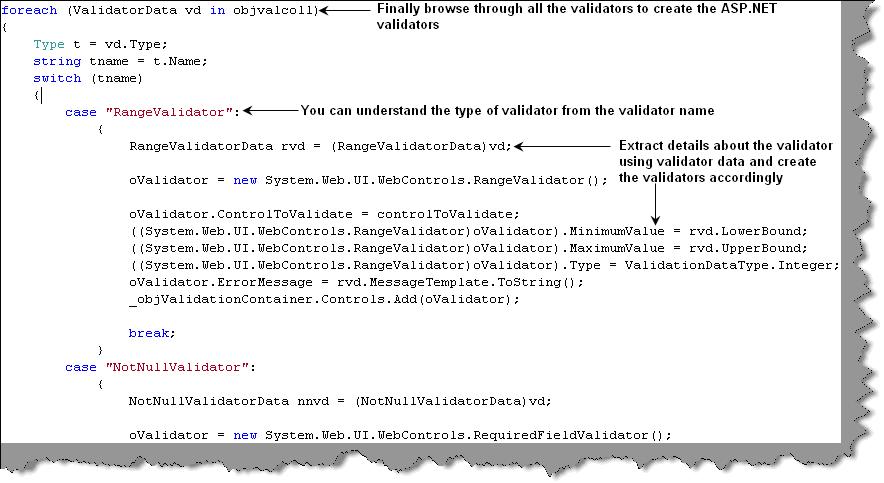

In the final step we browse through the validator collection and generate the ASP.NET validators. You can use the type name to see which validator type it is. Using the ‘RangeValidatorData’ you can get the details of the validator data and you can generate the ASP.NET validators accordingly.

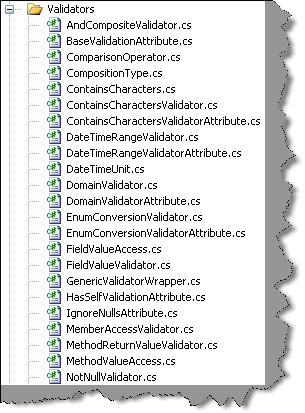

There are ranges of different validators provided in validation application blocks. Depending on the type you can create the corresponding type of ASP.NET validators at the client side. You can also generate Windows validators accordingly.
