Client validation using ASP.NET MVC3 and jQuery
Client Validation
In web applications, users typically expect immediate validation feedback—without having to submit anything to the server. This is known as client-side validation and is usually implemented using JavaScript. The data that the user has entered is validated before being sent to the server, providing the user with immediate feedback and an opportunity to correct any problems.
The MVC Framework supports unobtrusive client-side validation. The term unobtrusive means that validation rules are expressed using attributes added to the HTML elements that we generate. These are interpreted by a JavaScript library that is included as part of the MVC Framework, which uses the attribute values to configure the jQuery Validation library, which does the actual validation work.
ASP.NET MVC supports declarative validation rules defined with attributes from the System.ComponentModel.DataAnnotations namespace. The MVC framework provides extensive support for model validation. The built-in validation attributes is Compare, Range, RegularExpression, Required, StringLength.
How Client-Side Validation Works
<input class="text-box single-line" data-val="true"
data-val-checkage="Age range is 18 to 30 yrs. old."
data-val-checkage-param="29-10-2011"
data-val-required="The Date of Birth field is required."
id="DateOfBirth" name="DateOfBirth" type="text" value="10-10-2001" />
The MVC client-side validation support doesn't generate any JavaScript or JSON data to direct the validation process; like much of the rest of the MVC Framework, we rely on convention. The first attribute that was added is data-val. The jQuery Validation library identifies those fields that require validation by looking for this attribute.
Individual validation rules are specified using an attribute in the form data-val-, where name is the rule to be applied. So, for example, the Required attribute we applied to the model class has resulted in a data-val-required attribute in the HTML. The value associated with the attribute is the error message associated with the rule. Some rules require additional attributes; you can see this with the checkage rule, which has data-val-checkage-param attribute for current date. We can use current date in jQuery directly, but here we are taking current date as parameter and parameter name is param. to hold current date.
The interpretation of the required and length validation rules is provided by the jQuery Validation library, on which the MVC client validation features are built.
Creating jQuery Client Validation
Client validation using jQuery
For creating client validation in jQuery, we require jquery-1.5.1.min.js and jquery.validate.min.js files. Then we create a simple HTML file and client validation JavaScript code file. I have created both fields whose names are mynewrule.htm and checkage.js.
HTML Code (mynewrule.html)
<html>
<head>
<title>Index</title>
<script src="jquery-1.5.1.min.js" type="text/javascript"></script>
<script src="jquery.validate.min.js" type="text/javascript"></script>
<script src="checkage.js" type="text/javascript"></script>
<style type="text/css">
#txtAge,#txtDateOfBirth {width:100;}
</style>
</head>
<body>
<form id="myform">
<label for="txtDateOfBirth">Date of Birth (<b>dd-mm-yyyy</b>): </label>
<input name="txtDateOfBirth" type="text" id="txtDateOfBirth"
value="10-04-1980" /><br/><br/>
<input type="submit" value="Submit" id="btnSubmit" />
Your Current Age:<input name="txtAge" type="text" id="txtAge" value="0" readonly />
</form>
<code><b/></code>
</body>
</html>
js Code (checkage.js)
$(document).ready(function () {
$.validator.addMethod("checkAge",
function (value, element) {
var currDate=new Date();
var dobDate = $('#txtDateOfBirth').val();
var sdob = dobDate.split('-');
var vDOB = new Date(sdob[2], sdob[1], sdob[0]);
var vYrs = getAge(vDOB,currDate);
var result=false;
$('#txtAge').val(vYrs);
if(vYrs>=18 && vYrs<=30){
result=true; }
return result;
});
$('#myform').validate({
rules: {
txtDateOfBirth: {
required: true,
checkAge: true,
}
},
messages: {
txtDateOfBirth: {
required: "Date of Birth is required.",
checkAge:"Age range is 18 to 30."
}
}
});
})
function getAge(oldDate,currDate) {
return currDate.getFullYear() - oldDate.getFullYear();
}
In the above code, the function validate for form validation and create validation rules in this function for input textbox field id is #txtDateofBirth. Here we have some options which are rules, messages and params. Options rules we can define required, range and in our case custom rule checkage. Pass true to apply this rule. Options messages to create different-2 message for different rules and finally option params to pass parameter for rules as per our requirement.
The jQuery.validator object has an API to add new validators. The name of the method is addMethod.
The method takes two parameters: First is the name of the validator, which by convention matches the name of the adapter. Second is a function to invoke when validation occurs.
The validator function accepts three parameters, and can return true (validation passed) or false (validation failed):
- The first parameter to the function will contain the input value (like the date of birth textbox value).
- The second parameter is the input element containing the value to validate (in case the value itself doesn’t provide enough information).
- The third parameter will contain all the validation parameters in an array, or in this case, the single validation parameter (the current date parameter
param).
One of the nice features about the MVC client-side validation is that the same attributes we use to specify validation rules are applied at the client and at the server. This means that data from browsers that don't support JavaScript are subject to the same validation as those that do, without requiring us to make any additional efforts.
Create Custom Client-side Validation in ASP.NET MVC 3
Here, we are creating StatusCheckAge to check age must be between 18 to 30.

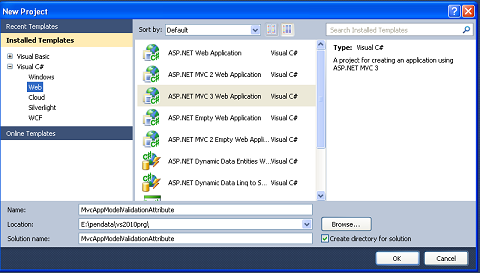

- Create Empty project in Visual Web Developer 2010 Express of MVC3 application.
- Right click on Model directory and create class
Person.
public class Person
{
[Required,Display(Name="Person Name")]
public string PersonName { get; set; }
[StatusCheckAge]
[Required]
[Display(Name="Date of Birth")]
[DisplayFormat(ApplyFormatInEditMode=true,DataFormatString="{0:dd-MM-yyyy}")]
public DateTime DateOfBirth { get; set; }
}
- Again right click on Model directory and create class
StatusCheckAge. For custom validation, you have to derive this class from ValidationAttribute and custom client validation you have to derive this class from IClientValidatable interface. So StatusCheckAge class is derived from both ValidationAttribute,IClientValidatable.
public class StatusCheckAge : ValidationAttribute,IClientValidatable
{
protected override ValidationResult IsValid
(object value, ValidationContext validationContext)
{
DateTime dtV = (DateTime)value;
long lTicks = DateTime.Now.Ticks - dtV.Ticks;
DateTime dtAge = new DateTime(lTicks);
string sErrorMessage = "Age range is 18 to 30 yrs. old.";
if (!(dtAge.Year >= 18 && dtAge.Year <= 30))
{ return new ValidationResult(sErrorMessage); }
return ValidationResult.Success;
}
public IEnumerable<modelclientvalidationrule /> GetClientValidationRules
(ModelMetadata metadata, ControllerContext context)
{
ModelClientValidationRule mcvrTwo = new ModelClientValidationRule();
mcvrTwo.ValidationType = "checkage";
mcvrTwo.ErrorMessage = "Age range is 18 to 30 yrs. old.";
mcvrTwo.ValidationParameters.Add
("param", DateTime.Now.ToString("dd-MM-yyyy"));
return new List<modelclientvalidationrule /> { mcvrTwo };
}
}
To implement the validation logic, you need to override one of the IsValid methods provided by the base class. Overriding the IsValid version taking a ValidationContext parameter provides more information to use inside the IsValid method (the ValidationContext parameter will give you access to the model type, model object instance, and friendly display name of the property you are validating, among other pieces of information).
The first parameter to the IsValid method is the value to validate. If the value is valid, you can return a successful validation result, but before you can determine if the value is valid, you’ll need to check value according your validation condition, in our case condition is Age>=18 and Age<=30. And you return a ValidationResult object with a hard-coded error message to indicate a validation error.
IClientValidatable: The IClientValidatable interface defines a single method: GetClientValidationRules. When the MVC framework finds a validation object with this interface present, it invokes GetClientValidationRules to retrieve — you guessed it — a sequence of ModelClientValidationRule objects. These objects carry the metadata, or the rules, the framework sends to the client.
-
Now to enable client side validation rule we have to create javascript code file. Here our file name is customclientvalidation.js.
jQuery.validator.addMethod("checkage",
function (value, element, param) {
var currDate = param;
var sdoc = currDate.split('-');
var dobDate = value;
var sdob = dobDate.split('-');
var vDOB = new Date(sdob[2], sdob[1], sdob[0]);
var vDOC = new Date(sdoc[2], sdoc[1], sdoc[0]);
var vYrs = getAge(vDOB, vDOC);
var result = false;
if (vYrs >= 18 && vYrs <= 30) { result = true; }
return result;
});
jQuery.validator.unobtrusive.adapters.add
("checkage", ["param"], function (options) {
options.rules["checkage"] = options.params.param;
options.messages["checkage"] = options.message;
});
function getAge(oldDate, currDate) {
return currDate.getFullYear() - oldDate.getFullYear();
}
The MVC framework’s unobtrusive validation extension stores all adapters in the jQuery.validator.unobtrusive.adapters object. Here, we are using add method. parameter is rule name checkage, parameter object array and define function, function takes one argument options to use passing value in rules.
- Right click on controller, create
Home and write in Create() method of HomeController.
public class HomeController : Controller
{
public ActionResult Index()
{
return View(new Person
{ PersonName = "rajendra", DateOfBirth = new DateTime(2001,10,10) });
}
[AcceptVerbs(HttpVerbs.Post)]
public ActionResult Index(Person newPerson)
{
if (ModelState.IsValid)
{
}
return View();
}
}

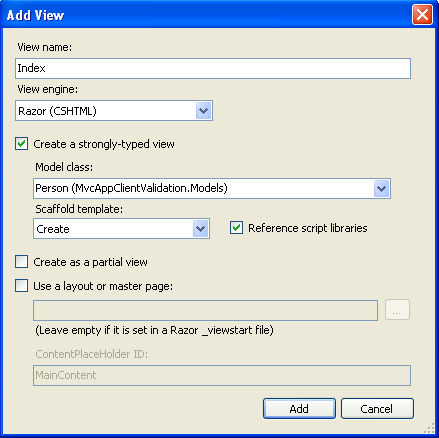

- Right click on
Create() method of HomeController and add strongly typed view, select scaffold template Create, then ok and add the following references in head tag. ~/Scripts/jquery-1.5.1.min.js,~/Scripts/jquery.validate.min.js, ~/Scripts/jquery.validate.unobtrusive.min.js and ~/Scripts/customclientvalidation.js.
- Build and run application.
