Genetic Algorithms and the Traveling Salesman Problem using C# and ATL COM

• Download demo project - TSPGA_Demo - 78.5Kb
• Download source - TSPGA_SRC 99.8Kb

Introduction

This project is about an application used by the Traveling Salesman, given a finite number of 'cities'(I have choosen cities from 1 to a finite number) along with the distance of travel (distance between two cities is randomly choosen) between each pair of them, The aim is to find the cheapest distance of visiting all the cities and returning to the starting point. Using GA we can get an optimal solution to solve this problem.

This is only an example to look at calling COM Components and accessing SAFEARRAY in C#. I don't know many things about genetic algorithm and please don't take take this code as demonstrating a problem to solve using only genetic algorithms (GA). This is just one approach. The C++ code for GA I got from the Internet.

Background (optional)

Disclaimer: I am not a GA and C# expert. I have reused C++ code to make it into a COM component and my goal was to show some visualisation effects using new kid on the block C#. It's only an example of GA coding.Any comments and criticism you have are most welcome.

Using the code

The main TSP component is written using COM via ATL, and the client application using C#. The TSP GA application will provide the following operations:

• Set number of cities.
• Set Population size for each generation.
• Set Generation Size.
• Set Cross Over Percentage.
• Set Mutation rate.
• Start TSPGA Algorithm.
• Gets best Distance for each generation.
• Gets overall best distance for all generations.
• Gets overall best path traversed.
• Gets Worst distance.

Design

COM Server

Find below the IDL file for details of methods exposed from interface:

interface ITSPGAAlgorithm : IDispatch
{
   [propput, id(1), helpstring("property SetPopulationSize")]
                    HRESULT SetPopulationSize([in] short newVal);
   [propput, id(2), helpstring("property GetPopulationSize")]
                    HRESULT GetPopulationSize([in] short* newVal);
   [propget, id(3), helpstring("property GenerationSize")]
                    HRESULT GenerationSize([out, retval] short *pVal);
   [propput, id(3), helpstring("property GenerationSize")]
                    HRESULT GenerationSize([in] short newVal);
   [propget, id(4), helpstring("property Mutate")]
                    HRESULT Mutate([out, retval] double *pVal);
   [propput, id(4), helpstring("property Mutate")]
                    HRESULT Mutate([in] double newVal);
   [propget, id(5), helpstring("property CitySize")]
                    HRESULT CitySize([out, retval] short *pVal);
   [propput, id(5), helpstring("property CitySize")]
                    HRESULT CitySize([in] short newVal);
   [id(6), helpstring("method SetCrossOverRate")]
                    HRESULT SetCrossOverRate([in] short nCrossOverPercentage);
   [id(7), helpstring("method StartGAForTSP")]
                    HRESULT StartGAForTSP();
   [id(8), helpstring("method GetAllBestDistancesByGenerations")]
                    HRESULT GetAllBestDistancesByGenerations([out,retval]
                                                             VARIANT*pAllDistances);
   [id(9), helpstring("method GetBestPathForTSP")]
                    HRESULT GetBestPathForTSP([out, retval] VARIANT* pPath);
   [propget, id(10), helpstring("property BestOverAll")]
                    HRESULT BestOverAll([out, retval] short *pVal);
   [propget, id(11), helpstring("property WorstOverAll")]
                    HRESULT WorstOverAll([out, retval] short *pVal);
};

Starting TSPGA

This is the main piece of code responsible for evolving generations, reproducing solution, mutations etc.

STDMETHODIMP CTSPGAAlgorithm::StartGAForTSP()
{
   // TODO: Add your implementation code here

   pGen = new ga(POP_SIZE,GEN_STOP,PROB_MUT,PROB_CROSS,CITY_COUNT);
   pGen->evolve();

   return S_OK;
}

Returning Distances to client

Use SAFEARRAY to fill the array of distances as a VARIANT pointer as below.

STDMETHODIMP CTSPGAAlgorithm::GetAllBestDistancesByGenerations(VARIANT *pAllDistances)
{
          // TODO: Add your implementation code here

          VariantInit(pAllDistances);
          pAllDistances->vt = VT_ARRAY | VT_I2 ;
          SAFEARRAY * psa;
          SAFEARRAYBOUND bounds = {GEN_STOP,0};
          psa = SafeArrayCreate(VT_I2,1,&bounds);
          int * pDist = NULL;
          pGen->GetDistanceByGen(&pDist);
          short *pDest = (short*)CoTaskMemAlloc(sizeof(short) * GEN_STOP);
          SafeArrayAccessData(psa,reinterpret_cast<void **>(&pDest));
          for(int i = 0 ; i < GEN_STOP ; i++)
                   pDest[i] = pDist[i];
          SafeArrayUnaccessData(psa);
          pAllDistances->parray = psa;

          return S_OK;
}

C# Client

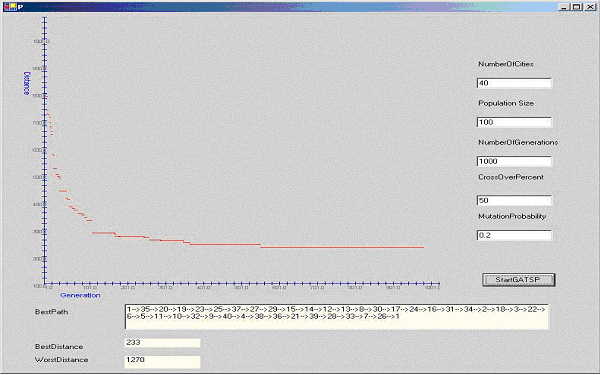

I�m a not an expert in C# programming. It took quite a bit of time to put in all my browsing experience to find one really good article for XY Plot graph, so here is the link http://www.c-sharpcorner.com/Code/2002/Aug/XYPlotControl.asp. This is a nice user control to use in C# which adds nice visual effects to the travelling salesman problem.

Register TSPGAATL.dll using regsvr32

To access this component from C#, from the VisualStudio.NET IDE click on the 'Project' menu. Click 'Add Refernces', and a tabbed dialog should appear. Select the 'COM' tab and browse for 'TSPGAATL.dll', and add it. Now C# knows everything about our COM component.

Find below my code for accessing the COM component from C# and accessing the SAFEARRAY from a method.

// Create the COM component

TSPGAATLLib.ITSPGAAlgorithm comTSPGA = new TSPGAATLLib.TSPGAAlgorithmClass();

// Set All the properties

comTSPGA.CitySize = System.Convert.ToInt16(this.textBox1.Text);
comTSPGA.SetPopulationSize = System.Convert.ToInt16(this.textBox2.Text);
comTSPGA.GenerationSize = System.Convert.ToInt16(this.textBox3.Text);
comTSPGA.SetCrossOverRate(System.Convert.ToInt16(this.textBox4.Text));
comTSPGA.Mutate = System.Convert.ToDouble(this.textBox5.Text);

// Start the GA TSP Engine

comTSPGA.StartGAForTSP();

//Reset the User Control Graph

xyGraphControl1.Reset();
xyGraphControl1.XTickValue = 20;
xyGraphControl1.YTickValue = 20;
xyGraphControl1.XOrigin = 1;
xyGraphControl1.YOrigin = 100;
xyGraphControl1.LabelX = "Generation";
xyGraphControl1.LabelY = "Distance";

//TSP gets diifferent best routes he can traverse

//C# handles Variant wrapped safearrays the following way...

//We fill Array with all Generations(say 1000)

//Make sure we convert to respective datatypes(C# complier returns good build errors)


System.Array distAll =(System.Array)comTSPGA.GetAllBestDistancesByGenerations();
for(int i = 0;i < distAll.Length;i++ )
{
   //Write it to a file..

   distFile += distAll.GetValue(i) + "\n";
   //Display the Graph here by extracting the value stored in System.Array variable

   //Add the Distance points for each generation

   xyGraphControl1.AddPoint(System.Convert.ToInt64(i),
                            System.Convert.ToInt64(distAll.GetValue(i)));
}
FileStream fs = new FileStream(@"c:\dist.txt" , FileMode.OpenOrCreate, FileAccess.Write);
StreamWriter m_streamWriter = new StreamWriter(fs);
// Write to the file using StreamWriter class

m_streamWriter.BaseStream.Seek(0, SeekOrigin.End);
m_streamWriter.Write(" File Write Operation Starts : ");
m_streamWriter.Write(distFile);
m_streamWriter.Flush();

//Now help out TS(Travelling SalesMan)and give him this best route.

String outPut = "";
System.Array bestRoute =(System.Array) comTSPGA.GetBestPathForTSP();
for(int i = 0;i < bestRoute.Length;i++ )
{
  outPut += bestRoute.GetValue(i) + "-->";
}
//Display it in Text Box

this.textBox6.Text = outPut + bestRoute.GetValue(0);
//the best overall ranking distance

this.label9.Text = System.Convert.ToString(comTSPGA.BestOverAll);
//the worst overall ranking system


this.label11.Text = System.Convert.ToString(comTSPGA.WorstOverAll);
xyGraphControl1.Invalidate();

Points of Interest

Accessing SAFEARRAY from C# took some time for me but the way C# handling any kind of datatype is excellent. Initially I was resisting my self to move to C# from my good old Win32, MFC and ATL controls.

C# is a good language to consider.
