Image Processing Using GDI+

• Download source - 18.8 Kb
• Download demo - 61.1 Kb

Introduction

There are many image processing tools similar to what I describe in this article. In this personal tool, I have used very basic image processing algorithms. Here I have focused on brightness, color inversion, contrast, blur, sharpness, and black and white color algorithms. I have used GDI+ for loading the image into memory, with the help of formulas mentioned for each kind of image processing. The code includes the CImageProcess.cpp and CImageProcess.h files. I would like to suggest that for image processing, do not use GetPixel and SetPixel. Performance wise, they are very slow. For more information, check this article: Rotate a Bitmap at Any Angle Without GetPixel/SetPixel.

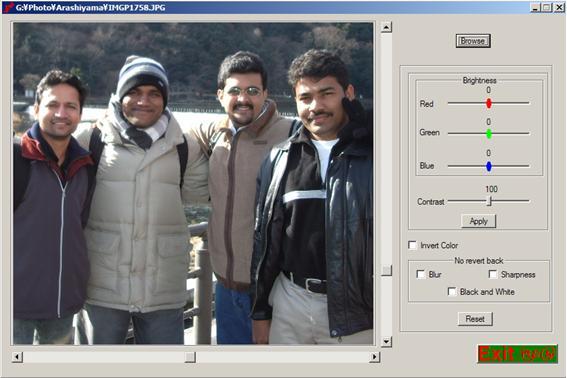

Original Image

Algorithm and Code

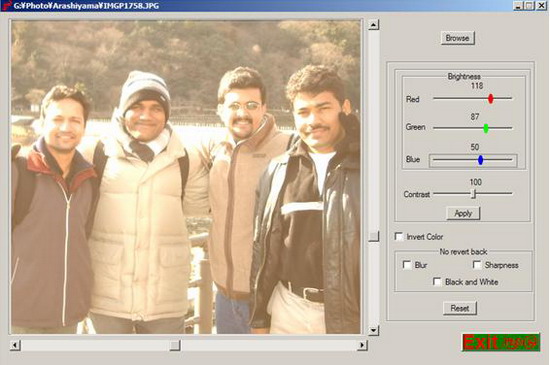

1. Brightness

   An image can be light or sark. If we want to have more light in the image, we should decrease the RGB value. If we want an image to be darker, we should increase the RGB value.



   Formula

   Color = Color + Value(may be –ve)
   if (Color <0) Color = 0; if (Color>255) Color = 255;

   For example, if we want to decrease the red color component:

   Red = Red - DecrementVal

   To increase the red color component:

   Red = Red + IncrementVal

   The code

   BITMAPINFO bi;
   BOOL bRes;
   char *buf;

   // Bitmap header
   bi.bmiHeader.biSize = sizeof(bi.bmiHeader);
   bi.bmiHeader.biWidth = m_nWidth;
   bi.bmiHeader.biHeight = m_nHeight;
   bi.bmiHeader.biPlanes = 1;
   bi.bmiHeader.biBitCount = 32;
   bi.bmiHeader.biCompression = BI_RGB;
   bi.bmiHeader.biSizeImage = m_nWidth * 4 * m_nHeight;
   bi.bmiHeader.biClrUsed = 0;
   bi.bmiHeader.biClrImportant = 0;

   // Buffer
   buf = (char *) malloc(m_nWidth * 4 * m_nHeight);
   // Don't use getPixel and SetPixel.It's very slow.
   // Get the all scanline.
   bRes = GetDIBits(hMemDC, m_hBitmap, 0, m_nHeight, buf, &bi,
                          DIB_RGB_COLORS);
   long nCount=0;
   for (int i=0; i<m_nHeight; ++i)
   {
       for (int j=0; j<m_nWidth; ++j)
       {
           long lVal=0;
           memcpy(&lVal, &buf[nCount], 4);
           // Get the reverse order
           int b = GetRValue(lVal);
           int g = GetGValue(lVal);
           int r = GetBValue(lVal);

           // Red
           r += nRedVal;
           if (r >255)
           {
               r = 255;
           }
           if (r <0)
           {
               r = 0;
           }

           // Green
           g += nGreenVal;
           if (g>255)
           {
               g = 255;
           }
           if (g<0)
           {
               g = 0;
           }

           // Blue
           b += nBlueVal;
           if (b >255)
           {
               b = 255;
           }
           if (b<0)
           {
               b = 0;
           }

           // Store reverse order
           lVal = RGB(b, g, r);
           memcpy(&buf[nCount], &lVal, 4);

       // Increment with 4. RGB color take 4 bytes.
       // The high-order byte must be zero
       // See in MSDN COLORREF
           nCount+=4;
         }
       }

       // Set again
       SetDIBits(hMemDC, m_hBitmap, 0, bRes, buf,  &bi,
                          DIB_RGB_COLORS);
       free(buf);

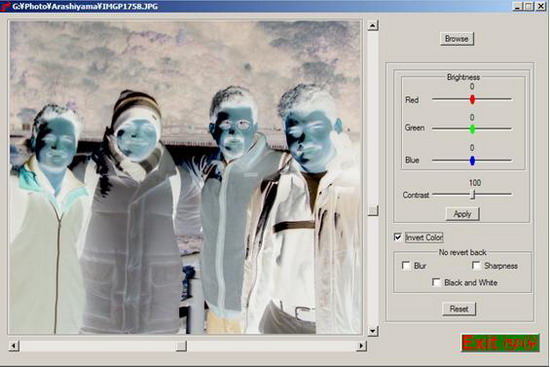

2. Invert Color

   When we invert color, we get the opposite colors of the current pixels.



   Formula

   Color = 255 – Color; if (Color <0) Color = 0;
   if (Color>255) Color = 255;

   The code

   // Same header format
   for (int i=0; i<m_nHeight; ++i)
   {
       for (int j=0; j<m_nWidth; ++j)
       {
           long lVal=0;
           memcpy(&lVal, &buf[nCount], 4);
           int b = 255-GetRValue(lVal);
           int g = 255-GetGValue(lVal);
           int r = 255-GetBValue(lVal);

           lVal = RGB(b, g, r);

           memcpy(&buf[nCount], &lVal, 4);
           nCount+=4;
       }
   }

3. Contrast Color

   Contrasting colors are colors that are opposite on the color wheel. In a high contrast image, you can see definite edges, and the different elements of that image are accented. In a low contrast image, all the colors are nearly the same, and it's hard to make out the details.



   Formula

   Color = (((Color - 128) * ContrastVal) / 100) +128
   if (Color <0) Color = 0; if (Color>255) Color = 255;

   Here, the contrast value is between 0 and 200.

   The code

   for (int i=0; i<m_nHeight; ++i)
   {
       for (int j=0; j<m_nWidth; ++j)
       {
           long lVal=0;
           memcpy(&lVal, &buf[nCount], 4);
           // Get from buffer in reverse order
           int b = GetRValue(lVal);
           int g = GetGValue(lVal);
           int r = GetBValue(lVal);

           r = ((r-128)*nContrastVal)/100 +128;
           g = ((g-128)*nContrastVal)/100 +128;
           b = ((b-128)*nContrastVal)/100 +128;

           // Red
           if (r >255)
           {
               r = 255;
           }
           if (r <0)
           {
               r = 0;
           }

           // Green
           if (g>255)
           {
               g = 255;
           }
           if (g<0)
           {
               g = 0;
           }

           // Blue
           if (b >255)
           {
               b = 255;
           }
           if (b<0)
           {
               b = 0;
           }

           // Store in reverse order
           lVal = RGB((int)b, (int)g, (int)r);

           memcpy(&buf[nCount], &lVal, 4);
           nCount+=4;
       }
   }

4. Blur

   Blur is the well-known effect on computer screens, in fact on all pixel devices, where the diagonal and curved lines are displayed as a series of little zigzag horizontal and vertical lines.



   Formula

   Color = (C1+C2+C3+C4+C5)/5

   For more details about blur and anti-aliasing check this article: Creating graphics for the Web: Anti-aliasing.

   Here, C1 is the current pixel. C2, C3, C4, and C5 are the nearby pixels.



   The code

   pOriBuf = (char *) malloc(m_nWidth * 4 * m_nHeight);
   // Store new value into tempravary buffer
   char *tmpBuf = (char *) malloc(m_nWidth * 4 * m_nHeight);
   bRes = GetDIBits(hMemDC, m_hBitmap, 0, m_nHeight, pOriBuf, &bi,
                          DIB_RGB_COLORS);
   long nCount=0;
   long c1, c2, c3, c4, c5;

   // Retrive from original buffer
   // Caluculate the value and store new value into tmpBuf
   for (int i=0; i<m_nHeight; ++i)
   {
       for (int j=0; j<m_nWidth; ++j)
       {
           long lVal=0;
           memcpy(&lVal, &pOriBuf[nCount], 4);
           int b = GetRValue(lVal);
           int g = GetGValue(lVal);
           int r = GetBValue(lVal);

           c1 = r;
           // Red
           if ((nCount < ((m_nHeight-1)*m_nWidth*4l)) &&
               (nCount > (m_nWidth*4)))
           {
               memcpy(&lVal, &pOriBuf[nCount-(m_nWidth*4l)], 4);
               c2 = GetBValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount+4], 4);
               c3 = GetBValue(lVal);

               memcpy(&lVal, &pOriBuf[(nCount+(m_nWidth*4l))], 4);
               c4 = GetBValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount-4], 4);
               c5 = GetBValue(lVal);

               r = (c1+c2+c3+c4+c5)/5;
           }

           // Green
           c1 = g;
           if ((nCount < ((m_nHeight-1)*m_nWidth*4l)) &&
               (nCount > (m_nWidth*4)))
           {
               memcpy(&lVal, &pOriBuf[(nCount-(m_nWidth*4l))], 4);
               c2 = GetGValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount+4], 4);
               c3 = GetGValue(lVal);

               memcpy(&lVal, &pOriBuf[(nCount+(m_nWidth*4l))], 4);
               c4 = GetGValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount-4], 4);
               c5 = GetGValue(lVal);

               g = (c1+c2+c3+c4+c5)/5;
           }

           // Blue
           c1 = b;
           if ((nCount < ((m_nHeight-1)*m_nWidth*4l)) &&
               (nCount > (m_nWidth*4)))
           {
               memcpy(&lVal, &pOriBuf[(nCount-(m_nWidth*4l))], 4);
               c2 = GetRValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount+4], 4);
               c3 = GetRValue(lVal);

               memcpy(&lVal, &pOriBuf[(nCount+(m_nWidth*4l))], 4);
               c4 = GetRValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount-4], 4);
               c5 = GetRValue(lVal);

               b = (c1+c2+c3+c4+c5)/5;
           }

           // Store in reverse order
           lVal = RGB(b, g, r);

           memcpy(&tmpBuf[nCount], &lVal, 4);

           nCount+=4;
       }
   }

   // Store tmpBuf
   SetDIBits(hMemDC, m_hBitmap, 0, bRes,
             tmpBuf,  &bi, DIB_RGB_COLORS);

   free(pOriBuf);
   free(tmpBuf);

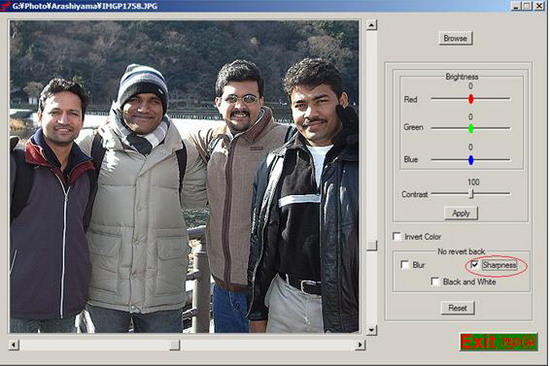

5. Sharpness



   Formula

   Color = (C1*5) – (C2+C3+C4+C5).
   if (Color <0) Color = 0; if (Color>255) Color = 255;

   The code

   for (int i=0; i<m_nHeight; ++i)
   {
       for (int j=0; j<m_nWidth; ++j)
       {
           long lVal=0;
           memcpy(&lVal, &pOriBuf[nCount], 4);
           int b = GetRValue(lVal);
           int g = GetGValue(lVal);
           int r = GetBValue(lVal);

           c1 = r;
           // Red
           if ((nCount < ((m_nHeight-1)*m_nWidth*4l)) && (nCount > (m_nWidth*4)))
           {
               memcpy(&lVal, &pOriBuf[nCount-(m_nWidth*4l)], 4);
               c2 = GetBValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount+4], 4);
               c3 = GetBValue(lVal);

               memcpy(&lVal, &pOriBuf[(nCount+(m_nWidth*4l))], 4);
               c4 = GetBValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount-4], 4);
               c5 = GetBValue(lVal);

               r = (c1*5) - (c2+c3+c4+c5);
           }

           // Green
           c1 = g;
           if ((nCount < ((m_nHeight-1)*m_nWidth*4l)) && (nCount > (m_nWidth*4)))
           {
               memcpy(&lVal, &pOriBuf[(nCount-(m_nWidth*4l))], 4);
               c2 = GetGValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount+4], 4);
               c3 = GetGValue(lVal);

               memcpy(&lVal, &pOriBuf[(nCount+(m_nWidth*4l))], 4);
               c4 = GetGValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount-4], 4);
               c5 = GetGValue(lVal);

               g = (c1*5) - (c2+c3+c4+c5);
           }

           // Blue
           c1 = b;
           if ((nCount < ((m_nHeight-1)*m_nWidth*4l)) && (nCount > (m_nWidth*4)))
           {
               memcpy(&lVal, &pOriBuf[(nCount-(m_nWidth*4l))], 4);
               c2 = GetRValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount+4], 4);
               c3 = GetRValue(lVal);

               memcpy(&lVal, &pOriBuf[(nCount+(m_nWidth*4l))], 4);
               c4 = GetRValue(lVal);

               memcpy(&lVal, &pOriBuf[nCount-4], 4);
               c5 = GetRValue(lVal);

               b = (c1*5) - (c2+c3+c4+c5);
           }

           // Red
           if (r >255)
           {
               r = 255;
           }
           if (r <0)
           {
               r = 0;
           }

           // Green
           if (g>255)
           {
               g = 255;
           }
           if (g<0)
           {
               g = 0;
           }

           // Blue
           if (b >255)
           {
               b = 255;
           }
           if (b<0)
           {
               b = 0;
           }

           // Store in reverse order
           lVal = RGB(b, g, r);

           memcpy(&tmpBuf[nCount], &lVal, 4);

           nCount+=4;
       }
   }

6. Black and white color

   Black and white images can be arrived at by giving the same color value for Red, Green, and Blue.



   Formula

   Color = (R+G+B)/3; R = Color; G = Color; B = Color;

   The code

   for (int i=0; i<m_nHeight; ++i)
   {
       for (int j=0; j<m_nWidth; ++j)
       {
           long lVal=0;
           memcpy(&lVal, &buf[nCount], 4);
           // Get the color value from buffer
           int b = GetRValue(lVal);
           int g = GetGValue(lVal);
           int r = GetBValue(lVal);

           // get the average color value
           lVal = (r+g+b)/3;

           // assign to RGB color
           lVal = RGB(lVal, lVal, lVal);
           memcpy(&buf[nCount], &lVal, 4);

           nCount+=4;
       }
   }
