# Reading Barcodes from an Image

, 24 Mar 2004 CPOL
 Rate this:
Please Sign up or sign in to vote.
An example of how to process an image for barcode strings

## Introduction

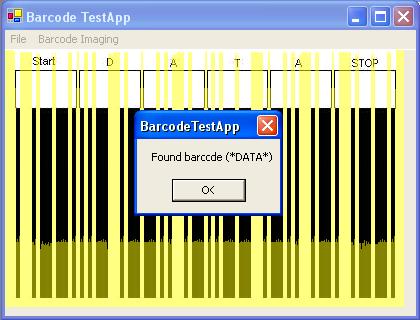

I recently ran across Neil Van Eps series of articles on how to draw barcodes and found myself wondering how easy it would be to process an image to read barcodes. Attached is a demo project that shows one method for reading Code39.

## Background

I've been a Basic programmer since age 8 (love those GOTO's... Icky!), a VB4->VB6 programmer for ages (OK... Only since college), and a VB.NET programmer since it was released, but exclusively .NET for only about a year. Basically (sorry for the pun), I've been able to get by with very little knowledge of C or C++. I recently needed to do some image processing so I checked out The Code Project and found a series of articles titled Image Processing for Dummies with C# and GDI+ by Christian Graus. YES! I had finally found what I was looking for, an example on image processing. I started to translate the C# code to VB.NET (usually this is an easy task) and found it nearly impossible... Needless to say, I am now a C# developer as well. :)

## Using the code

Although there are at least ten ways (that I can think of) to skin a cat, I selected a method for processing the image that was relatively simple just to prove the concept. First, I create an average of the pixels (histogram) down the image:

```

for(int y=0;y<bmp.Height;++y)
{
for(int x=0; x < bmp.Width; ++x )
{
// Add up all the pixel values vertically (average the R,G,B channels)
vertSum[x] += ((p[0] + (p+1)[0] + (p+2)[0])/3);

p+=3;
}
p += nOffset;
}
```
Next run through the resulting array to find the narrow and wide bars:
```

for(int i = 0; i < vertHist.histogram.Length; ++i)
{
...
}
```
Finally, lookup the narrow/wide bar pattern to match it to a character:
```

dataString += parsePattern(new string(pattern));

```

## TODO

The method I used to get the bar pattern isn't what I would call robust. I'd eventually like to figure out a better method for finding the barcode patterns (in any orientation) in addition to adding support for the various barcode types.

## License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)
