NSIS Quick Start

• Download Blank.zip - 1.2 KB

1. Introduction

In this article I will cover core essentials of Nullsoft Scriptable Install System or also known as NSIS with focus on deploying applications programmed in Microsoft .NET Framework. I will cover deploying common objects that will immediately give you the power to use the opensource installer today!

2. Background

As a RAD NET programmer I have spent many months looking at different installer systems trying to find one that compliments my application. While my requirements could not be any simpler, it seemed if each installer system I looked at created a new hurdle while solving an inefficiency of previous rival installer. At first look, NSIS reminded me of C programming language. As a programmer who has strong focus on eye candy within applications I write, I never imagined NSIS being able to offer it all for free. It turns out NSIS slices and dices NET deployments.

3. Contents

1. Introduction
2. Background
3. (Contents)
4. Required Software
5. Taking advantage of HM wizard
6. Compiling from windows
7. Editing from windows
8. Introducing sections
9. Installing MSI 3.1
10. Installing NET Framework
11. Un\Installing 3rd party .MSI
12. Un\Installing 3rd party .DLL
13. Un\Installing 3rd party .MSM
14. Global Variables & Macros
15. Getting help for NSIS
16. Debugging
17. History

4. Required Software

Software deployment with NSIS is really broken up into 3 phases, and they are:

1. Compiling
2. Creating
3. Editing

So the following applications installed respectively..

Nullsoft Scriptable Install System
http://nsis.sourceforge.net/Main_Page
"NSIS is a professional open source system to create Windows installers."

HM NIS EDIT
http://hmne.sourceforge.net/
"HM NIS Edit is the best Editor/IDE for Nullsoft Scriptable Install System (NSIS)."

Notepad++http://sourceforge.net/projects/notepad-plus/
"Is a generic source code editor (it tries to be anyway)."

Notepad++ is great power pad cause it has collapsible code sections and excellent syntax highlighting and lots of quirky gremlins ;). Ultimately the idea is to uninstall HM NIS EDIT once you have written the bulk of your script.

5. Taking advantage of HM wizard

What better way to get started than having visual wizard create all the script code for you. You will need to have NSIS installed at this point along with HM NIS EDIT. Once HM NIS EDIT is loaded just click on the magic wand and it will automatically generate following blank script...

; Script generated by the HM NIS Edit Script Wizard.

; HM NIS Edit Wizard helper defines
!define PRODUCT_NAME "My application"
!define PRODUCT_VERSION "1.0"
!define PRODUCT_PUBLISHER "My company, Inc."
!define PRODUCT_WEB_SITE "http://www.mycompany.com/">http://www.mycompany.com"
!define PRODUCT_DIR_REGKEY "Software\Microsoft\Windows\CurrentVersion\App Paths\AppMainExe.exe"
!define PRODUCT_UNINST_KEY "Software\Microsoft\Windows\CurrentVersion\Uninstall\${PRODUCT_NAME}"
!define PRODUCT_UNINST_ROOT_KEY "HKLM"

; MUI 1.67 compatible ------
!include "MUI.nsh"

; MUI Settings
!define MUI_ABORTWARNING
!define MUI_ICON "${NSISDIR}\Contrib\Graphics\Icons\modern-install.ico"
!define MUI_UNICON "${NSISDIR}\Contrib\Graphics\Icons\modern-uninstall.ico"

; Welcome page
!insertmacro MUI_PAGE_WELCOME
; License page
!insertmacro MUI_PAGE_LICENSE "c:\path\to\licence\YourSoftwareLicence.txt"
; Directory page
!insertmacro MUI_PAGE_DIRECTORY
; Instfiles page
!insertmacro MUI_PAGE_INSTFILES
; Finish page
!define MUI_FINISHPAGE_RUN "$INSTDIR\AppMainExe.exe"
!insertmacro MUI_PAGE_FINISH

; Uninstaller pages
!insertmacro MUI_UNPAGE_INSTFILES

; Language files
!insertmacro MUI_LANGUAGE "English"

; MUI end ------

Name "${PRODUCT_NAME} ${PRODUCT_VERSION}"
OutFile "Setup.exe"
InstallDir "$PROGRAMFILES\My application"
InstallDirRegKey HKLM "${PRODUCT_DIR_REGKEY}" ""
ShowInstDetails show
ShowUnInstDetails show

Section "MainSection" SEC01
  SetOutPath "$INSTDIR"
  SetOverwrite ifnewer
  File "c:\path\to\file\AppMainExe.exe"
  CreateDirectory "$SMPROGRAMS\My application"
  CreateShortCut "$SMPROGRAMS\My application\My application.lnk" "$INSTDIR\AppMainExe.exe"
  CreateShortCut "$DESKTOP\My application.lnk" "$INSTDIR\AppMainExe.exe"
SectionEnd

Section -AdditionalIcons
  CreateShortCut "$SMPROGRAMS\My application\Uninstall.lnk" "$INSTDIR\uninst.exe"
SectionEnd

Section -Post
  WriteUninstaller "$INSTDIR\uninst.exe"
  WriteRegStr HKLM "${PRODUCT_DIR_REGKEY}" "" "$INSTDIR\AppMainExe.exe"
  WriteRegStr ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}" "DisplayName" "$(^Name)"
  WriteRegStr ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}" "UninstallString" "$INSTDIR\uninst.exe"
  WriteRegStr ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}" "DisplayIcon" "$INSTDIR\AppMainExe.exe"
  WriteRegStr ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}" "DisplayVersion" "${PRODUCT_VERSION}"
  WriteRegStr ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}" "URLInfoAbout" "${PRODUCT_WEB_SITE}"
  WriteRegStr ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}" "Publisher" "${PRODUCT_PUBLISHER}"
SectionEnd


Function un.onUninstSuccess
  HideWindow
  MessageBox MB_ICONINFORMATION|MB_OK "$(^Name) was successfully removed from your computer."
FunctionEnd

Function un.onInit
  MessageBox MB_ICONQUESTION|MB_YESNO|MB_DEFBUTTON2 "Are you sure you want to completely remove $(^Name) and all of its components?" IDYES +2
  Abort
FunctionEnd

Section Uninstall
  Delete "$INSTDIR\uninst.exe"
  Delete "$INSTDIR\AppMainExe.exe"

  Delete "$SMPROGRAMS\My application\Uninstall.lnk"
  Delete "$DESKTOP\My application.lnk"
  Delete "$SMPROGRAMS\My application\My application.lnk"

  RMDir "$SMPROGRAMS\My application"
  RMDir "$INSTDIR"

  DeleteRegKey ${PRODUCT_UNINST_ROOT_KEY} "${PRODUCT_UNINST_KEY}"
  DeleteRegKey HKLM "${PRODUCT_DIR_REGKEY}"
  SetAutoClose true
SectionEnd

6. Compiling from Windows

The fastest way to compile a .nsi file is from Windows Explorer using right click context menu. Providing you have NSIS installed you will have full self contained Setup.EXE in same folder in few seconds, depending on dependencies.

7. Editing from Windows

The fastest way to edit a .nsi file is from Windows Explorer using right click context menu. Providing you have Notepad++ installed you will be looking at editable script with full syntax highlighting in a fraction of a second...

8. Introducing sections

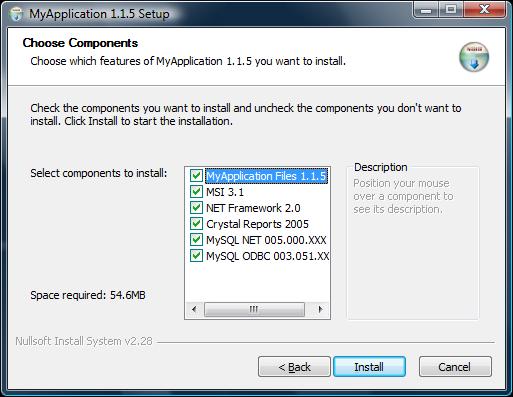

At the heart of the NSIS are sections that perform specific installation tasks. These not only make it easier for managing your script but also make you installer more powerful by allowing the end user to control which aspects of your software are installed. Sections may be optional, hidden, bold, read only and unchecked.

9. Installing MSI 3.1

There is always 1 desktop in every business that is running XP SP0. This is a major problem cause it is going to crash NET Framework installer. Here is the code for checking MSI version and installing MSI 3.1 if required...

Section 'MSI 3.1' SEC02 #NOTE should be installed before NET and stuff


  GetDLLVersion '$SYSDIR\msi.dll' $R0 $R1
  IntOp $R2 $R0 / 0x00010000 ; $R2 now contains major version
  IntOp $R3 $R0 & 0x0000FFFF ; $R3 now contains minor version
  IntOp $R4 $R1 / 0x00010000 ; $R4 now contains release
  IntOp $R5 $R1 & 0x0000FFFF ; $R5 now contains build
  StrCpy $0 '$R2.$R3' ;.$R4.$R5' ; $0 now contains string like '1.2.0.192'
    ${if} $R2 < '4'
        ${if} $0 != '3.1'
     ;options
     SetOutPath '$TEMP'
     SetOverwrite on
     ;file work
     File 'd:\mmm.runtimes\WindowsInstaller-KB893803-v2-x86.exe'
     ExecWait '$TEMP\WindowsInstaller-KB893803-v2-x86.exe /quiet /norestart' $0
     DetailPrint '..MSI 3.1 exit code = $0'
     Delete '$TEMP\WindowsInstaller-KB893803-v2-x86.exe'
     ${Else}
     DetailPrint '..MSI $0 already installed !!'
     ${EndIf}
    ${Else}
    DetailPrint '..MSI $0 already installed !!'
    ${EndIf}

SectionEnd

10. Installing NET Framework

NSIS have 100 or so code articles on their site and you may want to check it out here http://nsis.sourceforge.net/Category:Code_Examples. However lets take a detailed look at current release and future release of NET Framework.

NET20	Whidbey	2.0.50727	Major	2005
NET30	WinFX	2.0.50727	Bolt on	2007
NET35	Orcas	2.0.50727 + (NET20 SP1)	Bolt on	2007
NET40	Hawaii	4.0.00000 + (NET35 SP1)	Major	2008

Firstly, it is not a good idea to uninstall NET Framework considering it is part of Vista. Secondly, I strongly recommend you stick to deploying NET20, which is the simplest in terms of dependencies, the fastest and the smallest in terms of footprints. And given that NET30 contains NET20, this is best option. It will be very interesting to see, just how many changes are allowed in NET35 codename "Orcas". I have noticed ListView flickering to one included fix in Windows.Forms 3.5, although Microsoft are holding back on majority of fix's for compatibility reasons.

Section 'NET Framework 2.0 SP1' SEC03


  ;registry
  ReadRegDWORD $0 HKLM 'SOFTWARE\Microsoft\NET Framework Setup\NDP\v2.0.50727' Version

    ${If} $0 == '2.1.21022'
    DetailPrint '..NET Framework 2.0 SP1 already installed !!'
    ${Else}
    ;options
    SetOutPath '$TEMP'
    SetOverwrite on
    ;file work
    File 'c:\path.to.file\netfx20sp1_x86.exe'
    ExecWait '$TEMP\netfx20sp1_x86.exe /quiet /norestart' $0
    DetailPrint '..NET Framework 2.0 SP1 exit code = $0'
    Delete '$TEMP\netfx20sp1_x86.exe'
    ${EndIf}

SectionEnd

11. Un\Installing 3rd party .MSI

Let's assume that your software needs to install an ODBC driver, and this needs to be installed with \quiet option. Your NSIS section should look like this...

Section 'MySQL ODBC 003.051.XXX' SEC02
  DetailPrint '..Installing MySQL ODBC'
  ;options
  SetOutPath '$TEMP'
  SetOverwrite on
  ;file work
  File "c:\path.to.file\mysql-connector-odbc-3.51.22-win32.msi" # NOTE Dont forget to change to uninstall GUID
  ExecWait 'MsiExec.exe /q /i $TEMP\mysql-connector-odbc-3.51.22-win32.msi' $0
  DetailPrint '..MySQL ODBC Connector exit code = $0'
  Delete '$TEMP\mysql-connector-odbc-3.51.22-win32.msi'
SectionEnd

And now for uninstalling...

Section Uninstall
  .
  .
  ExecWait 'MsiExec.exe /q /X{88164D59-4FFD-4874-93BC-5E001A7938F3}' $0
  DetailPrint '..MyODBC exit code = $0'
SectionEnd

You can get the GUID from registry HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\.

12. Un\Installing 3rd party .DLL

Now we have installed NET Framework you may want to install 3rd party Assemblies. The best way to do this is with gacutil.exe provided by Microsoft in NET20...

Section 'MySQL NET 005.000.XXX' SEC03
  DetailPrint '..Installing NET connector'
  ;options
  SetOutPath '$INSTDIR'
  SetOverwrite ifnewer
  ;uninstall #if required, code added for cp user Jonathan [Darka]
  ;ExecWait '"$INSTDIR\gacutil.exe" /uf "$INSTDIR\MySql.Data"' $0
  ;file work
  File 'c:\path.to.file\gacutil.exe'
  File 'c:\path.to.file\MySql.Data.dll'
  ;install
  ExecWait '"$INSTDIR\gacutil.exe" /silent /i "$INSTDIR\MySql.Data.dll"' $0 #FIX wasn't working without double quotes
  DetailPrint '..MySQL NET Connector exit code = $0'
SectionEnd

NOTE ABOUT UNINSTALLING PREVIOUS ASSEMBLIES
1. ExecWait '"$INSTDIR\gacutil.exe" /uf "$INSTDIR\MySql.Data"' $0
2. /UF = Uninstall + Force
3. The above command will not work if you pass gacutil.exe the file extension ".DLL"
4. I have positive feedback about the FCT plugin which closes apps by window title.. sam6nz says "reliable and flexible"

And now for uninstalling...

Section Uninstall
 .
 .
 ;SEC05 – NET
 ;options
 SetOutPath '$TEMP'
 SetOverwrite on
 ;file work
 File 'c:\path.to.file\gacutil.exe'
 File 'c:\path.to.file\MySql.Data.dll'
 DetailPrint '..Uninstalling MySql.Data.dll'
 ExecWait '$TEMP\gacutil.exe /silent /u MySql.Data' $0
 DetailPrint '..MySql.Data exit code = $0'
SectionEnd

13. Un\Installing 3rd party .MSM

This is actually same as 11. Un/Installing 3rd Party .MSI except we have to convert the .MSM to a .MSI file. For example lets assume you want to convert Crystal Reports 2005 .MSM to an standard .MSI file. Once the conversion is completed you can throw any standard install option flags at the .MSI file for example /q and it works like it would with any other .MSI file. The easiest way to achieve .MSM > .MSI this is through VS2005 Setup Project. See pictures below for instructions...

Adding MSM file to Setup Project...

Some or most MSM files have various dependencies, for example if the MSM file you are trying to convert requires another MSM file such as C:\Program Files\Common Files\Merge Modules\Microsoft_VC80_ATL_x86.msm which is installed with VS2005 if you check 'Install Redistributables' during setup. If you don't have this file just run VS setup again and check the box.

14. Global Variables & Macros

Here are some Installer Attributes (flags) I use and strongly recommend...

SetCompress off	Speeds up installation
CRCCheck on	Verifies downloads and CDs
RequestExecutionLevel user	Uninstalls start menu item on Vista
BrandingText "ACME Inc."	Customizes installer wizard

Here are some macros you may wish to include as extra...

!insertmacro MUI_PAGE_LICENSE "..\Folder\YourLicense.rtf"

15. Getting help for NSIS

For a rapid response try the NSIS forums http://forums.winamp.com/forumdisplay.php?s=315447ba88ebb577ca060ea8dcffa07d&forumid=65, although they may point you towards code example link I gave early.

16. Debugging

If you need to debug your script, best thing to do is write debug info using DetailPrint and then throw in a MessageBox MB_ICONINFORMATION|MB_OK "Break point" , this will pause the installer until you can verify the point of failure.

History

• 24-June-2007 – First version submitted.
• 25-June-2007 - Revamped HTML, added MSI 3.1 Support for XP SP0 platforms, /UF flag for uninstalling previous version of assemblies.
• 07-July-2007 - Missing line to MSI 3.1 section added.
• 19-July-2007 - Fixed and simplified version comparison.
• 17-Oct-2007 - Improved MSI logic, changed double quotes to single.
• 16-Dec-2007 - Upgraded NET20 to NET20 SP1
