Very useful class to display SQL SELECT results

• Download source files - 2.95 Kb
• Download demo project with CListCtrl - 42.6 Kb
• Download demo project with CListCtrlEx - 130 Kb

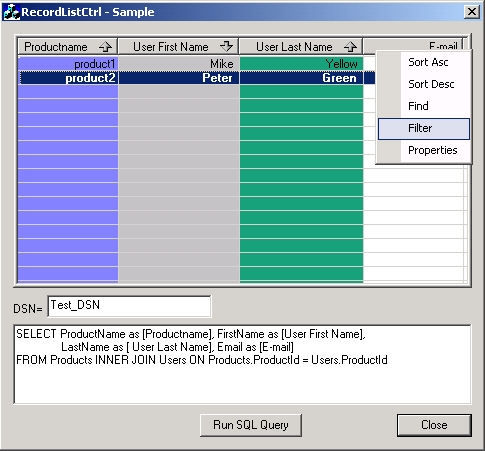

Fig1. Illustrates CRecordListCtrl based on CListCtrlEx from this article.

Introduction

In this article, I present a simple CRecordListCtrlM to display the results of a SQL SELECT operation. Why another similar grid control? Yeah, you say, many grids are available for VC++ developers, but this control is small and very useful in MFC applications. Moreover, in combination with CListCtrlEx, presented here.

You will find many advanced unique features for developers and end users. Readers also can replace MFC ODBC classes to MFC DAO. Using ADO or OLE DB classes is also possible.

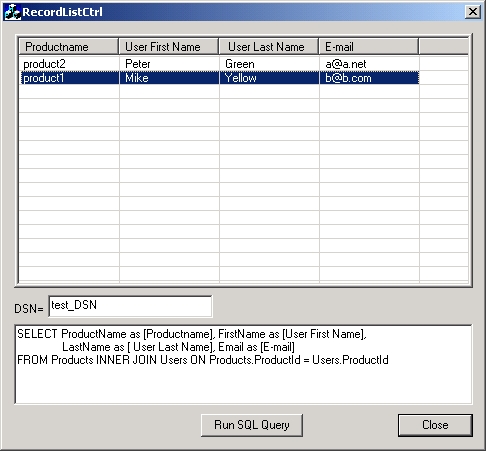

Fig2. Illustrates CRecordListCtrl based on standard CListCtrl.

In most cases, all that you need to do is call the following:

    // aDSN is ODBC datasource name

    // aSQL is SQL SELECT query

    m_List.LoadListCtrl(CString aDSN, CString aSQL);

How to Use

Using CRecordListCtrl is very simple.

1. Include the RecordListCtrlEx.h and RecordListCtrlEx.cpp files in your project.
2. If you want to use CListCtrlEx in this control instead of CListCtrl, just replace with CListCtrlEx.

Conclusion

By reading this article, you receive two variants for using the CRecordListCtrl control. The first is based on CListCtrl, providing an easy-to-use way to display SQL SELECT query results. The second is based on CListCtrlEx, and also makes an easy way possible to show the results of SQL SELECT and provides a lot of end-user-friendly functionality. The functions are:

• Multicolumn sorting (working as SQL ORDER BY)
• Multicolumn filtering (working as an additional WHERE section in SQL SELECT)
• Column data type auto detection (allows the user input to be more friendly)
• Column coloring and dragging
• Storing/Loading control state

Usage

This software is released into the public domain. You are free to use it in any way you like. You should save the Author text in the header files. If you modify it or extend it, please consider posting new code here for everyone to share. This software is provided "as is" with no expressed or implied warranty. I accept no liability for any damage or loss of business that this software may cause.

My special thanks to other authors.
