GSM SMS Library

Brian Matumbura

0.00/5 (No votes)

16 Jun 2008

This library is able to handle all the TPDU types but the SMS-DELIVER-REPORT type.

Download SMSLibrary - 19.31 KB

Introduction

The Global System for Mobile communications (ETSI GSM 03.40) Technical Specification (GTS) describes the point-to-point Short Message Service (SMS) of the GSM system. The specification defines the following six transfer protocol data units (TPDU) types:

SMS-DELIVER, conveying a short message from the Service Centre (SC) to the Mobile Station (MS)
SMS-DELIVER-REPORT, conveying a failure cause (if necessary)
SMS-SUBMIT, conveying a short message from the MS to the SC
SMS-SUBMIT-REPORT, conveying a failure cause (if necessary)
SMS-STATUS-REPORT, conveying a status report from the SC to the MS
SMS-COMMAND, conveying a command from the MS to the SC

This version of the SMS Library is able to handle all the TPDU types but the SMS-DELIVER-REPORT type.

The library references the PDU Encoding Library which is included in the dowlnoad above.

Class Hierarchy

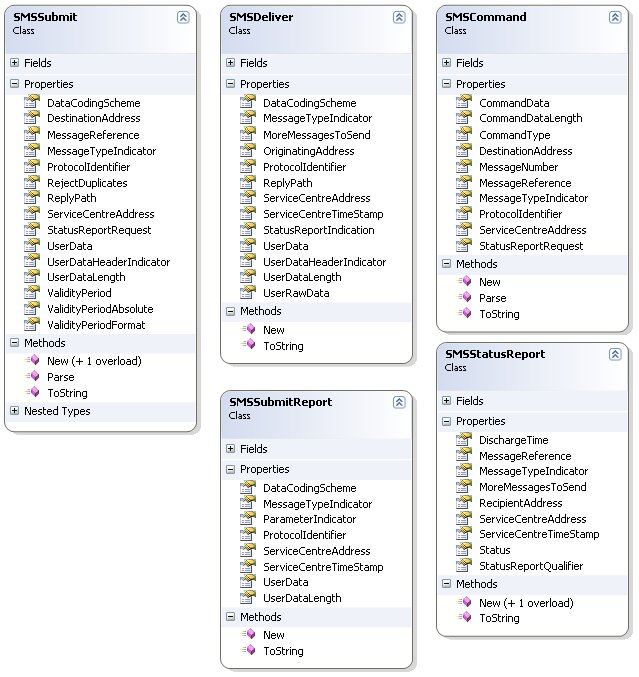

Core classes

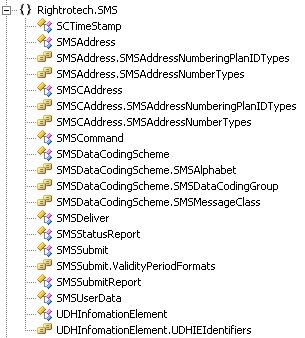

Supporting classes

Using the Library

Use the SMSSubmit class to handle a TPDU of the SM-SUBMIT type.

Use the SMSDeliver class to handle a TPDU of the SM-DELIVER type.

Use the SMSSubmitReport class to handle a TPDU of the SM-SUBMIT-REPORT type.

Use the SMSStatusReport class to handle a TPDU of the SM-STATUS-REPORT type.

Use the SMSCommand class to handle a TPDU of the SM-COMMAND type.

The supporting classes are used when referencing any of the core classes. You may use them for any other purposes if required.

Class Details

SMSSubmit Class

Namespace Rightrotech.SMS

Properties

Property	Description
`DataCodingScheme`	`Public Property DataCodingScheme() As Rightrotech.SMS.SMSDataCodingScheme` Gets or sets the coding scheme within the TP-User-Data i.e. the element TP-Data-Coding-Scheme (TP-DCS) of the SMS-SUBMIT PDU type.
`DestinationAddress`	`Public Property DestinationAddress() As Rightrotech.SMS.SMSAddress` Gets or sets the address of the destination SME i.e. the element The TP-Destination-Address (TP-DA) field of the SMS-SUBMIT PDU type.
`MessageReference`	`Public ReadOnly Property MessageReference() As Integer` Gets an integer representation of a reference number of the SMS-SUBMIT submitted to the SC by the MS. This corresponds to the element TP-Message-Reference (TP-MR) of the SMS-SUBMIT PDU Type.
`MessageTypeIndicator`	`Public ReadOnly Property MessageTypeIndicator() As Integer` Gets an integer describing the message type. For the SMS-SUBMIT PDU type, the returned value is always 1. This corresponds to the element TP-Message-Type-Indicator (TP-MTI) of the SMS-SUBMIT PDU Type.
`ProtocolIdentifier`	`Public ReadOnly Property ProtocolIdentifier() As Integer` Gets an integer identifying the above layer protocol, if any. This corresponds to the element TP-Protocol-Identifier (TP-PID) of the SMS-SUBMIT PDU type. In this version of the SMS Library, the returned value is always 0.
`RejectDuplicates`	`Public Property RejectDuplicates() As Boolean` Gets or sets a parameter indicating whether or not the SC shall accept an SMS-SUBMIT for an SM still held in the Service Centre which has the same TP-Message-Reference and the same TP-Destination-Address as a previously submitted Short Message from the same TP-Originating-Address i.e. the element TP-Reject-Duplicates (TP-RD) of the SMS-SUBMIT PDU type.
`ReplyPath`	`Public Property ReplyPath() As Boolean` Gets or sets a parameter indicating the request for Reply Path i.e. the element TP-Reply-Path (TP-RP) of the SMS-SUBMIT PDU type.
`ServiceCentreAddress`	`Public Property ServiceCentreAddress() As Rightrotech.SMS.SMSCAddress` Gets or sets the Service Centre Address.
`StatusReportRequest`	`Public Property StatusReportRequest() As Boolean` Gets or sets a parameter indicating if the MS is requesting a status report. This corresponds to the element TP-Status-Report-Request (TP-SRR) of the SMS-SUBMIT PDU type.
`UserData`	`Public Property UserData() As Rightrotech.SMS.SMSUserData` Gets or sets user data field may comprise just the short message itself or a Header in addition to the short message depending upon the setting of TP-UDHI. This corresponds to the element TP-User-Data (TP-UD) of the SMS-SUBMIT PDU type. The TP-User-Data field contains up to 140 octets of user data.
`UserDataHeaderIndicator`	`Public Property UserDataHeaderIndicator() As Boolean` Gets or sets a parameter indicating that the TP-UD field contains a Header. This corresponds to the element TP-User-Data-Header-Indicator (TP-UDHI) of the SMS-SUBMIT PDU type.
`UserDataLength`	`Public ReadOnly Property UserDataLength() As Integer` Gets an integer representing the the number of octets that are in this SMS-SUBMIT TPDU.
`ValidityPeriod`	`Public Property ValidityPeriod() As Integer` Gets or sets a parameter identifying the time from where the message is no longer valid when the ValidityPeriodFormats property is set to VPFieldRelative. This corresponds to the element TP-Validity-Period (TP-VP) of the SMS-SUBMIT PDU type.
`ValidityPeriodAbsolute`	`Public Property ValidityPeriodAbsolute() As Rightrotech.SMS.SCTimeStamp` Gets or sets a parameter identifying the time from where the message is no longer valid when the ValidityPeriodFormats property is set to VPFieldAbsolute. This corresponds to the element TP-Validity-Period (TP-VP) of the SMS-SUBMIT PDU type.
`ValidityPeriodFormat`	`Public Property ValidityPeriodFormat() As Rightrotech.SMS.SMSSubmit.ValidityPeriodFormats` Gets or sets the format of the validity period.

Methods

Method Description

Method	Description
`New`	`Public Sub New()` `Public Sub New(ByVal SMSText As String, Optional ByVal SMAlphabet As Rightrotech.SMS.SMSDataCodingScheme.SMSAlphabet = DefaultAlphabet, Optional ByVal Concatenated As Boolean = False)` Initializes a new instance of the SMSSubmit class. Parameters ByVal SMSText is the short message text. Optional ByVal SMAlphabet specifies the alphabet to use when encoding the short message. Optional ByVal Concatenated indicates if the short message is part of a group of concatenated short messages.
`Parse`	`Public Function Parse(ByVal SubmitPDU As String) As Boolean` Parses the given SubmitPDU string and updates fields of the current instance. The function returns TRUE if the parsing is successful, otherwise it returns FALSE. Parameters ByVal SubmitPDU is the TPDU string of a SMS-SUBMIT PDU type.
`ToString`	`Public Overloads Function ToString() As String` Returns a TPDU string representing the current instance of the SMSSubmit class. The returned string will represent a TPDU of the SMS-SUBMIT type.

New

Public Sub New()

Public Sub New(ByVal SMSText As String, Optional ByVal SMAlphabet As Rightrotech.SMS.SMSDataCodingScheme.SMSAlphabet = DefaultAlphabet, Optional ByVal Concatenated As Boolean = False)

Initializes a new instance of the SMSSubmit class.

Parameters

ByVal SMSText is the short message text.
Optional ByVal SMAlphabet specifies the alphabet to use when encoding the short message.
Optional ByVal Concatenated indicates if the short message is part of a group of concatenated short messages.

Parse

Public Function Parse(ByVal SubmitPDU As String) As Boolean

Parses the given SubmitPDU string and updates fields of the current instance. The function returns TRUE if the parsing is successful, otherwise it returns FALSE.

Parameters

ByVal SubmitPDU is the TPDU string of a SMS-SUBMIT PDU type.

ToString

Public Overloads Function ToString() As String

Returns a TPDU string representing the current instance of the SMSSubmit class. The returned string will represent a TPDU of the SMS-SUBMIT type.

SMSDeliver Class

Namespace Rightrotech.SMS

Properties

Property	Description
`DataCodingScheme`	`Public Property DataCodingScheme() As Rightrotech.SMS.SMSDataCodingScheme` Gets or sets the coding scheme within the TP-User-Data i.e. the element TP-Data-Coding-Scheme (TP-DCS) of the SMS-DELIVER PDU type.
`MessageTypeIndicator`	`Public ReadOnly Property MessageTypeIndicator() As Integer` Gets an integer describing the message type. For the SMS-DELIVER PDU type, the returned value is always 0. This corresponds to the element TP-Message-Type-Indicator (TP-MTI) of the SMS-DELIVER PDU Type.
`MoreMessagesToSend`	`Public Property MoreMessagesToSend() As Boolean` Gets or sets a parameter indicating whether or not there are more messages to send i.e. the element TP-More-Messages-to-Send (TP-MMS) of the SMS-DELIVER PDU Type.
`OriginatingAddress`	`Public Property OriginatingAddress() As Rightrotech.SMS.SMSAddress` Gets or sets the address of the originating SME i.e. the element The TP-Originating-Address (TP-OA) field of the SMS-DELIVER PDU type.
`ProtocolIdentifier`	`Public ReadOnly Property ProtocolIdentifier() As Integer` Gets an integer identifying the above layer protocol, if any. This corresponds to the element TP-Protocol-Identifier (TP-PID) of the SMS-DELIVER PDU type. In this version of the SMS Library, the returned value is always 0.
`ReplyPath`	`Public Property ReplyPath() As Boolean` Gets or sets a parameter indicating that Reply Path exists i.e. the element TP-Reply-Path (TP-RP) of the SMS-DELIVER PDU type.
`ServiceCentreAddress`	`Public Property ServiceCentreAddress() As Rightrotech.SMS.SMSCAddress` Gets or sets the Service Centre Address.
`ServiceCentreTimeStamp`	`Public ReadOnly Property ServiceCentreTimeStamp() As Rightrotech.SMS.SCTimeStamp` Gets the time when the SC received the message i.e. the element TP-Service-Centre-Time-Stamp (TP-SCTS) of the SMS-DELIVER PDU type.
`StatusReportRequest`	`Public Property StatusReportRequest() As Boolean` Gets or sets a parameter indicating if the MS is requesting a status report. This corresponds to the element TP-Status-Report-Request (TP-SRR) of the SMS-SUBMIT PDU type.
`UserData`	`Public Property UserData() As Rightrotech.SMS.SMSUserData` Gets or sets user data field may comprise just the short message itself or a Header in addition to the short message depending upon the setting of TP-UDHI. This corresponds to the element TP-User-Data (TP-UD) of the SMS-DELIVER PDU type. The TP-User-Data field contains up to 140 octets of user data.
`UserDataHeaderIndicator`	`Public Property UserDataHeaderIndicator() As Boolean` Gets or sets a parameter indicating that the TP-UD field contains a Header. This corresponds to the element TP-User-Data-Header-Indicator (TP-UDHI) of the SMS-DELIVER PDU type.
`TPUserDataLength`	`Public ReadOnly Property TPUserDataLength() As Integer` Gets or sets a parameter indicating the length of the TP-User-Data field to follow. This corresponds to the element TP-User-Data-Length (TP-UDL) of the SMS-SUBMIT PDU type.

Methods

Method Description

Method	Description
`New`	`Public Sub New() Public Sub New(ByVal SMDeliverPDU As String)` Initializes a new instance of the SMSDeliver class. Parameters ByVal SMSDeliverPDU is a TPDU string of an SMS-DELIVER PDU type.
`ToString`	`Public Overloads Function ToString() As String` Returns a TPDU string representing the current instance of the SMSDeliver class. The returned string will represent a TPDU of the SMS-DELIVER type.

New

Public Sub New() Public Sub New(ByVal SMDeliverPDU As String)

Initializes a new instance of the SMSDeliver class.

Parameters

ByVal SMSDeliverPDU is a TPDU string of an SMS-DELIVER PDU type.

ToString

Public Overloads Function ToString() As String

Returns a TPDU string representing the current instance of the SMSDeliver class. The returned string will represent a TPDU of the SMS-DELIVER type.

SMSCAddress Class

Namespace Rightrotech.SMS

Properties

Property	Description
`AddressLength`	`Public ReadOnly Property AddressLength() As Integer` Gets an integer representation of the number of semi-octets within the AddressValue property (including any fill bits) i.e. the element Address-Length of the SM Address field.
`AddressValue`	`Public Property AddressValue() As String` Gets or sets the Address Value of the Address field. It corresponds to the Address-Value element of an SMS Address field. The maximum length of the string is 10 characters.
`NumberingPlanIdentification`	`Public Property NumberingPlanIdentification() As Rightrotech.SMS.SMSCAddress.SMSAddressNumberingPlanIDTypes` Gets or sets the address' Numbering Plan Identification i.e. the element Numbering-Plan-Identification of the Type-Of-Address field of an SM Address. The default value is Telephone. The property is valid only when the TypeOfNumber has the value Unknown, International or National.
`TypeOfNumber`	`Public Property TypeOfNumber() As Rightrotech.SMS.SMSCAddress.SMSAddressNumberTypes` Gets or sets the type of the number stored in the AddressValue property. This corresponds to the Type-Of-Number element of the Type-Of-Address fieldof an SM Address. The default value is National, but the value may change depending on the value assigned to the AddressValue property.

Methods

Method Description

Method	Description
`New`	`Public Sub New() Public Sub New(ByVal SMSCAddressPDU As String)` Initializes a new instance of the SMSCAddress class. Parameters ByVal SMSCAddressPDU is a TPDU string of representing an SMSC Address. If the number of octets in SMSCAddressPDU is greater than the expected number of octets as read from the first octet of the PDU string, the additional octets will be ignored.
`ToString`	`Public Overloads Function ToString() As String` Returns a TPDU string representing the current instance of the SMSCAddress class.

New

Public Sub New() Public Sub New(ByVal SMSCAddressPDU As String)

Initializes a new instance of the SMSCAddress class.

Parameters

ByVal SMSCAddressPDU is a TPDU string of representing an SMSC Address. If the number of octets in SMSCAddressPDU is greater than the expected number of octets as read from the first octet of the PDU string, the additional octets will be ignored.

ToString

Public Overloads Function ToString() As String

Returns a TPDU string representing the current instance of the SMSCAddress class.

SMSAddress Class

Namespace Rightrotech.SMS

Properties

Property	Description
`AddressLength`	`Public ReadOnly Property AddressLength() As Integer` Gets an integer representation of the number of semi-octets within the AddressValue property (excluding any fill bits) i.e. the element Address-Length of the SM Address field.
`AddressValue`	`Public Property AddressValue() As String` Gets or sets the Address Value of the Address field. It corresponds to the Address-Value element of an SMS Address field. The maximum length of the string is 10 characters.
`NumberingPlanIdentification`	`Public Property NumberingPlanIdentification() As Rightrotech.SMS.SMSAddress.SMSAddressNumberingPlanIDTypes` Gets or sets the address' Numbering Plan Identification i.e. the element Numbering-Plan-Identification of the Type-Of-Address field of an SM Address. The default value is Telephone. The property is valid only when the TypeOfNumber has the value Unknown, International or National.
`TypeOfNumber`	`Public Property TypeOfNumber() As Rightrotech.SMS.SMSAddress.SMSAddressNumberTypes` Gets or sets the type of the number stored in the AddressValue property. This corresponds to the Type-Of-Number element of the Type-Of-Address fieldof an SM Address. The default value is National, but the value may change depending on the value assigned to the AddressValue property.

Methods

Method Description

Method	Description
`New`	`Public Sub New() Public Sub New(ByVal SMAddressPDU As String)` Initializes a new instance of the SMSAddress class. Parameters ByVal SMAddressPDU is a TPDU string of representing an SM Address. If the number of octets in SMAddressPDU is greater than the expected number of octets as read from the first octet of the PDU string, the additional octets will be ignored.
`ToString`	`Public Overloads Function ToString() As String` Returns a TPDU string representing the current instance of the SMSAddress class.

New

Public Sub New() Public Sub New(ByVal SMAddressPDU As String)

Initializes a new instance of the SMSAddress class.

Parameters

ByVal SMAddressPDU is a TPDU string of representing an SM Address. If the number of octets in SMAddressPDU is greater than the expected number of octets as read from the first octet of the PDU string, the additional octets will be ignored.

ToString

Public Overloads Function ToString() As String

Returns a TPDU string representing the current instance of the SMSAddress class.

SMSUserData Class

Namespace Rightrotech.SMS

Properties

Property	Description
`DataCodingScheme`	`Public Property DataCodingScheme() As Rightrotech.SMS.SMSDataCodingScheme` Gets or sets the coding scheme within the TP-User-Data i.e. the element TP-Data-Coding-Scheme (TP-DCS) of the SMS-SUBMIT or SMS-DELIVER PDU types.
`InformationElements`	`Public ReadOnly Property InformationElements() As System.Collections.ObjectModel.Collection(Of Rightrotech.SMS.UDHInfomationElement)` Gets a collection of User Data Header items of this instance of the User Data class.
`ShortMessage`	`Public Property ShortMessage() As String` Gets or sets the actual short message text. The maximum length of the string is 160 characters (152 for concatenated SM) when using the default 7-bit alphabet, 140 (134 for cancatenated SM) when using 8-bit encoding and 70 (67 for concatenated SM) when using UCS2 (16-bit) encoding.
`UserDataLength`	`Public ReadOnly Property UserDataLength() As Integer` Gets an integer representing the the number of octets that are in the ShortMessage property.

Methods

Method Description

Method	Description
`New`	`Public Sub New() Public Sub New(ByVal UserDataPDU As String, ByVal DataCodingScheme As Rightrotech.SMS.SMSDataCodingScheme, ByVal HasUDH As Boolean)` Initializes a new instance of the SMSUserData class. Parameters ByVal UserDataPDU is a TPDU string of representing an SM User Data. ByVal DataCodingScheme specifies the data coding scheme of the TPDU represented by the UserDataPDU parameter. ByVal HasUDH inidcates whether the TPDU represented by the UserDataPDU contains a user data header.
`ToString`	`Public Overloads Function ToString() As String` Returns a TPDU string representing the current instance of the SMSUserData class.

New

Public Sub New() Public Sub New(ByVal UserDataPDU As String, ByVal DataCodingScheme As Rightrotech.SMS.SMSDataCodingScheme, ByVal HasUDH As Boolean)

Initializes a new instance of the SMSUserData class.

Parameters

ByVal UserDataPDU is a TPDU string of representing an SM User Data.
ByVal DataCodingScheme specifies the data coding scheme of the TPDU represented by the UserDataPDU parameter.
ByVal HasUDH inidcates whether the TPDU represented by the UserDataPDU contains a user data header.

ToString

Public Overloads Function ToString() As String

Returns a TPDU string representing the current instance of the SMSUserData class.

Examples

(Keep watching this area, examples will be added soon...)
