Drop Down menu in Silverlight 2

0.00/5 (No votes)
26 May 2008 1
Drop Down menu using popup control in Silverlight 2

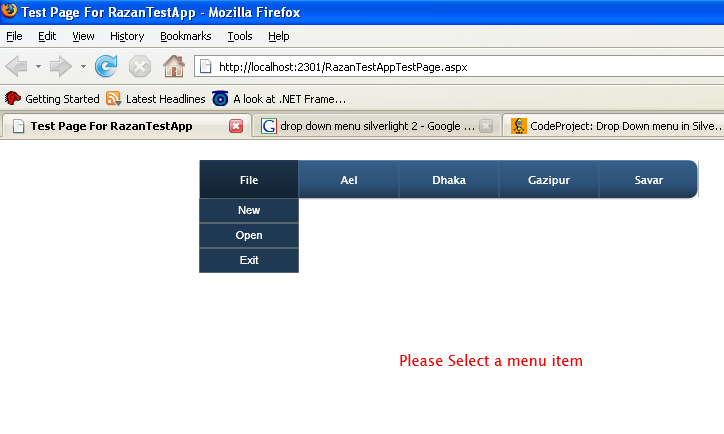

Figure 1

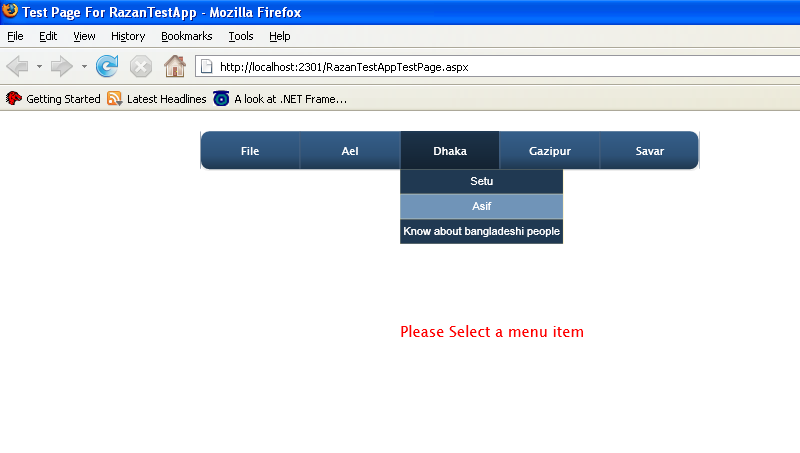

Figure 2


Figure 3

Download DropDownMenu.zip - 616.32 KB

Introduction

We know that there is no built in control for menu in Silverlight 2.Here a silverlight DropDownMenu is created using silverlight popup control and button.

I'm happy to present my first article on CodeProject.I'm hoping to use the experience to improve my writing style. So your comments, suggestions and criticism are very welcome.

Background

Here firstlevel menuitems are buttons.When a button is clicked then a popupcontrol is opened which contains submenu items.

Using the code

First Here a popup control is declared .When an individual button is clicked then a popup control is opened using the following code.


private Popup _popUp;

public Popup PopUp

{

get { return _popUp; }

set { _popUp = value; }

}


       private void menuItem_Selected(object sender, MouseButtonEventArgs e)
        {

            if (this.PopUp.Child != null)
            {
                this.PopUp.Child = null;
                this.PopUp.IsOpen = false;
            }

            Button visual = sender as Button;


            GeneralTransform transform = base.TransformToVisual(visual);
            Point point = transform.Transform(new Point(0.0, 0.0));
            StackPanel sp = new StackPanel();


            sp.Children.Clear();
            SubMenu oItem = new SubMenu(_popUp);
            oItem.fillDetails("Setu");


            sp.Children.Add(oItem);
            oItem = new SubMenu(_popUp);
            oItem.fillDetails("Asif");
            sp.Children.Add(oItem);

            oItem = new SubMenu(_popUp);
            oItem.fillDetails(" Know about bangladeshi people ");
            sp.Children.Add(oItem);

            this._popUp.Child = sp;
            _popUp.Child.MouseLeftButtonDown += new MouseButtonEventHandler(Child_MouseLeftButtonDown);

            this._popUp.VerticalOffset = this.Margin.Top + Math.Abs(point.Y) + visual.ActualHeight - 2;
            this._popUp.HorizontalOffset = this.Margin.Left + Math.Abs(point.X);
            this._popUp.IsOpen = true;


        }





Here another issue is communication between Popup control and Silverlight main application Form. The commutation is done using MouseLeftButtonDown.

 _popUp.Child.MouseLeftButtonDown += new MouseButtonEventHandler(Child_MouseLeftButtonDown);

Another thing is to determine which menuitem is clicked.Here each menuitem is created using a rectangle and textblock wrapped with a GRID.For that the following code is used:

 public event EventHandler menucommand;
        void Child_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            if (e.Source is TextBlock)
            {
                string str = ((TextBlock)e.Source).Text;

                if (menucommand != null)
                {
                    menucommand(str, null);
                }

            }
            else if (e.Source is Rectangle)
            {
                string str = string.Empty;
                foreach (FrameworkElement em in ((Grid)((Rectangle)e.Source).Parent).Children)
                {
                    if (em is TextBlock)
                    {
                        str = ((TextBlock)em).Text;
                    }

                }

                if (menucommand != null)
                {
                    menucommand(str, null);
                }

            }

            PopUp.IsOpen = false;
        }

Reference

Thanks to Jose Fajardo for his blog.

http://advertboy.wordpress.com/2008/04/13/my-digg-mashup-that-taught-me-so-much-about-silverlight-20-beta-part-1/

History
