Docking Toolbars Side-By-Side

0.00/5 (No votes)
15 Dec 1999 1
Demonstrates how to dock toolbars side-by-side
  • Download demo project - 29 Kb

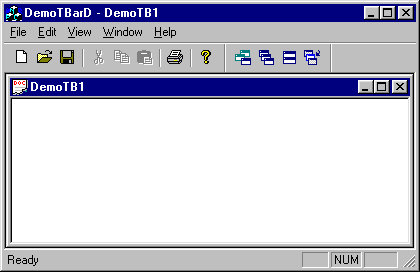

  • Sample Image - toolbar_docking.gif

    There are many articles about docking toolbars, however, I felt that this was important enough to mention here. The same information can be found at Microsofts MSDN site, here it is in a nutshell: Add the following method to your CMainFrame class:

    void CMainFrame::DockControlBarLeftOf(CToolBar* Bar, CToolBar* LeftOf)
    {
    	CRect rect;
    	DWORD dw;
    	UINT n;

    	// get MFC to adjust the dimensions of all docked ToolBars

    	// so that GetWindowRect will be accurate

    	RecalcLayout(TRUE);

    	LeftOf->GetWindowRect(&rect);
    	rect.OffsetRect(1,0);
    	dw=LeftOf->GetBarStyle();
    	n = 0;
    	n = (dw&CBRS_ALIGN_TOP) ? AFX_IDW_DOCKBAR_TOP : n;
    	n = (dw&CBRS_ALIGN_BOTTOM && n==0) ? AFX_IDW_DOCKBAR_BOTTOM : n;
    	n = (dw&CBRS_ALIGN_LEFT && n==0) ? AFX_IDW_DOCKBAR_LEFT : n;
    	n = (dw&CBRS_ALIGN_RIGHT && n==0) ? AFX_IDW_DOCKBAR_RIGHT : n;

    	// When we take the default parameters on rect, DockControlBar will dock

    	// each Toolbar on a seperate line. By calculating a rectangle, we

    	// are simulating a Toolbar being dragged to that location and docked.

    	DockControlBar(Bar,n,&rect);
    }


    Now, in your CMainFrame::OnCreate, instead of using DockControlBar, use DockControlBarLeftOf:

    	m_wndToolBar1.EnableDocking(CBRS_ALIGN_ANY);
    	m_wndToolBar2.EnableDocking(CBRS_ALIGN_ANY);
    	EnableDocking(CBRS_ALIGN_ANY);
    	DockControlBar(&m_wndToolBar1);
    	DockControlBarLeftOf(&m_wndToolBar2,&m_wndToolBar1);


    This will dock m_wndToolBar2 left of m_wndToolBar1.
