Simple Client Side Consume ASP.NET Web API Server

• Link project on GitHub

This tip will help you understand how to consume ASP.NET Web API from client side .NET.

Background

In some cases, you want to be using ASP.NET Web API endpoint with a client. For example, you want HTTP to give you GET some data back or POST/PUT/DELETE data to server. In this article, I use the HttpClient to communicate between endpoint and client side.

First, we create project ASP.NET WEB API, add NORTHWIND db, add Nuget Package AutoMapper at ServerAPI, HttpClient, Newtonsoft.Json at client side project, Mvc.Routing and other dependency.

Using the Code

The source code has 2 parts: ServerAPI project for WEB API, ClientSide for client side call web API.

Host project ServerAPI on the IIS/IIS express.

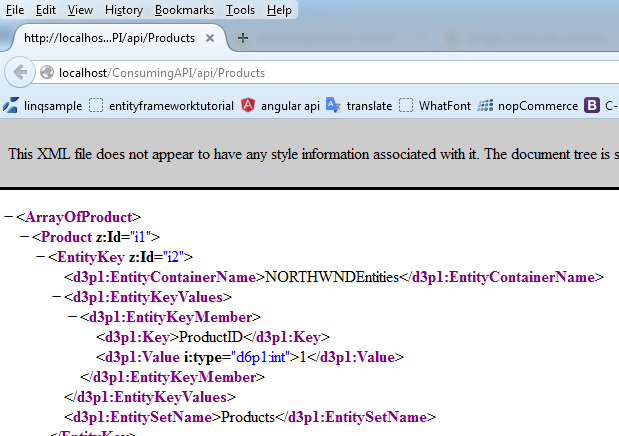

Access to the API through link: http://localhost/ConsumingAPI/api/Products to test the result.

Implement API server source code in ServerAPI project, ProductsController.cs.

// GET api/Products
       [HttpGet]
       [Route("api/Products")]
       public HttpResponseMessage GetProducts()
       {
           Mapper.CreateMap<Product, ProductDTO>();
           var tempData = db.Products.ToList();
           var products = Mapper.Map<List<Product>, List<ProductDTO>>(tempData);
           HttpResponseMessage response = Request.CreateResponse(HttpStatusCode.OK, products);
           return response;
       }

From client side, call API and get data JSON/XML. After that, deserialize data to object ProductDTO.

public static List<ProductDTO> GetListProduct()
      {
          List<ProductDTO> result;
          const string url = "http://localhost/ConsumingAPI/api/Products ";

          using (var client = new System.Net.Http.HttpClient())
          {
              client.BaseAddress = new Uri(url);
              client.DefaultRequestHeaders.Accept.Clear();
              client.DefaultRequestHeaders.Accept.Add
              (new System.Net.Http.Headers.MediaTypeWithQualityHeaderValue("application/json"));
              var response = client.GetAsync(url).Result;
              var data = response.Content.ReadAsStringAsync().Result;
              result = JsonConvert.DeserializeObject<List<ProductDTO>>(data);
          }
          return result;
      }

It is similar for POST/PUT/DELETE methods. Kindly search and download any missing Nuget or dependency if building source code error.

public static void InsertProduct()
      {
          const string url = "http://localhost/ConsumingAPI/api/Products";

          var product = new ProductDTO
          {
              ProductID = 0,
              ProductName = "Test ProductName",
              SupplierID = 1,
              CategoryID = 1,
              QuantityPerUnit = "10",
              UnitPrice = 1000,
              UnitsInStock = 6,
              UnitsOnOrder = 10,
              ReorderLevel = 1
          };

          using (var client = new System.Net.Http.HttpClient())
          {
              client.BaseAddress = new Uri(url);
              client.DefaultRequestHeaders.Accept.Clear();
              client.DefaultRequestHeaders.Accept.Add
              (new MediaTypeWithQualityHeaderValue("application/json"));
              var json = Newtonsoft.Json.JsonConvert.SerializeObject(product);
              HttpContent content = new StringContent(json);
              content.Headers.ContentType = new MediaTypeHeaderValue("application/json");
              var response = client.PostAsync(url, content).Result;
          }
      }

Points of Interest

This code is very simple, you can change content type request to XML format.

History

This is the simple version, you can download the source code and improve it.
