Domain Walker

• Download source code - 15 Kb
• Download demo application (binaries only) - 17 Kb

What is it?

DomainWalker is an object that discovers domains reachable from a URL.  Unlike traditional crawlers and site downloaders that identify all reachable URLs on a page, DomainWalker explores a subset of the world wide web's topology by targeting root URLs only.  DomainWalker guarantees that its walk will complete in a finite amount of time by ensuring that duplicate domains are never crawled. DomainWalker is an example of a WebResourceProvider and uses my StringParser utility class, both of which are published elsewhere at this site.  As an aside, the demo application shows how to spin off a worker thread from a GUI and have it update the GUI in a safe manner.  This is done by having the app respond to events fired by the worker thread.

How do I use it?

You use DomainWalker by initializing it, calling its Walk() method, and getting its results.

1. Initialize the DomainWalker instance

   // Initialize the DomainWalker

   DomainWalker dw = new DomainWalker();
   dw.StartUrl = "www.ravib.com";
   dw.MaxDepth = 3;

2. Do the walk

   // Do walk

   dw.walk();

3. Get the results

   // Get results

   HashTable domainTree = dw.DomainTree;
   printHashTableAsTree (domainTree);   // left as an exercise to the reader

Getting DomainWalker's results

You retrieve DomainWalker's results by accessing its DomainTree property at the end of the walk and/or responding to the OnNotifyUrlBeingTraversed event.

DomainTree property

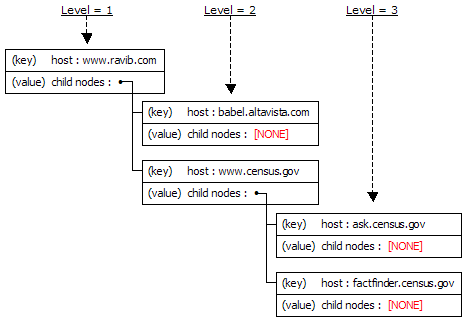

DomainWalker's result is a tree of discovered domains obtained from the object's DomainTree property. The tree is actually a nested Hashtable, where each collection of child nodes is stored in a new Hashtable.

OnNotifyUrlBeingTraversed event

It may be more convenient to get at DomainWalker's results by being notified every time a new URL is discovered. This is done by subscribing to the object's OnNotifyUrlBeingTraversed event and is the approach taken by the demo app. Domain discovery notifications are received by registering a OnNotifyUrlBeingTraversed delegate which has the following signature:

  /// <summary>

  /// Notifies an observer when a url is about to be traversed.

  /// </summary>

  /// <param name="strParentUrl">The parent url (may be null).</param>

  /// <param name="strUrlBeingTraversed">The url being traversed.</param>

  /// <param name="nCurrentDepth">Current traversal depth.</param>

  /// <param name="nDomains">Number of domains discovered so far.</param>

  /// <param name="tsElapsed">Time elapsed since start of crawl.</param>

  public delegate void OnNotifyUrlBeingTraversed
    (string strParentUrl,
     string strUrlBeingTraversed,
     int nCurrentDepth,
     int nDomains,
     TimeSpan tsElapsed);

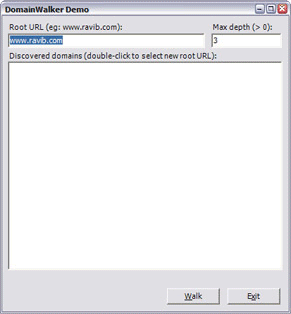

The demo app responds to the OnNotifyUrlBeingTraversed event by adding strUrlBeingTraversed to a list box. The string is indented by an appropriate number of spaces proportional to nCurrentDepth. Other useful information such as the elapsed walk time (tsElapsed) is displayed in a label control.

OnNotifyWalkCompleted event

DomainWalker also fires the OnNotifyWalkCompleted event at the end of a walk. The OnNotifyWalkCompleted delegate has the following signature:

  /// <summary>

  /// Notifies an observer when the walk has completed.

  /// </summary>

  /// <param name="nDomains">Number of domains discovered.</param>

  /// <param name="tsElapsed">Time taken to complete crawl.</param>

  public delegate void OnNotifyWalkCompleted
    (int nDomains,
     TimeSpan tsElapsed);

Revision History

• 22 Jan 2006
  • Corrected DomainWalkerForm delegates to ensure controls are accessed from the GUI thread. (Thanks, Birgir K!)
  • Added missing .resx file to project.
  • Upgraded project to VS2005.
• 15 Jan 2006
  Initial version.
