Screen Capture Class

, 5 Aug 2008
Rate this:
Please Sign up or sign in to vote.
The SCapture class allows an application to capture still screen images

Introduction

The SCapture class allows an application to capture a still screen image. It also provides a functionality to include the cursor in the image.

Class Shared Methods

  • FullScreen - Captures the full screen (all monitors in a single image)
  • DisplayMonitor - Captures a display monitor
  • ActiveWindow - Captures the active window
  • Window - Captures a window specified by the handle (overloaded)
  • Control - Captures a control of a window specified by a handle or a point (overloaded)
  • ScreenRectangle - Captures a rectangle image from the screen

Background

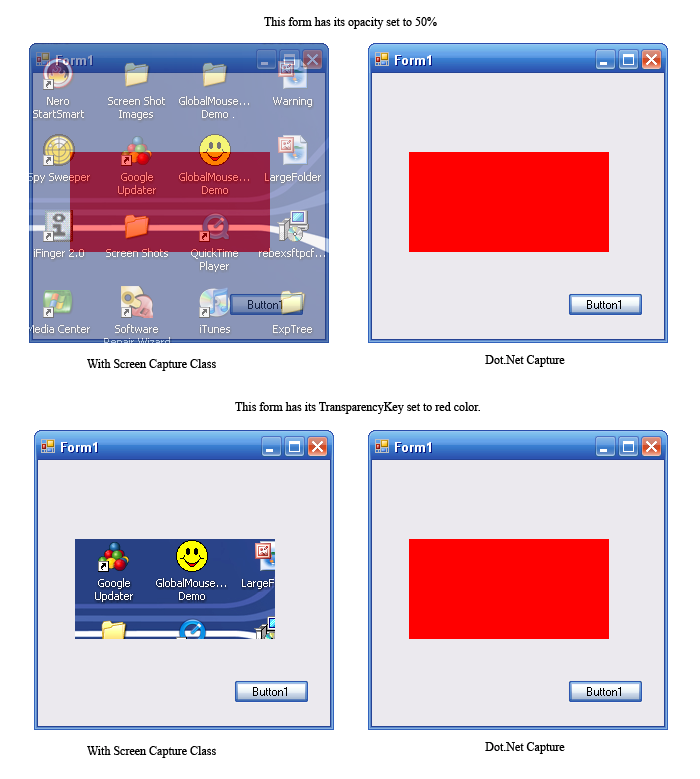

The class differs from some other similar articles that provide classes to capture an image from the screen by giving the application ability to capture transparent Windows images. The core of the class is based on some API methods.

Click to enlarge image

Using the Code

A small example to capture a button control image from a form by using a point on the button.

Private Sub ControlButton_Click(ByVal sender As System.Object, _
		ByVal e As System.EventArgs) Handles ControlButton.Click
    Try
        'Capture the image of this button including the cursor.
        Dim img As Image = SCapture.Control(Control.MousePosition, True)
        'Save the captured image.
        img.Save(filePath, Drawing.Imaging.ImageFormat.Png)
        'Also display the captured image in a PictureBox.
        Me.DisplayPictureBox.Image = img
    Catch ex As Exception
        'Show a MessageBox if the capture of image failed.
        MessageBox.Show("Failed to capture the control!" _
        & Environment.NewLine & ex.Message, "Capture Error!", _
        MessageBoxButtons.OK, MessageBoxIcon.Error)
    End Try
End Sub

History

  • Originally posted on 07/21/08
  • Updated on 08/05/08
    • Added an overloadable Window method that takes a point as one of its arguments and returns the bitmap of a window at the point
    • Changed all capture methods return types from Image to Bitmap

License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)
