Introduction
This article will help you learn how to use UML from requirement to design.
Basics of UML
Modeling & Modeling Concept
Model
Two major components of UML | Type-Instance dichotomy |
Visualization is the key to understand all sorts of problems. |
A major purpose of modeling is to prepare generic descriptions that describe many specific particular items. This is often known as the type-instance dichotomy. |
Unified Modeling Language is comprised of two major components: Notation (two major subdivisions) Model Static elements of a design (E.g. classes, attributes, and relationships) Model Dynamic elements of a design (E.g. objects, messages, and finite state machines). Meta-model Standard data representation is called the meta-model. |
Most of the modeling concepts in UML have dual character i.e. Modeled by two paired modeling elements, Generic descriptor & Individual items descriptor. Examples of such pairs in UML include: Class-Object, Association-Link, Parameter-Value, Operation-Call, and so on. |
Modeling Concept: Type - Instance
As type-like elements and instance-like elements are not exactly the same and they share many similarities, it is conveniently represented by geometrical symbol for each pair of elements and by underlining the name string (including type name, if present) of an instance element.
Correspondence is immediately visually apparent by using same geometrical symbol for each pair of elements
UML Notations
Notation Name |
Notation Description |
Types | ||||||||||||

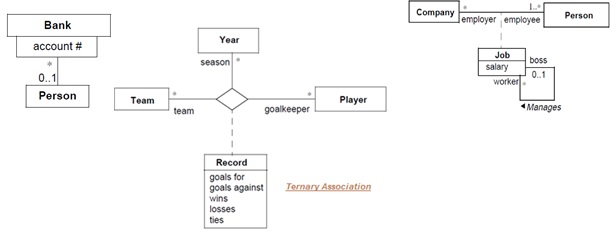

Association |
Line drawn between the participating classes. Roles at the end of association represents the multiplicity Ability of an instance to send a message to another instance. Aggregation denotes whole/part relationships whereas associations do not. |
UML relationships are presumed to be bidirectional unless the arrowhead is present to restrict them. Uni-Directional (Single side arrow) Bi-Directional (No arrow /Double side arrow) Show all arrows. The absence of an arrow indicates navigation is Bi-Directional. Suppress all arrows. No inference can be drawn about navigation supported. |
| |||||||||||
Qualifier box on an end of an association pinto a qualifier on the corresponding “association” role. Each attribute entry string inside the qualifier box maps into an attribute of the qualifier. Multiplicity is not shown for links because they are instances. Other association adornments (aggregation, composition, navigation) may be shown on the link roles. | ||||||||||||||
Notation Name |
Notation Description |
Example | ||||||||||||
Aggregation (Has a ) |
The weak form of aggregation is denoted with an open diamond.
|
Window class contains many Shape instances. The role at the Shape end of the aggregation is marked with a “*” indicates that the Window contains many Shape instances. Notice also that the role name that Window knows its Shape instances by. i.e. it is the name of the instance variable within Window that holds all the Shapes. | ||||||||||||
| ||||||||||||||
Notation Name |
Notation Description |
Example | ||||||||||||

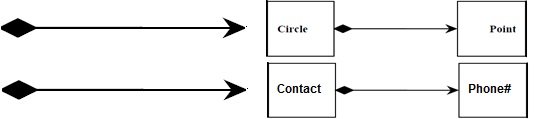

Composition (Has a) |
Black diamond represents composition (Whole) and arrowhead represents part. Part can’t exist independently. Has by-value relationship. |
Exactly like Aggregation except that the lifetime of the 'part' is controlled by the 'whole'. This control may be direct or transitive. That is, the 'whole' may take direct responsibility for creating or destroying the 'part', or it may accept an already created part, and later pass it on to some other whole that assumes responsibility for it. Composition indicates that the lifetime of Point is dependent upon Circle | ||||||||||||
Notation Name |
Notation Description | |||||||||||||
Dependency (‘using’ relationship) |
Sometimes the relationship between a two classes is very weak. Instead of member variables they might be implemented as member function arguments. #include of C,C++ can be represented by dependency. Function of the Shape class takes an argument of type DrawingContext |
trace – Trace: A connection that represent the same concept at different levels of meaning refine – Refinement: Mapping (not necessarily complete) between two elements with description attached to the dependency in a note. Various kinds can be indicated by stereotyping. uses – Usage: A situation in which one element requires the presence of another element for its correct implementation or functioning. May be stereotyped further to indicate the exact nature of the dependency, such as calling an operation of another class, granting permission for access, instantiating an object of another class, etc. bind – Binding: A binding of template parameters to actual values to create a non parameterized element. | ||||||||||||
| ||||||||||||||
Notation Name |
Notation Description |
Example |
Constraints ,Discrimination | |||||||||||
Generalization and Specification (“is a” ) |
Inheritance is a line with a closed arrowhead pointing from the subclass (Specification) to the superclass (Generalization). Different classes share the same attributes and/or the same methods due to similarities. Instead of implementing these responsibilities twice, they are implemented once using Inheritance mechanism When A inherits from B, we say A is the subclass of B and B is the superclass of A. “pure inheritance” means A inherits all the attributes and methods of B. |
Person is root class and abstract so objects can’t be created Members in the Person class are reused by Student and Professor. |
Overlapping : A descendent may be descended from more than one of the subclasses. Disjoint : A descendent may not be descended from more than one of the subclasses. Complete: All subclasses have been specified (whether or not shown). No additional subclasses are expected. incomplete: Some subclasses have been specified but the list is known to be incomplete. There are additional subclasses that are not yet in the model. It is a statement about the model itself. Note that this is not the same as the ellipsis, which states that additional subclasses exist in the model but are not shown on the current diagram. | |||||||||||
| ||||||||||||||
Notation Name |
Notation Description |
Example | ||||||||||||
Constraint |
A constraint is a semantic relationship among model elements that specifies conditions and propositions that must be maintained as true (otherwise the system described by the model is invalid, with consequences that are outside the scope of UML). |
Single graphical symbol : constraint string may be placed near the symbol, preferably near the name of the symbol Two graphical symbols : Dashed arrow from between two elements is labeled by the constraint string (in braces). More graphical symbols : constraint string is placed in a note symbol and attached to each of the symbols by a dashed line | ||||||||||||
Comment |
A comment is a text string (including references to human-readable documents) attached directly to a model element | |||||||||||||
| ||||||||||||||
Notation Name |
Notation Description |
Example | ||||||||||||
Stereotype |
A stereotype is a modeling time new class of modeling element. It represents a subclass of an existing modeling element with the same form (attributes and relationships) but with a different intent. Generally a stereotype represents a (self-referential) usage distinction. A stereotyped element may have additional constraints on it from the base class. It is expected that code generators and other tools will treat stereotyped elements specially. When a stereotype is used above the name of a class it indicates that this class is a special kind of class that conforms to a rather rigid specification. Stereotypes represent one of the built-in extensibility mechanisms of UML. Guillemet (pronounced Gee-may)- double angle-bracket : <<>> |
| ||||||||||||
Interface |
“Lollypop” notation can be used to represent an interface. Interface class representation can be notified by GeeMay. Relationship can be represented in two ways. A provided interface is shown as a "ball on a stick" attached to the edge of a classifier element. A required interface is shown as a "cup on a stick" attached to the edge of a classifier element. |
| ||||||||||||
Operation |
Operation names typically begin with a lowercase letter.Operation names in plain face. An abstract operation may be shown in italics. | |||||||||||||
Visibility |
+ public visibility # protected visibility - private visibility ~ Package Level visibility | |||||||||||||
Multiplicity |
Absence of a multiplicity indicator an attribute holds exactly 1 value. Multiplicity may be indicated by placing a multiplicity indicator in brackets after the attribute name e.g :- colors [3]: Color points [2..*]: Point name [0..1]: String +size: Area = (100,100) #visibility: Boolean = invisible |
UML Diagrams
UML defines nine types of diagrams: class (package), object, use case, sequence, collaboration, statechart, activity, component, and deployment.
UML Diagram – Views Mapping
Requirement Depiction forms
User Story |
Use Case |
Scenario |
|
|
|
