RX Over the Wire

Rate me:
Please Sign up or sign in to vote.
5.00/5 (4 votes)
23 Dec 2016CPOL4 min read 8.1K   5
RX Over the Wire


Now you know I’m a RX fan boy, I think it’s the bees knees in fact. Of late, I have also gotten into Akka, and Akka Streams, which is one implementation of the Reactive Streams API.

I also have a colleague who recently attended the ReactConf and came back raving about all the good work that NetFlix was doing using this uber duper specific socket that they have developed to allow RX type operators over the wire using a socket.

NetFlix call their implementation ReactiveSocket:

Which offers these things:

  • request/response (stream of 1)
  • request/stream (finite stream of many)
  • fire-and-forget (no response)
  • event subscription (infinite stream of many)
  • channel (bi-directional streams)

Mmmm, sounds pretty cool. The thing is I was sure I had seen this before, and a long time ago too (well, a long time in software years).

IQbservable – The Dual of IQueryable

Back in 2010, Bart De Smet of the RX team posted a couple of intriguing resources around this VERY badly named interface.

Most informative one being this video:

For those that cannot be bothered to watch the video, here are some of the highlights.

IQbservable Allows the Following

  • Combines LINQ Queryable and RX Observable functionality
  • Queryable – allows you to create a query client side using LINQ, and pass that to a datasource (server, database, web service, etc.)
  • Observable – instead of blocking until the data comes back, will just notify you know when it gets the data

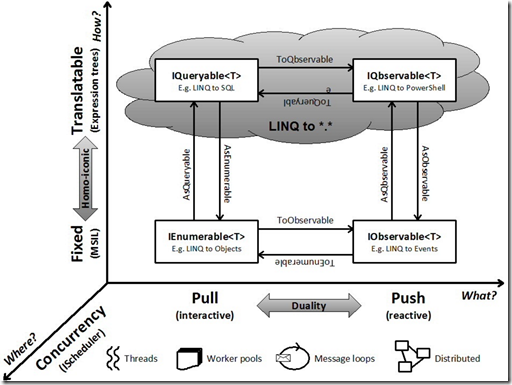

So those are the key take away points. But how about a nice diagram or 2 to really set the scene.

I think these are the best 2 diagrams (at least for my money).



So that is what IQbservable is all about. So what is the rest of this post about then?

Well, it just so happens that Dave Sexton, one of the Reactive Extension Extensions guys (meant to be slightly tongue in cheek) has written an extremely useful and fairly lightweight library that does much of what is described above.

Dave calls it QActive. He has done a great job of it, and has written serialized expression trees and parsers, which allow us to create client client queries in LINQ which are sent across the wire.

In the rest of this post, I will be showcasing a very simple demo based on QActive, and I’ll point out some more links that Dave Sexton provides, which are invaluable reading.

Dave has 2 of his own posts covering more than I do here, which you can go to here:

A Small Demo

So it may not come as a surprise to know that we need a server side and a client side. We will look at both of these for a simple example, and in the download at my github, there is also an forms based server that allows you to push items to the client on demand

What Is Not Inlcuded

There is no form of fault tolerance, if you want that, you could do worse than to read my SignalR + RX code, which shows you how to make a resilient connection using RX:

We will now proceed to look at a simple server/client. This is the most simplistic of examples that has a server that runs on a timer, and the client provides a LINQ where (filter) to this that will be applied to the server side stream ON THE SERVER.

Simple Server

This is all we need for a simple server:

using System;
using System.Net;
using System.Reactive.Linq;
using Qactive;

namespace Server
    class Program
        static void Main(string[] args)
            IObservable<long> source = Observable.Interval(TimeSpan.FromSeconds(1));
            var service = source.ServeQbservableTcp(
                new IPEndPoint(IPAddress.Loopback, 3205),
                new QbservableServiceOptions()
                    SendServerErrorsToClients = true,
                    EnableDuplex = true,
                    AllowExpressionsUnrestricted = true
            using (service.Subscribe(
              client => Console.WriteLine(
                  "Client shutdown."),
              ex => Console.WriteLine(
                  "Fatal error: {0}", ex.Message),
              () => Console.WriteLine(
                  "This will never be printed because a service host never completes.")))

Take away points here are:

  • We use a TCIP IPEndpoint to bind the server too
  • We can subscribe to the IObservable to see what is happening with the connected client

On Demand Server Notification

If you want to see a server that allows you to send notifications to the clients on demand, have a look at the FormsServer in my GitHub repo.

Simple Client

This is all we need for a simple client:

using System;
using System.Net;
using System.Reactive;
using System.Reactive.Linq;
using Qactive;

namespace Client
    class Program
        static void Main(string[] args)
            var client = new TcpQbservableClient<long>(new IPEndPoint(IPAddress.Loopback, 3205));

            //thie expression tree filtering will happen server side
            //THAT IS AWESOME
            IQbservable<string> query =
              from value in client.Query()
              where value <= 5 || value >= 8
              select string.Format("The incoming value has been doubled to {0}", value * 2);

            using (query.Subscribe(
              value => Console.WriteLine("Client observed: " + value),
              ex => Console.WriteLine("Error: {0}", ex.Message),
              () => Console.WriteLine("Completed")))

Take away points here are:

  • The client is also using a TCIP IPEndpoint
  • The client IS ABLE to use LINQ expressions which WILL be serialized and sent to the server where they will be applied

Here is the output when the simple server is run, and 2 clients are started one after another.


Why is this Cool?

This is very cool (uber cool in fact), we have just created a push based notification system that supports server side filtering (thanks to LINQ) in about 20 lines of code.

If you can’t see what is cool about that, well I can’t help you.

There may be some amongst you that go well any messaging framework that has a server and a client would/could do that in the same amount of code, what and the server side push down delegates (thanks to serializable expression trees)….mmmmm Don’t think so.

Only thing I can think of that even comes close is OData, but that requires a fair bit of infrastructure/baggage to make it work.

Where Can I Get The Code?

As usual, I have posted the code to my GitHub account:
