Build Simple AI .NET Library - Part 6 - ML Algorithms

Rate me:
Please Sign up or sign in to vote.
5.00/5 (12 votes)
29 Sep 2017CPOL16 min read
This is a series of articles demonstrating .NET AI library from scratch

Series Introduction

Here are the links for previous articles:

My objective is to create a simple AI library that covers a couple of advanced AI topics such as Genetic algorithms, ANN, Fuzzy logics and other evolutionary algorithms. The only challenge to complete this series would be having enough time working on code and articles.

Having the code itself might not be the main target however, understanding these algorithms is. Wish it will be useful to someone someday.

Please feel free to comment and ask for any clarifications or hopefully suggest better approaches.

Article Introduction - Part 6 "ML Algorithms"

We have discussed types of ML (Machine Learning) in article #2 (20) (Supervised, unsupervised & reinforced) this classification is based on “The learning approach” mainly. However, this is not enough to define the essence of “How” exactly learning is conducted.

Another classification for ML algorithms are based on the function is there, so far we have introduced couple of ML areas such as regression and classification. In this article, we are targeting main ML algorithms based on function or type of problems they solve.

As a note, for simplicity and time constraints; only algorithms concepts and final equations will be shown and no statistics or mathematical proofs shall be provided.

What is ML Algorithm?

ML Algorithms are tools and techniques used to actually extract information for given data set and/or detect patterns.

Why we need these algorithms? Clearly, this shall satisfy the learning portion of AI as a concept.

In following section will introduce Regression, Classification & Clustering

1-Regression Algorithms


Regression (10) is simply; to find the best-fit mapping (or relationship) between inputs and output(s)

It represents very old statistical field of study with many analytical approaches are developed based on type of regression.

Regression analysis is a form of predictive modelling technique, which investigates the relationship between a dependent (target or label) and independent variable (input or predictor). This technique is used for forecasting, time series modelling and finding the causal effect relationship between the variables.

Regression analysis is an important tool for modelling and analyzing data. Here, we fit a curve / line to the data points, in such a manner that the differences between the distances of data points from the curve or line is minimized.

Types of Regression techniques

Image 1

Relationship between a group of variables can fit different models, simplest is Linear model where straight line could be best-fit (in 2D space) or plane (in 3D space) or Hyperplane in higher-D spaces

Image 2

Linear regression (2D)

Image 3Image 4

Non-Linear regression (2D)

Image 5

Linear regression (3D)

The most popular regression algorithms are:

  • Linear Regression
  • Logistic Regression
  • Ordinary Least Squares Regression (OLSR)
  • Stepwise Regression
  • Multivariate Adaptive Regression Splines (MARS)
  • Locally Estimated Scatterplot Smoothing (LOESS)

2.  Classification

Classification is a mapping function as well between X inputs and output(s) Y. Where Y is possible of classes.

If regression is finding best-fit line between inputs and output, classification is finding best-discrimination line that separates inputs to one or multiple classes

Image 6

If number of classes is two it is called Binary classification

If more classes, it’s called multiclass classification

As regression, it provides a prediction means based on training data set, so classification belongs to Supervised ML approach.

Examples of classification algorithms:

  • Linear classifiers
  • Logistic regression
  • Naive Bayes classifier
  • Perceptron
  • Support vector machines
  • Quadratic classifiers
  • k-nearest neighbor
  • Decision trees
  • Neural networks
  • Learning vector quantization

3.  Clustering

Clustering is grouping (similar to classification) but with no pre-defined labels (no classes). Clearly, it is part of unsupervised ML type of algorithms.

To group objects into different groups without having pre-defined classes, one way is to group based on distances or features. Actually different clustering algorithms use different approaches.

Image 7

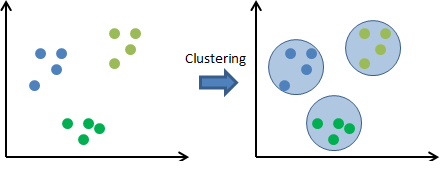

In above graph, objects (inputs) could be grouped into 3 (based on distance or other information within feature set)

There are three types of clustering based on similarity

  1. Exclusive clustering

One object belongs to one group only

Image 8

        II. Overlapping clustering

Each object can belong to one group (cluster) or more

Image 9

            III. Hierarchical clustering

It is more as tree-type relation. Two or more clusters may have parent cluster

Image 10

Types of clustering algorithms

Grouping objects could be based on different similarity measures on given inputs. Here are most common similarity measures:

Connectivity models (21)

AKA hierarchical clustering, approach is simple that; object is more related to near objects other than further ones in distance.

Centroid models (22)

AKA K-Means clustering algorithm, it is a popular algorithm that, the no. of clusters required at the end have to be mentioned beforehand, which makes it important to have prior knowledge of the dataset. These models run iteratively to find the local optima.

Objects are grouped (clustered) based on distance from cluster centroid.

Image 11

Distribution models

These clustering models are based on the notion of how probable is it that all data points in the cluster belong to the same distribution (For example: Normal, Gaussian). A popular example of these models is Expectation-maximization algorithm which uses multivariate normal distributions.

Image 12

Density Models

These models search the data space for areas of varied density of data points in the data space. It isolates various different density regions and assign the data points within these regions in the same cluster. Popular examples of density models are DBSCAN and OPTICS.

Image 13

Here is a summary of ML types

Image 14

Common ML Algorithms

1- Linear Regression

Linear regression, where a straight line (or plan or hyperplane) can be best-fit mapping between data set.

Data set is a sample of different input(s) data and associated labels (actual output) in such case, input is called Independent variable while output is called dependent variable

In cases, where we have only one independent variable (input), known as Simple Linear regression however in case of more independent variables, this is called Multiple Linear Regression.

Linear regression parameters

To understand linear regression we have to refer to mathematical representation, so for 2D mapping (relationship between variables) and simple linear regression, let’s denote dependent variable as Y and independent variable as X. For Y and X to have linear mapping, we need to figure out the equation of straight line that can fulfil this linearity. In other words, the mapping between Y & X shall be in form similar to:

Y = a + m * X

Image 15


a is the intercept Point (point where Y =0), known as bias coefficient

m is the line slope (ration between change of Y to change of X), known as coefficient

In multiple linear regression where Y is dependent to multiple inputs, let’s say X1, X2,……. Xn equation shall be

Y = a + m1 * X1 + m2 * X2+ . . . . . . . . + mn * Xn

So, parameters are a and m (m1, m2, …. mn) Linear algorithm training is referring to find values for a &  m that provide best-fit equation

Different training algorithms are available to resolve parameters of linear regression, the most common are

2- Simple Linear Regression

Y = a + m * X

Assume starting with any random parameters values, then at given sample i in data set, where we have Yi corresponding to Xi, we can define error at that sample as Ei where

Ei = Yi – (estimated output)

Ei = Yi – (a + m * Xi)

Squaring this error is (Ei)^2 = (Yi – (a + m * Xi))^2

By summing all errors in all samples

Image 16

To find values of a & m that can minimize SE (Squared error), take the derivative with respect to a and m, set to 0, and solve for a and m. Explanation of mathematical formulas is beyond scope of this article due to simplicity and time considerations. Finally, the Least Squared estimation for a & m is

Image 17

Image 18

Further, sample Variance (11) and sample Covariance (12) are defined as:

Image 19

Image 20

So, m equation can be simplified to:

Image 21

1-   Calculate Average of inputs and Labels (Xavg & Yavg)
2-   Calculate sample Covariance
3-   Calculate sample Variance
4-   Calculate m = Cov/Var
5-   Calculate a= Yavg – m * Xavg


Created SimpleRegression Class

Public Class SimpleRegression

    ''' <summary>
    ''' 1-       Calculate Average of inputs and Labels (Xavg and Yavg)
    '''     Average = sum/number
    ''' 2-       Calculate sample Covariance
    ''' 3-       Calculate sample Variance
    ''' 4-       Calculate m = Cov/Var
    ''' 5-       Calculate a= Yavg – m * Xavg
    ''' </summary>
    ''' <param name="X_Inputs"></param>
    ''' <param name="Y_Labels"></param>
    ''' <returns>Line with X as intercept and Y as slope</returns>
    Public Shared Function LineBestFit(X_Inputs As Matrix1D, Y_Labels As Matrix1D) As Vector
        Dim Line As New Vector
        Dim X_avg As Double = 0
        Dim Y_Avg As Double = 0
        Dim Cov_XY As Double = 0
        Dim Var_X As Double = 0
        Dim X_Copy As New Matrix1D(X_Inputs)
        Dim Y_Copy As New Matrix1D(Y_Labels)
        ' 1-     Calculate Average of inputs and Labels (Xavg & Yavg)
        X_avg = X_Inputs.Sum / X_Inputs.Size
        Y_Avg = Y_Labels.Sum / Y_Labels.Size
        ' 2-     Calculate sample Covariance
        X_Copy = X_Inputs.Sub(X_avg)
        Y_Copy = Y_Labels.Sub(Y_Avg)
        Cov_XY = X_Copy.Product(X_Copy, Y_Copy).Sum
        ' 3-     Calculate sample Variance
        Var_X = X_Copy.SquaredSum
        ' 4-     Calculate m = Cov/Var
        Line.y = CSng(Cov_XY / Var_X)
        ' 5-     Calculate a= Yavg – m * Xavg
        Line.x = CSng(Y_Avg - Line.y * X_avg)
        Return Line
    End Function

    ''' <summary>
    ''' Return MSE (Mean Square Error) from given Input Data set, Labels and estimated equation
    ''' </summary>
    ''' <param name="X_Inputs"></param>
    ''' <param name="Y_Labels"></param>
    ''' <param name="Line">X is intercept and Y is slope</param>
    ''' <returns></returns>
    Public Shared Function Validate(X_Inputs As Matrix1D, Y_Labels As Matrix1D, Line As Vector) As Single
        Dim Err As New Matrix1D(Y_Labels)
        Dim Y_Estimate As New Matrix1D(Y_Labels)
        Y_Estimate = X_Inputs.Product(Line.y)
        Y_Estimate = Y_Estimate.Add(Line.x)
        Err = Y_Labels.Sub(Y_Estimate)
        Return Err.SquaredSum / (2 * X_Inputs.Size)
    End Function

End Class

Class has functions, LineBestFit and Validate

LineBestFit Provides a & m best fit values

Validate Calculate MSE (Mean Square Error) as a measure of algorithm (best-fit) quality

To Test Algorithm, created simple form

Image 22

Simple Regression Test Form App

Algorithm Evaluation

To evaluate accuracy of algorithm MSE (Mean Square Error) is calculated, however in some references, another parameter may be used which is regression standard error or the residual standard error denoted as s where:

Image 23

3- Ordinary Least Squares (OLS)

Concept is fairly simple and logical, denoting the error as distance between actual label (correct answer) and estimated output (based on initial line equation) then, this method squares all errors for all samples in data set and sum it to provide sum squared error same as simple regression but for multiple variables

Linear algebra is used to resolve this model (13)

Image 24Image 25

4- Gradient Descent In Linear Regression

Gradient descent is used to find a local minimum of a function and Pseudo code is simple

''' <summary>
''' Linear Regression Pseudo Algorithm to resolve h(x) = a + b * x
'''       1- Start with random values for a and b
'''       2- Iterate through given training set, for each:
'''            - Calculate h(x)
'''            - Calculate error = h(x) - Y where y is the correct answer or label
'''       3- Sum all errors
'''       4- Calculate MSE (Mean Squared Error) = 1/2*training set size * sum of all errors
'''       5- Get slope of line touching curve at the current point (for each value of a and b)
'''            - If +ve slope, move to left or Decrease a or b values
'''            - If -ve slope, move to right or increase a or b values
'''       6- Repeat above steps from 2 to 5 till direction or slope of calculated line changes
'''       7- Last values for a and b are the optimal values as per MSE minimization
''' </summary>

Gradient descent already explained at article 2 (14)

Image 26

Descent Gradient

GD minimize loss function or cost function using above Pseudo code however, it is not that simple especially for non-linear functions. Here are some of GD

Image 27

Function normally has one global minimum but may have multiple local minimums and GD could be trapped in one of local minimums

There are many types of gradient descent algorithm, based on data ingestion:

Full Batch GD Use whole data at once to compute the gradient
Stochastic GD Take a sample from data set to compute the gradient

On the basis of differentiation techniques

First order Differentiation GD Use first order differentiation for cost function
Second order Differentiation GD

Use second order differentiation for cost function

Variants of Gradient Descent algorithms (Here is a good reference for GD methods)

  • Vanilla Gradient Descent
  • Momentum
  • Nesterov accelerated gradient
  • Adagrad
  • Adadelta
  • RMSprop
  • Adam
  • AdaMax
  • Nadam

Here are some of methods

I. Vanilla Gradient Descent

This is the simplest form of gradient descent technique. Vanilla means pure form without any adulteration. Its main feature is that we take small steps in the direction of the minima by taking gradient of the cost function.

Parameter_Update = learning_rate * gradient_of_parameters
Parameter_New_Value = Parameter_Old_Value - Update

Learning rate is a very important parameter and should be treated with care when choosing its value.

Image 28

II. GD with Momentum

Here, we tweak the above algorithm in such a way that we pay heed to the prior step before taking the next step

Parameter_Update = learning_rate * gradient_of_parameters
Velocity = Previous_update * momentum
Parameter_New_Value = Parameter_New_Value + Velocity – Parameter_Update

Here, update is the same as that of vanilla gradient descent. However, with a new term called velocity, which considers the previous update and a constant that, is called momentum.

Image 29

III. Adaptive Subgradient (AdaGrad)

ADAGRAD uses adaptive technique to change learning rate. It allows different step sizes for different features. Normally used with Stochastic GD

Grad_component = Previous_grad_component + (gradient * gradient)
Rate_change = Square_root(grad_component) + epsilon
Adapted_learning_rate = learning_rate * rate_change
Parameter_update = Adapted_learning_rate * gradient
Parameter_New_Value = Parameter_Old_Value – Parameter_update

In the above code, epsilon is a constant, which is used to keep rate of change of learning rate in check.


ADAM is one more adaptive technique which builds on adagrad and further reduces it downside. In other words, you can consider this as momentum + ADAGRAD.

Here’s a pseudocode.

Adapted_gradient = Previous_gradient + ((gradient – previous_gradient) * (1 – beta1))
Gradient_component = (gradient_change – previous_learning_rate)
Adapted_learning_rate =  previous_learning_rate + (gradient_component * (1 – beta2))
Parameter_Update = adapted_learning_rate * adapted_gradient
Parameter_New_Value = Parameter_Old_Value – Parameter_Update

Here beta1 and beta2 are constants to keep changes in gradient and learning rate in check

5- Bayesian linear regression

Bayesian linear regression is an approach to linear regression in which the statistical analysis is undertaken within the context of Bayesian inference. When the regression model has errors that have a normal distribution, and if a particular form of prior distribution is assumed, explicit results are available for the posterior probability distributions of the model's parameters.

6- Polynomial Regression

Polynomial regression is a form of regression analysis in which the relationship between the independent variable x and the dependent variable y is modelled as an nth degree polynomial in x

Image 30

nth degree polynomial can be expressed as

Image 31

The polynomial regression model

Image 32This can be resolved in linear algebra approach (Matrix conversion)

Image 33

Using Ordinary Least Squares estimation, it can be resolved as

Image 34

While using higher degree polynomial could get lower error, but it can result in overfitting as well if not carefully validated.

7- Stepwise Regression

This form of regression is used when we deal with multiple independent variables X. In this technique, the selection of independent variables is done with the help of an automatic process, which involves no human intervention.

The aim of this modeling technique is to maximize the prediction power with minimum number of predictor variables. It is one of the method to handle higher dimensionality of data set.

For further info about this algorithm (17) and attached pdf document

8- Regularization

Regularization is a technique that minimize sum of squared error and also reduce the complexity of the model to override model overfitting. To explain regularization, let us explore the terms Overfitting and Underfitting


This is when model describes random error or noise instead of the underlying relationship. Normally this when model is very complex such as having too many parameters relative to the number of observations.

A model that has been overfitted has poor predictive performance, as it overreacts to minor fluctuations in the training data.

Image 35

The green line represents an overfitted model and the black line represents a regularised model. While the green line best follows the training data, it is too dependent on it and it is likely to have a higher error rate on new unseen data, compared to the black line (16)


It occurs when model or machine learning algorithm cannot capture the underlying trend of the data. Underfitting would occur, for example, when fitting a linear model to non-linear data. Such a model would have poor predictive performance.

Image 36

Two popular examples of regularization procedures for linear regression are:

  • Lasso Regression: where Ordinary Least Squares is modified to also minimize the absolute sum of the coefficients (called L1 regularization).
  • Ridge Regression: where Ordinary Least Squares is modified to also minimize the squared absolute sum of the coefficients (called L2 regularization).

These methods are effective to use when there is collinearity in your input values and ordinary least squares would overfit the training data.

9- Ridge Regression

Ridge Regression is a technique used when the data suffers from multicollinearity (independent variables are highly correlated). In multicollinearity, even though the least squares estimates (OLS) are unbiased; their variances are large which deviates the observed value far from the true value. By adding a degree of bias to the regression estimates, ridge regression reduces the standard errors.

For Sum of squared error SSE

Image 37

Yi is label or correct answer

F(x) is predicted or guessed value = Y

Image 38

Image 39

Ridge regression performs ‘L2 regularization‘, i.e. it adds a factor of sum of squares of coefficients in the optimization objective. Hence, need to introduce an additional term to the equation:

Objective = Residual_Sum_of_Squares + lambda * (sum_of_square_of_coefficients)

Image 40

Here lambda is a shrink factor that is determined outside of the model (it is a tuning parameter) and it assigns a weight to how much we wish to penalize the sum of squared coefficients

Here, lambda is the parameter, which balances the amount of emphasis given to minimizing RSS vs minimizing sum of square of coefficients. lambda can take various values:

lambda = 0:

The objective becomes same as simple linear regression.

lambda = ∞:

The coefficients will be zero. Why? Because of infinite weightage on square of coefficients, anything less than zero will make the objective infinite.

0 < lambda < ∞:

The magnitude of lambda will decide the weightage given to different parts of objective.

The coefficients will be somewhere between 0 and ones for simple linear regression.

Any non-zero value would give values less than that of simple linear regression.

As the value of alpha increases, the model complexity reduces

10- Lasso Regression

LASSO stands for Least Absolute Shrinkage and Selection Operator

Lasso regression performs L1 regularization, i.e. it adds a factor of sum of absolute value of coefficients in the optimization objective. Thus, lasso regression optimizes the following:

Objective = SSE + lambda * (sum_of_absolute_value_of_coefficients)

Image 41

Here, lambda works similar to that of ridge and provides a trade-off between balancing SSE and magnitude of coefficients. Like that of ridge, lambda can take various values:

lambda = 0: Same coefficients as simple linear regression

lambda = ∞: All coefficients zero (same logic as before)

0 < lambda < ∞: coefficients between 0 and that of simple linear regression

Image 42

11- Logistic Regression

This machine learning technique is commonly used for binary classification problems, meaning those in which there are two possible outcomes (Yes or No) that are influenced by one or more explanatory variables. The algorithm estimates the probability of an outcome given a set of observed variables.

Logistic Regression is part of a larger class of algorithms known as Generalized Linear Model (GLM).

Image 43

Image 44

Logistics Regression (2D)

Image 45

Logistics Regression (3D)

The logistic regression can be understood simply as finding the Beta parameters that best fit:

Image 46

Hypothesis function used is in logistic form

Image 47

In such case t is

Image 48

In matrix formation

Image 49

Hence, h(x) can be written as

Image 50

GD can be used to resolve values for Beta (Weights) Pseudo code can be simplified as

For Single Classifier (one discrete output):

Initialize Random Weights
Initialize Learning_rate
Iterate from i=1 to m (m is number of samples in data set)
   Calculate Sum_Of_Errors
   Err(i) = h(x(i)) – Label(i)
   Scale Err to Input Err=Err(i) * X(i)
   Sum = Sum + Err(i)
End loop
Weight_New_Value = Weight_old_value - Sum * Learning_rate

Above code if for single classifier, incase multi-classifiers, n classes

For Multi-Classes Classifiers:

Initialize Random Weights
Initialize Learning_rate
Iterate for all classes j = 1 to n (n is number of classes)
   Sum = 0
   Iterate from<code> </code>i=<code>1 to m</code> (m is number of samples in data set)
      Calculate Sum_Of_Errors
      Err(i) = h(x(i)) – Label(i)
      Scale Err to Input Err=Err(i) * X(i)(j)
      Sum = Sum + Err(i)
   End Loop
Weight_New_Value(j) = Weight_old_value(j) - Sum * Learning_rate
End loop

12- K-means Clustering

This algorithm is interested to resolve clustering kind of problems, where you would have data set of inputs (features) but with no labels (correct answers). Therefore, this is Unsupervised learning algorithm.

K-Means Clustering received n features and classify into k classes. But How to determine if an input (feature) belongs to class A or B? This algorithm uses Euclidean Distance (18) as a classifier. Simply, if point is nearer to Class A mean then it belongs to A or otherwise.

Here is K-Means Clustering with 2D (2 features) and 3D (3 features)

Image 51

K-Means Clustering with 2D (2 features)

Image 52

K-Means Clustering with 3D (3 features)

K-Means Clustering Pseudo code

Get Data set of n features and k classes
Initialize random k means (known as centroids) m1,m2, …… , mk
Loop until there is no more moves Euclidean distance and classify all points
    Based on random means, calculate
    For i = 1 to k
        Replace mi with the mean of all of the samples for cluster i
    End For
End Loop

13- K Nearest Neighbors – Classification

K nearest neighbors is a simple algorithm that stores all available cases and classifies new cases based on a similarity measure (distance functions). K is number of neighbors to consider.

Image 53


A point is classified by a majority vote of its neighbors (k), with the point being assigned to the class most common amongst its K nearest neighbors measured by a distance function. If K = 1, then the point is simply assigned to the class of its nearest neighbor.

Points Of interest

This article is a summary of common ML Algorithms, it is neither full or extensive detailed summary where ther are tons of algorithms. Just focused on common types.

There could be a second part of this article.

Attached at top of this article is a pdf version of this article



This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


About the Author

Gamil Yassin
Egypt Egypt
Electrical engineer, programmer on my free time.

Comments and Discussions

PraiseVery nice ANN overview! Pin
ErnieAlex4-Jan-20 7:12
MemberErnieAlex4-Jan-20 7:12
Generalvery comprehensive descriptions Pin
Southmountain29-Sep-17 9:59
MemberSouthmountain29-Sep-17 9:59

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
