Using a class derived from System::Windows::Forms::Form to enable region selection of a form.

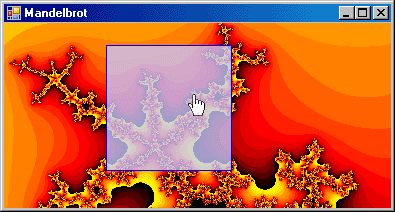

SelectionForm in Mandelbrot program


While writing a program that displays Mandelbrot images, I wrote some code to make it possible to select a region on a window form for zooming into the Mandelbrot image.

While doing so, I realized that this might be useful in other programs, and I split the region selection code off and put it into a class called SelectionForm which is derived from System::Windows::Forms::Form. The new class adds region selection functionality to the Form class, and is pretty easy to use.

Using the code

Add the SelectionForm .cpp and .h files into your C++ Windows Forms CLR project. Include SelectionForm.h in your Form1.h file.

<PRE lang=mc++>#include "SelectionForm.h"

Derive your form class from SelectionForm instead of System::Windows::Forms::Form and do some initialization in the constructor of your form class.

<PRE lang=mc++>//public ref class Form1 : // public System::Windows::Forms::Form public ref class Form1 : public SelectionForm { public: Form1(void) { InitializeComponent(); // //TODO: Add the constructor code here // this->Paint += gcnew System::Windows::Forms::PaintEventHandler(this, &SelectionForm::_Paint); // skip for no fixed aspectratio SelectionAspectRatio = 1.0f; // avoid flicker this->DoubleBuffered = true; }

Users can use the mouse to create, resize, or move a region selection on your form. Your derived class can use the functions hasSelection, getSelection, and clearSelection to get information about the region selection, as in the following example of a button click handler function:

<PRE lang=mc++>private: System::Void button1_Click(System::Object^ sender, System::EventArgs^ e) { if (this->hasSelection()) { System::Drawing::Rectangle^rect = this->getSelection(); System::Windows::Forms::MessageBox::Show(rect->ToString()); this->clearSelection(); } else { System::Windows::Forms::MessageBox::Show("No Selection"); } }

How does it work?

The derived class SelectionForm has handlers for the mouse up, down, and move events. It also has a handler for the paint event. The mouse events are added to the form's eventshandler list in the constructor of SelectionForm. The Paint eventhandler must be added to the eventhandlerlist after the derived class' own Paint handler, otherwise the painting occurs in the wrong order.

The class has some logic to keep track of the selection and the appearance of the mouse pointer.

Points of Interest

Annoying: Sometimes the IDE get confused when showing the [Design] view of your form because it is derived from something else then the standard form. Rebuilding the solution solves this problem.

Note: the demo application zooms to the selection by hitting the Enter-key, and zooms out again by hitting the Escape-key.
