Binding Menu Control With Database

starIconstarIconstarIcon
emptyStarIcon
starIcon
emptyStarIcon

3.92/5 (6 votes)

Jun 28, 2008

CPOL
viewsIcon

95513

downloadIcon

2625

Bind the menu control with list of Category and Sub Categories

Figure 1


Figure 2


Introduction

In this article, I will show how to bind the menu control with the database. Suppose you have a situation to display the different Category and its Sub-Categories. When we click the Category/Sub Category (See Figure 1) to view the detail information about Category/Sub Category (See Figure 2), then this bit of code will be useful. This code prevents a post back to the server while selecting Sub Category.

Using the Code

Database Detail

Table Name - Category

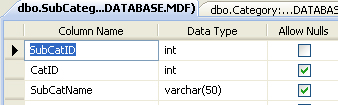

Table Name - SubCategory


There are two tables (Category, SubCategory) which are related to each other.
Here’s the method called BindMenu which binds the menu control during the page load.

  1. Create the connection string to establish connection with the database:
    Dim connectionString As String =
    WebConfigurationManager.ConnectionStrings_
    	("DatabaseConnectionString1").ConnectionString
    Dim con As New SqlConnection(connectionString)
  2. Create two DataAdapters for both the tables:
    Dim dadCategories As New SqlDataAdapter("SELECT CatId,CatName FROM Category
    order by CatName", con)
    Dim dadSubCat As New SqlDataAdapter("SELECT SubCatId,CatId,SubCatName FROM
    SubCategory order by SubCatName", con)
  3. Create a DataSet and fill the dataset with both the tables:
    Dim dsCat As New DataSet()
    Using con
    con.Open()
    dadCategories.Fill(dsCat, "Category")
    dadSubCat.Fill(dsCat, "SubCategory")
    End Using
  4. Relate both the tables and name the relation as Children:
    dsCat.Relations.Add("Children", dsCat.Tables("Category").Columns("CatId"),
    dsCat.Tables("SubCategory").Columns("CatId"))
  5. Loop through each category of data and its related Sub category of data. At each loop, we create menu items and associate with the menu control.
    For Each categoryRow As DataRow In dsCat.Tables("Category").Rows
    Dim mNode As New MenuItem(CType(categoryRow("CatName"), String), "", "",
    "~/DetailView.aspx?CatID=" + CType(categoryRow("CatId"), String), "_parent")
    Menu1.Items.Add(mNode)

    Dim subCatRows() As DataRow = categoryRow.GetChildRows("Children")
    For Each row As DataRow In subCatRows
    Dim subCatName As String = CType(row("SubCatName"), String)
    Dim subCatItems As New MenuItem(subCatName, "", "",
    "~/DetailView.aspx?CatID=" + CType(row("CatId"), String) + "&SubCatID=" +
    CType(row("SubCatId"), String), "_parent")
    Menu1.Items(count).ChildItems.Add(subCatItems)
    Next
    count = count + 1
    Next

History

  • 28th June, 2009: Initial post
