Setting Up Python Development Environments with Visual Studio Code

Rate this:
5.00 (2 votes)
Please Sign up or sign in to vote.
5.00 (2 votes)
8 Sep 2019CPOL
A tutorial for using Visual Studio Code for Python Development on various environments.

Visual Studio Code (VS Code) has been my favorite editor for a few years. With the activity enhancement made by Microsoft and the community, VS Code has been evolved to a whole level. With the release of remote develop extension, now I can use VS Code for my daily work and my open source projects on all kinds of environments. This article is a brief tutorial of the VS Code setup for Python developments – the setup I use daily. If someone happens to want to use the VS Code for Python development, hopefully, this article could save the person’s time. VS Code has tremendous documents. Visit this link for more details.


This tutorial uses a simple Python project to demonstrates the VS Code setup for Python development on Windows 10, Windows Subsystem for Linux, remote Linux, and Raspbian on Raspberry Pi.

The Python project has the following layout:

  |-- mathlib
  |      |--
  |      |--

And the contents of and are:

def inc(value: int) -> int:
    """Return the number increased by one."""
    return value + 1

def dec(value: int) -> int:
    """Return the number decreased by one."""
    return value - 1

from mathlib import compute

def test_int():
    assert == 6

def test_dec():
    assert compute.dec(value=5) == 4

Windows-Centralized Setup

Although VS Code can run on different platforms, e.g., Linux and MacOS, this tutorial uses Windows 10 as the main place to run VS Code.

Image 1

Assumptions and Requirements

The software used in this tutorial are:

  • Visual Studio Code 1.37 with extensions
    • Python 2019.8.30787
    • Remote Development 0.16.0
  • Python 3.7
  • Windows 10 1903
  • Ubuntu 18.04 (for WSL and remote Linux)
  • Raspbian on Raspberry Pi 3 B+

A typical Python development includes the virtual environment, linting, test, and debug. This tutorial uses:

All of the linters are supported by Python extension of VS Code. More details for linting can be found here.

Installation on Windows

Since Windows 10 is the host VS Code runs in this tutorial, we need to install VS Code on the Windows host.

Install VS Code

  1. Download the VS Code from here. When the tutorial is written, the latest version is 1.37.
  2. Double click the downloaded binary, VSCodeUserSetup-x64-1.37.1.exe, to install.

Install VS Code Extensions

VS Code has thousands of thousand extensions; the Python and Remote Development extensions are the minima for Python development on Windows and remote platforms.

  1. Launch VS Code.
  2. Click the extension icon Image 2 or type Ctrl+Shift+X to open the extension windows.
  3. On the search bar, type Python and install it.
  4. On the search bar, type Remote Development and install it. Remote Development extension also installs Remote – Containers, Remote – SSH, Remote – SSH: Editing Configuration Files, Remote – SSH: Explore, and Remote – WSL.

After the installation, VS Code should look like:

Image 3

Setup Python Development Environment on Windows

To run Python code on Windows, we need to install Python.

Install Python

Python can be installed by 1. Microsoft Store, or 2. Python official website. Follow the instructions to install it. The latest stable version is 3.7.4 when this article is written.

Create a Virtual Environment

Assume we use C:\Workspace as the workspace for this tutorial and working_environment is our virtual environment.

cd C:\Workspace
C:\Workspace>python -m venv working_environment

Create the Project and Setup VS Code

Now we are ready to create the project with VS Code.

Step 1: Launch the VS Code

Step 2: File -> Open Folder

Step 3: Create a new folder called project under C:\Workspace\

Step 4: Add folder and files shown at Plot, so it looks like:

Image 4

Once we add a Python file, VS Code automatically detects the Python environment; by default, it picks the system one.

Image 5

It may also detect something is not installed, e.g., pylint and pytest.

Image 6

Ignore them for now, since we do not want to install these to the system Python interpreter.

Step 5: We want to use the virtual environment , working_environment, we just created for this project. To do so, we need to tell VS Code the path to the virtual environment.

  1. File -> Preferences -> Settings
  2. Type venv path at the top search bar
  3. Add C:\Workspace

Image 7

Step 6: Click the Python Interpreter icon to select the working_environment. working_environment should be available now.

a. Click the icon:

Image 8

b. Choose working_environment:

Image 9

Note: If it does not show up, restart VS Code may be necessary.

More details about Python virtual environments can be found here.

Configure Linting, Type Checking, and More

By default, Pylint is enabled for Python in VS Code, but VS Code supports many other linters. This section demonstrates some of the linting setups that I use daily.

  • File -> Preferences -> Settings and type linting at the top search bar. Many linter options will show up.

Image 10

Enable and Install pydocstyle

  • Check the box of pydocstyle option.

    Image 11

  • As soon as we check the box, an install option pops up. Click it to install pydocstyle.

    Image 12

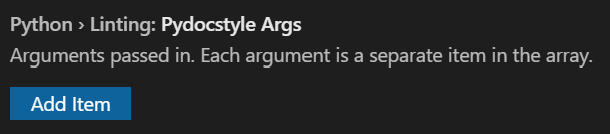

  • If we want to add non-default options for pydocstyle, click the Add Item button.

    Image 13

    Add the argument we want. For example, if we want to use numpy style, add --convention=numpy.

    Image 14

  • And click OK button. It will look like:

    Image 15

    Note: The complete arguments of pydocstyle can be found at

Enable and Install mypy

  • Check the box of mypy option.

    Image 16

  • Install mypy.

    Image 17

Enable and Install pep8

Do the same thing as the previous step to enable and install pep8.

  • Check the box of pep8 option.

    Image 18

  • Install pep8.

    Image 19

Note: All the linters are installed on the working_environment.

More details of VS Code with Linting can be found here.

Testing and Debugging

For the setups of testing and debugging, VS Code has very comprehensive documents:

Now, we should have a working environment for our Python projects with VS Code.

Image 20

Setup Python Development Environment on Linux via SSH

The VS Code Remote – SSH extension allows us to open a remote folder on a remote machine with a running SSH server and take full advantage of VS Code such as auto-completion, debugging, and linting.

Image 21

Assumption: This section assumes that we have a remote Linux (Ubuntu 18.04) with SSH enabled.

Step 1: Install OpenSSH Client on the Windows 10 Host

To install OpenSSH, do the following:

Settings -> Apps -> Apps & features -> Optional features -> Optional features -> Add a feature (if OpenSSH client is not already installed). Find OpenSSH client and click ‘’Install’’. After the installation completes, it should look like:

Image 22

More options for OpenSSH can be found here.

Step 2: Setup the SSH Key

On the Windows 10 host, launch Command Prompt and do the following steps:

  • Generate an SSH key pair. And accept all the default value.
    C:\Users\user> ssh-keygen -t rsa -b 4096
  • Add the contents of the local public key (the to the appropriate authorized_keys file on the SSH host, i.e., the remote Linux).
    C:\Users\user> SET REMOTEHOST=your-user-name-on-host@host-fqdn-or-ip-goes-here
  • Copy the local public key to the remote Linux.
    C:\Users\user> scp %USERPROFILE%\.ssh\
    %REMOTEHOST%:~/tmp.pubssh %REMOTEHOST% "mkdir -p ~/.ssh &&
    chmod 700 ~/.ssh && cat ~/ >> ~/.ssh/authorized_keys &&
    chmod 600 ~/.ssh/authorized_keys && rm -f ~/"

Step 3: Connect to the Remote Linux Host

  • Launch VS Code on Windows 10
  • Click the remote development icon Image 23 and click the Configure an SSH host. Or type Ctrl+Shift+P to start Command Palette and type Remote-SSH: Connect to Host… and select Configure SSH Hosts…

    Image 24

  • Choose the appropriate config file. It may look like C:\Users\user\.ssh\config.
  • Edit the config file by adding the Linux host information. The config may look like:

    Image 25

  • Click the name of the remote machine (in this example, its name is remote-ubuntu) to connect to the remote machine.

    Image 26

  • A new window of VS Code will open and ask the user to enter the password.

    Image 27

  • Once the connection is established. The icon Image 28 will be shown.
  • Install Python extension on the remote Linux. The Python extension has been installed on the Windows host, but in order to provide all Python features that VS Code provides, we need to install the Python extension on the remote Linux.
    1. Click the extension icon Image 29. It should show something like the picture below:

      Image 30

      The bottom section indicates the extensions installed on the local machine, i.e., Windows 10 in this example. The top section indicates the extensions installed on the remote machine, i.e., Ubuntu 18.04 in this case. Now the remote machine does not have any extension installed.

    2. To install the Python extension, click the install button Image 31.
    3. Once the installation completes, the extension window becomes:

      Image 32

Step 4: Setup the Project

On the Remote Linux

Now, we can create a virtual environment and a Python project on remote Linux.

  • SSH to the remote Linux machine.
  • Create a workspace folder:
    $ mkdir workspace
    $ cd workspace/
  • Create a virtual environment, working_environment:
    $ python3.7 -m venv working_environment
  • Create a project folder:
    $ mkdir project

On the Windows Host

  • If we try to open a folder by File -> Open Folder. It will show the filesystem on the remote Linux. Select the project folder created above.

    Image 33

  • Repeat the steps mentioned in the section: Create the Project and Setup VS Code.
    Note: The settings we changed for Windows are per user. Here, we should change the settings for Remote.

    Image 34

    Now, VS Code should be ready for Python development on the remote Linux machine.

    Image 35

    More details of remote development with VS Code can be found here.

Setup Python Development Environment on Raspberry Pi via SSH

The remote development setup on Raspberry Pi is the same as regular Linux such as Ubuntu. However, the current remote development of VS Code does not support ARM architecture. Raspberry Pi 3 is ARM architecture. Therefore, to do the remote develop via SSH on Raspberry Pi, we need to use Visual Studio Code – Insiders.

Download and Install Visual Studio Code – Insiders

  1. Download VS Code – Insiders from
  2. Follow the instructions to install VS Code – Insiders

Once the VS Code – Insiders is installed. Follow the steps mentioned at Setup Python Development Environment on Linux via SSH. The steps are the same. The only difference is the remote Linux machine becomes Raspbian on Raspberry Pi.

The user experience for VS Code – Insiders with Raspberry Pi should be exactly the same as VS Code with remote Linux.

Image 36

Setup Python Development Environment with WSL

The Windows Subsystem for Linux brings developers the Linux environment experience directly on Windows without using a virtual machine. With the Remote Development extension of VS Code, we can enjoy the full features of VS Code, and develop, run and debug Linux-based applications on Windows.

Image 37

Step 1: Enable and Install WSL

Follow the instructions to enable and install WSL:

Step 2: Create a Virtual Environment and the Project

From the WSL command line, issue the following commands:

  • Create a workspace:
    $ mkdir workspace
    $ cd workspace
  • Create a virtual environment, working_environment:
    $ python3.7 -m venv working_environment
  • Create a project folder:
    $ mkdir project

Step 3: Connect to WSL from VS Code

  • Launch VS Code.
  • Type Ctrl+Shift+P to start Command Palette and type Remote-WSL: New Window.

    Image 38

  • After select Remote-WSL: New Window, a new VS Code window will show up and connect to the WSL. On the left bottom, this icon Image 39 indicates VS Code has connected to the WSL.
  • Install Python extension on the WSL. Same as Remote SSH, we need to install the Python extension on the WSL. Click the button to install.

    Image 40

Step 4: Setup the Project

Once the VS Code connects to the WSL, we should be able to setup the Python project as we setup the project for Windows and remote Linux.

  • Open the project folder.

    Image 41

  • Repeat the steps mentioned in the section: Create the Project and Setup VS Code.
    Note: same as Remote SSH, for WSL, we should change the settings under Remote [WSL: Ubuntu-18.04].

    Image 42

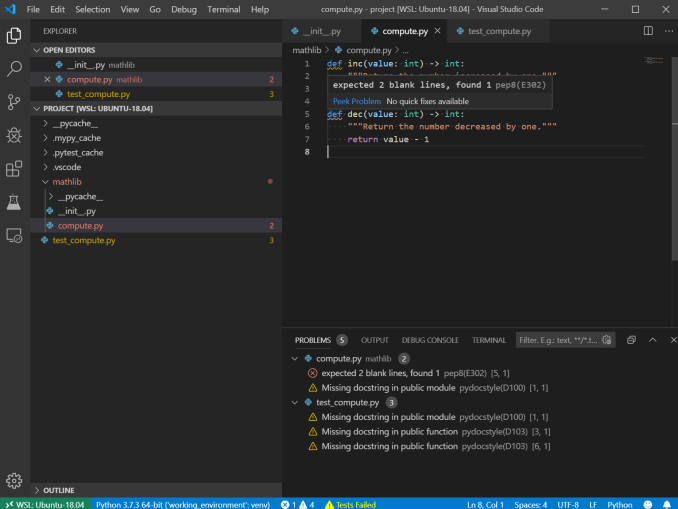

Now, VS Code should be ready for Python development with the WSL.

Image 43

More details of remote develop with WSL can be found here.


VS Code is highly extensible and configurable through extensions and settings, so developers can add features via extensions and configure VS Code to enhance our workflow. In additional to Python and Remote Development extensions, here is the list of extensions I think useful and use daily.

Although this tutorial uses Windows 10 as the host for VS Code, VS Code can be installed and run on Linux and Mac as well. The setup described in the article can be applied to Linux and Mac. Hopefully, you found this article useful.

(This post appeared first on Shun's Vineyard.)


  • 8th September, 2019: Initial version


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)
