Adventures in 3D Printing Part 2: Rise of the 3D Models

Rate me:
Please Sign up or sign in to vote.
5.00/5 (4 votes)
17 Sep 2019CPOL2 min read
OK, OK. I had to set it up - Herself insisted - and I had to actually print to be sure. So I knocked up a quick box to print (just to show I could).


The next stage is to actually print something. That's surprisingly untraumatic.

First, I printed the sample that came with it - to prove the machine works rather than because I wanted a small pair of plastic owls.

Image 1

And I'm quite impressed, the detail is quite fine and it prints well. They are a little "whispy" at the top, but a light trim and a little more bed leveling should fix that.


But the samples are just that: a pregenerated GCODE file on the SD card. To print something I made, I need more software: a slicer.

The printer recommends Cura, so off I go: Ultimaker CURA 4.0

It's free, and the installation is painless - and it knows about the machine I bought so I don't have to add machine parameters. Bonus.

Knock up something small in Fusion:

Image 2

Just a little box with my moniker on it!

Getting to the slicer is easy: File menu in Fusion:

Image 3

Select "3D Print".

Image 4

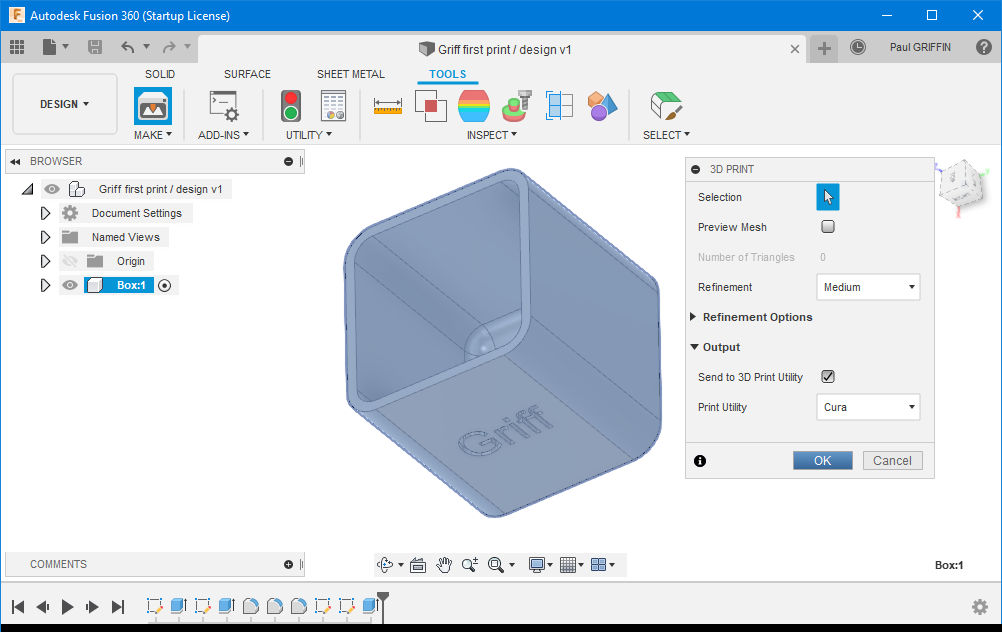

Check "Send to 3D Print Utility", and choose "Cura" from the dropdown (in theory, I can do all this inside Fusion with an addon, but ... little steps.)

Cura opens, loads the file:

Image 5

Click "Slice", and moments later:

Image 6

It's ready to save to card (Again, I could do it via USB, but ... little steps, little steps.)

Card into machine, "Print" and wait a while:

Image 7

The text looks blurred because I ran over it with a permanent marker and then quickly sanded off the worst of the overspill. I also only extruded it as a 0.5mm cut which is a little shallow; I think I sanded off a little too much on one side - I'd go for 1.0mm or more next time, and probably see if I could do a "V" cut which would probably work better.

Given that I made it 20mm x 20mm x 20 mm, with a 1mm wall thickness, it's pretty solid, even in PLA.

So ... Conclusions on First Attempt

Get familiar with your CAD tool - and my opinion of Fusion 360 has done a 180o turn in just a morning, it's a powerful tool that is equally easy to use when you get your head round it - and this isn't as difficult as I thought: at least not for small, relatively simple objects.

Now for the big one: the Sous Vide cover. And that'll wait for Part 3 ...
