jQuery UI Demystified: Part 1

, 4 Oct 2013
Rate this:
Please Sign up or sign in to vote.
In this tutorial, we will learn about the jQuery UI developed using JavaScript.

Introduction

In this tutorial, we will learn about the jQuery UI developed using JavaScript. The UI in jQuery UI stands for User Interface which means that it’s a library to provide an interface to the user to interact with your web application or web site. It is a kind of abstraction provided to the user for doing low-level interaction and designing. To survive in the current technology, web designers must learn jQuery. jQuery makes website design for anyone a cake walk. This library contains 11 widgets, five interactions and nine effects. This tutorial covers the 3 widgets and all the interactions and effects of each of the widgets. Let’s first see what a Widget is.

Widgets in jQuery UI

Widgets are just like any other JavaScript object attached to a Web Element to maintain its interaction, lifetime, theming, state and so on. The jQuery plugins are used as simply as other jQuery methods. Widgets are very helpful in web design. They save many of your keystrokes wasted by writing the code from scratch to get the same functionality. That’s enough for Widgets.

Some jQuery Widgets

Accordion

Accordion is a jQuery widget that helps you to organize your web contents into content boxes. If you have less space in a web page and more data to show, then Accordion is what you are looking for. It can show/hide the data as per the user needs.

Dialog

A Dialog is used to show the data in a pop-up box. A pop-up box is nothing but an elevated data container that gives the user a feel that something is happen. If you want something that catches the user’s eye, then choose the Dialog Widget.

Tooltip

A Tooltip is used to show hints and directions to users. If you want your website to be very user-friendly, then you must give it a chance.

Interaction in jQuery UI

Interaction in jQuery UI is a way to provide interaction between your web element and the user. The user can interact with web elements in many ways but as a designer you must know which interaction is the most suitable. In jQuery, we have five types of interactions. Each has its own uses and advantages.

jQuery Interactions

Draggable

Draggable provides drag functionality to the element. If you want something whose location is to be arranged by the user or moved by the user, then it is what you can look for.

Droppable

Droppable is related to Draggable. It provides a target for draggable elements. For example, in the game of football, the ball is draggable and the Goal Post is droppable.

Resizable

Allows the user to resize the element. Very useful if you want to allow the user to resize the element.

Selectable

Want to show what use has been selected in the list? Then this is what you can use. It allows an element to be selectable.

Sortable

Allow arranging or sorting of Items. Useful when item reordering is required.

Effects in jQuery UI

Effects are nothing but everything for any good website. Whatever magic you see in websites are mostly using the jQuery effects. It applies an animation on an element. In this tutorial, we will learn Hide, Show and toggle class effects.

Working With jQuery

Part 1: Adding widgets in a web page

Accordion

  1. Create an empty web page with basic HTML in it and put in the Body:
    <divid=’accordion’>
       <h3>Title 1</h3>
       <div>
          Content 1 Goes here.
       </div>
      <h3>Title 2</h3>
       <div>
          Content 2 Goes here.
       </div></div>
  2. Create a JS file and add this code:
    1. $(document).ready(function () {
    2.    $("#accordion").accordion({});
    3. });

    Here the second line adds the Accordion Widget to the div having the ID "accordion". You can use any widget option, like Active, animate, collapsible and so on inside the {} curly brace. For example: "{Active:2}".

    662947/pic1a2.png

Dialog

  1. In your HTML file, put this code in the Body:
    <inputtype=’button’value="Login"id="login"/>
     <divid=’loginDlg’style="display:none;">
        Username:<inputtype=’text’/><br>
        Password:<inputtype=’password’/>
     </div>
  2. In your JS file, add this code after line 3:

    4. $(‘#login’).click(function () {
    5.    $("#loginDlg").dialog({});
    6. });

    Here line 5 will open the "Login as" Dialog when the user clicks on the Login button. Try adding this code between the curly braces and check the output: :)

          show: {
      effect:"blind",
      duration: 1000
    },
    hide: {
      effect:"fold",
      duration: 1000
    }

    662947/pic2a2.png

ToolTip

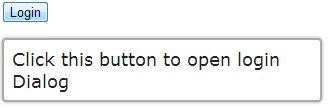

  1. Now add the title to your login button. The code will be like this:
    <inputtype=’button’value="Login"id="login"title="Click this button to open login Dialog "/>
  2. In your JS file, add this line:

    7. $(‘#login’).tooltip({});

    Here Line 7 adds the tool tip to the login button.

    Live demo here.

Summary

It’s time to summarize what we have learned so far. We learned about the jQuery widgets. We saw how easy it is to add a widget to any element. We saw how 2 lines of jQuery gives us this versatile and magnificent view of the site. As a takeaway of this tip, you can remember this rule of thumb for adding any widget to an element, use this syntax:

$(element_to_target).widget_name({List_of_options});

The code is kept simple and short for the sake of understanding the concept. In Part 2, we will learn about jQuery Interactions and how to use them properly. So stay tuned and don’t forget to comment.
