Consuming WCF Service in Java Client

, 23 May 2014
Rate this:
Please Sign up or sign in to vote.
This article will talk about how a WCF service can be consumed by a Java client application.


WCF is built to support interoperability. Being just a .NET developer, it becomes very difficult to prove this concept. I created this POC with the help of one of my friends Jay D Khambholiya who is a Java developer.

This article will talk about how a WCF service can be consumed by a Java client application in following three steps:

  1. Create a WCF Service
  2. Host WCf Service in IIS
  3. Consume WCF Service in Java Client

Step 1: Create WCF Service

  • Open Visual Studio 2012 > File Menu > click New Project… > select Class Library – CalculatorService > click OK

  • Delete the class - Class1.cs file that is auto-generated.

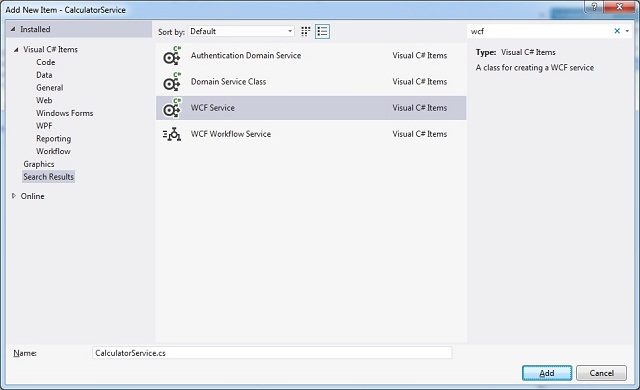

  • Right-click on CalculatorService project > Add > click New Item > select WCF Service > provide Name as CalculatorService > click Add button:

  • This will add the required assembly references (like, System.ServiceModel) along with a Service Contract Interface – ICalculatorService.cs and Service class – CalculatorService.cs
  • Modify ICalculatorService.cs as follows:
using System.ServiceModel;
namespace CalculatorService
    public interface ICalculatorService
        int Add(int num1, int num2);
  • Modify CalculatorService.cs as follows:
namespace CalculatorService
    public class CalculatorService : ICalculatorService
        public int Add(int num1, int num2)
            return num1 + num2;
  • Build the solution by pressing [CTRL]+[SHIFT]+b or go to BUILD menu > click Build Solution option.

Step 2: Host WCF Service in IIS

  • Add a new web site to host Calculator Service in IIS.
  • Go to File Menu > Add > click New Web Site… > select WCF Service > provide a suitable name – CalculatorServiceIISHost > click OK:

  • A new web site will be added with a service class - Service.cs and an interface - IService.cs within App_Code folder along with a Service.svc file. Since the service is already created, delete the auto created service class (Service.cs) and the interface (IService.cs) from App_Code folder.
  • Right-click on CalculatorServiceIISHost project > click Add Reference > select CalculatorService > click OK:

  • Open Service.svc file > Delete CodeBehind property:
<%@ ServiceHost Language="C#" Debug="true" Service="Service" CodeBehind="~/App_Code/Service.cs" %>
  • Modify Service property as shown below:
<%@ ServiceHost Language="C#" Debug="true" Service="CalculatorService.CalculatorService" %>
  • Modify web.config file to have the following settings:
        <service name="CalculatorService.CalculatorService"

            <endpoint address="CalculatorService" binding="basicHttpBinding"

                    <add baseAddress="http://localhost:8080/"/>
            <behavior name="mex">
                <serviceMetadata httpGetBinding="true"/>
  • Now the service is ready to be hosted in IIS.
  • Open IIS > right-click on Default Web Site > click Add Application… > enter Alias name – calculator > select the Physical path of the service > click OK:

  • Enable Anonymous Authentication as shown below:

  • Go to Content View > right-click Service.svc > click Browse:

Step 3: Consume WCF Service in Java client

  • Tools Used: Eclipse Indigo, Apache Tomcat 6, Apache Axis (comes pre-installed in Eclipse Indigo)
  • Create a new Dynamic Web Project in Eclipse:

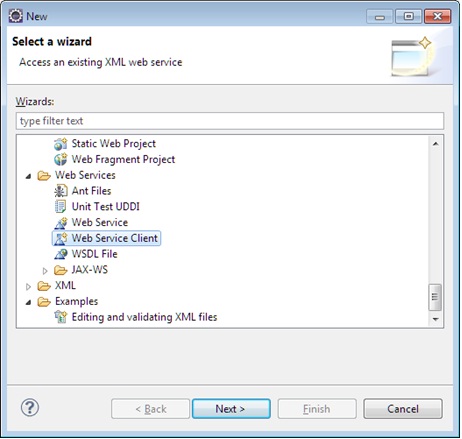

  • To create a WS Client, select New > Web Services > select Web Service Client > click Next button:

  • Enter the WSDL path of the WCF Service > click Finish button:

  • This should auto-generate the code for the WS proxy:

  • Create a simple JSP page that has two text boxes and a servlet to call the “add” method via web service:
  • Write the following code in WCFServlet’s doPost() method to call web service’s “add” method:
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException
 Integer input1=Integer.parseInt(request.getParameter("input1"));
 Integer input2=Integer.parseInt(request.getParameter("input2"));
 ICalculatorServiceProxy calService=new ICalculatorServiceProxy();
 Integer result=calService.add(input1,input2);
 request.setAttribute("res", "The result is: "+result);
 RequestDispatcher rd=request.getRequestDispatcher("WSDemo.jsp");
 rd.forward(request, response);
  • Display the result on the same page WSDemo.jsp:


This article can be referred by any project or individual to get a step-by-step guidance on how a WCF service can be created and hosted in IIS and then create a Java client application to consume the service.
