Performance of different lock methods in .net

public interface ICacheTest
{
    void Add(CacheItem item);
    CacheItem Get(Guid id);
    CacheItem Search(Guid id);
    void Clear();
}

public class CacheUnsafe : ICacheTest
{
    private readonly Dictionary<Guid, CacheItem> _cache = new Dictionary<Guid, CacheItem>();
    public void Add(CacheItem item)
    {
        _cache.Add(item.Id, item);
    }
    public CacheItem Get(Guid id)
    {
        if (_cache.ContainsKey(id))
            return _cache[id];
        return null;
    }
    public CacheItem Search(Guid id)
    {
        var item = (from x in _cache.Values where x.Id.Equals(id) select x).FirstOrDefault();
        return item;
    }
    public void Clear()
    {
        _cache.Clear();
    }
}

public class CacheFullLock : ICacheTest
{
    private readonly Dictionary<Guid, CacheItem> _cache = new Dictionary<Guid, CacheItem>();
    public void Add(CacheItem item)
    {
        lock (_cache)
        {
            _cache.Add(item.Id, item);
        }
    }
    public CacheItem Get(Guid id)
    {
        lock (_cache)
        {
            if(_cache.ContainsKey(id))
                return _cache[id];
        }
        return null;
    }
    public CacheItem Search(Guid id)
    {
        lock (_cache)
        {
            var item = (from x in _cache.Values where x.Id.Equals(id) select x).FirstOrDefault();
            return item;
        }
    }
    public void Clear()
    {
        lock (_cache)
        {
            _cache.Clear();
        }
    }
}

public CacheItem Search(Guid id)
{
    lock (_cache)
    {
        if (_index.ContainsKey(id))
            return _cache[_index[id]];
        return null;
    }
}

public class CacheWriteLock : ICacheTest
{
    private readonly Dictionary<Guid, CacheItem> _cache = new Dictionary<Guid, CacheItem>();
    private readonly ReaderWriterLock _lock = new ReaderWriterLock();
    public void Add(CacheItem item)
    {
        _lock.AcquireWriterLock(1000);
        try
        {
            _cache.Add(item.Id, item);
        }
        finally
        {
            _lock.ReleaseWriterLock();
        }
    }
    public CacheItem Get(Guid id)
    {
        _lock.AcquireReaderLock(1000);
        try
        {
            if (_cache.ContainsKey(id))
                return _cache[id];
            return null;
        }
        finally
        {
            _lock.ReleaseReaderLock();
        }
    }
    public CacheItem Search(Guid id)
    {
        _lock.AcquireReaderLock(1000);
        try
        {
            var item = (from x in _cache.Values where x.Id.Equals(id) select x).FirstOrDefault();
            return item;
        }
        finally
        {
            _lock.ReleaseReaderLock();
        }
    }
    public void Clear()
    {
        _lock.AcquireWriterLock(1000);
        try
        {
            _cache.Clear();
        }
        finally
        {
            _lock.ReleaseWriterLock();
        }
    }
}

public class CacheConcurrent : ICacheTest
{
    private readonly ConcurrentDictionary<Guid, CacheItem> _cache = new ConcurrentDictionary<Guid, CacheItem>();
    public void Add(CacheItem item)
    {
        _cache.AddOrUpdate(item.Id, item, (key, oldValue) => item);
    }
    public CacheItem Get(Guid id)
    {
        if (_cache.ContainsKey(id))
            return _cache[id];
        return null;
    }
    public CacheItem Search(Guid id)
    {
        var item = (from x in _cache.Values where x.Id.Equals(id) select x).FirstOrDefault();
        return item;
    }
    public void Clear()
    {
        _cache.Clear();
    }
}

Measuring ticks elapsed for add, get, search and clear methods. Number of items are increased with each test epoch. Each epoch executes the test for 1000 iterations.

So no multi-threading here, just a check of baseline differences between the solutions. I.e. time to acquire the lock, ability to cope with different number of elements etc.

The test rig:

private void ExecuteTestSingle(ICacheTest cache, int dataCount, int iterations)
{
    var type = cache.GetType().Name;
    try
    {
        var testData = GenerateTestData(dataCount);
        var addTimings = new RunningAverage();
        var clearTimings = new RunningAverage();
        var getTimings = new RunningAverage();
        var searchTimings = new RunningAverage();
        for (int i = 0; i < iterations; i++)
        {
            for (int dataIndex = 0; dataIndex < testData.Count; dataIndex++)
            {
                var item = testData[dataIndex];
                addTimings.Add(TimeAction(() =>
                {
                    cache.Add(item);
                }));
                getTimings.Add(TimeAction(() =>
                {
                    cache.Get(item.Id);
                }));
                searchTimings.Add(TimeAction(() =>
                {
                    cache.Search(item.Id);
                }));
            }
            clearTimings.Add(TimeAction(cache.Clear));
        }
        Log($"{type}\tAdd\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{addTimings.Average:0.000}\tticks");
        Log($"{type}\tGet\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{getTimings.Average:0.000}\tticks");
        Log($"{type}\tSearch\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{searchTimings.Average:0.000}\tticks");
        Log($"{type}\tClear\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{clearTimings.Average:0.000}\tticks");
    }
    catch (Exception ex)
    {
        Log($"{type}\tFail\tDataCount\t{dataCount}\tIterations:\t{iterations}\tFailed\t{ex.Message}");
    }
}

private float TimeAction(Action action)
{
    var sw = Stopwatch.StartNew();
    action();
    sw.Stop();
    return sw.ElapsedTicks;
}

3 threads executing at the same time.

• 1 thread Adds
• 1 thread Gets
• 1 thread Searches

The test is executed 1000 times per type and an average is calculated

The test rig:

private void ExecuteTestMulti(ICacheTest cache, int dataCount, int iterations)
{
    var type = cache.GetType().Name;
    try
    {
        var testData = GenerateTestData(dataCount);
        var getAverage = new RunningAverage();
        var searchAverage = new RunningAverage();
        var writeAverage = new RunningAverage();
        for (int i = 0; i < iterations; i++)
        {
            foreach (var data in testData)
                cache.Add(data);

            var d = testData.GetRandom();
            var startTime = DateTime.UtcNow.AddMilliseconds(8);
            var getter = CreateThread(startTime, () => { cache.Get(d.Id); });
            var searcher = CreateThread(startTime, () => { cache.Search(d.Id); });
            var writer = CreateThread(startTime, () => {cache.Add(CacheItem.Create());});

            getter.Thread.Start(startTime);
            writer.Thread.Start(startTime);
            searcher.Thread.Start(startTime);
            getter.Thread.Join();
            searcher.Thread.Join();
            writer.Thread.Join();
            if (!getter.Verify(type, Log)
                || !searcher.Verify(type, Log)
                || !writer.Verify(type, Log))
            {
                return;
            }
            getAverage.Add(getter.WorkIterations);
            searchAverage.Add(searcher.WorkIterations);
            writeAverage.Add(writer.WorkIterations);
            cache.Clear();
        }
        Log($"{type}\tGets\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{getAverage.Average:0}\tgets");
        Log($"{type}\tSearch\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{searchAverage.Average:0}\tsearches");
        Log($"{type}\tWrites\tDataCount\t{dataCount}\tIterations:\t{iterations}\tAverage:\t{writeAverage.Average:0}\twrites");
    }
    catch (Exception ex)
    {
        Log($"{type}\tFail\tDataCount\t{dataCount}\tIterations:\t{iterations}\tFailed\t{ex.Message}");
    }
}

private WorkerResult CreateThread(DateTime start, Action action )
{
    var work = new WorkerResult();
    work.Thread = new Thread((context =>
    {
        try
        {
            while (DateTime.UtcNow < start)
                Thread.Sleep(0);
            var sw = Stopwatch.StartNew();
            while (sw.ElapsedMilliseconds < 50)
            {
                action();
                work.Increment();
            }
        }
        catch (Exception ex)
        {
            work.Exception = ex;
        }
    }))
    {
        IsBackground = true
    };
    return work;
}

private class WorkerResult
{
    public Thread Thread { get; set; }
    public Exception Exception { get; set; }
    public float WorkIterations => _workIterations;
    private float _workIterations;

    public void Increment()
    {
        _workIterations++;
    }

    public bool Verify(string type, Action<string> logger)
    {
        if (Exception != null)
        {
            logger($"{type}\tFail\tDataCount\t-\tIterations:\t-\tFailed\t{Exception.Message}");
            return false;
        }
        return true;
    }
}

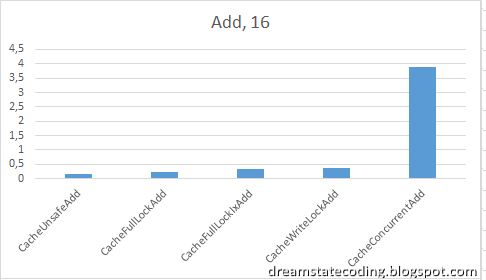

Results

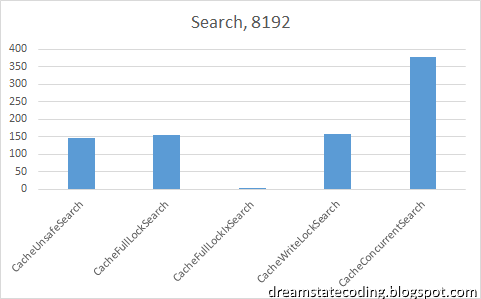

So not much surprising here, the ConcurrentDictionary lost the search category and unsurprisingly the for the cause optimized lookup was the fastest that became clear with a little more data.
The Add and Get categories was won by the unsafe lookup, not really interesting for this test but
good for a baseline. The ConcurrentDictionary seems to have lost most categories.

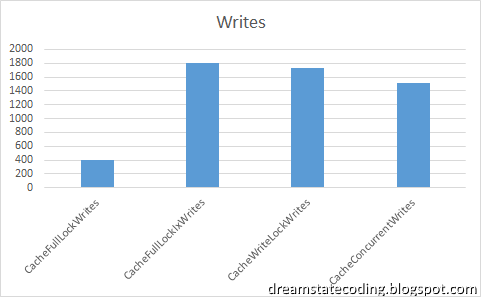

Multi-threaded results

    The full lock strategy seems to fail here, probably as they all lock out each other. I.e. a long duration search locks out other readers. The switch to full lock with a lookup dictionary instead of a linq query won the searches count by far, but that tends to be the case most times when writing a non-generic bit of code to optimize your scenario. So no surprise there.
The ConcurrentDictionary actually holds its place quite well, if you use it as a dictionary only. Doing searches in it seems to go very slow.

Conclusions

The numbers seem to jump a little and the conclusion I can draw is that if performance is key to your success, do your own performance tests for your exact scenario. For the general case, I think that I'll stick with the Full-Lock and extra indexes if needed strategy for now. The extra complexity needed to get a ReaderWriterLock is in my mind not worth the risk of me or someone else screwing it up, at least not for a 1 writer, 2 readers scenario.


All code provided as-is. This is copied from my own code-base, May need some additional programming to work. Hope this helps someone out there :)CodeProject

Until next time: Work to Live, Don’t Live to Work
