Dots mania (Game tutorial)

, 18 Aug 2017
Rate this:
Please Sign up or sign in to vote.
Simple game tutorial. Play in dots with your family and friend.

Introduction

Dots is another famous game we will create. The rules are simple, you need to circle the opponent's dots. I played dots quite often in high school, mainly on religion :P. I have a big sentiment for this game so when I learned to program, I really wanted to do this game. After some unsuccessful attempts, I surrendered a little, but returned to the project and finished it. The tutorial is designed to present the idea of a lap of dots which is the main element of the game.

I also made a downloadable game, where you can play with a friend over a LAN, if someone can divert ports either via the Internet, or in front of a monitor with a friend, or with a computer(created computer AI is on easy level). Game presented below is not an advertisement of me. Game below show how you can use code, this tutorial have to show only game engine, hearth of the game. If you have any question, like "why my panel glows and panel in your game not" or "how did you do ...." just ask i will answer you. When i prepare tutorial, i always want to create oportunity for you to test skills, give you challenge. Try to create your own game based on this code and you will see your skills will increase your skills. :

Using the code

The form that will be demonstrated in this tutorial is quite simple:





Element typeElement nameProperties
FormForm1

Name: Form1

Text: Dots mania

Size: 840; 663

PanelMain_board

Name: Main_board

Size: 800; 600

Location: 12;12

BackColor: White

Anchor: Top, Bottom, Left, Right

In this tutorial, the game starts when form load, we will not build unnecessary buttons and embellishments that will only obscure and blur the main engine of the game. Our game will look like the gif below:

Anyone who understands what the method of circling the dots do, will be able to add additional elements he wants to. We create Form Load:

Public Class Form1
   'Main board size
    Dim bHeight As Integer = 15
    Dim bWidth As Integer = 20
    Dim PLocationList As New List(Of List(Of Panel)) 'all panels on the board list


    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        For i As Integer = -2 To bWidth + 1
            Dim PanList As New List(Of Panel)
            For j As Integer = -2 To bHeight + 1
                Dim MainPanel As New Panel
                With MainPanel
                    .Location = New Point(i * 40 + 30, j * 40 + 30)
                    .Size = New Size(20, 20)
                    .BackColor = Color.Transparent
                    .Name = "panL_" + i.ToString + "^" + j.ToString + "^"
                    .Cursor = Cursors.Hand
                    'AddHandler .Click, AddressOf pan_Click
                    'Cross out the board, explain on the tutorial
                    If i = -2 Or i = -1 Or j = -1 Or j = -2 Or i = bWidth Or j = bHeight Or i = bWidth + 1 Or j = bHeight + 1 Then
                        .Enabled = False
                    End If
                End With
                Main_board.Controls.Add(MainPanel) ' Add items to the panel
                PanList.Add(MainPanel)
            Next
            'The variable stores all board panels
            PLocationList.Add(PanList)
        Next
        'generate board grid
        Dim bit As Bitmap = New Bitmap(Main_board.Width, Main_board.Height)
        Dim g As Graphics = Graphics.FromImage(bit)

        Dim myPen As Pen = New Pen(Color.FromArgb(191, 218, 229), 1)
        For i As Integer = 40 To Main_board.Height Step 40
            g.DrawLine(myPen, 0, i, Main_board.Width, i)
        Next
        For i As Integer = 40 To Main_board.Width Step 40
            g.DrawLine(myPen, i, 0, i, Main_board.Height)
        Next
        Main_board.BackgroundImage = bit
    End Sub
End Class

After launching the program our eyes should show a ready-to-dots page, you can be tempted to change it to look more like a page from a notebook. An important element that we should pay attention to is putting our panels outside the area of the sheet. Because during the program operation the elements will be processed in a logical way, this process will require checking the above, below, left and right side of the dot. Add additional panels which the user will not have access at the beginning will be more convenient than the given an restriction.
If we would color these areas, they will look like in the picture:

These areas will be treated as empty areas and their blocking will ensure that they stay that way.

Now it's time to unlock:

AddHandler .Click, AddressOf pan_Click

Add code below:

    'Current player
    Dim Player As Boolean = True
    'dots list
    Dim Player1DotsL As New List(Of Panel)
    Dim Player2DotsL As New List(Of Panel)
    Dim bit As Bitmap
    Dim g As Graphics
    'Colors
    Dim pGreen As New System.Drawing.SolidBrush(System.Drawing.Color.Green)
    Dim pRed As New System.Drawing.SolidBrush(Color.Red)

    Public Sub pan_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)
        If Player Then 'green
            bit = New Bitmap(20, 20)
            g = Graphics.FromImage(bit)
            'Added a checked panel to the list
            Player1DotsL.Add(DirectCast(sender, Panel))
            g.FillEllipse(pGreen, New Rectangle(5, 5, 10, 10))
            DirectCast(sender, Panel).BackgroundImage = bit
            DirectCast(sender, Panel).Enabled = False
            'LapTest()
        Else 'red
            bit = New Bitmap(20, 20)
            g = Graphics.FromImage(bit)
            'Added a checked panel to the list
            Player2DotsL.Add(DirectCast(sender, Panel))
            g.FillEllipse(pRed, New Rectangle(5, 5, 10, 10))
            DirectCast(sender, Panel).BackgroundImage = bit
            DirectCast(sender, Panel).Enabled = False
            'LapTest()
        End If

    End Sub
    End Sub

We can now put dots. One color, because the player does not change status to false, but will do it in another loop. Because the rules of the game require that. When a player encircle an opponent, he may place an extra dot.

As for the easy things, it's just over. Now you have to embrace what I mean by explaining how some things work. The hardest part of the game is to find out if the dots are encircled. When the dot is one, the situation is obvious. Check out all sides of dot if is surrounded by dots of the opponent. Unfortunately, this is one of the many situations we have to consider. I will try to explain what and how, if someone does not understand, then he can write me an email or leave a comment.

Unlock code:

LapTest()

The code for this element together with the first function looks like this:

  Private Sub LapTest()
        Dim EdgeList As New List(Of Panel)
        'Adds elements adjacent to dots to the list
        If Not Player1DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player1DotsL))
        End If
        If Not Player2DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player2DotsL))
        End If

    End Sub

     'The function returns elements adjacent to dots
    Private Function Borders(ByRef PlayerList As List(Of Panel)) As List(Of Panel)
        Dim BorderList As New List(Of Panel) 'hold adjacent items
        For k As Integer = 0 To PlayerList.Count - 1

            Dim positionX As Integer = 0
            Dim positionY As Integer = 0
            'Get actual panel position
            For i As Integer = 0 To PLocationList.Count - 1
                For j As Integer = 0 To PLocationList(i).Count - 1
                    If PLocationList(i)(j).Name = PlayerList(k).Name Then
                        positionX = i
                        positionY = j
                    End If
                Next
            Next
            'Check that there are empty elements from left, right, top and bottom
            If Not BorderList.Contains(PLocationList(positionX - 1)(positionY)) And
                Not Player1DotsL.Contains(PLocationList(positionX - 1)(positionY)) And
                Not Player2DotsL.Contains(PLocationList(positionX - 1)(positionY)) Then
                BorderList.Add(PLocationList(positionX - 1)(positionY))
            End If
            If Not BorderList.Contains(PLocationList(positionX + 1)(positionY)) And
                Not Player1DotsL.Contains(PLocationList(positionX + 1)(positionY)) And
                Not Player2DotsL.Contains(PLocationList(positionX + 1)(positionY)) Then
                BorderList.Add(PLocationList(positionX + 1)(positionY))
            End If
            If Not BorderList.Contains(PLocationList(positionX)(positionY + 1)) And
                Not Player1DotsL.Contains(PLocationList(positionX)(positionY + 1)) And
                Not Player2DotsL.Contains(PLocationList(positionX)(positionY + 1)) Then
                BorderList.Add(PLocationList(positionX)(positionY + 1))
            End If
            If Not BorderList.Contains(PLocationList(positionX)(positionY - 1)) And
                Not Player1DotsL.Contains(PLocationList(positionX)(positionY - 1)) And
                Not Player2DotsL.Contains(PLocationList(positionX)(positionY - 1)) Then
                BorderList.Add(PLocationList(positionX)(positionY - 1))
            End If
        Next
        Return BorderList
    End Function

The methods contained in the above function return the list of elements adjacent to the dots.



In the photos we see colored adjoining elements. The next step is to create a particular list of elements. I call this list "freedomPoints". Any collision of an element or group during a lap check with this list will mean that the dots are not encircled.

    Private Sub LapTest()
        Dim EdgeList As New List(Of Panel)
        'Adds elements adjacent to dots to the list
        If Not Player1DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player1DotsL))
        End If
        If Not Player2DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player2DotsL))
        End If


        Dim FreedomList As New List(Of List(Of Panel))
        FreedomList = freedomPoints(EdgeList)

    End Sub

      'Points of freedom
    Private Function freedomPoints(ByRef adjacent As List(Of Panel)) As List(Of List(Of Panel))
        Dim PanelsList As New List(Of List(Of Panel))

        Dim ListLength As Integer = PLocationList(0).Count
        Dim ListSize As Integer = PLocationList.Count
        'Adding elements from bottom
        For i As Integer = ListSize - 1 To 0 Step -1
            Dim lista As New List(Of Panel)
            For j As Integer = ListLength - 1 To 0 Step -1
                If Not adjacent.Contains(PLocationList(i)(j)) Then
                    lista.Add(PLocationList(i)(j))
                Else
                    Exit For
                End If

            Next
            PanelsList.Add(lista)
        Next
        'Adding elements from above
        For i As Integer = 0 To ListSize - 1
            Dim lista As New List(Of Panel)
            For j As Integer = 0 To ListLength - 1
                If Not adjacent.Contains(PLocationList(i)(j)) Then
                    lista.Add(PLocationList(i)(j))
                Else
                    Exit For
                End If

            Next
            PanelsList.Add(lista)
        Next
        'Adding elements from right side
        For i As Integer = ListLength - 1 To 0 Step -1
            Dim lista As New List(Of Panel)
            For j As Integer = ListSize - 1 To 0 Step -1
                If Not adjacent.Contains(PLocationList(j)(i)) Then
                    lista.Add(PLocationList(j)(i))
                Else
                    Exit For
                End If
            Next
            PanelsList.Add(lista)
            If i = ListSize Then
                Exit For
            End If
        Next
        'Adding elements from left side
        For i As Integer = 0 To ListLength - 1
            Dim lista As New List(Of Panel)
            For j As Integer = 0 To ListSize - 1
                If Not adjacent.Contains(PLocationList(j)(i)) Then
                    lista.Add(PLocationList(j)(i))
                Else
                    Exit For
                End If
            Next
            PanelsList.Add(lista)
            If i = ListSize Then
                Exit For
            End If
        Next
        Return PanelsList
    End Function

This function returns a list that contains checked elements from all sides:

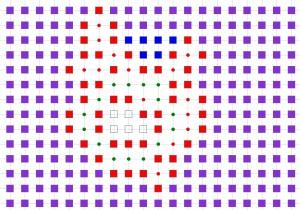

As you can see in the picture, the elements border with dots are not added to the list because they are stored in another list(BorderList). How does this function work when we have more items? Well as in the image below:

Violet and blue elements are the result of the "freedomPoints" function, and the red is the effect of the "Borders". Look at the elements in the middle, surrounded by green dots, they have no color, they are very important because they will be our way to freedom from the encircle. We will now begin with a very important chapter in which we will group our dots. An important element here will be played by the player, we must know which player has just placed a dot. Such knowledge gives us a variable "Player". At the moment when a green dot is placed, we do not consider green dots, we consider red dots. Since all the dots of the red player are grouped together we check each groupis is breaking to our "FreedomList", if not any break, it means that it is encircled. Pre-grouping is pretty easy. We create groups of adjoining elements,we add them to the list, and then the lists that contain the same elements join together:

(Wygenerowana lista paneli - Generated panel list)

 Let's see what the method code looks like:

    Private Sub LapTest()
        Dim EdgeList As New List(Of Panel)
        'Adds elements adjacent to dots to the list
        If Not Player1DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player1DotsL))
        End If
        If Not Player2DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player2DotsL))
        End If


        Dim FreedomList As New List(Of List(Of Panel))
        FreedomList = freedomPoints(EdgeList)

        Dim GroupList As New List(Of List(Of Panel))

        If Player Then 'Green
            GroupList = Group(Player2DotsL)
        Else 'Red
            GroupList = Group(Player1DotsL)
        End If

    End Sub

     'This function creates an initial group of dots
    Private Function Group(ByRef PlayerList As List(Of Panel)) As List(Of List(Of Panel))
        Dim Groups As New List(Of List(Of Panel))
        'Enumerates all opponent dots
        For k As Integer = 0 To PlayerList.Count - 1
            Dim _continue As Boolean = True 'Block, does not add dots if already in some group
            For i As Integer = 0 To Groups.Count - 1
                If Groups(i).Contains(PlayerList(k)) Then
                    _continue = False
                    Exit For
                End If
            Next
            If _continue = True Then
                Dim PointsList As New List(Of Panel)
                PointsList.Add(PlayerList(k))
                'Get dot position
                Dim positionX As Integer = 0
                Dim positionY As Integer = 0
                For i As Integer = 0 To PLocationList.Count - 1
                    For j As Integer = 0 To PLocationList(i).Count - 1
                        If PLocationList(i)(j).Name = PlayerList(k).Name Then
                            positionX = i
                            positionY = j
                        End If
                    Next
                Next
                'Connects adjacent points to a group
                If Not PointsList.Contains(PLocationList(positionX - 1)(positionY)) And
                    PlayerList.Contains(PLocationList(positionX - 1)(positionY)) Then
                    PointsList.Add(PLocationList(positionX - 1)(positionY))
                End If
                If Not PointsList.Contains(PLocationList(positionX + 1)(positionY)) And
                    PlayerList.Contains(PLocationList(positionX + 1)(positionY)) Then
                    PointsList.Add(PLocationList(positionX + 1)(positionY))
                End If
                If Not PointsList.Contains(PLocationList(positionX)(positionY + 1)) And
                    PlayerList.Contains(PLocationList(positionX)(positionY + 1)) Then
                    PointsList.Add(PLocationList(positionX)(positionY + 1))
                End If
                If Not PointsList.Contains(PLocationList(positionX)(positionY - 1)) And
                    PlayerList.Contains(PLocationList(positionX)(positionY - 1)) Then
                    PointsList.Add(PLocationList(positionX)(positionY - 1))
                End If
                'Adds points to our list
                Groups.Add(PointsList)
            End If
        Next

        For i As Integer = 0 To Groups.Count - 1
            For j As Integer = 0 To Groups(i).Count - 1
                Dim PFGroup As Panel = Groups(i)(j)
                For r As Integer = 0 To Groups.Count - 1
                    If Not r = i And Groups(r).Contains(PFGroup) Then
                        'Merge lists
                        Groups(i).AddRange(Groups(r))
                        Groups(r).Clear()
                    End If
                Next
            Next
        Next
        'Removes empty lists
        For i As Integer = Groups.Count - 1 To 0 Step -1
            If Groups(i).Count = 0 Then
                Groups.RemoveAt(i)
            End If
        Next
        Return Groups
    End Function

The simplest example is an example with four dots:

For a moment in such lists we do not have to worry about repetitive elements. Such segregation, as we add colors, looks like this:

(Grupa-Group)

As we can see, Group B does not count empty fields for its group temporarily, so we do not know whether our group B is definitely encircled or not. The final stage is to add empty or boundary fields to our groups and remove from the list those groups that join our list of freedom.

    Private Sub LapTest()
        Dim EdgeList As New List(Of Panel)
        'Adds elements adjacent to dots to the list
        If Not Player1DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player1DotsL))
        End If
        If Not Player2DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player2DotsL))
        End If


        Dim FreedomList As New List(Of List(Of Panel))
        FreedomList = freedomPoints(EdgeList)

        Dim GroupList As New List(Of List(Of Panel))

        If Player Then 'Green
            GroupList = Group(Player2DotsL)
            GroupList = GroupEdition(Player1DotsL, GroupList, EdgeList, FreedomList)
        Else 'Red
            GroupList = Group(Player1DotsL)
            GroupList = GroupEdition(Player2DotsL, GroupList, EdgeList, FreedomList)
        End If

    End Sub

    Private Function GroupEdition(ByRef EnemyList As List(Of Panel), ByRef Groups As List(Of List(Of Panel)),
                                  ByRef EdgeList As List(Of Panel), ByRef ZoneList As List(Of List(Of Panel))) As _
                                  List(Of List(Of Panel))
        'The loop checks each item and adds them to the groups
        Do
            Dim StartLoop As Boolean = False
            For k As Integer = Groups.Count - 1 To 0 Step -1
                For l As Integer = 0 To Groups(k).Count - 1
                    Dim positionX As Integer = 0
                    Dim positionY As Integer = 0
                    'Get the current position of our panel
                    For i As Integer = 0 To PLocationList.Count - 1
                        For j As Integer = 0 To PLocationList(i).Count - 1
                            If PLocationList(i)(j).Name = Groups(k)(l).Name Then
                                positionX = i
                                positionY = j
                            End If
                        Next
                    Next
                    Dim _continue As Boolean = True
                    For i As Integer = 0 To ZoneList.Count - 1
                        'The Group element touches the list of freedom items, which indicates that it is not encircled
                        If ZoneList(i).Contains(PLocationList(positionX - 1)(positionY)) Or
                            ZoneList(i).Contains(PLocationList(positionX + 1)(positionY)) Or
                            ZoneList(i).Contains(PLocationList(positionX)(positionY - 1)) Or
                            ZoneList(i).Contains(PLocationList(positionX)(positionY + 1)) Then
                            _continue = False
                            'Remove list from Groups
                            Groups.RemoveAt(k)
                            Exit For
                        End If
                    Next

                    If _continue = True Then
                        'Adds border lists
                        If EdgeList.Contains(PLocationList(positionX - 1)(positionY)) And
                            Not Groups(k).Contains(PLocationList(positionX - 1)(positionY)) Then
                            Groups(k).Add(PLocationList(positionX - 1)(positionY))
                            StartLoop = True
                            'It adds its own elements and does not add opponent elements
                        ElseIf Not EnemyList.Contains(PLocationList(positionX - 1)(positionY)) And
                            Not Groups(k).Contains(PLocationList(positionX - 1)(positionY)) Then
                            Groups(k).Add(PLocationList(positionX - 1)(positionY))
                            StartLoop = True
                        End If

                        If EdgeList.Contains(PLocationList(positionX + 1)(positionY)) And
                            Not Groups(k).Contains(PLocationList(positionX + 1)(positionY)) Then
                            Groups(k).Add(PLocationList(positionX + 1)(positionY))
                            StartLoop = True
                        ElseIf Not EnemyList.Contains(PLocationList(positionX + 1)(positionY)) And
                            Not Groups(k).Contains(PLocationList(positionX + 1)(positionY)) Then
                            Groups(k).Add(PLocationList(positionX + 1)(positionY))
                            StartLoop = True
                        End If

                        If EdgeList.Contains(PLocationList(positionX)(positionY + 1)) And
                            Not Groups(k).Contains(PLocationList(positionX)(positionY + 1)) Then
                            Groups(k).Add(PLocationList(positionX)(positionY + 1))
                            StartLoop = True
                        ElseIf Not EnemyList.Contains(PLocationList(positionX)(positionY + 1)) And
                            Not Groups(k).Contains(PLocationList(positionX)(positionY + 1)) Then
                            Groups(k).Add(PLocationList(positionX)(positionY + 1))
                            StartLoop = True
                        End If

                        If EdgeList.Contains(PLocationList(positionX)(positionY - 1)) And
                            Not Groups(k).Contains(PLocationList(positionX)(positionY - 1)) Then
                            Groups(k).Add(PLocationList(positionX)(positionY - 1))
                            StartLoop = True
                        ElseIf Not EnemyList.Contains(PLocationList(positionX)(positionY - 1)) And
                            Not Groups(k).Contains(PLocationList(positionX)(positionY - 1)) Then
                            Groups(k).Add(PLocationList(positionX)(positionY - 1))
                            StartLoop = True
                        End If
                    Else
                        Exit For
                    End If
                Next
            Next
            'The loop works until all elements are checked or no longer in the group
            If Groups.Count = 0 Then
                Exit Do
            ElseIf StartLoop = False Then
                Exit Do
            End If
        Loop
        Return Groups
    End Function

This function will allow us to eliminate open groups and keep groups closed, or empty groups if all groups are open.

(Grupa jest okrążona - Group is encircled)

 When we know which group is encircled, it should be rounded and eliminated from play so that the opponent can no longer use them. This last thing we can easily get by adding encircled items to "Player1CheckedList" or "Player2CheckedList" then for one player the dots will be eliminated and for the other are useless since they are encircled (empty fields). Based on these lists, we can also tell you which player won, if we talk about winning in the context of the area occupied. Let's move on to the line drawing element, seeing the image above, it's easy to guess how we do it. We will check each rounded element or if it is next to the opponent's dot and create a list of those dots. Then, from the list, we will remove repetitive elements so that they are single, we will look at the elements that border them, and we will create a Tuple list that will store the line coordinates.

    Dim Player1CheckedList As New List(Of Panel)
    Dim Player2CheckedList As New List(Of Panel)

    Private Sub LapTest()
        Dim EdgeList As New List(Of Panel)
        'Adds elements adjacent to dots to the list
        If Not Player1DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player1DotsL))
        End If
        If Not Player2DotsL.Count = 0 Then
            EdgeList.AddRange(Borders(Player2DotsL))
        End If


        Dim FreedomList As New List(Of List(Of Panel))
        FreedomList = freedomPoints(EdgeList)

        Dim GroupList As New List(Of List(Of Panel))

        If Player Then 'Green
            GroupList = Group(Player2DotsL)
            GroupList = GroupEdition(Player1DotsL, GroupList, EdgeList, FreedomList)
            'List all elements in groups that remain
            For i As Integer = 0 To GroupList.Count - 1
                'Draws lines and creates a list of tuples
                DrawLines(GroupList(i), Player1DotsL, Player1CheckedList)
                For j As Integer = 0 To GroupList(i).Count - 1
                    'Elements can repeat, so the loop checks if they are no longer listed
                    If Not Player1CheckedList.Contains(GroupList(i)(j)) Then
                        Player1CheckedList.Add(GroupList(i)(j)) 'dodaje element
                        GroupList(i)(j).Enabled = False
                        'The condition removes an item from the opponents list so it can't longer be used
                        If Not Player2DotsL.IndexOf(GroupList(i)(j)) = -1 Then
                            Player2DotsL.RemoveAt(Player2DotsL.IndexOf(GroupList(i)(j)))
                            Player1DotsL.Add(GroupList(i)(j)) 'Adds current player to the list
                        End If
                    End If
                Next
            Next
            'Change player if nothing is encircled
            If Not GroupList.Count > 0 Then
                Player = False
            End If
        Else 'Red
            GroupList = Group(Player1DotsL)
            GroupList = GroupEdition(Player2DotsL, GroupList, EdgeList, FreedomList)
            'List all elements in groups that remain
            For i As Integer = 0 To GroupList.Count - 1
                'Draws lines and creates a list of tuples
                DrawLines(GroupList(i), Player2DotsL, Player2CheckedList)
                For j As Integer = 0 To GroupList(i).Count - 1
                    'Elements can repeat, so the loop checks if they are no longer listed
                    If Not Player2CheckedList.Contains(GroupList(i)(j)) Then
                        Player2CheckedList.Add(GroupList(i)(j)) 'dodaje element
                        GroupList(i)(j).Enabled = False
                        'The condition removes an item from the opponents list so it can't longer be used
                        If Not Player1DotsL.IndexOf(GroupList(i)(j)) = -1 Then
                            Player1DotsL.RemoveAt(Player1DotsL.IndexOf(GroupList(i)(j))) 'remove
                            Player2DotsL.Add(GroupList(i)(j)) 'Adds current player to the list
                        End If
                    End If
                Next
            Next
            'Change player if nothing is encircled
            If Not GroupList.Count > 0 Then
                Player = True
            End If
        End If
    End Sub

This modified LapTest will verify what you need, add it to your code. Now we will add the last element of "DrawLines" that will circle our points. It looks like this:

    Private Sub DrawLines(ByRef pane As List(Of Panel), ByRef PlayerList As List(Of Panel), ByRef cList As List(Of Panel))
        Dim AllLinesList As New List(Of Tuple(Of Panel, Panel))
        Dim d As Graphics
        d = Main_board.CreateGraphics()

        Dim OrderedPanelsList As New List(Of Panel)

        'Creates a list of all group panels without repetition
        For i As Integer = 0 To pane.Count - 1
            If Not OrderedPanelsList.Contains(pane(i)) Then
                OrderedPanelsList.Add(pane(i))
            End If
        Next

        Dim adjacentPanList As New List(Of Panel) 'List of adjacent panels
        For k As Integer = 0 To OrderedPanelsList.Count - 1

            Dim positionX As Integer = 0
            Dim positionY As Integer = 0
            For i As Integer = 0 To PLocationList.Count - 1
                For j As Integer = 0 To PLocationList(i).Count - 1
                    If PLocationList(i)(j).Name = OrderedPanelsList(k).Name Then
                        positionX = i
                        positionY = j
                    End If
                Next
            Next
            If PlayerList.Contains(PLocationList(positionX - 1)(positionY)) Then
                adjacentPanList.Add(PLocationList(positionX - 1)(positionY))
            End If
            If PlayerList.Contains(PLocationList(positionX + 1)(positionY)) Then
                adjacentPanList.Add(PLocationList(positionX + 1)(positionY))
            End If
            If PlayerList.Contains(PLocationList(positionX)(positionY + 1)) Then
                adjacentPanList.Add(PLocationList(positionX)(positionY + 1))
            End If
            If PlayerList.Contains(PLocationList(positionX)(positionY - 1)) Then
                adjacentPanList.Add(PLocationList(positionX)(positionY - 1))
            End If
        Next

        For k As Integer = 0 To adjacentPanList.Count - 1
            If Not cList.Contains(adjacentPanList(k)) Then
                Dim positionX As Integer = 0
                Dim positionY As Integer = 0
                For i As Integer = 0 To PLocationList.Count - 1
                    For j As Integer = 0 To PLocationList(i).Count - 1
                        If PLocationList(i)(j).Name = adjacentPanList(k).Name Then
                            positionX = i
                            positionY = j
                        End If
                    Next
                Next
                If adjacentPanList.Contains(PLocationList(positionX - 1)(positionY)) And
                    Not cList.Contains(PLocationList(positionX - 1)(positionY)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX - 1)(positionY)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX + 1)(positionY)) And
                    Not cList.Contains(PLocationList(positionX + 1)(positionY)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX + 1)(positionY)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX)(positionY + 1)) And
                    Not cList.Contains(PLocationList(positionX)(positionY + 1)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX)(positionY + 1)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX)(positionY - 1)) And
                    Not cList.Contains(PLocationList(positionX)(positionY - 1)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX)(positionY - 1)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX - 1)(positionY - 1)) And
                    Not cList.Contains(PLocationList(positionX - 1)(positionY - 1)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX - 1)(positionY - 1)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX + 1)(positionY + 1)) And
                    Not cList.Contains(PLocationList(positionX + 1)(positionY + 1)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX + 1)(positionY + 1)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX - 1)(positionY + 1)) And
                    Not cList.Contains(PLocationList(positionX - 1)(positionY + 1)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX - 1)(positionY + 1)))
                End If
                If adjacentPanList.Contains(PLocationList(positionX + 1)(positionY - 1)) And
                    Not cList.Contains(PLocationList(positionX + 1)(positionY - 1)) Then
                    AllLinesList.Add(Tuple.Create(adjacentPanList(k), PLocationList(positionX + 1)(positionY - 1)))
                End If
            End If
        Next

        'We draw circles and lines
        For i As Integer = 0 To AllLinesList.Count - 1
            AllLinesList(i).Item1.Visible = False
            AllLinesList(i).Item2.Visible = False
            Application.DoEvents()
            If Player Then
                Dim myPen As Pen = New Pen(pGreen, 2)
                d.DrawLine(myPen, AllLinesList(i).Item1.Location.X + 10, AllLinesList(i).Item1.Location.Y + 10,
                           AllLinesList(i).Item2.Location.X + 10, AllLinesList(i).Item2.Location.Y + 10)
                d.FillEllipse(pGreen, New Rectangle(AllLinesList(i).Item1.Location.X + 5,
                                                    AllLinesList(i).Item1.Location.Y + 5, 10, 10))
                d.FillEllipse(pGreen, New Rectangle(AllLinesList(i).Item2.Location.X + 5,
                                                    AllLinesList(i).Item2.Location.Y + 5, 10, 10))
            Else
                Dim myPen As Pen = New Pen(pRed, 2)
                d.DrawLine(myPen, AllLinesList(i).Item1.Location.X + 10, AllLinesList(i).Item1.Location.Y + 10,
                           AllLinesList(i).Item2.Location.X + 10, AllLinesList(i).Item2.Location.Y + 10)
                d.FillEllipse(pRed, New Rectangle(AllLinesList(i).Item1.Location.X + 5,
                                                  AllLinesList(i).Item1.Location.Y + 5, 10, 10))
                d.FillEllipse(pRed, New Rectangle(AllLinesList(i).Item2.Location.X + 5,
                                                  AllLinesList(i).Item2.Location.Y + 5, 10, 10))
            End If
        Next

    End Sub

This loop could requires some work yet but its assumptions are probably clear



License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

Share

About the Author

No Biography provided

You may also be interested in...

Pro
Pro

Comments and Discussions


-- There are no messages in this forum --
Permalink | Advertise | Privacy | Terms of Use | Mobile
Web03 | 2.8.170915.1 | Last Updated 18 Aug 2017
Article Copyright 2017 by VisualMonsters
Everything else Copyright © CodeProject, 1999-2017
Layout: fixed | fluid
