Learn Angular Tutorial

Rate me:
Please Sign up or sign in to vote.
4.90/5 (37 votes)
21 Sep 2017CPOL27 min read
This is Part 1 of Angular tutorial step by step. In the first part we will cover Node, TypeScript, Module loaders , bundlers and VS code.
This article teaches you Angular step by step but will focus on five labs that will cover the pre-requistes for Angular. This article covers Node (practicing NodeJS, Installing NodeJS, understanding package.json file), TypeScript (practicing Typscript, installing Typescript), VSCode, Module loaders, and Module Bundlers.


How does this article series teach you Angular ?
Why do we need Angular ?
Lab 1:- Practicing NodeJS

Lab 2:- Practicing TypeScript

Lab 3:- Practicing VS Code

Lab 4:- Understanding Module loaders using SystemJs

Lab 5:- Understanding Module Bundlers using WebPack


Links to rest of the articles


Why should we learn Angular? , the below stack overflow graph says it all. Its popular, its hot with lot of job openings. This article teaches you Angular step by step via 15 great Labs. So if you are here to learn Angular then you are at the right place and with the right article.

Image 1

In this first article we will cover 5 labs. These five labs will cover the pre-requiste for Angular. This article covers Node , TypeScript , VSCode , Module loaders and Module Bundlers.

AngularJS vs Angular. There are two versions of Angular the old is named as AngularJS and the new one is named as just Angular. So when someone says AngularJS it means Angular 1.X and when some one says JUST Angular its Angular 2/4.

You can also start learning Angular from the below youtube video which teaches Angular step by step: -

Image 2

If you are learner preparing for interview then below is the video covering Angular interview Q & A: -

Image 3

How does this article series teach you Angular ?

The best way to learn Angular or any new technology is by creating a project. So in this step by step series we will be creating a simple Customer data entry screen project.

This project will have the following features: -

  • Application should have capability of accepting three fields Customer name , Customer and Customer Amount values.
  • Customer name and Customer codes are compulsory fields and it should be validated.
  • Application will have a “Add” button which help us to post the current customer data to a Server. Once the data is added to the server it should displayed on the grid.
  • Application will have a navigation structure where in we will have logo and company name at the top , navigational link at the left and copy right details at the bottom of the screen.

Image 4 Image 5

So above is the road map for this article. It has three phases: -

Theory Phase:- In this phase we will understand what is Angular and why do we need it.

Pre-requisite phase:-In this phase we will four important things Node, Typescript , VSCode , Module loaders ( SystemJS) and module bundlers ( Webpack).

Main learning phase :- This is where actual angular starts. In this we will be having 8 labs and while covering those labs we will creating the customer data entry screen project as discussed previously.

So do not wait any more start LAB by LAB and STEP by STEP.

Should I start from Angular 1, 2 or 4. Angular 1.X and 2.X are very much different. So even if you have done Angular 1.X you have to restart fresh from Angular 2.X. Angular 2.X and Angular 4.X are backward compatible so if you are learning Angular 2 you are learning Angular 4 and ahead. So people who are new to Angular just start from Angular 4 and this article teaches Angular 4.

Why do we need Angular ?

“Angular is an open source JavaScript framework which simplifies binding code between JavaScript objects and HTML UI elements.”

Let us try to understand the above definition with simple sample code.

Below is a simple “Customer” function with “CustomerName” property. We have also created an object called as “Cust” which is of “Customer” class type.

function Customer()
this.CustomerName = "AngularInterview";
var Cust = new Customer();

Now let us say in the above customer object we want to bind to a HTML text box called as “TxtCustomerName”. In other words when we change something in the HTML text box the customer object should get updated and when something is changed internally in the customer object the UI should get updated.

<input type=text id="TxtCustomerName" onchange="UitoObject()"/>

So in order to achieve this communication between UI to object developers end up writing functions as shown below. “UitoObject” function takes data from UI and sets it to the object while the other function “ObjecttoUI” takes data from the object and sets it to UI.

function UitoObject()
Cust.CustomerName = $("#TxtCustomerName").val();
function ObjecttoUi()

So if we analyze the above code visually it looks something as shown below. Your both functions are nothing but binding code logic which transfers data from UI to object and vice versa.

Image 6

Binding Code

Now the same above code can be written in Angular as shown below. So now whatever you type in the textbox updates the “Customer” object and when the “Customer” object gets updated it also updates the UI.

<input type=text [(ngModel)]="Customer.CustomerName"/>

In short if you now analyze the above code visually you end up with something as shown in the below figure.You have the VIEW which is in HTML, your MODEL objects which are javascript functions and the binding code in Angular.

Image 7

Now that binding code have different vocabularies.

  • Some developers called it “ViewModel” because it connects the “Model” and the “View” .
  • Some call it “Presenter” because this logic is nothing but presentation logic.
  • Some term it has “Controller” because it controls how the view and the model will communicate.

To avoid this vocabulary confusion Angular team has termed this code as “Whatever”. It’s that “Whatever” code which binds the UI and the Model. That’s why you will hear lot of developers saying Angular implements “MVW” architecture.

So concluding the whole goal of Angular is Binding, Binding and Binding.

Lab 1:- Practicing NodeJS

So the first Javascript open source which you should know before learning Angular is NodeJS. In this lab whatever I am adding is also demonstrated in this youtube video as well, so feel free to see demonstrative lab.

Theory :- What is NodeJS ?

NodeJS is an open source JavaScript framework which does two things: -

  • It helps you to run JavaScript outside the browser. NodeJS uses the chrome JavaScript engine to execute JavaScript outside the browser so that we can create desktop and server based application using JavaScript.
  • It also acts a central repository from where we can get any JavaScript framework using NPM (Node package manager).

Learn but do not over learn. NodeJS is a big topic by itself. For Angular we just need to know how to use NPM commands. So we will be limiting ourselves only around how to use NPM. We will not be doing full-fledged node programming. Remember Javascript is vast do not do unnecessary learning you will loose focus.

Step 1 :- Installing NodeJs

In order to install NodeJS goto and download the latest version and install it.

Image 8 Once you install node you should see NodeJs command prompt in your program files as shown in the figure.

We can then open the NodeJS command prompt and fire NPM commands inside this command prompt.

In case you are completely new to NodeJS please see this NodeJS Video which explains NodeJS in more details.

Step 2:- Practicing NPM Install command

So let’s practice the first command in NPM “npm install”. “npm install” command helps you get the latest version of any javascript opensource framework.

For example if you want to install jquery you will open node command prompt and type “npm install jquery” and once you press enter you should see “jquery” has been installed in your computer.

Image 9


Are you wondering where has Jquery been installed. It has been installed in the same folder where you ran the NPM command.

In that folder he has created a “node_modules” folder and in that he has created “jquery” folder where all Jquery had been loaded by “npm”.

Image 10

Step 3:- Understanding package.json file

When you work with large projects you would need lot of JavaScript frameworks. So in one project you would probably need jquery , angular , lodash and so on. Doing “npm install” again and again is definitely wasting precious time of your life.
So to load all javascript framework references in one go “npm” team has given a package.json. In this package.json file you can make an entry to all javascript references and load them in one go.

To create package.json file open the node command prompt and type “npm init”. After “npm init” command it would ask for package name , version number , project description and so on. Once you fill all the question it will create a package.json file in your current folder. Below is how “npm init” command looks like.

Image 11

Once npm init command has been successfully executed it creates a “package.json” file in the current folder. If you open “package.json” file it has the following below structure.

Do not overload yourself with all the information just zoom on the “dependencies” node. This node has all JavaScript dependencies listed out with version number. So in our package.json file we have all the dependencies listed down.

  "name": "test",
  "version": "1.0.0",
  "description": "",
  "main": "MyClass.js",
  "dependencies": {
    "angular": "^1.6.5",
    "jquery": "^3.2.1",
    "knockout": "^3.4.2",
    "lodash": "~4.17.4"
  "devDependencies": {},
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  "author": "",
  "license": "ISC"
Wherever “package.json” file is created you just need to type “npm install” command as shown in the figure.

If you remember in package.json file we had 3 JavaScript framework dependencies listed those will be installed one after another. You can see in the image its stating “added 3 packages”.

Image 12

Learn but do not over learn. Package.json has lot of configuration do not spend your stamina in learning all those. As we do the labs ahead I will be walking through important ones. So keep moving ahead with the chapters.

Understanding versioning system in package.json

Most software versions follow semantic versioning. In semantic versioning versions are divided in to three numbers as shown in the image below.

The first number is termed as “major version” , second “minor version” and third “revision”.

Major version: - Any increment in major version is an indication that there are breaking changes in the software functionality. It’s very much possible that the old code will not work with these changes and have to be tested properly.

Minor version: - This version is incremented when we add new features but the old code still works.

Revision:- This version is incremented when we are just doing bug fixes. So there are no new functionalities added, no breaking changes and back ward compatible with old code .

Image 13


NPM follows semantic versioning but it also has some more special characters like “^”, “~”, “>” and so on. They dictate how NPM get latest should behave for Major and Minor versions.

For these formats 3 formats are very primary let’s understand each them.

Exact (1.6.5) , Major/Minor ( ^1.6.5) or Minor(~1.6.5).

Image 14


Exact (1.6.5): - This will do a get latest of exact version 1.6.5 not more or not less. If that version is not available it will throw up an exception.

Major/Minor(^1.6.5): - The carrot sign will get minimum 1.6.5 and if there are any higher MINOR / REVISION versions it will get that. It WILL NEVER GET HIGHER MAJOR VERSIONS. So if 1.6.5 has 1.6.7 it will get that, if it has 1.7.7 it will that , but if it as 2.0 it will NOT get that.

Minimum or lower (~1.6.5): - The tilde sign will get HIGHER REVISIONS. For if 1.6.5 has 1.6.7 it will get that , but if it has 1.7.5 it will not be installed , if it has 2.0 it will not be installed.

Image 15

What is package-lock.json file ?

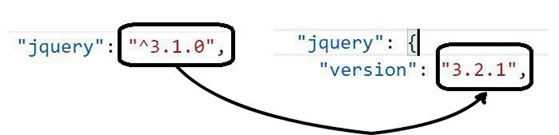

As discussed in the previous sections package.json has “^” and “~” versioning mechanism. Now suppose in your package.json you have mentioned "jquery": "^3.1.0"and Jquery has a new version “3.2.1”. So in actual it will install or in other words LOCK DOWN to “3.2.1”.

So in package.json you will have “^3.1.0” but actually you will be using “3.2.1”. This entry of actual version is present in “package-lock.json”. So package lock files have the EXACT versions which are used in your code.

Below is the image snapshot of both the files.

Image 16

Important NPM commands

NPM has huge command list. But here are some very important command which you will need now and then. As said previously Learn but do not over Learn.

Command Explanation
npm install -g typescript The -g command will install the package globally. In other words in your computer when you use this package it will take the global installation. This should be used only for command lines packages like grunt , typescript, npm and so on.
npm install -save jquery This will install the package and also make a entry in to the package.json file. Some time we are use a package in our project and forget to update package.json this comes very handy.

npm view -version jquery
npm view -versions jquery

This first command will show you latest Jquery version on github and the second one will show all version in a ascending manner.
npm install -g npm This command updates npm himself. “-g” as discussed in previously helps to install npm globally.

Lab 2:- Practicing TypeScript

Angular is created using typescript language. So if you are doing development with Angular typescript is the way to go ahead.

Introduction :- Why do we need typescript ?

Now JavaScript is a great and WEIRD language. So in JavaScript if you want to do inheritance you need to use prototype, it’s not a strongly typed language, there is no polymorphism and so on. So when developers who come from C# and Java background it’s very difficult for them to get acquainted with this weird language. People who come from C# and Java background use OOP features a lot.

So to fill this GAP answer is “TypeScript”.

“TypeScript is a sugar-coated Object-oriented programming language over JavaScript.”

Image 17

So in typescript we can write code using keywords like “class” , “extends” , “interface” and so on.

Internally typescript will compile ( must be right word would be “transpile”) in to pure javascript code in terms of functions , closures and IIFE.

Please do watch this 1 hour Training video on TypeScript which explains Typescript in more detail.

Step 1 :- Installing typescript

So to install typescript we need to use “npm”. Typescript is a javascript open source framework so the best way to get it installed is by using “npm”. So open node command prompt and type “npm install typescript -g”.

The “-g” command says that you can execute typescript command from any folder.

Image 18

Step 2 :- Compiling a simple Typescript to Javascript

Let’s try to understand how can we compile a typescript to javascript. So lets create a simple “Customer.ts” file with the following code.

class Customer{

Now open nodeJS command prompt and type command ‘tsc “Customer.ts”’. Once you press enter it will create “Customer.js” in the same folder.
If you remember “tsc” was registered globally during “npm install” command. So this “tsc” command can be executed in any folder.

Image 19

Below is the javascript output from typescript command line utility.

var Customer = (function () {
    function Customer() {
    return Customer;

Many people term this conversion from typescript to JavaScript as “compiling”. Personally, I feel we should call this process as “transpiling”.
Compiling converts from a higher level languages like C# , Java , C++ to machine language or some intermediate language which cannot be read by humans. While transpiling converts from one higher level language to another higher-level language.

In this both typescript and JavaScript are higher level language. So let’s term this process and transpiling and lets call typescript as a “transpiler” rather than a compiler.

Step 3 :- Using tsconfig.json file

The transpiling process of typescript has lot of advance settings. Below are some options you can pass to tsc command line while compiling:-

Options Description
tsc Customer.ts –removecomments While transpiling the comments will be removed
tsc Customer.ts --target ES5 This will compile using ES5 specifications.
tsc Customer.ts --outdir "c:\users\shiv" This will compile to a specific output directory
tsc foo.ts bar.ts –outFile “Single.js” This will compile multiple TS files to single JS file.
tsc Customer.ts -w This command will run typescript continuously in the background and keep looking for changed files. If the file it will compile that file.

But now let’s think practically, if I want transpile with ES5 specification, to a specific directory with out comments the command line would become something as shown below.

tsc Customer.ts --outdir "c:\users\shiv" --target ES5 --removecomments

That’s where tsconfig.json file comes to rescue. You can put all these configurations in “tsconfig.json” file and then just execute “tsc”.

  "compilerOptions": {
    "target": "es5",
    "removeComments": false,
    "outDir": "/Shiv"

Learn but do not over learn. Tsconfig.json has 1000’s of properties do not spend your stamina in understanding all of them now. Move ahead with the labs when any new typescript config comes up we will look in to it.

Lab 3:- Practicing VS Code

What is VS Code?

Theoretically you can do Angular with a simple notepad. But then that would be going back to back ages of adam and eve and reinventing the wheel. So we will need some kind of tools by which will help us to type HTML easily, compile typescript and so on.

That’s where VS code is needed. VS code is a free editor provided by Microsoft which will help us with all automation for HTML, JavaScript, Typescript and so on.

So go to and depending on your operating system install the appropriate one. For instance I am having windows OS so I will be installing the windows version.

Once you download the setup it’s a simple setup EXE run it and just hit next , next and finish.

You can also watch this VS code tutorial which will help you to understand



Point number 1 :- All actions happens in a folder

In VS code all source code you put inside a folder. So the first step is to create a folder and point VS code to that folder by clicking on File ➔ Open and select folder shown in the below figure.

Image 20

Point number 2 :- Creating files and folders

If you want to create a file or sub folder you can click on the icons as shown in the figure.

The first icon creates a file and the second icon creates a folder.

Image 21

Point number 3 :- Explorer and Open Editors

The explorer part of VS code has two section one which shows open editors and the other which shows your folder. You can see the image where open editors are shown. You can click on those cross signs to close the open files.

Image 22

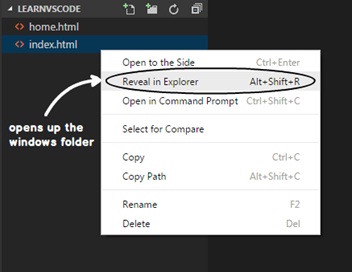

Point number 4:- Reveal in explorer

If you want to browse to the current folder. You can right click on the folder and click on reveal in explorer.

Image 23

Point number 5: - Integrated terminal

Typescript, Node these frameworks mostly run through command prompts. So it would be great if we can have integrated command line inside VS code. VS code has something called as integrated terminal , you can open the integrated terminal by clicking on view ➔ integrated terminal.

Once you are inside the integrated terminal you can fire “npm install” , “tsc” and so on. Below is how the integrated terminal looks like.

Image 24

Point number 6: - Running multiple terminals

One of the things we always need is running multiple command and for that we need a facility to load multiple terminals.

In VS code we can load multiple terminals by clicking on the plus sign as shown below. So in one terminal you can run the webserver and in the other terminal you can a code review tool.

Image 25

Point number 7: - Changing to soothing color themes

By default, VS code shows black theme which is very good for health of your eyes. But sometimes to just have more code clarity you would like to change to some more brighter theme. You can do that by clicking on file ➔ preferences ➔ color theme, you would get themes as shown in the below figure.

Image 26

Point number 8: - VS code settings

VS code has lot of settings like you can hide unwanted files and only focus on the files you want, change icons settings, change font size and so on. To apply a setting, you need to goto File ➔ Preferences ➔ Settings and you would be shown a figure as shown below.

In this there are two sections one which has the preference SAMPLE CODE SNIPPETS and the second section at what level you want to apply these snippets. You can apply snippets at two levels one at a project workspace level and other at user / computer level.
If you apply at the workspace level its only for that project and if you apply at the user level it will be applied for all projects in that computer.

Image 27

For example in the user settings we have pasted the file exclude settings. In this we have specified we do not want to see the “.JS” and “.Map” files in the workspace.

    "workbench.sideBar.location": "left",
    "window.zoomLevel": 2,
    "window.menuBarVisibility": "default",
    "files.exclude": {
    "**/*.js": true,
    "**/*": true,
    "**/.hg": true,
    "**/CVS": true,
    "**/.DS_Store": true
  "workbench.colorTheme": "Visual Studio Light"

Once that setting is applied you can see the “JS” and “Map” files are not seen.

Image 28

Lab 4:- Understanding Module loaders using SystemJs

You can watch the below videos which demonstrates concept of Module Loaders and SystemJS practically.

Topic name YouTube URL source
System JS
Common JS concept

Step 1 :- TypeScript Modules and Import / Export keywords

Modular development is one of the important pillars of development. A good software will always have self-contained modules.

So you would like to create separate physical typescript or JavaScript files which will have self-contained code. Then you would like have to some kind of reference mechanism by which modules can be referred between those physical files.

In typescript, we do this by using “import” and “export” keywords.

So the modules which needs to be exposed should have the “export” keyword while modules which want to import the exported modules should have “import” keyword.

Image 29


For instance, let’s say we have two typescript files “Customer.ts” and “Dal.ts”. Let’s assume “Customer.ts” is using “Dal.ts”.

So “Dal.ts” will use export to expose his modules while “Customer.ts” will use to import to get the exported module.

Image 30

So in “Dal.ts” the classes which you want to export should be marked as “exported” as shown in the below code. If you do not mark it exported it cannot be imported.

export class Dal{
        alert("Dal add called");

Now in the “Customer.ts” we use “import” to call the exported class from the “Dal.ts”.

import {Dal} from "./Dal "
export class Customer{
       var dal = new Dal();

So in short you use export and import to do modular development in typescript. But now how does this “TRANSPILE” to javascript code that we will see in the next section. At the end of the day all these modules are transpiled to javascript so lets understand how that works under the hoods.

Step 2 :- Module formats in JavaScript CommonJS , AMD , ES6

Let’s first define this word “Module” formats. We talked about modules in the previous section. Module formats define the JavaScript syntaxes of how the module should be exported and imported.

In JavaScript world there are two ways of defining module formats: - UnOfficial way and Official way. So prior to ES6 there was no official way so some of the unofficial viral ways of defining module formats are CommonJs , AMD , UMD and so on. Official way is only and only one ES6.

For instance, below is the format of commonJS. In commonJS the module which is exported is defined in “exports” variables and to import we need to use “require” keyword.

You can see below is the JS output where the dal is exported using “exports” variable.

Object.defineProperty(exports, "__esModule", { value: true });
var Dal = (function () {
    function Dal() {
    Dal.prototype.Add = function () {
        alert("Dal add called");
    return Dal;
exports.Dal = Dal;

Below is the code for “Customer.js” which uses “require” to load “Dal.js”.

Object.defineProperty(exports, "__esModule", { value: true });
var Dal_js_1 = require("./Dal.js");
var Customer = (function () {
    function Customer() {
    Customer.prototype.Add = function () {
        var dal = new Dal_js_1.Dal();
    return Customer;
exports.Customer = Customer;

So now this is a commonJS format in the same way we have other formats as well. For example below is “amd” module format.

In this we export the classes in the “export” variable and use “define” to import. Below is the code of “define”. We are not pasting of “export” as its same like commonJS.

define(["require", "exports", "./Dal.js", "./Validation.js"], function (require, exports, Dal_js_1, Validation_js_1) {
    "use strict";
    Object.defineProperty(exports, "__esModule", { value: true });
    var Customer = (function () {
        function Customer() {
        Customer.prototype.Add = function () {
            var val = new Validation_js_1.Validation();
            var dal = new Dal_js_1.Dal();
        return Customer;
    exports.Customer = Customer;

In “ES6” module format to expose the class we need to “export” keywords and to consume we need to use “import”.

import { Dal } from "./Dal.js";
import { Validation } from "./Validation.js";
var Customer = (function () {
    function Customer() {
    Customer.prototype.Add = function () {
        var val = new Validation();
        var dal = new Dal();
    return Customer;
export { Customer };
var Dal = (function () {
    function Dal() {
    Dal.prototype.Add = function () {
        alert("Dal add called");
    return Dal;
export { Dal };

So in simple words “amd” ,”commonJS” and “ES6” define how modules will communicate with each other. Concluding ES6 uses “import / export” , amd uses “define/export” and commonJs uses “require/export”.

Image 31

All these module formats can be generated with simple a option change in typescript config file.

So in “tsconfig.json” we can set in “module” which module format we want.

Image 32

Step 3 :- Calling Javascript module loaders in HTML UI

Now when we try to load JavaScript functions which are using module formats like AMD , CommonJS or ES6 it’s not so easy. For example in below code in HTML UI we have loaded “Dal.js” and “Customer”.js”. This example has been demonstrated in the previous lab and is having “CommonJS” enabled.
Also we have put the sequence properly , first we have added reference of “Dal.js” and then “Customer.js” because “Customer.js” is dependent on “Dal.js”.

But When we try to create “Customer” object and try to call “Add” it does not work.

<script src="Dal.js"></script>
<script src="Customer.js"></script>
       var cust = new Customer();

We end up with an error below stating that “exports” is not understood. That makes sense because browser does not know any keywords like “exports” and “require” as its not standard javascript.

The second problem is even if this code had worked i would still have ordering problems for large number of references. Lets say we have 15 modules which are referencing using module formats we would end with spending half-life arranging those sequences in HTML file. It would be great if we can just point to “Customer.js” and automatically using “exports” and “imports” the references is identified and “Address.js” is loaded.

Image 33

That’s where we need Javascript module loaders. Some example of module loaders are SystemJS , WebPack and so on.

So if we are using module loaders we just need to point to the first JS file and automatically using the “import/require/define” and “exports” it will get references of all the dependent JS files and load them accordingly.
Image 34

Lets demonstrate a module using “SystemJS”. So first goto Node command prompt and install “systemjs”.

npm install systemjs

So in the HTML UI we need to tell “system.js” which is the first JS file to be loaded. You can see in the below code we are saying “SystemJS.import” load “Customer.js” as the first file.

<script src="system.js"></script>
                var cust = new module.Customer();
        }).catch(function (err)
        { console.error(err); });;

Once the file has been loaded in the then function we get the modules. We can then refer the module variable and create object of “Customer” function.

If you watch the network tab of chrome browser you can see first “system.js” loads “Customer.js” and then also loads its reference that is “Dal.js”.

Image 35

Lab 5:- Understanding Module Bundlers using WebPack

Introduction :- Runtime vs Compile time – Webpack Module bundler

In the previous Lab 4 systemJS was doing everything at the runtime. So in the browser it first loads “Customer.js” then “Address.js” and so on. If you have lot of dependencies you would end up with lot of requests.

At the side is a simple image from an enterprise project where we have 342 JavaScript file requests to load the site.

Now that’s a big number and with so many requests your application performance will come down a lot.

Image 36

If we can create a SINGLE BUNDLE during the compile time itself, that would be a great performance booster.

That’s where webpack ( ) comes to use. Webpack is a module bundler.

It takes the first JS file uses module definitions like commonjs / AMD / UMD etc and figures out the references and generates one Single JS file DURING COMPILE TIME. You can take this one single bundle JS and put in your web page.

Image 37

So let’s try to understand the basic’s of how Webpack works.

Step 1 :- Install WebPack

So the first step is to install webpack. So open the node command prompt and type the below NPM command. Please see we have use “-g” the global flag.

npm install -g webpack

Step 2 :- Generate a Single Bundle

We take the same code which we have used in “Lab 4”. In lab 4 if you see we have “Customer.js” calling “Address.js”. So the first Javascript file is “Customer.js”. We just need to give the first JS file name in the webpack command the final bundle file name. You can also see there is “—output-library” flag parameter. Webpack will expose “CustomerLibrary” component to us from where we can access the “Customer” class in the UI.

webpack "Customer.js" "Bundle.js" --output-library='CustomerLibrary'

Step 3 :- Calling the javascript class in the webpage.

So now that we have a single bundle we can just load the JS file in the webpage and access the classes via the “CustomerLibrary”. Remember this “CustomerLibrary” is coming from command line, please revisit step 2 again for details.

<script src="Bundle.js"></script>
        var x = new CustomerLibrary.Customer();

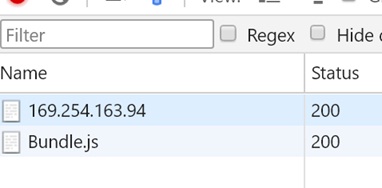

If you now see the network tab you will see now only one single file “Bundle.js” as compared to multiple files.

Image 38

SystemJS and WebPack. When we learn Angular we will first use SystemJS and then in one of the labs we will see how Webpack helps us.

So now that we have completed all the prerequisites it’s time to start getting in to Angular. So from Lab 6 the actual Angular starts.

What's for the next article ?

So now that we have completed all the prerequisites it’s time to start getting in to Angular. So from Lab 6 the actual Angular starts.To read Next Lab of Learn Angular tutorial start from here.

If you are from mumbai you are most welcome to  my institute in Andheri  Sakinaka where i teach Angular on Saturday and Sundays. Angular training in mumbai


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


About the Author

Comments and Discussions

GeneralGood article Pin
rammanusani26-Mar-19 7:52
Memberrammanusani26-Mar-19 7:52
QuestionGreat Tutorial Pin
Member 1415449025-Feb-19 9:56
MemberMember 1415449025-Feb-19 9:56
QuestionsystemJS and webpack - didn't work for me Pin
Member 1378429611-Oct-18 12:18
MemberMember 1378429611-Oct-18 12:18
QuestionLearn MEAN Stack Tutorial From Scratch Pin
KrunalLathiya17-Jun-18 8:38
MemberKrunalLathiya17-Jun-18 8:38
Questionwebpage not opening after starting http-server Pin
Member 122873378-Jan-18 0:17
MemberMember 122873378-Jan-18 0:17
AnswerRe: webpage not opening after starting http-server Pin
Shivprasad koirala8-Jan-18 13:26
MemberShivprasad koirala8-Jan-18 13:26
GeneralRe: webpage not opening after starting http-server Pin
Member 122873378-Jan-18 20:29
MemberMember 122873378-Jan-18 20:29
GeneralRe: webpage not opening after starting http-server Pin
Shivprasad koirala8-Jan-18 20:45
MemberShivprasad koirala8-Jan-18 20:45
GeneralRe: webpage not opening after starting http-server Pin
Member 122873379-Jan-18 20:05
MemberMember 122873379-Jan-18 20:05
GeneralRe: webpage not opening after starting http-server Pin
Shivprasad koirala12-Jan-18 18:50
MemberShivprasad koirala12-Jan-18 18:50
SuggestionNeed a Angular 2 Grid for Production (Modified) Pin
amarjitsaha24-Nov-17 19:42
Memberamarjitsaha24-Nov-17 19:42
Question'Download Learn Angular 100 Page Ebook in RAR format 3.5 MB' this file not found? Pin
amarjitsaha8-Nov-17 17:50
Memberamarjitsaha8-Nov-17 17:50
AnswerRe: 'Download Learn Angular 100 Page Ebook in RAR format 3.5 MB' this file not found? Pin
Shivprasad koirala8-Nov-17 18:33
MemberShivprasad koirala8-Nov-17 18:33
SuggestionNot Angular 4 :-( Pin
German150326-Oct-17 6:14
MemberGerman150326-Oct-17 6:14
GeneralRe: Not Angular 4 :-( Pin
Shivprasad koirala26-Oct-17 6:30
MemberShivprasad koirala26-Oct-17 6:30
QuestionNice Tutorial Pin
Nageswar22-Oct-17 18:55
MemberNageswar22-Oct-17 18:55
GeneralMy vote of 5 Pin
Mahsa Hassankashi15-Oct-17 6:47
MemberMahsa Hassankashi15-Oct-17 6:47
PraiseMy vote of 5 Pin
Muhammad Shahid Farooq14-Oct-17 19:24
professionalMuhammad Shahid Farooq14-Oct-17 19:24
Questionnice one sir Pin
Pradeep Shet25-Sep-17 19:31
MemberPradeep Shet25-Sep-17 19:31
GeneralAfter a long time Pin
Gaurav Aroraa25-Sep-17 1:20
professionalGaurav Aroraa25-Sep-17 1:20
QuestionClassical piece Pin
fardenhailer22-Sep-17 0:09
Memberfardenhailer22-Sep-17 0:09
GeneralMy vote of 5 Pin
san2debug21-Sep-17 20:46
professionalsan2debug21-Sep-17 20:46

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
