Scraping Web Pages with XHtmlKit

, 20 Feb 2018
Rate this:
Please Sign up or sign in to vote.
Use the XHtmlKit Nuget Package to make scraping web pages in C# fun.

Introduction

So you are going to do some web scraping!? Maybe you will build up a database of competitive intelligence, create the next hot search engine, or seed your app with useful data... Here is a tool that makes the job fun: A Nuget Package called XHtmlKit. Let's get started:

Step 1: Create a Project

First, create a new Project in Visual Studio. For this sample, we will use a Classic Desktop, Console App:

Step 2: Add a reference to XHtmlKit

Next, within the Solution Explorer, right click on References, and select Manage Nuget Packages:

Then, with the 'Browse' tab selected, type: 'XHtmlKit' and hit Enter. Select 'XHtmlKit' from the list, and click Install.

You will now see XHtmlKit in your project's references:

Step 3: Write a Scraper

First, create a POCO class to hold the results of your scraping. In this case, call it 'Article.cs':

namespace SampleScraper
{
    /// <summary>
    /// POCO class for the results we want
    /// </summary>
    public class Article
    {
        public string Category;
        public string Title;
        public string Rating;
        public string Date;
        public string Author;
        public string Description;
        public string Tags;
    }
}

Then, create a class to do the scraping. In this case: 'MyScraper.cs'

using System.Collections.Generic;
using System.Xml;
using XHtmlKit;
using System.Text;
using System.Threading.Tasks;

namespace SampleScraper
{
    public static class MyScraper
    {
        /// <summary>
        /// Sample scraper
        /// </summary>
        public static async Task<Article[]> GetCodeProjectArticlesAsync(int pageNum = 1)
        {
            List<Article> results = new List<Article>();

            // Get web page as an XHtml document using XHtmlKit
            string url = "https://www.codeproject.com/script/Articles/Latest.aspx?pgnum=" + pageNum;
            XmlDocument page = await XHtmlLoader.LoadWebPageAsync(url);

            // Select all articles using an anchor node containing a robust @class attribute
            var articles = page.SelectNodes("//table[contains(@class,'article-list')]/tr[@valign]");

            // Get each article
            foreach (XmlNode a in articles)
            {
                // Extract article data - we need to be aware that sometimes there are no results
                // for certain fields
                var category = a.SelectSingleNode("./td[1]//a/text()");
                var title = a.SelectSingleNode(".//div[@class='title']/a/text()");
                var date = a.SelectSingleNode(".//div[contains(@class,'modified')]/text()");
                var rating = a.SelectSingleNode(".//div[contains(@class,'rating-stars')]/@title");
                var desc = a.SelectSingleNode(".//div[@class='description']/text()");
                var author = a.SelectSingleNode(".//div[contains(@class,'author')]/text()");
                XmlNodeList tagNodes = a.SelectNodes(".//div[@class='t']/a/text()");
                StringBuilder tags = new StringBuilder();
                foreach (XmlNode tagNode in tagNodes)
                    tags.Append((tags.Length > 0 ? "," : "") + tagNode.Value);

                // Create the data structure we want
                Article article = new Article
                {
                    Category = category != null ? category.Value : string.Empty,
                    Title = title != null ? title.Value : string.Empty,
                    Author = author != null ? author.Value : string.Empty,
                    Description = desc != null ? desc.Value : string.Empty,
                    Rating = rating != null ? rating.Value : string.Empty,
                    Date = date != null ? date.Value : string.Empty,
                    Tags = tags.ToString()
                };

                // Add to results
                results.Add(article);
            }
            return results.ToArray();
        }
    }
}

Then, use the MyScraper class to fetch some data:

using System;

namespace SampleScraper
{
    class Program
    {
        static void Main(string[] args)
        {
            // Get data
            Article[] articles = MyScraper.GetCodeProjectArticlesAsync().Result;

            // Do something with data
            foreach (Article a in articles)
            {
                Console.WriteLine(a.Date + ", " + a.Title + ", " + a.Rating);
            }
        }
    }
}

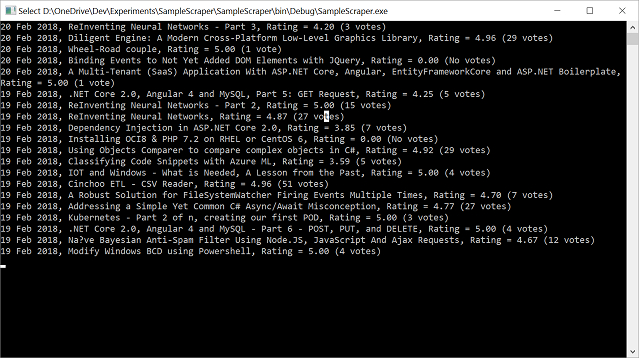

Now, hit F5, and watch the results come in!

Points of Interest

There are a few key elements to this sample: Firstly, the line:

XmlDocument page = await XHtmlLoader.LoadWebPageAsync(url);

is where the magic happens. Under the hood, XHtmlKit fetches the given web page using HttpClient, and parses the raw stream into an XmlDocument. Once loaded into an XmlDocument, getting the data you want is made straightforward with XPath. Note that LoadWebPageAsync() is an asynchronous method, so your method will be async as well!

Our anchoring XPath statement fetches all tr rows with a valign attribute, that fall directly below the table node with a class attribute containing the term 'article-list':

var articles = page.SelectNodes("//table[contains(@class,'article-list')]/tr[@valign]");

This is a relatively robust XPath statement, since the term 'article-list' is clearly semantic in nature. Although the web-page's underlying CSS formatting may change, it is not likely that the articles will move to a different markup home without a major page re-design.

Finally, all that is left to do, is loop over the article nodes, and extract the individual article elements from each XHtml blob. Here, we use XPath statements that are prefixed with './'. This tells the XPath evaluator to find nodes relative to the current context node, which is highly efficient. We need to be aware of the fact that the given SelectSingleNode() statements may, or may not return data:

var category = a.SelectSingleNode("./td[1]//a/text()");
var title = a.SelectSingleNode(".//div[@class='title']/a/text()");
var date = a.SelectSingleNode(".//div[contains(@class,'modified')]/text()");
var rating = a.SelectSingleNode(".//div[contains(@class,'rating-stars')]/@title");
var desc = a.SelectSingleNode(".//div[@class='description']/text()");
var author = a.SelectSingleNode(".//div[contains(@class,'author')]/text()");

Also note that the individual field selections use XPath statements that are semantic in nature wherever possible, such as 'title', 'rating-stars', and 'author'!

That's it. Happy scraping!

Revision History

  • Feb 20, 2018: Added Project Sample Download, Fixed image links.
