Parse, understand and demystify Enhanced Meta Files (EMF) with C#

Steffen Ploetz
starIconstarIconstarIconstarIconstarIcon

5.00/5 (8 votes)

Mar 27, 2019

CPOL

5 min read

viewsIcon

14068

downloadIcon

704

A simple approach to inspect Enhanced Meta File (EMF) content and find/fix inconsistencies. Easy to adopt to your specific purpose.

Download EmfProcessor.zip Visual Studio C# solution, including source and debug binary

Introduction

I was searching for an inconsistency in EMF display between two files. After a lot of testing I found the surprising reason behind the obscure behaviour - and it was very easy to fix.

With this article I want to share my findings regarding the EMF/EMF+ format and provide an application that can be a very good starting point for your EMF inspection too.

Background

My starting point

My problem was "missing text" in one of two, very similar EMF files. Both files have been generated with Windows drawing commands.

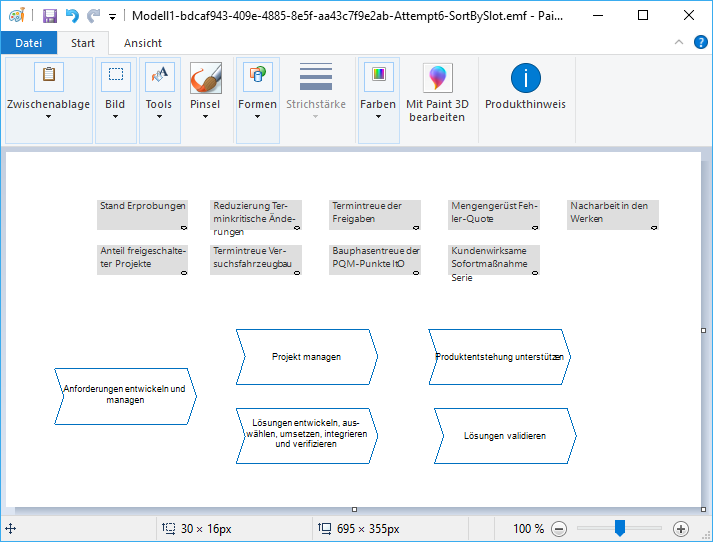

The next two images illustrate the problem - some text is missing within the second image. The images are displayed by Windows Paint.

An import of the second EMF file to Microsoft PowerPoint shows the same result - missing texts.

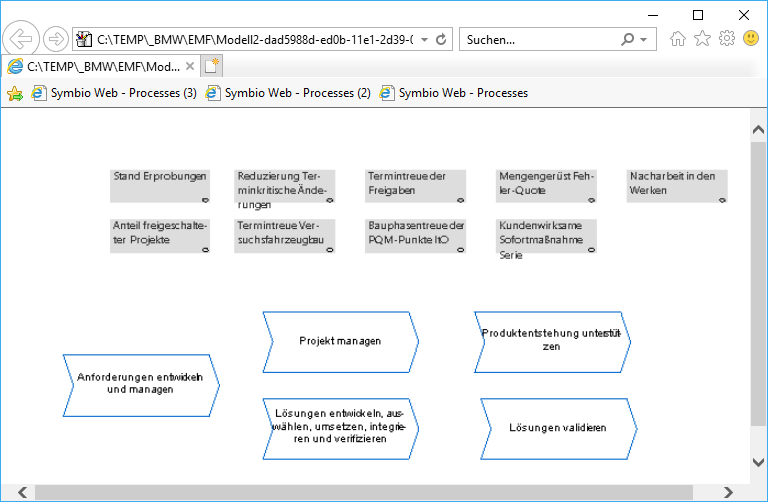

The next two images illustrate the same two files - this time displayed by Microsoft Internet Explorer 11.

An import of the second EMF file to Microsoft PowerPoint and subsequent un-grouping of the EMF drawing elements shows the same result - visible texts.

First finding

  • Windows Paint just plays EMF/EMF+ files with the GDI+.
  • Microsoft Internet Explorer 11 does something different.

In the course of many further experiments, the different display quality leads to the assumption that

  • GDI+ ignores the actual EMF drawing commands and plays the EMF+ comment records while
  • IE ignores the EMF + comment records and plays the actual EMF drawing commands.

The assumption is mainly based on the display quality of text - specifically the missing kerning, if displayed by Microsoft Internet Explorer 11.

Using the code

EMF/EMF+ is a binary representation of a Windows drawing command sequence. Every drawing command is represented by a record.

Microsoft provides a good documetation of EMF and EMF+. And there are alternative sources of information too.

The sample application is a Windows.Forms .NET application, that implements only a part of the EMF specification.

  • But this was enough to find/fix the inconsistencies i was searching for.
  • And it is easy to expand.

The next two images illustrate the sample application in action.

The sample application can

  • read an EMF/EMF+ file (via menu: File | Open),
  • present the drawing command sequence (EMF/EMF+ records) on tab Data and
  • draw the image on tab Image.

The sample application consists of seven source code files:

  1. Program.cs - the application initialization code (nothing of interest - created by the wizard)
  2. Form1.resx - the GUI design (nothing of interest - created by the wizard and maintained by the forms designer)
  3. Form1.Designer.cs - the GUI initialization code (nothing of interest - maintained by the forms designer)
  4. Form1.cs - the GUI callbacks and subordinated methods
  5. EmfStructures.cs - ready-to-use EMF declarations
  6. EmfPlusStructures.cs - ready-to-use EMF+ declarations
  7. EmfByteConverters.cs - helper class similar to System.BitConverter

Form1.cs

The sample application does not use the .NET System.Drawing.Graphics.EnumerateMetafileProc delegate, because it doesn't provide all the information that are required to demystify the EMF/EMF+ format. Instead the sample application recreates the Win32 API int CALLBACK EnumMetaFileProc(...).

To realize this, a binary reader is used and ParseMetaCB(...) is called for every record (see menu item callback openToolStripMenuItem_Click(...)).

...
using (FileStream readerFS = File.Open(ofd.FileName, FileMode.Open))
{
    using (BinaryReader br = new BinaryReader(readerFS))
    {
        ...
        br.ReadBytes(...);
        ...
        ParseMetaCB(...);
        ...
    }
}
...

The drawing command sequence (EMF/EMF+ records) is written to a StringBuilder and displayed by a TextBox on tab Data as well as drawn as an image and displayed by a PictureBox on tab Image.

Beside this the sample application also includes the possibility to write the drawing command sequence (EMF/EMF+ records) unmodified or modified to another file.

...
using (FileStream writerFS = File.Open(ofd.FileName.Replace(".", "_."), FileMode.Create))
{
    using (BinaryWriter bw = new BinaryWriter(writerFS))
    {
        ...
        bw.Write(...);
        ...
    }
}
...

There are three ways to modify the drawing command sequence (EMF/EMF+ records) to write:

    1. Skip a complete record. This is realized by:

    List<int> _recordsToSuppress;

    2. Set the byte[], returned from ParseMetaCB(...), to null.

    byte[] response = ParseMetaCB(recordCount, type, pos, length, /* is header */ 1, recordData, log);
    if (response != null && (recordData.Length == 0 || response.Length > 0))
    ...

    3. Manipulate the byte[], returned from ParseMetaCB(...) within the method. E.g:

    BitConverterWithLimitCheck.SetBytesFromUInt32(data,
       emfPlusRecordStart + /* comment identifier length */ 4 + emfPlusDrawString.Index_BrushIDOrColor,
       (UInt32)Color.FromArgb(0xFF, Color.FromArgb((int)plusDrawString.BrushIDOrColor)).ToArgb());

This means the ParseMetaCB(...) method realizes parsing/interpretation of the EMF/EMF+ records (written to a StringBuilder) as well as an optional manipulation of the EMF/EMF+ records.

/// <summary>Parse EMF binary record.</summary>
/// <param name="recordCount">The count of the EMF record currently to parse.</param>
/// <param name="recordType">The type of EMF record currently to parse.</param>
/// <param name="filePos">The file position. Informative only! Do not use as indexer.</param>
/// <param name="length">The length in Byte of the EMF record currently to parse.</param>
/// <param name="flags">Flags to determine different parsing behavior for the same record type.</param>
/// <param name="data">The <see cref="Byte"/> array of the EMF record currently to parse.</param>
/// <param name="log">The <see cref="StringBuilder"/> to write log messages to.</param>
/// <returns>Returns <see cref="Byte"/> array to accept for the output stream.</returns>
private byte[] ParseMetaCB(int recordCount, EmfPlusRecordType recordType, Int64 filePos,
                           Int32 length, Int32 flags, byte[] data, StringBuilder log)
{
    ...
}

The ParseMetaCB(...) method currently handles this excerpt of EMF comment record types:

  • EmfPlusRecordType.EmfHeader
  • EmfPlusRecordType.EmfEof
  • EmfPlusRecordType.EmfSetBkMode
  • EmfPlusRecordType.EmfSetPolyFillMode
  • EmfPlusRecordType.EmfSetTextAlign
  • EmfPlusRecordType.EmfSetTextColor
  • EmfPlusRecordType.EmfSaveDC
  • EmfPlusRecordType.EmfRestoreDC
  • EmfPlusRecordType.EmfModifyWorldTransform
  • EmfPlusRecordType.EmfSelectObject
  • EmfPlusRecordType.EmfCreateBrushIndirect
  • EmfPlusRecordType.EmfDeleteObject
  • EmfPlusRecordType.EmfSetMiterLimit
  • EmfPlusRecordType.EmfGdiComment
  • EmfPlusRecordType.EmfBitBlt
  • EmfPlusRecordType.EmfExtCreateFontIndirect
  • EmfPlusRecordType.EmfExtTextOutW
  • EmfPlusRecordType.EmfPolyBezier16
  • EmfPlusRecordType.EmfPolygon16
  • EmfPlusRecordType.EmfExtCreatePen
  • EmfPlusRecordType.EmfSetIcmMode
  • EmfPlusRecordType.EmfMax

After a lot of testing I found out, that EmfPlusRecordType.EmfGdiComment is of special interest. This record type can be divided into these gdi comment record sub-types:

  • EmfPlus
  • EmfSpool
  • EmfPublic

and the sub-type gdi comment record sub-type EmfPlus can can itself contain the a lot of EMF+ comment records. Currently the ParseMetaCB(...) method handles:

  • RecordType.EmfPlusHeader
  • RecordType.EmfPlusObject
  • RecordType.EmfPlusDrawRects
  • RecordType.EmfPlusFillRects
  • RecordType.EmfPlusDrawLines
  • RecordType.EmfPlusFillPolygon
  • RecordType.EmfPlusDrawEllipse
  • RecordType.EmfPlusFillEllipse
  • RecordType.EmfPlusDrawString
  • RecordType.EmfPlusEndOfFile
  • RecordType.EmfPlusTranslateWorldTransform
  • RecordType.EmfPlusScaleWorldTransform
  • RecordType.EmfPlusSetClipRect

Second finding

If GDI+ plays an EMF/EMF+ file, a present RecordType.EmfPlusHeader record forces GDI+ to ignore the actual EMF drawing commands and to play the EMF+ comment records. No matter whether every actual EMF drawing command has a related EMF+ comment record.

If GDI+ plays an EMF/EMF+ file, an absent RecordType.EmfPlusHeader record forces GDI+ to play the actual EMF drawing commands and to ignore the EMF+ comment records. No matter whether EMF+ comment records are available or not.

A decoded drawing command sequence sample

Here the first ~60 lines of decoded drawing commands.

Horizontal-Resolution = 72,04874
Vertical-Resolution   = 72,24888

Frame-Width  = 24514,25
Frame-Height = 12484,16

Bounds-Width  = 695pix
Bounds-Height = 355pix

■ 000-EmfHeader: At=0, TotalLength=108Bytes, DataLength=100Bytes
  Bounds: Lft=0, Top=0, Rgt=695, Btm=354
  Frame:  Lft=0, Top=0, Rgt=24479, Btm=12449
  Device:      Wdt=1024, Hgh=768
  Millimeters: Wdt=361, Hgh=270
  Version: Major=1, Minor=0
◙ 001-EmfGdiComment: At=108, TotalLength=44Bytes, DataLength=36Bytes
► EmfPlusCommentIdentifier: EMF+
● 00 EmfPlusCommentType: EmfPlusHeader
  Size: RecordSize=28, DataSize=16
  Resolution: DpiX=96, DpiY=96
  Meta-data: Signature=DBC01, GraphicsVersion=GraphicsVersion1_1
◙ 002-EmfGdiComment: At=152, TotalLength=112Bytes, DataLength=104Bytes
► EmfPlusCommentIdentifier: EMF+
● 00 EmfPlusCommentType: EmfPlusTranslateWorldTransform
  Size: RecordSize=20, DataSize=8
  Transform: Dx=100, Dy=100
● 01 EmfPlusCommentType: EmfPlusScaleWorldTransform
  Size: RecordSize=20, DataSize=8
  Transform: Sx=0,2834646, Sy=0,2834646
● 02 EmfPlusCommentType: EmfPlusSetClipRect
  Size: RecordSize=28, DataSize=16
  Clip: X=-100, Y=-100, Wdt=2451, Hgt=1248
● 03 EmfPlusCommentType: EmfPlusFillRects
  Size: RecordSize=28, DataSize=16
  Color: #[FF]FFFFFF
  Count: 1
  Rectangle: X=-100, Y=-100, Wdt=2451, Hgt=1248
■ 003-EmfSaveDC: At=264, TotalLength=8Bytes, DataLength=0Bytes
■ 004-[EmfSetIcmMode]: At=272, TotalLength=12Bytes, DataLength=4Bytes
■ 005-EmfModifyWorldTransform: At=284, TotalLength=36Bytes, DataLength=28Bytes
  Matrix: M11=0,0625, M12=0, M21=0, M22=0,0625, Dx=0, Dy=0
■ 006-EmfCreateBrushIndirect: At=320, TotalLength=24Bytes, DataLength=16Bytes
  IhBrush:  1
  LogBrush: Style=BS_SOLID, Color=#[00]FFFFFF, Hatch=HS_NONE_BECAUSE_SOLID
■ 007-EmfSelectObject: At=344, TotalLength=12Bytes, DataLength=4Bytes
  Handle: 1 LogBrush: Style=BS_SOLID, Hatch=HS_NONE_BECAUSE_SOLID, Color=#[00]FFFFFF
■ 008-EmfSelectObject: At=356, TotalLength=12Bytes, DataLength=4Bytes
  Stock object: NULL_PEN
■ 009-EmfPolygon16: At=368, TotalLength=48Bytes, DataLength=40Bytes
  Bounds: Lft=0, Top=0, Rgt=695, Btm=354
  Count:  5
  Point0: X=0, Y=0
  Point1: X=0, Y=5661
  Point2: X=11117, Y=5661
  Point3: X=11117, Y=0
  Point4: X=0, Y=0
...

My special interest is the text presentation.

  • Record 223 contains the EMF+ comment that is used by GDI+ to draw the text.
  • Records 224 - 236 contain the actual EMF drawing commands that are ignored by GDI+.
◙ 223-EmfGdiComment: At=12012, TotalLength=244Bytes, DataLength=236Bytes
► EmfPlusCommentIdentifier: EMF+
● 00 EmfPlusCommentType: EmfPlusObject
  Size: RecordSize=48, DataSize=36
  Identity: Continued=False, ObjectID=17
- PlusObjectType: ObjectTypeFont/not serialized
  FamilyName: ARIAL
  EmSize: 35
  UnitType: UnitTypeWorld
  FontStyle: Regular
  New CommentHandle: 17
● 01 EmfPlusCommentType: EmfPlusObject
  Size: RecordSize=72, DataSize=60
  Identity: Continued=False, ObjectID=18
- PlusObjectType: ObjectTypeStringFormat/not serialized
  TabStopCount: 0
  RangeCount: 0
  StringAlignment: Center
  LineAlign: Near
  New CommentHandle: 18
● 02 EmfPlusCommentType: EmfPlusDrawString
  Size: RecordSize=108, DataSize=96
  Format:  Color=#[00]000000, FormatID='18' (StringFormat: StringAlignment=Center, LineAlign=Near)
  String: CharsN=33, Text='Produktentstehung unterstüt-¶zen'
  Rectangle: X=1389,763, Y=575,8774, Wdt=500,4742, Hgt=89,24519'
■ 224-EmfSetBkMode: At=12256, TotalLength=12Bytes, DataLength=4Bytes
  BkMode: TRANSPARENT
■ 225-EmfSetTextColor: At=12268, TotalLength=12Bytes, DataLength=4Bytes
  Color: #[00]000000
■ 226-EmfSetTextAlign: At=12280, TotalLength=12Bytes, DataLength=4Bytes
  TextAlign:  TA_BASELINE
■ 227-EmfDeleteObject: At=12292, TotalLength=12Bytes, DataLength=4Bytes
  Object: Handle=2, Type=LogFont: Name=Arial/Height=-9
  Remaining object: Handle=1, Type=LogBrush: Style=BS_SOLID, Hatch=HS_NONE_BECAUSE_SOLID, Color=#[00]FFFFFF
■ 228-EmfExtCreateFontIndirect: At=12304/TotalLength=368Bytes/DataLength=360Bytes
  Log font: Height=-10, Width=0, Escapement=0,
  Orientation=0, Weight=400, Italic=0,
  Underline=0, StrikeOut=0,
  CharSet=0, OutPrecision=7,
  ClipPrecision=0, Quality=0,
  PitchAndFamily=0, Face-Name=Arial
■ 229-EmfSelectObject: At=12672, TotalLength=12Bytes, DataLength=4Bytes
  Handle: 2 LogFont: Name=Arial/Height=-10
■ 230-EmfExtTextOutW: At=12684, TotalLength=244Bytes, DataLength=236Bytes
  Bounds: Lft=429, Top=190, Rgt=556, Btm=202
  GraphicsMode: GM_COMPATIBLE
  Scale: Ex=31,25, Ey=31,25
  Reference: X=429, Y=13107200
  ClipBounds: Lft=0, Top=0, Rgt=-1, Btm=-1
  Text: 'Produktentstehung unterstüt-'
■ 231-EmfSelectObject: At=12928, TotalLength=12Bytes, DataLength=4Bytes
  Stock object: SYSTEM_FONT
■ 232-EmfSetBkMode: At=12940, TotalLength=12Bytes, DataLength=4Bytes
  BkMode: TRANSPARENT
■ 233-EmfSetTextColor: At=12952, TotalLength=12Bytes, DataLength=4Bytes
  Color: #[00]000000
■ 234-EmfSetTextAlign: At=12964, TotalLength=12Bytes, DataLength=4Bytes
  TextAlign:  TA_BASELINE
■ 235-EmfSelectObject: At=12976, TotalLength=12Bytes, DataLength=4Bytes
  Handle: 2 LogFont: Name=Arial/Height=-10
■ 236-EmfExtTextOutW: At=12988, TotalLength=96Bytes, DataLength=88Bytes
  Bounds: Lft=485, Top=202, Rgt=500, Btm=214
  GraphicsMode: GM_COMPATIBLE
  Scale: Ex=31,25, Ey=31,25
  Reference: X=485, Y=13893632
  ClipBounds: Lft=0, Top=0, Rgt=-1, Btm=-1
  Text: 'zen'

Third finding

The text is drawn with a solid brush of color #[00]000000. (EmfGdiComment/EmfPlusDrawString as well as EmfSetTextColor).

The actual EMF record of type EmfSetTextColor defines the color as a ColorRef Object, and online documentation for ColorRef Object says:



But the EMF+ comment record EmfPlusDrawString defines a BrushID, and online documentation for BrushID says:



Consequently a color of #[00]000000 is interpreted as

  • BLACK by EmfSetTextColor (since alpha channel is ignored) and
  • and TRANSPARENT BLACK by EmfPlusDrawString (since alpha channel is evaluated.

To solve my problem I just have to ensure that colors are opaque.

Points of Interest

It takes much patience to work the way up to the crux of the matter. But it's possible to investigate all details, needed for a solution.

History

Initial version from 27. March 2019.
