ProgressBar for ASP.NET

Rate this:
4.07 (5 votes)
Please Sign up or sign in to vote.
4.07 (5 votes)
22 May 2007CPOL
ProgressBar for ASP.NET using AJAX.

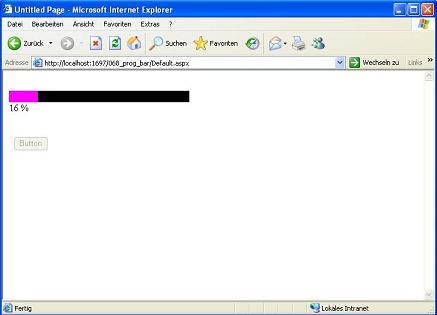

Screenshot - 068_prog_bar.jpg


In this short article, I will explain how to create a progress bar for ASP.NET websites. In order to update the progress bar, I'm using an AJAX UpdatePanel and the Timer control.

The controls (Default.aspx)

First of all, I created an AJAX enabled website project and dropped some controls on the web form. Here is the resulting Default.aspx page:

<%@ Page Language="VB" AutoEventWireup="true"

      CodeFile="Default.aspx.vb" Inherits="_Default" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN"

<html xmlns="">
<head runat="server">
    <title>Untitled Page</title>
    <form id="form1" runat="server">
        <atlas:ScriptManager ID="ScriptManager1"

           runat="server" EnablePartialRendering="True" />
            <atlas:TimerControl ID="TimerControl1" runat="server"

               OnTick="TimerControl1_Tick" Enabled=false Interval=2000>
        <atlas:UpdatePanel ID="UpdatePanel1" runat="server" Mode="Conditional">
             <atlas:ControlEventTrigger ControlID=TimerControl1 EventName=Tick />
             <div style="background-color:Black; height:10px; width:300px">
                <div id="bar" runat="server"

                   style="height:10px; width:0px; background-color:Fuchsia">
             <asp:Label ID="Label1" runat="server" Text="0 %"></asp:Label>
             <br />
             <br />
             <asp:HyperLink ID="HyperLink1" runat="server"


               Visible="False">Reload Page</asp:HyperLink><br />
        <asp:Button ID="Button1" runat="server" Text="Button" />
    <script type="text/xml-script">
        <page xmlns:script="">

Here are some details about the above code. To update the progress bar, I used an AJAX Timer control. This timer calls the server method TimerControl1_Tick. TimerControl1 has to be disabled at first.

<atlas:TimerControl ID="TimerControl1" runat="server"

   OnTick="TimerControl1_Tick" Enabled=false Interval=2000>

Then I created an UpdatePanel that is triggered by the TimerControl1 tick event. This means whenever the tick event of TimerControl1 fires, UpdatePanel1 will be refreshed:

<atlas:UpdatePanel ID="UpdatePanel1" runat="server" Mode="Conditional">
         <atlas:ControlEventTrigger ControlID=TimerControl1 EventName=Tick />

Last, I used two div-elements to display the progress bar:

<div style="background-color:Black; height:10px; width:300px">
   <div id="bar" runat="server" style="height:10px; width:0px; background-color:Fuchsia">

Next, I placed a Button outside the UpdatePanel1 to submit the form and start the long running task:

<asp:Button ID="Button1" runat="server" Text="Button" />

The code (Default.aspx.vb)

When the user clicks Button1, the form is posted to the server. Then the code-behind creates a new thread to execute the long running task. Next, I start the thread and enable TimerControl1.

Protected Sub Button1_Click(ByVal sender As Object, _
              ByVal e As System.EventArgs) Handles Button1.Click
    Session.Add("status", 0)
    Dim objThread As New Thread(New System.Threading.ThreadStart(AddressOf DoTheWork))
    objThread.IsBackground = True
    Session("Thread") = objThread
    Button1.Enabled = False
    TimerControl1.Enabled = True
End Sub

The long running task is done in the function DoTheWork. Here is the code:

Protected Sub DoTheWork()
     Dim i As Integer = 0
     While i < 100
         i = i + 1
         Session("status") = i
     End While
     Dim objThread As Thread = CType(Session("Thread"), Thread)
End Sub

The current status of the task is written into a session variable status. This session variable will be used in the TimerControl1_Tick event to update the progress bar. Here is the code for the tick event:

Protected Sub TimerControl1_Tick(ByVal sender As Object, _
              ByVal e As System.EventArgs) Handles TimerControl1.Tick
     Dim i As Integer = CType(Session.Item("status"), Integer)
     If i = 100 Then
         TimerControl1.Enabled = False
         HyperLink1.Visible = True
     End If
     Label1.Text = i.ToString + " %"
     Dim div As HtmlGenericControl = Me.FindControl("bar")
     i = i * 3
     div.Style.Item("width") = i.ToString + "px"
End Sub

First, I convert the session variable status into an Integer. Next, I check whether the task is finished (i=100). When this is true, I disable TimerControl1 again and enable a hyperlink to reload the page. In any case, I update the text value for Label1. And, I also set the width for the inner div-element.
