Get Registered File Types and Their Associated Icons in C#

• Download source - 14.11 KB

Introduction

How can we get the icon of a file if it does not exist? If we only know its name or even its extension, how do we get the icon associated with it? This is a simple project of mine to get the registered file types and the associated icons by reading from Windows Registry. The idea belongs to Aaron Young in his article "Listing the Registered File Extensions and Their Associated Icons" at CodeGuru, but the original source code was in Visual Basic. I know a little bit of VB, so I tried to rewrite it in C#. Thanks very much to Aeron Young!

Background

Because this method reads information from the Windows registry, we need to know some basics.

Firstly, where are the registered file types? They are contained in the key HKEY_CLASSES_ROOT . Now, you launch the Regedit (some way can be: Start > Run > regedit), and go to that key. You may find a lot of sub keys like this: " .zip ", " .mp3 ", etc. Those are the file types we need. Pay attention to the value named empty (Default) as in the picture below:

The value (Default) is not a file path, you can easily find out that the data of default value (here: NeroPhotoSnapPreview.File7.png ) is the name of another sub key in HKEY_CLASSES_ROOT . Following is what we can find:

Now, what do you see for the value of DefaultIcon? That is the path to the file that contains the icon we need! Our tasks now are getting that file path and retrieving it to Windows Form.

Secondly, we need to interact with the Registry. .NET supports class RegistryKey in Microsoft.Win32 namespace and makes it easy for us to open a registry key and get its values as well as its sub keys. Walking a registry tree is the same as walking a file/folder tree structure, it is very easy!

Thirdly, how to retrieve an icon from a file ? There is a little bit of difficulty here, we need to use an API function: ExtractIcon, but don't worry! All our works are redefining it in C#, and passing the correct parameters for it. Another choice is the function of ExtractIconEx, but we will consider the ExtractIcon first.

Using the Code

I packed all necessary methods and API functions in the class RegisteredFileType.

The ExtractIcon Method

Here is the ExtractIcon I redefined in C# by referencing www.pinvoke.net:

[DllImport("shell32.dll", EntryPoint = "ExtractIconA",
    CharSet = CharSet.Ansi, SetLastError = true, ExactSpelling = true)]
private static extern IntPtr ExtractIcon
    (int hInst, string lpszExeFileName, int nIconIndex);

Be sure that you declared to use the System.Runtime.InteropServices namespace.

The GetFileTypeAndIcon Method

This is one of the core methods which gets the registered file types and icons from Windows Registry:

/// <summary>
Gets registered file types and their associated icon in the system.
/// </summary>
/// <returns>Returns a hash table which contains the file extension as keys,
/// the icon file and param as values.</returns>
public static Hashtable GetFileTypeAndIcon()
{
    try
    {
    // Create a registry key object to represent the
    // HKEY_CLASSES_ROOT registry section
    RegistryKey rkRoot = Registry.ClassesRoot;
    //Gets all sub keys' names.
    string[] keyNames = rkRoot.GetSubKeyNames();
    Hashtable iconsInfo = new Hashtable();
    //Find the file icon.
    foreach (string keyName in keyNames)
    {
        if (String.IsNullOrEmpty(keyName))
            continue;
        int indexOfPoint = keyName.IndexOf(".");

             //If this key is not a file extension, .zip), skip it.
        if (indexOfPoint != 0)
            continue;
        RegistryKey rkFileType = rkRoot.OpenSubKey(keyName);
        if (rkFileType == null)
            continue;
        //Gets the default value of this key that
        //contains the information of file type.
        object defaultValue = rkFileType.GetValue("");
        if (defaultValue == null)
            continue;
          //Go to the key that specifies the default icon
             //associates with this file type.
        string defaultIcon = defaultValue.ToString() + "\\DefaultIcon";
        RegistryKey rkFileIcon = rkRoot.OpenSubKey(defaultIcon);
        if (rkFileIcon != null)
        {
            //Get the file contains the icon and the index of the icon in that file.
            object value = rkFileIcon.GetValue("");
            if (value != null)
            {
                //Clear all unnecessary " sign in the string to avoid error.
                string fileParam = value.ToString().Replace("\"", "");
                iconsInfo.Add(keyName, fileParam);
                 }
                 rkFileIcon.Close();
             }
             rkFileType.Close();
        }
        rkRoot.Close();
        return iconsInfo;
    }
    catch (Exception exc)
    {
        throw exc;
    }
}

Note that this function returns a Hashtable, you can store information in an array of string, but by using Hashtable we will more conveniently get the icon file name from its file extension. Remember to use Microsoft.Win32 namespace which contains class RegistryKey.

First of all, we need to get HKEY_CLASSES_ROOT:

RegistryKey rkRoot = Registry.ClassesRoot;

Next, we get all sub keys of it to get all file types:

string[] keyNames = rkRoot.GetSubKeyNames();

To prevent the sub key that is not a file type (eg: ACLFile), we detect the dot sign:

int indexOfPoint = keyName.IndexOf(".");

string defaultIcon = defaultValue.ToString() + "\\DefaultIcon";
RegistryKey rkFileIcon = rkRoot.OpenSubKey(defaultIcon);

This will lead us to the key that contains the icon file, the last one is adding this file path and the index of the icon to the hash table as a value and its associating filetype as the key:

iconsInfo.Add(keyName, fileParam);

The EmbeddedIconInfo Struct

Note that the information got by the above method is just draw data. We need a structure to store the information associated with the icon file. Therefore, we create the EmbeddedIconInfo to pack the necessary information which are the name of file containing the icon and the index of the icon:

/// <summary>
/// Structure that encapsulates basic information of icon embedded in a file.
/// </summary>
public struct EmbeddedIconInfo
{
    public string FileName;
    public int IconIndex;
}

The getEmbeddedIconInfo Method

This method does some logical operations to obtain an instance of EmbeddedIconInfo structure:

/// <summary>
/// Parses the parameters string to the structure of EmbeddedIconInfo.
/// </summary>
/// <param name="fileAndParam">The params string, such as ex:
///    "C:\\Program Files\\NetMeeting\\conf.exe,1".</param>
protected static EmbeddedIconInfo getEmbeddedIconInfo(string fileAndParam)
{
    EmbeddedIconInfo embeddedIcon = new EmbeddedIconInfo();

    if (String.IsNullOrEmpty(fileAndParam))
        return embeddedIcon;

    //Use to store the file contains icon.
    string fileName = String.Empty;

    //The index of the icon in the file.
    int iconIndex = 0;
    string iconIndexString = String.Empty;

    int commaIndex = fileAndParam.IndexOf(",");
    //if fileAndParam is some thing likes this:
         //"C:\\Program Files\\NetMeeting\\conf.exe,1".
    if (commaIndex > 0)
    {
        fileName = fileAndParam.Substring(0, commaIndex);
        iconIndexString = fileAndParam.Substring(commaIndex + 1);
    }
    else
        fileName = fileAndParam;

    if (!String.IsNullOrEmpty(iconIndexString))
    {
        //Get the index of icon.
        iconIndex = int.Parse(iconIndexString);
        if (iconIndex < 0)
            iconIndex = 0;  //To avoid the invalid index.
    }

    embeddedIcon.FileName = fileName;
    embeddedIcon.IconIndex = iconIndex;

    return embeddedIcon;
}

The ExtractIconFromFile Method

Actually, the method RegisteredFileType.ExtractIconFromFile() calls the Windows API ExtractIcon in the background:

/// <summary>
/// Extract the icon from file.
/// <param name="fileAndParam">The params string, such as ex:
///    "C:\\Program Files\\NetMeeting\\conf.exe,1".</param>
/// <returns>This method always returns the large size of the icon
///    (may be 32x32 px).</returns>
public static Icon ExtractIconFromFile (string fileAndParam)
{
    try
    {
        EmbeddedIconInfo embeddedIcon = getEmbeddedIconInfo(fileAndParam);

        //Gets the handle of the icon.
        IntPtr lIcon = ExtractIcon(0, embeddedIcon.FileName,
                    embeddedIcon.IconIndex);

        //Gets the real icon.
        return Icon.FromHandle(lIcon);
    }
    catch (Exception exc)
    {
        throw exc;
    }
}

Retrieving To Form

This is the most exciting work to see our achievement!

I created the form IconForm with the important member, icons Hashtable:

/// <summary>
/// Used for containing file types and their icons information.
/// </summary>
private Hashtable iconsInfo;

The next step, we simply get all file types and their icons:

this.iconsInfo = RegisteredFileType.GetFileTypeAndIcon();

It's time to show the icons:

/// <summary>
/// Shows the icon associates with a specific file type.
/// </summary>
/// <param name="fileType">The type of file (or file extension).</param>
private void showIcon(string fileType)
{
    try
    {
    string fileAndParam = (this.icons[fileType]).ToString();

    if (String.IsNullOrEmpty(fileAndParam))
        return;

                Icon icon = null;

                icon = RegisteredFileType.ExtractIconFromFile(fileAndParam);

                //The icon cannot be zero.
                if (icon != null)
                {
                    //Draw the icon to the picture box.
                    this.pbIconView.Image = icon.ToBitmap();
                }
                else //if the icon is invalid, show an error image.
                    this.pbIconView.Image = this.pbIconView.ErrorImage;
    }
    catch (Exception exc)
    {
        throw exc;
    }
}

To make it more logical, I add another function to do business operations:

/// <summary>
/// Validates the input data and renders the image.
/// </summary>
private void renderImage()
{
    try
    {
        if (this.lbxFileType.Items.Count <= 0
                || this.lbxFileType.SelectedItem == null)
            return;
        string fileType = this.lbxFileType.SelectedItem.ToString();

        this.showIcon(fileType);
    }
    catch (Exception exc)
    {
        throw exc;
    }
}

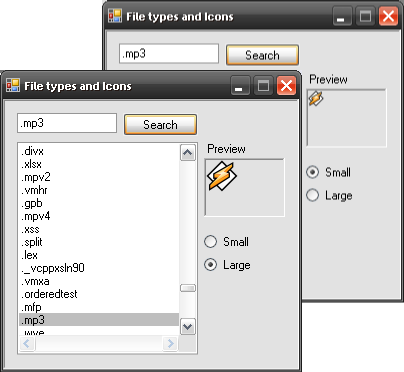

Here is the result:

A New Problem...

Recently, I have received an interesting question: How can we get the 16x16 px icons from these icons? If we use the ExtractIcon function in this way, it will always return the large size of the icon.

There are many solutions for this. One of the easiest ways is use an ImageList object to manage the icons and change the image's size by setting up the property ImageSize.

However, the quality of the images is not very good. This trouble was posted in this site: Get full quality 16 x 16 icon using Icon.ExtractAssociatedIcon and ImageList [^]. If you go to this site, you also find out a suggested solution to get full quality small icon. Yet, it seems to me that the suggestion is rather complicated.

In this section, I give you another solution to solve the problem. Instead of using the function ExtractIcon, we can use the Windows API ExtractIconEx. This method is more powerful than ExtractIcon because it creates an array of handles to large or small icons extracted from the specified executable file, DLL, or icon file.

This is the ExtractIconEx redefined in C#:

[DllImport("shell32.dll", CharSet = CharSet.Auto)]
private static extern uint ExtractIconEx
    (string szFileName, int nIconIndex,
    IntPtr[] phiconLarge, IntPtr[] phiconSmall, uint nIcons);

We must destroy all icons extracted by ExtractIconEx by using the DestroyIcon function:

[DllImport("user32.dll", EntryPoint = "DestroyIcon", SetLastError = true)]
private static unsafe extern int DestroyIcon (IntPtr hIcon);

When I find the definition of ExtractIconEx [^] in www.pinvoke.net, I also see a good example in the site. That's why I use it in this application. Based on the example, I add an overloaded version of the method ExtractIconFromFile in class RegisteredFileType:

/// <summary>
/// Extract the icon from file.
/// </summary>
/// <param name="fileAndParam">The params string, such as ex:
///    "C:\\Program Files\\NetMeeting\\conf.exe,1".</param>
/// <param name="isLarge">Determines the returned icon is a large
///    (may be 32x32 px) or small icon (16x16 px).</param>
public static Icon ExtractIconFromFile(string fileAndParam, bool isLarge)
{
    unsafe
    {
        uint readIconCount = 0;
        IntPtr[] hDummy = new IntPtr[1] { IntPtr.Zero };
        IntPtr[] hIconEx = new IntPtr[1] { IntPtr.Zero };

        try
        {
            EmbeddedIconInfo embeddedIcon =
                getEmbeddedIconInfo(fileAndParam);

            if (isLarge)
                readIconCount = ExtractIconEx
                (embeddedIcon.FileName, 0, hIconEx, hDummy, 1);
            else
                readIconCount = ExtractIconEx
                (embeddedIcon.FileName, 0, hDummy, hIconEx, 1);

            if (readIconCount > 0 && hIconEx[0] != IntPtr.Zero)
            {
                //Get first icon.
                Icon extractedIcon =
                (Icon)Icon.FromHandle(hIconEx[0]).Clone();

                return extractedIcon;
            }
            else //No icon read.
                return null;
        catch (Exception exc)
        {
            //Extract icon error.
            throw new ApplicationException
                ("Could not extract icon", exc);
        }
        finally
        {
            //Release resources.
            foreach (IntPtr ptr in hIconEx)
                if (ptr != IntPtr.Zero)
                    DestroyIcon(ptr);

            foreach (IntPtr ptr in hDummy)
                if (ptr != IntPtr.Zero)
                    DestroyIcon(ptr);
        }
    }
}

The code is easy to understand. The unsafe keyword helps the encapsulated code to run faster. To compile the application with unsafe code, we must configure the application that allows unmanaged code. In Visual Studio, right click on the project and go to tab "Build":

Now, we make some changes in IconForm to test the new version of the method ExtractIconFromFile.

/// <summary>
/// Shows the icon associates with a specific file type.
/// </summary>
/// <param name="fileType">The type of file (or file extension).</param>
private void showIcon(string fileType)
{
    try
    {
    string fileAndParam = (this.icons[fileType]).ToString();

    if (String.IsNullOrEmpty(fileAndParam))
        return;

    Icon icon = null;

    bool isLarge = true;

    if (currentSize == ImageSize.Small)
        isLarge = false;

    icon = RegisteredFileType.ExtractIconFromFile(fileAndParam, isLarge);


    //The icon cannot be zero.
    if (icon != null)
    {
        //Draw the icon to the picture box.
        this.pbIconView.Image = icon.ToBitmap();
    }
    else //if the icon is invalid, show an error image.
        this.pbIconView.Image = this.pbIconView.ErrorImage;
    }
    catch (Exception exc)
    {
        throw exc;
    }
}

The ImageSize is a simple enum:

public enum ImageSize
{
     /// <summary>
     /// View image in 16x16 px.
     /// </summary>
    Small,

     /// <summary>
     /// View image in 32x32 px.
     /// </summary>
    Large
}

You can use a boolean variable instead!

Points of Interest

I had added a simple search feature. It is absolutely easy because all the keys and their values were stored in Hashtable icons, so we can quickly access the searched information like accessing an array.

History

• 7^th September, 2008: Initial post
• 18^th October, 2009: Add new feature of viewing small size icons
