RLE (Run-Length-Encoding) compression routine in MFC for 256 color bitmap

, 9 Dec 2002
Rate this:
Please Sign up or sign in to vote.
A handy MFC class to compress simple 256 color Windows bitmap

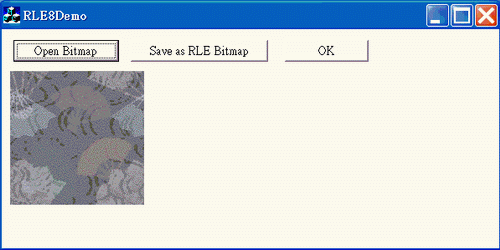

Sample Image - RLEBmp.gif


This is a RLE compression routine written in MFC. I wrote this because I could not find handy code for such thing.

RLE compression is useful when saving SIMPLE Windows bitmap. Especially my implementation is rather stupid and not optimized. Therefore, if the source bitmap is complex (like the one in the demo app window shown above), you could even get a bigger bitmap file after compression. :)

The compression routine is wrapped in an MFC bitmap control class, CDVDBitmapControl, which you can put in a dialog conveniently. The usage is easy:

  1. Add a static control (say IDC_STATIC_BITMAP) in the dialog for the bitmap control
  2. Add a #include "DVDBitmapControl.h" in the header file of your dialog
  3. Add a member variable (say m_bmp) of type CDVDBitmapControl in your dialog class.
  4. In OnInitDialog(), add this line: m_bmp.SubclassDlgItem( IDC_STATIC_BITMAP, this);
  5. Call m_bmp.LoadBitmapFile(CString) to load bitmap into control
  6. Call m_bmp.SaveBitmapFile(CString) to save bitmap into 8-bit RLE bitmap

If you need only the compression code, you can extract the CDVDBitmapControl::CompressInRLE8() and CDVDBitmapControl::EndOfLine() routines from DVDBitmapControl.cpp. It is quite straight forward to use them (with some substitutions for bitmap width, bitmap height in code).

I did not write the decompression part because Windows API LoadImage() already does it.

PS: in the demo app, if the loaded bitmap is not in 256 color, [Save] will not work.
