Easily Add a Ribbon into a WinForms Application

Rate this:
Please Sign up or sign in to vote.
Easily add ribbon to WinForm Application for .NET Framework 2.0, 3.5, 4.0 & 4.5

Style 2007

Style 2010

Style 2013


Part 1: Background

The ribbon that is going to be used in this article is an open source project created by Jose Menendez Poo. However, the original author of the ribbon has stopped support of it. A group of fans of this ribbon re-host and continue to develop/enhance and support the ribbon.

The original ribbon creator has posted an article explaining what this ribbon is all about at [A Professional Ribbon You Will Use (Now with orb!)]. However, that article doesn't describe how to use it in your project. Therefore, this article will show how to use it.

Old Site: (By original author, but has stopped support)

Old Site 2: (Re-host by fans of the ribbon) site shutdown

New Site:

Part 2: How to Use this Ribbon Control

Reminder: Please note that this ribbon does not work on .NET 3.5 Client Profile and .NET 4.0 Client Profile. You have to switch the target framework to .NET 3.5 or .NET 4.0. When you first create a project, Visual Studio might initially set the target framework to Client Profile.

If the project is using Client Profile, you might receive this error while you are trying to build the solution:

Error 3 The type or namespace name 'Ribbon' does not exist in the namespace 'System.Windows.Forms'
(are you missing an assembly reference?)
  1. Get System.Windows.Forms.Ribbon35.dll from download.
  2. Create a blank WinForms project.

  3. Add Ribbon into Visual Studio Toolbox.

    Right Click on Toolbox > Add Tab.

    Give the new tab a name "Ribbon".

    Right Click on the New Tab [Ribbon] > Choose Items...

    [Browse...] Where are you? System.Windows.Forms.Ribbon35.dl?

    There you are... Gotcha... Select it...

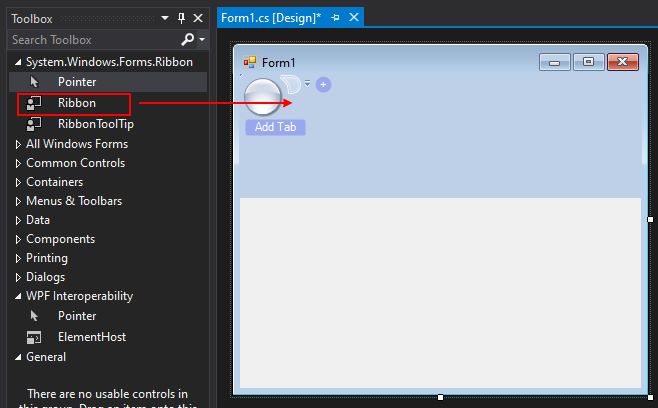

    Only [Ribbon] can be dragged into Form. Others, as the picture below said, they are not needed to exist in toolbox. However, it's not going to harm your computer or project if you select all the items belonging to ribbon (by default). It's up to you.

    And finally, what you're going to do is just...

    Another Way

    Manually code it behind.

    You can add the ribbon into WinForm too with code behind.

    Add a reference of System.Windows.Forms.Ribbon35.dll into your project. Build the solution.

    Open the designer of Main Form. In this example, Form1.Designer.cs.

    Add these three lines of code:

    private System.Windows.Forms.Ribbon ribbon1;
    ribbon1 = new System.Windows.Forms.Ribbon();

    into Form1.Designer.cs:

    private void InitializeComponent()
        ribbon1 = new System.Windows.Forms.Ribbon();
        this.components = new System.ComponentModel.Container();
        this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
        this.Text = "Form1";
    private System.Windows.Forms.Ribbon ribbon1;

    Save and Close Form1.Designer.cs.

    Double click and open Form1.cs, and now the Ribbon control is added into the main form.

    Let's continue...

  4. Click on the Ribbon and click Add Tab.

  5. Click on the newly added RibbonTab, then click Add Panel.

  6. Click on the newly added RibbonPanel, go to Properties. You will see a set of available controls that can be added to the RibbonPanel.

    You might not able to see the extra command links of "Add Button", "Add ButtonList", "Add ItemGroup"... etc. at the Properties Explorer.

    Right click at the Properties Explorer and tick/check the [Commands].

  7. Try to add some buttons into the RibbonPanel.
  8. Click on the RibbonButton, go to Properties.

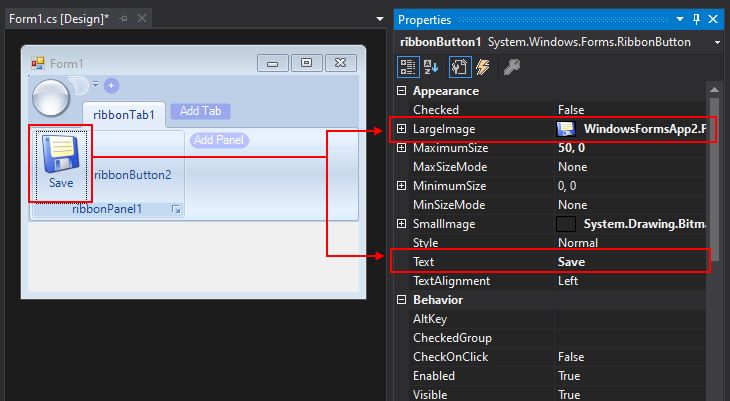

  9. Let's try to change the image and the label text of the button.

  10. This is how your ribbon looks like now.
  11. Now, create the click event for the buttons. Click on RibbonButton, go to Properties, modify the Name of the button.

  12. Click on the RibbonButton, go to properties > Click on Events > Double Click on event of Click.

  13. Events created.
    public Form1()
    void cmdNew_Click(object sender, EventArgs e)
        MessageBox.Show("Button \"New\" Clicked.");
    void cmdSave_Click(object sender, EventArgs e)
        MessageBox.Show("Button \"Save\" Clicked.");
  14. Press F5 to run the application. Done.

  15. You might want to inherit your Main Form into a RibbonForm to have extra features. Such as:

    Note: Inherit the Main Form to RibbonForm will have some compatibility problems with some of the System.Windows.Forms controls. (especially MDI Client Control) This problem is solved in released version 10 May 2013.

  16. In the code for Form1.cs, change inheritance of Form from this line:
    public partial class Form1 : Form

    to RibbonForm:

    public partial class Form1 : RibbonForm

Part 3: Caution While Using With Visual Studio 2010

... deleted ....

Part 4: Using this Ribbon with an MDI Enabled WinForm

The following guide will show how to apply this ribbon with an MDI (Multi Document Interface) enabled WinForm.

Note: In previous version of Ribbon, inheritance of RibbonForm is not supported well with MDI Enabled WinForm. This problem is solved in released version of 10 May 2013.


  1. Let's design a ribbon winform something like this as example. In the properties window, set IsMdiContainer to True.

  2. Create another simple form that will be loaded into the MDI Container of MainForm.

  3. At code behind of Form1, add in the below codes:
    public partial class Form1 : Form
        public Form1()
        protected override void OnLoad(EventArgs e)
            this.ControlBox = false;
            this.WindowState = FormWindowState.Maximized;
  4. At code behind of MainForm, create the click events for RibbonButton at MainForm:

    Note: In the previous version of Ribbon, inheritance of RibbonForm is not supported well with MDI Enabled WinForm. This problem is solved in released version of 10 May 2013.

    public partial class MainForm : RibbonForm
        public MainForm()
        private void ribbonButton_Form1_Click(object sender, EventArgs e)
            // Load Form1
        private void ribbonButton_Close_Click(object sender, EventArgs e)
            // Close All Forms
  5. Code for loading Form1 into MDI:
    private void ribbonButton_Form1_Click(object sender, EventArgs e)
        foreach (Form f in this.MdiChildren)
            if (f.GetType() == typeof(Form1))
        Form form1 = new Form1();
        form1.MdiParent = this;
  6. Code for closing all opened forms in MDI:
    private void ribbonButton_Close_Click(object sender, EventArgs e)
        while (this.ActiveMdiChild != null)
  7. That's it. Enjoy.

Part 5: Alternative Ribbon

You may also want to have a look at:

Part 6: How to Make a New Theme, Skin for this Ribbon Programmatically

Default Theme

Example color theme of RibbonProfesionalRendererColorTableBlack.cs (ready made by ribbon author).

Another custom theme:

Note: A Theme Builder is included in the demo app, you can obtain it from the download. You can build a new Theme easily with Theme Builder. In new released Ribbon (13 Jan 2013), Ribbon can write and read a theme file. Read more: How to Create and Load Theme File.

  1. To make your own color theme, create another class and inherit RibbonProfesionalRendererColorTable.
  2. Change all the color objects into your desired colors.
  3. Example: (the first five colors have been filled for your reference).

    In this example, we'll name the new theme MyCoolThemeSkin.

    using System;
    using System.Collections.Generic;
    using System.Text;
    using System.Drawing;
    namespace System.Windows.Forms
        public class MyCoolThemeSkin
            : RibbonProfesionalRendererColorTable
            public MyCoolThemeSkin()
                #region Fields
                OrbDropDownDarkBorder = Color.Yellow;
                OrbDropDownLightBorder = Color.FromKnownColor(KnownColor.WindowFrame);
                OrbDropDownBack = Color.FromName("Red");
                OrbDropDownNorthA = FromHex("#C2FF3D");
                OrbDropDownNorthB = Color.FromArgb(201, 100, 150);
                OrbDropDownNorthC =
                OrbDropDownNorthD =
                OrbDropDownSouthC =
                OrbDropDownSouthD =
                OrbDropDownContentbg =
                OrbDropDownContentbglight =
                OrbDropDownSeparatorlight =
                OrbDropDownSeparatordark =
                Caption1 =
                Caption2 =
                Caption3 =
                Caption4 =
                Caption5 =
                Caption6 =
                Caption7 =
                QuickAccessBorderDark =
                QuickAccessBorderLight =
                QuickAccessUpper =
                QuickAccessLower =
                OrbOptionBorder =
                OrbOptionBackground =
                OrbOptionShine =
                Arrow =
                ArrowLight =
                ArrowDisabled =
                Text =
                RibbonBackground =
                TabBorder =
                TabNorth =
                TabSouth =
                TabGlow =
                TabText =
                TabActiveText =
                TabContentNorth =
                TabContentSouth =
                TabSelectedGlow =
                PanelDarkBorder =
                PanelLightBorder =
                PanelTextBackground =
                PanelTextBackgroundSelected =
                PanelText =
                PanelBackgroundSelected =
                PanelOverflowBackground =
                PanelOverflowBackgroundPressed =
                PanelOverflowBackgroundSelectedNorth =
                PanelOverflowBackgroundSelectedSouth =
                ButtonBgOut =
                ButtonBgCenter =
                ButtonBorderOut =
                ButtonBorderIn =
                ButtonGlossyNorth =
                ButtonGlossySouth =
                ButtonDisabledBgOut =
                ButtonDisabledBgCenter =
                ButtonDisabledBorderOut =
                ButtonDisabledBorderIn =
                ButtonDisabledGlossyNorth =
                ButtonDisabledGlossySouth =
                ButtonSelectedBgOut =
                ButtonSelectedBgCenter =
                ButtonSelectedBorderOut =
                ButtonSelectedBorderIn =
                ButtonSelectedGlossyNorth =
                ButtonSelectedGlossySouth =
                ButtonPressedBgOut =
                ButtonPressedBgCenter =
                ButtonPressedBorderOut =
                ButtonPressedBorderIn =
                ButtonPressedGlossyNorth =
                ButtonPressedGlossySouth =
                ButtonCheckedBgOut =
                ButtonCheckedBgCenter =
                ButtonCheckedBorderOut =
                ButtonCheckedBorderIn =
                ButtonCheckedGlossyNorth =
                ButtonCheckedGlossySouth =
                ItemGroupOuterBorder =
                ItemGroupInnerBorder =
                ItemGroupSeparatorLight =
                ItemGroupSeparatorDark =
                ItemGroupBgNorth =
                ItemGroupBgSouth =
                ItemGroupBgGlossy =
                ButtonListBorder =
                ButtonListBg =
                ButtonListBgSelected =
                DropDownBg =
                DropDownImageBg =
                DropDownImageSeparator =
                DropDownBorder =
                DropDownGripNorth =
                DropDownGripSouth =
                DropDownGripBorder =
                DropDownGripDark =
                DropDownGripLight =
                SeparatorLight =
                SeparatorDark =
                SeparatorBg =
                SeparatorLine =
                TextBoxUnselectedBg =
                TextBoxBorder =
            public Color FromHex(string hex)
                if (hex.StartsWith("#"))
                    hex = hex.Substring(1);
                if (hex.Length != 6) throw new Exception("Color not valid");
                return Color.FromArgb(
                    int.Parse(hex.Substring(0, 2), system.Globalization.NumberStyles.HexNumber),
                    int.Parse(hex.Substring(2, 2), System.Globalization.NumberStyles.HexNumber),
                    int.Parse(hex.Substring(4, 2), System.Globalization.NumberStyles.HexNumber));
  4. Then, in the Load event of MainForm.cs, add this line:
    namespace RibbonDemo
        public partial class MainForm : RibbonForm
            public MainForm()
            private void ChangeTheme()
                Theme.ColorTable = new MyCoolThemeSkin();

Part 7: Known Issues

Are resolved.

Article Change Log

  • March 20, 2018 - Too many changes... unable to list out.... go to project site for more information


This article, along with any associated source code and files, is licensed under The Microsoft Public License (Ms-PL)


About the Authors

Software Developer
Malaysia Malaysia
Programming is an art.

Software Developer (Senior)
Austria Austria
No Biography provided

Michael Spradlin
Software Developer (Senior)
United States United States
Lead Software Engineer on a paperless office / workflow system. I specialize in building custom user controls and components that are using in my everyday software. I've also worked with Neural Networks for character recognition on documents in my paperless office software.

United States United States
No Biography provided

You may also be interested in...


Comments and Discussions

Questionorb button not work on RTL Pin
mm.ebrahimi28-Nov-18 17:52
membermm.ebrahimi28-Nov-18 17:52
QuestionTabindex Pin
KANNABICUS14-Sep-18 7:35
memberKANNABICUS14-Sep-18 7:35
Praiseyour work is ingenious... Pin
marcelo iván rojas hernández13-Jul-18 5:49
membermarcelo iván rojas hernández13-Jul-18 5:49
QuestionBlue window border when containing Form inherits from Ribbon instead of inheriting from Form and Black Tab names background when changing orb style at runtime Pin
maultby9-Jul-18 22:30
membermaultby9-Jul-18 22:30
QuestionRibbonComboBox Issue Pin
Member 1384943929-May-18 2:51
memberMember 1384943929-May-18 2:51
AnswerRe: RibbonComboBox Issue Pin
Member 1384943930-May-18 3:23
memberMember 1384943930-May-18 3:23
GeneralThanks for your excellent control Pin
Southmountain20-Mar-18 16:23
memberSouthmountain20-Mar-18 16:23
QuestionFrom where to get System.Windows.Forms.Ribbon35.dll Pin
Mou_kol19-Mar-18 22:12
memberMou_kol19-Mar-18 22:12
AnswerRe: From where to get System.Windows.Forms.Ribbon35.dll Pin
RickZeeland20-Mar-18 8:20
mveRickZeeland20-Mar-18 8:20
PraiseMessage Closed Pin
19-Mar-18 19:15
membersarawilliams112219-Mar-18 19:15
QuestionMouseClick not processed when Ribbon is updating Pin
Marco Tenuti4-Dec-17 9:35
memberMarco Tenuti4-Dec-17 9:35
Questionhow to drop down a menu items from the OrbDropDown? Pin
Mahmoud Ayman8-Nov-17 21:51
memberMahmoud Ayman8-Nov-17 21:51
QuestionHow to stop auto hide of Ribbon Tab on double click on menu. Pin
Ramveer Singh from Gurgaon, Haryana20-Mar-17 23:03
memberRamveer Singh from Gurgaon, Haryana20-Mar-17 23:03
AnswerRe: How to stop auto hide of Ribbon Tab on double click on menu. Pin
niuzj20-May-17 16:45
memberniuzj20-May-17 16:45
SuggestionRe: How to stop auto hide of Ribbon Tab on double click on menu. Pin
谢龙6-Sep-17 21:10
professional谢龙6-Sep-17 21:10
QuestionRibbon Controls alignment inside a RibbonPanel Pin
fastlater_pro6-Mar-17 15:28
memberfastlater_pro6-Mar-17 15:28
QuestionRibbonButtons keep showing focus if you drag from them Pin
AndrewInEssex8-Feb-17 6:53
memberAndrewInEssex8-Feb-17 6:53
AnswerRe: RibbonButtons keep showing focus if you drag from them Pin
AndrewInEssex21-Feb-17 1:47
memberAndrewInEssex21-Feb-17 1:47
GeneralRe: RibbonButtons keep showing focus if you drag from them Pin
AndrewInEssex7-Apr-17 1:35
memberAndrewInEssex7-Apr-17 1:35
Generalprivate ribbon Pin
kh2tech24-Dec-16 1:30
professionalkh2tech24-Dec-16 1:30
QuestionCopy to Another Computer Pin
Shawn Kanyer12-Dec-16 13:29
memberShawn Kanyer12-Dec-16 13:29
QuestionCould not load file or assembly Pin
sidali.kadi9-Dec-16 10:33
membersidali.kadi9-Dec-16 10:33
QuestionMousewheel on Combos Pin
Member 1229590524-Nov-16 23:11
memberMember 1229590524-Nov-16 23:11
AnswerRe: Mousewheel on Combos Pin
Member 1229590524-Nov-16 23:49
memberMember 1229590524-Nov-16 23:49
QuestionEnable or disable tabs in case of MDI project Pin
Member 1269446130-Aug-16 0:37
memberMember 1269446130-Aug-16 0:37

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

Permalink | Advertise | Privacy | Cookies | Terms of Use | Mobile
Web03 | 2.8.190306.1 | Last Updated 19 Mar 2018
Article Copyright 2012 by adriancs, toATwork, Michael Spradlin, KoglTH
Everything else Copyright © CodeProject, 1999-2019
Layout: fixed | fluid
