Top 10 steps to optimize data access in SQL Server: Part IV (Diagnose database performance problems)

Rate me:
Please Sign up or sign in to vote.
4.91/5 (59 votes)
8 Nov 2009CPOL19 min read 152.8K   183   16
As part of a series of articles on several data access optimization steps, this article focuses on diagnosing performance problems in SQL Server.


Imagine you are a doctor, or a physician. What do you do when one of your patients arrive feeling out of sorts and fallen ill?

You will try to understand the cause of his/her illness, right? Yes. This is the most important thing to do first. Because, in order to cure your patient, you need to find out what causes your patient to fall ill. In most cases, you will study the symptoms, and based upon your knowledge and experience, you will suggest a treatment, which works in most of the cases.

But, you may not be lucky in all cases. Some patients have complex problems with multiple types of illnesses. Studying the symptoms alone is not sufficient in these cases. You suggest diagnosing the problems, and prescribe one or more tests to be done. Pathologists then collect samples from the patient and start finding out the causes of the illness. Once you get the test report, you are in a better position in understanding the problem that caused the patient's illness, and you are most likely to prescribe the correct treatment plan for cure.

Sounds like a familiar situation. Isn't this the same thing we have to do while trying to debug or troubleshoot a problem in our software systems?

Yes, it is. So, while we were actually trying to optimize our data access operations, it's time for us to learn how to diagnose different performance related problems in SQL Server databases. Take a look at the following articles to learn the step by step processes that we've already carried out so far:

As you might have seen already, we have gone through seven optimization steps so far. Let us proceed to step 8 now:

Step 8: Diagnose performance problems, and use SQL Profiler and the Performance Monitoring Tool effectively

The SQL Profiler tool is perhaps the most well-known performance troubleshooting tool in the SQL Server arena. In most cases, when a performance problem is reported, this is the first tool that you are going to launch to investigate the problem.

As you perhaps already know, the SQL Profiler is a graphical tool for tracing and monitoring a SQL Server instance, mostly used for profiling and measuring the performance of the TSQLs that are executed on the database server. You can capture each event on the server instance and save event data to a file or table to analyze later. For example, if the production database performs slowly, you can use SQL Profiler to see which Stored Procedures are taking too much time to execute.

Basic use of the SQL Profiler tool

There is a 90% chance that you already know how to use it. But I assume a lot of newbies out there who are reading this article might feel good if there is a section on the basic usage of the SQL Profiler (if you know this tool already, just feel free to skip this section). So, here is a brief section:

Start working with the SQL Profiler in the following way:

  • Launch SQL Profiler (Tools -> SQL Server Profiler in Management Studio) and connect it to the desired SQL Server instance. Select a new trace to be created (File -> New Trace) and select a trace template (a trace template is a template where some pre-selected events and columns are selected to be traced).
  • Image 1

    Trace template
  • Optionally, select particular events (which should be captured in the trace output) and select/deselect columns (to specify the information you want to see in the trace output).
  • Image 2

    Select events to be captured for tracing

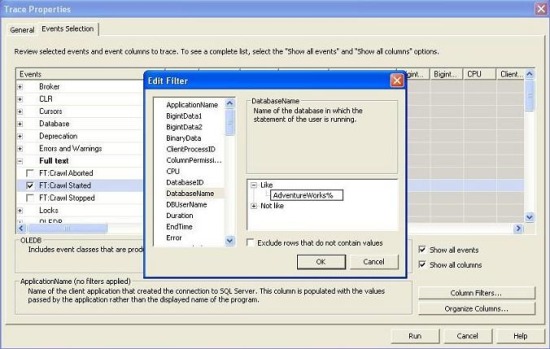

  • Optionally, organize the columns (click the "Organize Columns" button) to specify the order of their appearance in the trace. Also, specify the column filter values to filter the event data which you are interested in. For example, click on "Column Filters" and specify the database name value (in the "Like" text box) to trace events only for the specified database. Please note that filtering is important because SQL Profiler would otherwise capture unnecessary events and trace too many information that you might find difficult to deal with.
  • Image 3

    Filter column values
  • Run the profiler (by clicking the green Play button) and wait for the events to be captured on the trace.
  • SQL_Profiler_trace.JPG

    Running the profiler
  • When enough information is traced, stop the profiler (b pressing the red Stop icon) and save the trace either into a trace file or into a SQL Server table (you have to specify a table name and the SQL Server Profiler would create the table with necessary fields and store all the tracing records inside it).
  • Image 5

    Storing profiler trace data into a table
  • If the trace is saved on a table, issue a query to retrieve the expensive TSQLs using a query like the following:
  • SQL
    SELECT TextData,Duration,..., FROM Table_Name ORDER BY
    Duration DESC

    Image 6

    Querying for the most expensive TSQL/Stored Procedure

Voila! You just identified the most expensive TSQLs in your application in quick time.

Effective use of SQL Profiler to troubleshot performance related problems

In most cases, SQL profiler is used to trace the most expensive TSQLs/Stored Procedures in the target database to find the culprit that is responsible for performance problems (described above). But, the tool is not limited to just providing TSQL duration information. You can use many of the powerful features of this tool to diagnose and troubleshoot different kinds of problems that could occur due to many possible reasons.

When you are running SQL Profiler, there are two possibilities. Either you have a reported performance related issue that you need to diagnose, or you need to diagnose any possible performance issue in advance so that you can make sure your system would perform blazing fast in production after deployment.

Following are some tips that you can follow while using the SQL Profiler tool:

  • Use existing templates, but create your own templates when in need.
  • Most of the time, existing templates will serve your purpose. But still, there could be situations when you will need a customized template for diagnosing a specific kind of problem in the database server (say, deadlock occurring in the production server). In this situation, you can create a customized template using File -> Templates -> New Template, and specifying the template name and events and columns. Also, you can select an existing template and modify it according to your needs.

    Image 7

    Creating a new template

    Image 8

    Specifying events and columns for the new template
  • Capture TableScan or DeadLock events.
  • Did you know that you can listen to these two interesting events using SQL Profiler?

    Imagine a situation where you have done all possible indexing in your test database, and after testing, you have implemented the indexes in the production server. Now, suppose that for some unknown reasons, you are not getting the desired performance in the production database. You suspect that some undesired table scanning is taking place while executing one of the queries. You need to detect the table scan and get rid of it, but how could you investigate this?

    Another situation. Suppose you have a deployed system where error mails are being configured to be sent to a pre-configured email address (so that the development team can be notified instantly and with enough information to diagnose the problem). All of a sudden, you start getting error mails stating that deadlocks are occurring in the database (with the exception message from the database containing database level error codes). You need to investigate and find the situation and the corresponding set of TSQLs that are responsible for creating the deadlock in the production database. How would you carry this out?

    SQL Profiler gives you several ways to investigate these. You can edit the templates so that the profiler listens for any table scan or deadlock event that might take place in the database. To do this, check the Deadlock Graph, Deadlock, and DeadLock Chain events in the DeadLock section while creating/editing the tracing template. Then, start the profiler and run your application. Sooner or later, when any table scan or deadlock occurs in the database, the corresponding events would be captured in the profiler trace, and you would be able to find out the corresponding TSQLs that are responsible for the above described situation. Isn't that nice?

    Note: You might also require the SQL Server log file to write deadlock events so that you can get important context information from the log when a deadlock takes place. This is important because sometimes you need to combine the SQL Server deadlock trace information with that of the SQL Server log file to detect the involved database objects and TSQLs that are causing deadlocks.

    Image 9

    Detecting table scan

    Image 10

    Detecting deadlocks
  • Create Replay trace.
  • As you already know, in order to troubleshoot any performance problems in the production database server, you need to try to simulate the same environment (set of queries, number of connections in a given time period that are executed in the production database) in your test database server first so that the performance problem can be re-generated (without re-generating the problem, you can't fix it, right?). How can you do this?

    The SQL Profiler tool lets you do this by using the Replay trace feature. You can use a TSQL_Replay Trace template to capture events in the production server and save that trace in a .trace file. Then, you can replay the trace on the test server to re-generate and diagnose the problems.

    Image 11

    Creating Replay trace

    To learn more about TSQL Replay trace, see

  • Create Tuning trace.
  • The database tuning advisor is a great tool that can give you good tuning suggestions to enhance your database performance. But, to get a good and realistic suggestion from the tuning advisor, you need to provide the tool with the "appropriate load" that is similar to the production environment. That is, you need to execute the same set of TSQLs and open the same number of concurrent connections in the test server and then run the tuning advisor there. SQL Profiler lets you capture the appropriate set of events and columns (for creating the load in the tuning advisor tool) by using the Tuning template. Run the profiler using the Tuning template, capture the traces, and save it. Then, use the tuning trace file for creating the load in the test server by using the Tuning advisor tool.

    You would like to learn and use the database tuning advisor to get tuning suggestions while you try to troubleshoot performance issues in SQL Server. Take a look at this article to learn this interesting tool:

    Image 12

    Create Tuning profiler trace
  • Capture ShowPlan to include SQL execution plans in the profiler.
  • There will be times when the same query will give you different performance in the production and test servers. Suppose you have been reported with this kind of a problem, and to investigate the performance problem, you need to take a look at the TSQL execution plan that is being used in the production server for executing the actual query.

    Now, it is obvious that you just cannot run that TSQL (that is causing the performance problem) in the production server to view the actual execution plan, for lots of reasons. You can, of course, take a look at the estimated execution plan for a similar query, but this execution plan might not reflect the true execution plan that is used in reality in a fully loaded production database. SQL Profiler can help you in this regard. You can include ShowPlan, or ShowPlan XML, in your trace while profiling in the production server. Doing this would capture SQL plans along with the TSQL text while tracing. Do this in the test server too, and analyze and compare both execution plans to easily find out the difference in them.

    Image 13

    Specifying execution plans to be included in the trace

    Image 14

    Execution plan in the profiler trace

Use the Performance Monitoring Tool (Perfmon) to diagnose performance problems

When you encounter performance related problems in your database, SQL Profiler would enable you to diagnose and find out the reasons behind the performance issues in most cases. But, sometimes the profiler alone cannot help you in identifying the exact cause of the problems.

For example, when analyzing the query execution time using the profiler in the production server, you've seen that the corresponding TSQL is executing slowly (say, 10 seconds), though the same query takes a much lower time in the test server (say, 200 ms). You analyzed the query execution plans and data volume, and found those to be roughly the same. So there must have been some other issue that was creating a bottleneck situation in the production server. How would you diagnose this problem then?

The Performance Monitoring Tool (known as Perfmon) comes to your aid in these kinds of situations. Performance Monitor is a tool (that is built-in within the Windows OS) that gathers statistical data related to hardware and software metrics from time to time.

When you issue a TSQL to execute in the database server, there are many stakeholders participating in the actions to execute the query and return the result. These include the TSQL Execution engine, Server buffer cache, SQL Optimizer, Output queue, CPU, Disk I/O, and lots of other things. So, if one of these does not perform its corresponding task well and fast, the ultimate query execution time taken by the database server would be high. Using the Performance Monitoring Tool, you can take a microscopic look at the performance of these individual components and identify the root cause of the performance problem.

With the Performance Monitoring Tool (system monitor), you can create a counter log including different built-in counters (that measures the performance of each individual component while executing the queries) and analyze the counter log with a graphical view to understand what's going on in detail. Moreover, you can combine the performance counter log with the SQL Profiler trace for a certain period of time to better understand the complete situation while executing a query.

Basic use of Performance Monitor

Windows has lots of built-in objects with their corresponding performance counters. These are installed when you install Windows. While SQL Server gets installed, performance counters for SQL Server also get installed. Hence, these counters are available when you define a performance counter log.

Follow these steps to create a performance counter log:

  • Launch the Performance Monitor Tool from Tools->Performance Monitor in the SQL Profiler tool.
  • LaunchPerfmon.JPG

    Figure : Launch Performance Monitor Tool
  • Create a new performance counter log by clicking on Counter Logs->New Log Settings.
  • New_Perfmon_log.JPG

    Create a performance counter log

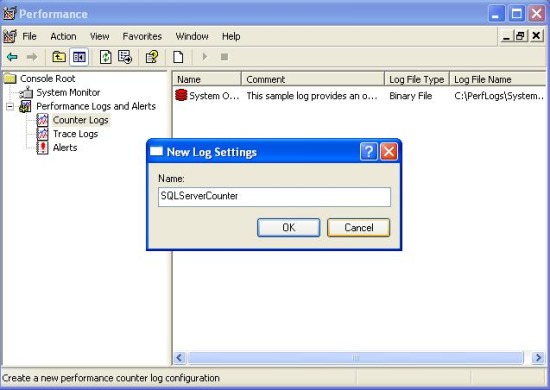

    Specify the log file name and press OK.


    Specify the name for the performance counter log
  • Click on the "Add Counters" button to select the preferred counters in the newly created counter log.
  • AddCounters.JPG

    Add counters for the performance counter log
  • Add the preferred counters by selecting the desired objects and their corresponding counters from the list. Click on "Close" when done.
  • PermMonCounters.JPG

    Specify the objects and the corresponding counters
  • The selected counters will be displayed in the form.
  • SelectedCounters.JPG

    Specify the counters

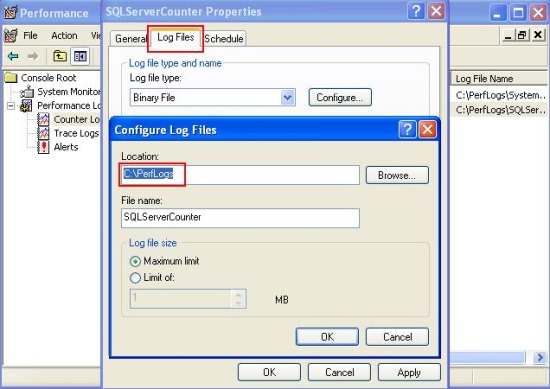

  • Click on the Log Files tab and click on the "Configure" tab to specify the log file location and modify the log file name if required. Click "OK" when done.
  • CounterLogLocation.JPG

    Specify the performance counter log location
  • Click on the "Schedule" tab to specify a schedule for reading the counter information and write in the log file. Optionally, you can also select "Manually" for the "Start log" and "Stop log" options, in which case, the counter data will be logged after you start the performance counter log.
  • Perfmon_schedule.JPG

    Scheduling the performance counter log operation
  • Click on the "General" tab and specify the interval for gathering counter data.
  • PerfmonInterval.JPG

    Setting the counter sample interval
  • Press "OK" and start the performance counter log by selecting the counter log and clicking Start. When done, stop the counter log.
  • StartPerfmonCoutnerLog.JPG

    Starting the performance counter logging
  • For viewing log data, close and open the Performance Monitor Tool again. Click on the View Log icon (the icon in the red box) to view the counter log. Click on the "Source" tab and select the "Log files" radio button, and add the log file to view by clicking on the "Add" button.
  • Image 25

    Viewing the performance counter log
  • By default, only three default counters are selected to be shown in the counter log output. Specify other counters (that were included while creating the counter log) by clicking on the "Data" tab and selecting the desired counters by clicking on the "Add" button.
  • AddCountersViewLogFile.JPG

    Specifying the counters to view the data in the log

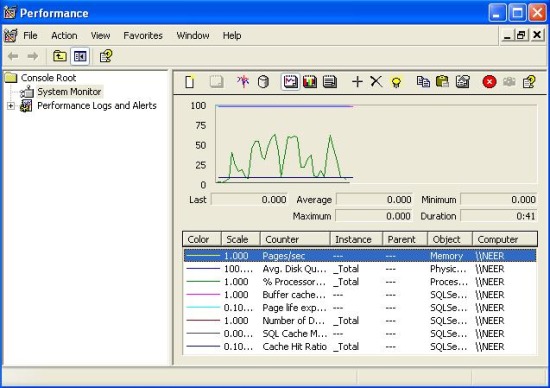

  • Click the "OK" button to view the performance counter log output in a graphical view.
  • PerfmonLogOutput.JPG

    Viewing the performance counter log

Correlate the performance counter log and SQL Profiler trace for better investigation

The SQL Profiler can give you information about long running queries, but it cannot provide you with the context information to explain the reason for the long query execution time.

On the other hand, the Performance Monitor Tool gives you statistics regarding an individual component's performance (context information), but it does not give you information regarding the query execution time.

So, by combining the performance counter log with the SQL Profiler trace, you can get the complete picture while diagnosing performance problems in SQL Server.

Correlating these two things serve another important purpose also. If the same query takes longer time in the production server to execute than in the test server, that indicates the test server may not have the same amount of load, and the same environment and query execution context as the production server. So, to diagnose the performance problem, you need a way to simulate the production server's query execution context in the test server somehow. You can do this by correlating the SQL Profiler trace at the test server with the performance counter log that is taken at the production server (obviously, the SQL Profiler trace and performance counter log that are taken within the same time period alone can be correlated).

Correlating these two tool outputs can help you in identifying the exact root cause of the performance problem. For example, you might find that each time the query takes 10 seconds to execute in the production server, the CPU utilization reaches up to 100%. So, instead of trying to tune the SQL, you should investigate the reason why the CPU utilization rises up to 100%, to optimize the query performance.

Follow these steps to correlate the SQL Profiler trace with the performance counter log:

  • Create a performance counter log by incorporating the following common performance counters. Specify "Manual" option for starting and stopping the counter log.
    • Network Interface\Output Queue length
    • Processor\%Processor Time
    • SQL Server: Buffer Manager\Buffer Cache Hit Ratio
    • SQL Server: Buffer Manager\Page Life Expectancy
    • SQL Server: SQL Statistics\Batch Requests/sec
    • SQL Server: SQL Statistics\SQL Compilations
    • SQL Server: SQL Statistics\SQL Re-compilations/sec

    Create the performance counter log, but don't start it.

  • Using SQL Profiler, create a trace using the TSQL Duration template (for simplicity). Add "Start Time" and "End Time" columns to the trace, and start the profiler trace and the performance counter log created in the previous step at the same time.
  • When enough tracing has been done, stop both the SQL Profiler trace and the performance counter log at the same time. Save the SQL Profiler trace as a .trc file in the file system.
  • Close the SQL Profiler trace window and open the trace file again with the profiler (.trc file) that was saved in the previous step (yes, you have to close the profiler trace and open the trace file again; otherwise, you won't get the "Import Performance Data" option enabled; this looks like a bug in the Management Studio). Click on "File->Import Performance Data" to correlate the performance counter log with the SQL Profiler trace. (If the Import Performance Data option is disabled, something is wrong, and review your steps from the beginning.) A file browser window will appear, and select the performance counter log file in the file system that is to be correlated.
  • A window will appear to select the counters to correlate. Select all counters, and press "OK". You will be presented with a screen like below that is the correlated output of the SQL Profiler trace and the performance counter log.
  • CorrelatedOutput.JPG

    Correlated output of SQL Profiler and Performance Monitor Tool
  • Click on a particular TSQL in the profiler trace output (in the upper part of the window). You'll see that a red vertical bar will be set in the performance counter log output to indicate the particular counter statistics when that particular query was being executed. Similarly, click on the performance counter log output any where you see a certain performance counter's value is high (or, above the normal value). You'll see that the corresponding TSQL that was being executed on the database server will be highlighted in the SQL Profiler trace output.

I bet you'll surely find correlating these two tool outputs extremely interesting and handy.

Last words

There are a bunch of tools and techniques available for diagnosing performance problems in SQL Server. For example, you may like to review the SQL Server log file when such problems are reported. Also, you may like to use the Database Tuning Advisor (DTA) for getting tuning suggestions for optimizing the database. Whatever the tool you use, you need to be able to take a deep look into the internal details to understand what's going on behind the scene. Once you identify the actual cause of the performance problem, solution is the easiest part in most cases.

I assume we have sufficient knowledge on diagnosing performance problems in SQL Server so far, along with the optimization steps that we've gone through. We are now heading towards the last part of this series of articles. Our optimization mission is going to end in this next article:

All's well that ends well. Hope to see you there!
