CorePlus: a Microsoft Bot Framework v4 template

, 27 May 2019
Rate this:
Please Sign up or sign in to vote.
A MBFv4 template that will let you quickly set up a Transactional, Question and Answer, and Conversational AI chatbot

For millions of years mankind lived just like the animals
Then something happened which unleashed the power of our imagination
We learned to talk
(Stephen Hawking)

Table of Contents


I have always being curious about chatbots since I saw Eliza in action during a demo session at my highschool. A computer magazine had published a version in Basic language and one of our computer professors typed the source code on a home computer we had at that time (don't remember if Atari or MSX). So, years later, when Microsoft started talking about their new Bot Framework in 2016, I was seduced by the exciting possibilities it open. Then, a job opportunity arrived.

After working on a pioneering project with Microsoft Bot Framework v3, I realized the need to restart studying the platform almost from scratch. Microsoft was releasing a new version with lots of breaking changes. Actually, a completely different framework that rendered obsolete all v3 projects. BFv4 is a complete re-write of the framework with new concepts, terminology, documentation, architecture, etc. Quoting Microsoft:

Bot Framework SDK V4 is an evolution of the very successful V3 SDK. V4 is a major version release which includes breaking changes that prevent V3 bots from running on the newer V4 SDK.

Microsoft has developed a number of samples to help you get started with the Bot Builder SDK v4, as well as a set of templates powered by the scaffolding tool Yeoman.

This article introduces CorePlus, a Microsoft Bot Framework v4 template that I have created, based on a previous version of the Core Bot template (Node.js) supported by the generator-botbuilder Yeoman generator. It's an extended and advanced version, intended as a quick-start for setting up a Transactional, Question and Answer, and Conversational chatbot, all in one, using core AI capabilities. The template proposes a modified project structure and architecture, and provides solutions for the technical and design challenges that arise.

Background and Requirements

Although some basic knowledge on Microsoft Bot Framework: Node.js SDK, LUIS, QnA Maker, Bot Framework Emulator, etc., is recommended, it's not required. The code is fully commented and the article provides lots of external links to samples, documents and other articles that can help you expand your vision and knowledge on Microsoft's framework as well as on chatbots design and development in general. Visual Studio Code is suggested as the code editor of choice. You may use any other one of your preference, though, such as WebStorm.

CorePlus Bot template features

CorePlus supports Transactional, Question and Answer, and Conversational Chatbot, all in one. It's able to handle common scenarios ranging from most simple ones to advanced capabilities. Here are the built-in features that you'll get out-of-the-box after downloading and installing the code.

Transactional Chatbot

The Microsoft's Core Bot template, which is a template version of the core-bot sample, shows how to gather and validate user's information using multi-steps Waterfall dialogs. CorePlus Bot keeps the original Greeting dialog code and logic, making little refactoring and modifications, like using a localizer and a Typing indicator.

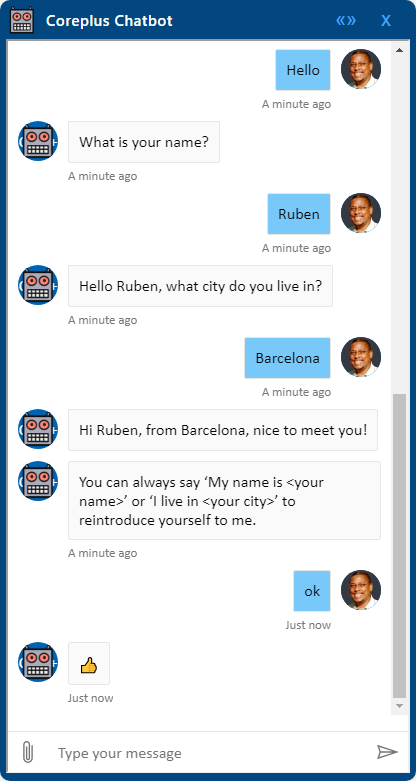

Greeting Dialog

Though this is a very basic example, it provides the foundation for a transactional task-oriented chatbot, able to understand requests and perform a bounded number of actions. A CorePlus based chatbot can respond to user inquiries to complete a single task at a time, in accordance with the business requirements, such as: Show me the balance, Find me a flight or I would like a pizza.

Question and Answer Chatbot

A CorePlus based chatbot can also provide informational answers to user's questions as a Question-Answering conversational system. Powered by Microsoft's QnA Maker, you can train your model and expose existing FAQ (Frequently Asked Questions) through a conversational interface. QnA Maker will classify the questions and will return the answer to a question that best matches with the user query.

Question and Answer Chatbot

After responding to the user's question, is a good practice to request an evaluation of the answer (Helpful, Not helpful). This feedback allows us to log telemetry data about the interaction (asked question, given answer, evaluation...) in Application Insights. This way we can learn from our customers, know what they are asking, the answers they are receiving and how they are evaluated so that we can improve the performance of our bot.

The beauty about conversational interfaces is that your users will tell you exactly what they want and what they think of your bot (Dashbot — Got Bot Metrics?).

So, implement your own analytics and try to extract value from the failures. Certainly, Application Insights already logs basic data for you, but it's unable to log custom data without specific coding, like Helpful or Not helpful user's feedback. The source code for logging custom data to Application Insights is out of the scope of the template, though.

On the other hand, when the user evaluates the answer as Not Helpful or not answer is found at all, there are a number of response options we can implement:

  • Reply with a help text, maybe with examples of valid questions
  • Look for an answer on another Knowledge Base or external QnA service
  • Hand over to a human
  • Suggest a link to ask the community
  • Suggest an email address to contact a real person
  • Ask the user to rephrase the question using other words
  • Suggest the user to request help to the chatbot

Not Helpful Answer

You should consider, within your context, what solution best fits your business requirements. The template implements the last two ones because, in its context, they are the simpler solutions.

Conversational Chatbot

Besides completing tasks and answering common questions on a trained domain, a CorePlus based chatbot is able to chat with customers on random topics. That is to say, it can answer informal questions, also known as chit-chat or small talk.

Conversational Chatbot

Microsoft's Project Personality Chat "easily adds small talk capabilities to a chat agent, in line with a distinct personality". Personality Chat Datasets can be used with QnA Maker. This is the approach adopted by CorePlus. The template comes with a KB file which includes a personality chit-chat dataset, specifically the Friend version. Once the KB is imported into QnA Maker, you can replace the dataset or modify it in accordance with your business requirements.

Using a chit-chat dataset with QnA Maker is a wonderful solution for rapid prototyping or basic bots. If you need to handle specific scenarios in a custom way, you will have to also use LUIS. For instance, out-of-the-box chit-chat dataset takes into account the Joke interaction. If the user writes "tell me a joke", the same joke will always be returned back if you use the default chit-chat response. Nevertheless, handling this scenario with LUIS will give you the Joke intent. So, you will be able to create a dialog that responds with random jokes, just as CorePlus does.

CorePlus handles four special cases of chit-chat intents using LUIS:

  • ChitchatCancel: The user wants to cancel an ongoing transactional dialog
  • ChitchatHelp: The user asks for help
  • ChitchatJoke: The user asks for a joke
  • ChitchatProfanity: LUIS detects inappropriate terms in the user's utterance

In the context of the template, I consider chit-chat questions any user question that is not related to transactional bot capabilities nor QnA questions. This separation of concerns allows to consider special cases and return more elaborated responses. All the other ones are handled using the QnA Maker service. Some of these chit-chat intents can also be understood as Interruptions.

Internationalization and Multilingual Conversation

The CorePlus Bot template supports internationalization and multilingual conversation. For localization tasks, in MBFv4 we need to rely on third-party providers. I have chosen i18n, but the code is ready to use any other solution. Let's look at the most important elements.

At first, we need locale files. That is, JSON files holding key-value pairs, mapping message IDs to localized text strings. A locale file looks like:


	"welcome": {
		"tittle": "👋 Hello, welcome to Bot Framework!",
	"readyPrompt": "What can I do for you?"

A useful feature is the ability to use object notation so that we can use keys like 'readyPrompt' or 'welcome.tittle' as well. In the index.js file we should import and configure the localization package:

const localizer = require('i18n');
    defaultLocale: 'en-US',
    directory: path.join(__dirname, '/locales'),
    objectNotation: true

CorePlus also provides a simplified and unified translation function by mimicking the old session.localizer.gettext() we were used in MBFv3.

localizer.gettext = function(locale, key, args) {
    return this.__({ phrase: key, locale: locale }, args);

Should you want to use another localization package, implement your own version of localizer.gettext(). After the package has been configured, you can use it throughout your code. For instance:


const localizer = require('i18n');
// Restart command should be localized.
const restartCommand = localizer.gettext(locale, 'restartCommand');
welcomeCard.body[2].text = localizer.gettext(locale, 'welcome.subtittle', restartCommand);

Multilingual conversation can be achieved, at least, by two ways: using automatic translation or using by-language cognitive service instances. I have adopted the latter solution. The following piece of code, located in the bot.js file, adds LUIS and QnAMaker recognizers for each locale:

availableLocales.forEach((locale) => {
    // Add LUIS recognizer.
    let luisConfig = botConfig.findServiceByNameOrId(LUIS_CONFIGURATION + locale);

    if (!luisConfig || !luisConfig.appId) {
        throw new Error('Missing LUIS configuration for locale "' + locale + '".\n\n');

    luisRecognizers[locale] = new LuisRecognizer({
        applicationId: luisConfig.appId,
        endpointKey: luisConfig.subscriptionKey,
        endpoint: luisConfig.getEndpoint()
    }, undefined, true);

    // Add QnAMaker recognizer.
    let qnaConfig = botConfig.findServiceByNameOrId(QNA_CONFIGURATION + locale);

    if (!qnaConfig || !qnaConfig.kbId) {
        throw new Error(`QnA Maker application information not found in .bot file.\n\n`);

    qnaRecognizers[locale] = new QnAMaker({
        knowledgeBaseId: qnaConfig.kbId,
        endpointKey: qnaConfig.endpointKey,
        host: qnaConfig.hostname

As you may infer from the code, we'll need per-locale configurations in the .bot file. So, it will look like:

    "name": "coreplus",
    "services": [
            "type": "luis",
            "name": "LUIS-en-US",
            "type": "qna",
            "name": "QNA-en-US",
            "type": "luis",
            "name": "LUIS-es-ES",
            "type": "qna",
            "name": "QNA-es-ES",

Changing bot's language

If you need to develop a multilingual chatbot, you should implement your own User Experience solution for gathering the desired language. After obtaining it, all you have to do is update UserData.locale with a matching value in your locale files. This is the value used for retrieving localized texts, as well as for querying LUIS and QnAMaker services. Each user has their own associated locale value, which is stored in the user state.

const userData = await this.userDataAccessor.get(step.context);
userData.locale = '<the new value>';

A possible solution is to train LUIS with the ChangeLanguage intent and bind it to a ChangeLanguage dialog that displays a menu to the user. This is the approach adopted by Goio, a Spanish chatbot which allows to change the language.

ChangeLanguage Dialog

Cancelation and Confirmation of an ongoing dialog

When chatting with a bot, during an ongoing transactional operation, the user may want to cancel the dialog or decide to start over.

Cancel Dialog

That is why a useful recomendation is:

Design your bot to consider that a user might attempt to change the course of the conversation at any time.

The original Microsoft's template already implements a solution to this issue. CorePlus keeps that solution and introduces a confirmation prompt for double checking with the user, while Microsoft's Core Bot immediately cancels the ongoing dialog once it recognizes the Cancel intent, without confirmation.

Cancel Dialog

Help handling

The original Core Bot template already handles the Help intent. CorePlus refactors and extends this base solution, displaying three elements:

  • A list of actual utterances the user can type
  • An introduction to a menu
  • A menu linked to the chatbot capabilities

Help Dialog

The list of actual utterances and menu options are intended here to show the whole set of capabilities the chatbot template exhibits. In a real production bot, this list probably won't be short, so you should design a solution that best supports the User Experience.

The ChitchatHelp intent is handled as an interruption so that the user can ask for help at any time:

Help Dialog

Joke handling

Users often ask a bot for a joke. According to Arte Merritt, Co-founder and CEO of, a chatbot analytics company:

About 12% of Facebook bots on our platform have had users ask the bot to tell a joke or say something funny.

CorePlus supports this scenario out-of-the-box with:

  • A LUIS model trained with a set of Joke utterances, including those listed by Arte Merritt in his article.
  • A specialized dialog bound to the ChitchatJoke intent, able to return different random jokes.

Joke Dialog

Jokes are defined in the locale file. They can be as many as you consider. Multipart jokes can be split with "&&":


	"jokes": {
		"0": "My boss told me to have a good day so I went home 😂",
		"1": "What do you call a guy with a rubber toe? && Roberto 🤣",
		"5": "I ordered a chicken and an egg from Amazon... && I'll let you know 🤣",

The last told joke is never repeated in the next iteration. Here is the dialog code, available in the dialogs/chitchat folder, index.js file:

async jokeDialog(dc) {
    const userData = await this.userDataAccessor.get(dc.context);

    // Retrieve the jokes list.
    const jokes = localizer.gettext(userData.locale, 'jokes');

    // Randomly select a joke from the list. Do not repeat the last one.
    let jokeNumber;
    do {
        jokeNumber = Utils.getRandomInt(0, Object.keys(jokes).length).toString();
    } while (jokeNumber === userData.jokeNumber);

    // Save the last joke number.
    userData.jokeNumber = jokeNumber;
    await this.userDataAccessor.set(dc.context, userData);

    const parts = jokes[jokeNumber].split('&&');

    // Send every joke part in a different bubble, leaving a short space time between them.
    for (let i = 0; i < parts.length; i++) {
        await Utils.sendTyping(dc.context);
        await dc.context.sendActivity(parts[i]);

    return true;

The ChitchatJoke intent is handled as an interruption so that the user can request a joke at any time:

Joke interruption

Be cautious when designing jokes for chatbots, as there are some key points to take into account:

Humor is subjective and ripe for missteps. One person's laugh is another person's cringe (...). The complexity of what's considered funny is enough to prompt many companies into developing bland personality-free chatbots. But creating a chatbot without humor would defeat the very purpose of most chatbots: creating a human-seeming conversation that people want to have. The trick, then, is finding a balance in creating a conversation that can build bonds and entertain users, but not offend or alienate. (How Funny Should a Chatbot Be?)

Profanity handling

It's a known fact that when people have conversations with chatbots, being aware they talk to computers, the occurrences of profanity is greater than when they talk to other humans, including sexually explicit terms and bad words. CorePlus comes with built-in profanity recognition and handling.

Profanity Dialog

As was previously exposed, CorePlus uses LUIS and the ChitchatProfanity intent for filtering unwanted content. Once such content is recognized, the chatbot responds accordingly, suggesting the user to ask for help. Here is the code, available in the dialogs/chitchat folder, index.js file:

async profanityDialog(dc) {
    const userData = await this.userDataAccessor.get(dc.context);
    let msg = localizer.gettext(userData.locale, 'profanity');
    await dc.context.sendActivity(msg);

    return true;

The ChitchatProfanity intent is handled as an interruption so that it can be recognized at any time:

Help Dialog

The LUIS model is trained with basic phrases such as: "you're awful", "go to hell" and "ur stupid", among others much more offensive and rude. It's also trained with the swear words collected by the BanBuilder project, the Bad Words and Top Swear Words Banned by Google list and the Related Values suggested by the LUIS interactive interface.

Related Values suggested by the LUIS interactive interface

You may complete or modify the training with the use cases you want to consider as Profanity. An alternative solution for handling inappropriate content and undesirable text is to use a specialized service such as the Content Moderator.

Support "first user interaction" best practices

The onboarding interaction is of paramount importance to the success of a chatbot, so that a careful design is critical to the user experience.

The very first interaction between the user and bot is critical to the user experience. When designing your bot, keep in mind that there is more to that first message than just saying "hi." When you build an app, you design the first screen to provide important navigation cues. Users should intuitively understand things such as where the menu is located and how it works, where to go for help, what the privacy policy is, and so on. When you design a bot, the user's first interaction with the bot should provide that same type of information. (Design a bot's first user interaction)

CorePlus comes with placeholders that enforce some UX best practices:

Welcome Dialog

As was explained in "Help handling", the list of menu options is intended here to show the whole set of capabilities the chatbot template exhibits. In a real production bot, this list probably won't be short, so you should design a solution that best supports the User Experience. A widely accepted rule of thumb is to only show 3–5 key capabilities.

CorePlus has a consistent way to show the main menu. There are three places or moments where it is displayed:

  • At the end of the welcome dialog
  • After the user cancels an ongoing transactional dialog
  • At the end of the help dialog, when the root dialog (MainDialog) is the active one.

"Bot menu actions/commands should be always invokable, regardless of the state of the conversation or the dialog the bot is in". During an ongoing transactional dialog, if the user ask for help, we should provide some guidance. Nevertheless, if we show the main menu here, at this very moment, we'll be distracting the user from the current task by offering paralell tasks that are not handled as interruptions. That is why the main menu is only displayed from the root dialog.

Here is the code for showing the main menu from any dialog:

const { Utils } = require('../shared/utils');
await Utils.showMainMenu(context, locale);

While the main menu code, located in the dialogs/shared folder, utils.js file is:

static async showMainMenu(context, locale) {
    const hints = localizer.gettext(locale, 'hints');
    const buttons = [];

    Object.values(hints).forEach(value => {

    await context.sendActivity(this.getHeroCard(buttons));

The showMainMenu() function loads a hints object from the locale file, fills an array with its values and pass it to a function, getHeroCard(), also in the same utils.js file, which returns a HeroCard (the menu) with the options in it.

Yes/No synonyms for Yes/No answerable questions

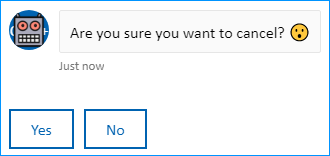

Cancel Yes/No Dialog

The Bot Framework v4 SDK comes with built-in specialized dialogs classes for managing conversations. One of them, which "Prompts a user to confirm something with a "yes" or "no" response", is the ConfirmPrompt class. As a specialized component, this class does a good job at a basic level. At the time of this writing, there is a couple of tasks I've found hard or impossible to do, though:

  • Buttons with custom texts
  • Recognize a wide number of utterances as synonyms of Yes or No

I came up with a solution by using a similar and more generic dialog class: ChoicePrompt. Both classes accept a Choice list, by the way, and its use should be interchangeable.

Helpful Yes/No Dialog

The idea is to implement a pair of functions which return a Choice object: one with "Yes" data and the other one... well, you may guess, with "No" data. For instance, the "Yes" version follows, located in the dialogs/shared folder, utils.js file.

static getChoiceYes(locale, titleKey, moreSynonymsKey) {
    const title = localizer.gettext(locale, titleKey);
    let yesSynonyms = localizer.gettext(locale, 'synonyms.yes');

    if (moreSynonymsKey) {
        const moreSynonyms = localizer.gettext(locale, moreSynonymsKey);
        yesSynonyms = yesSynonyms.concat(moreSynonyms);

    return {
        value: 'yes',
        action: {
            type: 'imBack',
            title: title,
            value: title
        synonyms: yesSynonyms

Yes/No synonyms are defined in the locale JSON file as arrays of strings. The prompt dialog will recognize any of them, as well as the button tittle and little variations.


	"synonyms": {
		"yes": ["yes", "y", "yeah", "yay", "👍", "awesome", "great", "cool", "sounds good", "works for me", "bingo", "go ahead",
			"yup", "yes to that", "you're right", "that was right", "that was correct", "that's accurate", "accurate", "ok",
			"yep", "that's right", "that's true", "correct", "that's right", "that's true", "sure", "good", "confirm", "thumbs up"],
		"no": ["no", "n", "nope", "👎", "ko", "uh-uh", "nix", "nixie", "nixy", "nixey", "nay", "nah", "no way",
			"negative", "out of the question", "for foul nor fair", "not", "thumbs down", "pigs might fly", "fat chance",
			"catch me", "go fish", "certainly not", "by no means", "of course not", "hardly"],
        "cancel": ["cancel", "abort"]

And here is how to build a custom Confirm dialog using the Choice functions:

const { Utils } = require('../shared/utils');

    async promptFeedbackStep(step) {
        const userData = await this.userDataAccessor.get(step.context);
        const locale = userData.locale;

        const prompt = localizer.gettext(locale, 'qna.requestFeedback');
        const choiceYes = Utils.getChoiceYes(locale, 'qna.helpful');
        const choiceNo = Utils.getChoiceNo(locale, 'qna.notHepful');

        return await step.prompt(ASK_FEEDBACK_PROMPT, prompt, [choiceYes, choiceNo]);

For the sake of the UX and usability, it's really important that your bot be able to understand more utterances than the ones displayed in the buttons. Be aware that users don't use bots like apps — they want to chat, not click on buttons. As a rule of thumb, a hybrid approach to chatbots that utilizes both NLP and buttons is recommended.

Typing indicator

For the chatbot UX, the Typing indicator is as important as the Busy or Loading indicators for the web and mobile apps. It tells the user that something is happening on the other side of the screen. That the bot has listened to the user's request and now is "thinking" and elaborating the expected response.

Design your bot to immediately acknowledge user input, even in cases where the bot may take some time to compile its response. (...) By immediately acknowledging the user's input, you eliminate any potential for confusion as to the state of the bot. If your response takes a long time to compile, consider sending a "typing" message to indicate your bot is working. (Design bot navigation - The "mysterious bot")

Typing indicator

Typing indicator can also be useful to increase the wait time of additional messages and give users more time to read them when a long message is split into shorter ones.

At the time of writing this article, the Node.js version of the Bot Framework v4 lacks a built-in feature to send Typing indicator at will, when and where the developer decides to send the event. It can be implemented with just a few lines of code, though. CorePlus provides the feature out-of-the-box. You may find the implementation, which is self-explanatory, located in the dialogs/shared/utils.js file.

static async sendTyping(context) {
    await context.sendActivities([
        { type: 'typing' },
        { type: 'delay', value: this.getRandomInt(1000, 2200) }

Here is an example for sending a Typing indicator message:

// Import Utils for sendTyping() function
const { Utils } = require('../shared/utils');
    async promptForNameStep(step) {
        await Utils.sendTyping(step.context);
        // Do more things

The current Typing indicator animation is static, it's always the same. Perhaps we'll see a more dynamic implementation in the near future because Microsoft has filed a patent that describes such improvement:

Technology is disclosed herein that improves the user experience with respect to is-typing animations. In an implementation, a near-end client application receives an indication that a user is typing in a far-end client application. The near-end client application responsively selects an animation that is representative of a typing pattern. The selection may be random in some implementations (or pseudo random), or the selection may correspond to a particular typing pattern. The near-end client then manipulates the ellipses in its user interface to produce the selected animation.

Restart command

Sometimes the user may feel trapped in the conversation and wants to start over from scratch. So, the chatbot should provide a way to tackle this situation. A common solution is to implement a Restart command ("restart", "start over", "reset", etc.) that tells the chatbot to resend the Welcome message and repeat the "first user interaction", which may also involve clearing some gathered user data. The availability of the Restart command should be informed earlier, in the Welcome dialog, as well as in the Help dialog, so that the user is aware of that superpower. We have previously seen examples of both.

CorePlus provides built-in logic by handling a restart keyword, that can be modified at will in accordance with your business requirements. A more flexible approach would be to use LUIS and intent recognition with a number of different utterances. Nevertheless, intent recognition always has a variable grade of confidence, while the confidence of a single keyword is 1. If the user types "restart", we can assume he or she wants to start over the conversation.

Restart command

The Restart command is handled in the root dialog (MainDialog), located in the dialogs/main/index.js file. Note that the command should be localized.

        // Handle commands
        if (utterance === localizer.gettext(locale, 'restartCommand')) {
            let userData = new UserData();
            // Save locale and any other data you need to persist between resets
            userData.locale = locale;
            await this.userDataAccessor.set(dc.context, userData);
            await dc.cancelAllDialogs();
            turnResult = await dc.beginDialog(;

Web Chat and Minimizable Web Chat Component

Based on the MBFv4 Web Chat samples, this template comes with a ready-to-use custom version that shows how to add a Web Chat control to your website. The sample is available in the public folder, webchat.html file. You need to replace YOUR_DIRECT_LINE_TOKEN with your bot secret key. The HTML file can be straight open with your preferred internet browser or can be loaded from http://localhost:3978/public/webchat.html once your bot is running locally on your computer.

On the other hand, the template also comes with a minimizable version of the Web Chat component, located in the webchat folder, minwebchat.html file.

Minimizable Web Chat Component

This sample takes some ideas from the customization-minimizable-web-chat official sample. All the logic is packaged into a single HTML file, so there is no need to use React. There you will find two iframes: one will point to your bot url, remotely hosted in Azure ( The other one will point to the locally running instance (http://localhost:3978/public/webchat.html). In both cases, the previous Web Chat file will be loaded. The two iframes are meant to work one instead of the other, so you are able to decide which one to use and test.

Note that, for the local version, there is a tricky way of loading the iframe content to override the cached version by the browser. This forces the browser to re-fetch the iframe content each time the web page is loaded.

<iframe id='botiframe' src='' style='width: 100%; height: 100%;'></iframe>
  const iframe = document.getElementById('botiframe');
  iframe.src = 'http://localhost:3978/public/webchat.html?r=' + new Date().getTime();

Installing and using the template


You will need the following before installing and using the template:

To run the bot

  • Download the project
  • Create a LUIS app in the LUIS portal
    1. Select Import new app.
    2. Click Choose App file (JSON format)...
    3. Import CoreplusLUIS.json file located in the cognitiveModels folder of the project. This file contains six intents: Greeting, ChitchatCancel, ChitchatHelp, ChitchatJoke, ChitchatProfanity and None.
  • Create a QnA Maker service
    1. After creating the QnA Maker service, create a knowledge base using the CoreplusKB.tsv file located in the cognitiveModels folder of the project. Use this .tsv file to populate your KB. Then train and publish your model, and obtain the values to connect your bot to the knowledge base.
  • Update the .bot file located in the config folder with the missing values for LUIS and QnA Maker services.
        "name": "coreplus",
        "description": "",
        "services": [
                "type": "endpoint",
                "id": "1",
                "name": "endpoint",
                "appId": "",
                "appPassword": "",
                "endpoint": "http://localhost:3978/api/messages"
                "type": "luis",
                "id": "20",
                "name": "LUIS-en-US",
                "appId": "<YOUR_APP_ID>",
                "authoringKey": "<YOUR_AUTHORING_KEY>",
                "subscriptionKey": "<YOUR_AUTHORING_KEY>",
                "version": "0.1",
                "region": "<YOUR_REGION>"
                "type": "qna",
                "id": "30",
                "name": "QNA-en-US",
                "kbId": "<Your_Knowledge_Base_Id>",
                "subscriptionKey": "",
                "endpointKey": "<Your_Endpoint_Key>",
                "hostname": ""
        "padlock": "",
        "version": "2.0"
  • From inside the development environment, create the .env file located in the src/config folder with the following content:
  • Navigate to the src folder and run the following npm commands to install modules and start the bot:
    npm install
    npm start

Testing the bot using Bot Framework Emulator v4

Bot Framework Emulator is a desktop application that allows bot developers to test and debug their bots on localhost or running remotely through a tunnel.

  • Install the Bot Framework Emulator version 4.2.0 or greater from here
  • Launch Bot Framework Emulator
  • File -> Open Bot Configuration
  • Navigate to config folder
  • Select file

The .bot file has been deprecated

With the 4.3 release of the Bot Framework, Microsoft moved away from using .bot files. The .bot file has been deprecated. The new recommended solution for managing resources is to use a .env file instead of the .bot file. So, I'll be updating the project in a very near future accordingly.


Sitting on the foundation of an official Microsoft Bot Framework v4 template named Core Bot (Node.js), I have created an advanced version intended as a quick-start for setting up Transactional, Question and Answer, and Conversational chatbots using core AI capabilities, all in one, while supporting design best practices. This article introduces the template, describes its most important features and discusses why they are there and how you can leverage its benefits. I hope it's helpful and fulfill its goals.

The CorePlus Bot template is the result of learning from the scattered set of Microsoft's samples and templates over Github, as well as my own experience and findings writing bots. Actually, the template is the summarized version of a much more complex chatbot I designed and developed. Here are the Microsoft's Github links:

How should a chatbot be designed? How many things to keep in mind? What are the best practices? As an emerging technology, the wide commercial use of chatbots and conversational interfaces is still in its infancy, although they have been around here for years. People involved in the field, like product owners, project managers, UX designers, developers, copywriters, Computer Science and Artificial Intelligence researchers, are still learning and establishing the rules that should drive the design and development of this exciting field, while sharing their findings. Here is a selection of some articles that might help you think and understand the collective knowledge of the community.

The template is ready to use, although it's an unfinished work. The development of the underlying framework is in progress and so should also be CorePlus. It should be adapted to the changes and improvements of the MBFv4 over the time. It can and should also be improved with the contributions of the community. Your opinions, suggestions and contributions are more than welcome. So, where do we go from here? All we need to do is make sure we keep talking.


  • 20th May, 2019: Version 1.0 - Initial article submitted


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


About the Author

Rubén Hinojosa Chapel
Software Developer (Senior)
Spain Spain
Microsoft Development Consultant. Mobile Software Engineer with Apple, Google and Microsoft technologies (Xamarin, C#). Chatbots Software Engineer with Microsoft Bot Framework (Node.js, Azure). Collaborates with companies from different sectors in the development or maintenance of their computer systems, helping them in identifying their needs and proposing technical solutions that provide value and solve their problems.

Comments and Discussions

QuestionASP.NET C# Version? Pin
Andresv28-May-19 3:36
memberAndresv28-May-19 3:36
AnswerRe: ASP.NET C# Version? Pin
Rubén Hinojosa Chapel29-May-19 7:05
professionalRubén Hinojosa Chapel29-May-19 7:05
QuestionHow to train it? Pin
Mario M.27-May-19 22:03
memberMario M.27-May-19 22:03
AnswerRe: How to train it? Pin
Rubén Hinojosa Chapel29-May-19 7:03
professionalRubén Hinojosa Chapel29-May-19 7:03
GeneralRe: How to train it? Pin
Mario M.29-May-19 22:01
memberMario M.29-May-19 22:01

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

Permalink | Advertise | Privacy | Cookies | Terms of Use | Mobile
Web02 | 2.8.190612.1 | Last Updated 27 May 2019
Article Copyright 2019 by Rubén Hinojosa Chapel
Everything else Copyright © CodeProject, 1999-2019
Layout: fixed | fluid
