Introduction

Screen Capturing is one of the main building blocks in any surveillance and monitoring product. Target Eye Monitoring System, developed since 2000 and till 2010, had its unique JPG screenshots. This article is the second one in the Target Eye Revealed series. The third article (following this one) is about the Shopping List mechanism. The fourth article is about Keyboard Capturing and the fifth article is about the Cover Story mechanism. The sixth article is about hiding files the Target Eye way.

Background

Target Eye Monitoring System, which I developed 12 years ago, was probably the first surveillance and monitoring tool for capturing activity of remote computers. The following description is taken from the original Business Plan of this venture:

Target Eye is a start-up company whose mission is to develop integrated software solutions for real-time monitoring of remote PCs, which are based on the company’s patent pending technologies (60/204,084 and 60/203,832). Our major product, Target Eye Monitoring System, is a software product that can continuously track, record, playback, analyze and report any activity performed on one or multiple remote PCs, in a way which is undetectable by their users. The software relies on a stream of rapidly captured, compressed full-screen images and continuous keystroke capturing to provide a comprehensive and accurate account of user activities, including local activities which do not generate any network traffic. In this way, the software can track and record activities, which are undetectable by systems relying on network traffic analysis. A smart agent module running on the monitored PCs uses a rule base to send alerts to the monitoring location(s) or perform pre-defined local operations. Monitoring can be performed from multiple locations. Major markets are law-enforcement.

Target Eye's Building Blocks

There are several terms and building blocks that sum up to the Target Eye Monitoring System:

• Target Eye Secret Agent - the covert part of the product that runs on the monitored computer
• Target Eye Operator - the authority that operates the Secret Agent (for example: a Law Enforcement agency)
• A Mission - a request to perform an action. There are many possible actions (for example, capturing the screen, as described in this article or searching and finding files, as described in this article).
• Target Eye Compiler - The tool that is used by the Target Eye Operator to customize a Secret Agent for performing specific tasks.

The Purpose of Screen Capturing

Screen Capturing serves one purpose which is to provide an accurate image of the activity that takes place on the monitored computer at a given moment. That is achieved by grabbing the image that is seen on the screen, and add to it a watermark which reflects any additional data that can help later on, to use the screenshot as an evidence: such additional data could be data and time stamp, timezone, a unique sequential number and any additional label such as the name of the active application or a certain key sequence that was captured as part of the "hot words" mechanism (for example: "Bin Laden").

The Target Eye Screenshots Files

Screen capturing files should be small in size and yet readable. The JPG format provides the mechanism to setup a the image quality using a numeric value between 1 and 100. This value also creates a unique look for the screenshots which makes it next to impossible to forge such screens or manipulate them, ensuring that each screenshot file is genuine. Target Eye uses its own unique imperfect screens.

Taken by one of the first versions form May 2000. For the original image, press here.

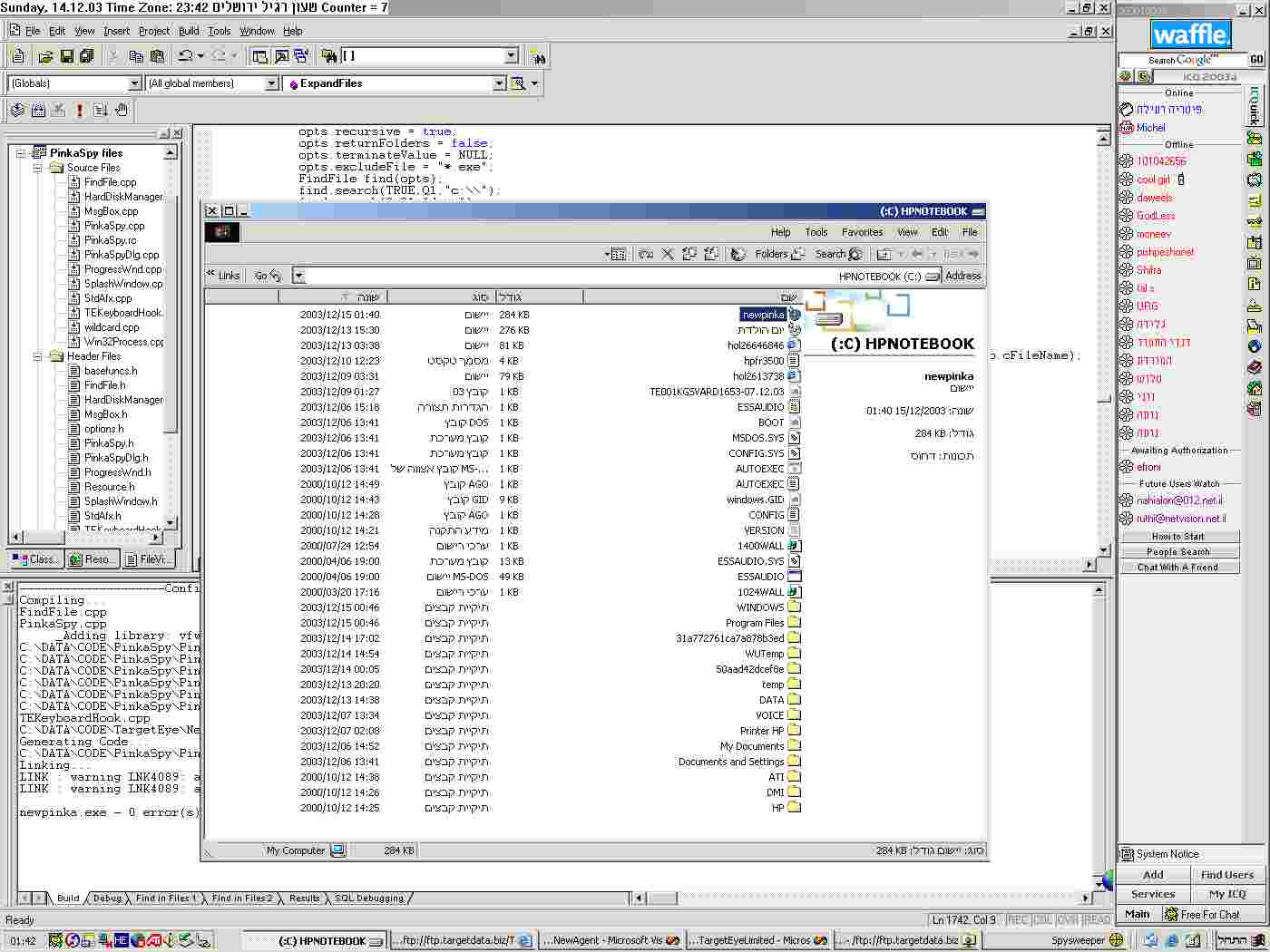

This is a reduced size screenshot taken from my own laptop at December 2003. You can actually see the Visual C++ 6.0 with the Target Eye source code opened... To see the original image, click here.

Steps in Capturing the Screen

The following steps should be taken in order to capture a screen:

Get the DC

DC stands for Device Contents. The GetDC function retrieves a handle to a device context (DC) for the client area of a specified window or for the entire screen. To get the DC of a given Window, call:

HDC hDC = GetDC(hWnd);

In our case, we pass "0" to GetDC, in order to capture the entire Desktop.

HDC hDC = GetDC(0);

The returned handle is used in subsequent GDI functions to draw in the DC. The device context is an opaque data structure, whose values are used internally by GDI.

Creating a Memory Compatible DC

Now we create a compatible allocated memory which is compatible with the DC we capture by calling:

HDC CreateCompatibleDC(
  HDC hdc
);

We also store the width and the height of the area to be captured:

int ScreenWidth = GetDeviceCaps(CI.m_hScreenDC, HORZRES);
int ScreenHeight = GetDeviceCaps(CI.m_hScreenDC, VERTRES);

Creating a Compatible Bitmap

By calling CreateCompatibleBitmap, we create a bitmap compatible with the device that is associated with the specified device context.

HBITMAP CreateCompatibleBitmap(
  __in  HDC hdc,
  __in  int nWidth,
  __in  int nHeight
);

SelectObject is used to copy the data from the screen to memory.

HGDIOBJ SelectObject(
  HDC hdc,
  HGDIOBJ hgdiobj);

Calling BitBlt

The BitBlt function is used for a bit-block transfer of the captured area, by transferring the entire data by each color into the destination device context.

BOOL BitBlt(
  __in  HDC hdcDest,
  __in  int nXDest,
  __in  int nYDest,
  __in  int nWidth,
  __in  int nHeight,
  __in  HDC hdcSrc,
  __in  int nXSrc,
  __in  int nYSrc,
  __in  DWORD dwRop
);

As this stage, we are ready to add the time stamp and any additional data on top of the captured image, as described in the following sections, but first, let's explain why and how we use ImgSource.

ImgSource - The SDK used by Target Eye's Screen Capturing

Target Eye's screenshots are created with the help of a graphic library named ImgSource by Smaller Animals, a privately-held corporation, founded in 1993, and incorporated in 1999, based in Research Triangle Park, NC. I have a full source code license for this library, as products like Target Eye (and customers who buy it, like Law Enforcement agencies) require having full source code of all components, with no "black boxes".

Chris Losinger, the President, has provided a lot of help along the way since 2000. It should be noted that ImgSource is not an open source library and is not a free product, but I strongly recommend it. Unregistered users can test the library but images will have a large red X drawn on them (including when it comes to the source code attached to this article). Along the many features this library has, here is a partial list:

Image File Functions Read images from files or memory. Write image to files or memory. Supports user-defined input and output managers - the ultimate in I/O flexibility Optionally read and write most supported image file formats one line-at-a-time. Read to a DIB in one function call Get image dimensions and bit-depth from image files Progress / cancel callback option provided for most file I/O routines and image processing options. Supports JPG, GIF, BMP, TIFF, PhotoCD, Photoshop, WBMP, PNG, PCX, PAX, TLA, WMF, EMF, APM, PPM, PGM, PBM and TGA JPG, PNG, PAX and TLA comment support Multi-page TIFF I/O capabilities Animated GIF I/O capabilities JPEG_APPx marker support Read EXIF data from JPGs and TIFFs Write EXIF data to JPG Read and write ICC profile data from JPG, PNG, TIFF Read and write IPTC data from JPG, TIFF Lossless JPG transformations Read/write 1-bit G3/G4 (FAX) TIFFs Custom memory allocation callbacks for image file reading Much more... Windows Bitmap Functions Generate HBITMAPs from RGB buffers Generate RGB buffers from HBITMAPs Generate 8-bit and RGB buffers from DIBs Generate DIBs from RGB, 8 or 1-bit images Draw HBITMAP, DIB, RGB, RGBA or 8-bit images to an HDC in one call Capture DCs to RGB buffers in one call Draw transparent HBITMAP or RGBA or RGB images Much more...

Image Processing Functions Resize an image to any size Apply an arbitrary convolution matrix to an image Sharpen, blur and unsharp mask an image Rotate an image, any angle Detect image rotation (deskew) angle Adaptive thresholding for converting grayscale to monochrome Polygon and ellipse fill, flood fill or draw lines onto images Apply a look up table (LUT) to an image Generate grayscale images from RGB images Generate 8-bit colormapped images from 24-bit RGB or 32-bit RGBA images (color quantize) Convert between 24-bit and 8-bit images Using any palette, generate an 8-bit image from an RGB image Convert between 16-bit per component and 8-bit per component Modify brightness / contrast / saturation of an image Automagic brightness correction Automagic image border detection Automatic dust and scratch removal Emboss images Polygon warp and point to point warp functions FFT and morphological operations Despeckle grayscale and RGB images Histogram stretch / equalization Many alpha blending and image compositing/overlay functions Crop images Vertically and horizontally flip buffers Count colors in RGB images Draw smoothed text onto images Replace a color in an RGB image Many of these functions can be used with 16-bit per component data Much more...

The CaptureScreen Function

Target Eye's screenshots are generated by calling CaptureScreen() which is used to capture the entire screen into a JPG file kept in a local hidden location, and then send it to the FTP server.

The first version of Target Eye was released on May 2000 and had a simple screen capturing routine that saved the files in .bmp format, which is large in size, which makes it problematic if we wish to capture screens every minute... It was then replaced with a loosy JPG file, which did the job. The following function had gone a long way of many hours of QA, as Window's GDI consumes some memory, and if such routine is ran for days, due to bugs in GDI, the application will consume the computer's resources, but that was solved by carefully allocating and releasing the necessary resources and managing the memory allocation correctly.

static HDC ScreenDC=NULL;
static HDC hmemDC=NULL;
static HBITMAP hmemBM=NULL;
static HGLOBAL hRGB=NULL;
void SimpleCapture()
{
    ScreenDC = GetWindowDC(0);
    if (ScreenDC != NULL)
    {
        hmemDC = CreateCompatibleDC(ScreenDC);
        if (hmemDC != NULL)
        {
            int ScreenWidth = GetDeviceCaps(ScreenDC, HORZRES);
            int ScreenHeight = GetDeviceCaps(ScreenDC, VERTRES);
            hmemBM = CreateCompatibleBitmap(ScreenDC, ScreenWidth, ScreenHeight);
            if (hmemBM != NULL)
            {
                HGDIOBJ result=SelectObject(hmemDC, hmemBM);   // copy screen to memory DC
                if((ULONG)result!=0L && (ULONG)result!=GDI_ERROR)
                {
                    GdiFlush();
                    if((BitBlt(hmemDC, 0, 0, ScreenWidth,
                               ScreenHeight, ScreenDC, 0, 0, SRCCOPY)))
                    {
                        hRGB = ISHBITMAPToRGB(hmemBM, (unsigned int *)&ScreenWidth,
                        (unsigned int *)&ScreenHeight, hmemDC, NULL);
                        if (hRGB)
                        {
                            // for grayscale
                            //.. RGB -> JPG
                            HISDEST hDest = ISOpenFileDest("c:\\test.jpg");
                            if(hDest!=NULL)
                            {
                                static ULONG ImageCount=0;
                                int Wrote=ISWriteJPG(hDest, (BYTE *)hRGB,
                                ScreenWidth, ScreenHeight, 25, 1, 24, NULL);
                                ISCloseDest(hDest);
                                TRACE("Created Image %ld\n",ImageCount++);
                            }

                            //.. clean up
                            GlobalFree(hRGB);
                            hRGB=NULL;
                        }
                        else
                        {
                            // handle error
                        }
                    }
                }
                DeleteObject(hmemBM);
                hmemBM=NULL;
            }
            DeleteDC(hmemDC);
            hmemDC=NULL;
        }
        DeleteDC(ScreenDC);
        ScreenDC=NULL;
    }
}

As you can see, the "Quality" attribute set in this version is 25 (from 100).

Creating the Header

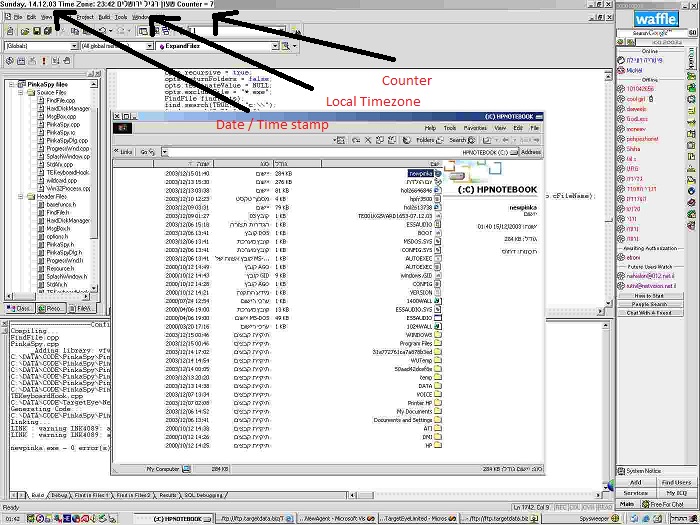

Since versions 2003 and 2004 of Target Eye, a unique Header was created with valuable information about the screenshot. The header is created after the screen images are captured to memory, and just before the creation of the JPG file.

// Now we create the header which is stamped on top of the screen
sprintf(s,"%ld",cycle);
CString FormattedTime=(CString)CTime::GetCurrentTime().FormatGmt
                      (L" %A, %d.%m.%y Time Zone: %z %H:%M Label = ");
if(TextToWrite!="") FormattedTime+=TextToWrite;
FormattedTime += s;
HPEN hNewPen;
hNewPen=CreatePen(PS_SOLID, 1, RGB(233,238,45));
SelectObject(CI.m_hmemDC, hNewPen);
TextOut(CI.m_hmemDC,0,0,FormattedTime,FormattedTime.GetLength());

Naming the Files

A monitoring application should have a scheme for naming the various files it creates, including the screens captured. The function in the attached source code provides a very simple file naming scheme based on the text "Screen" followed by a sequential number and the ".jpg" extension.

CString ComposeFileName(int i)
{
    CString result;
    result.Format(L"%s%d%s",(CString)L"screen",i,(CString)L".jpg");
    return result;
}

Target Eye uses a more sophisticated system which was based on counting the "cycles" (which are the times in which the application reaches the main event loop). The cycle occurs every X seconds, which are calculated as the minimal amount of time any information is requested to be captured. For example, if the operator requests that files will be copied every 5 minutes and screens will be captured every 10 minutes, then provided that there aren't any additional periodically information gathering requests, the cycle will be every 5 minutes. This is set using a Timer.

Using the Source Code

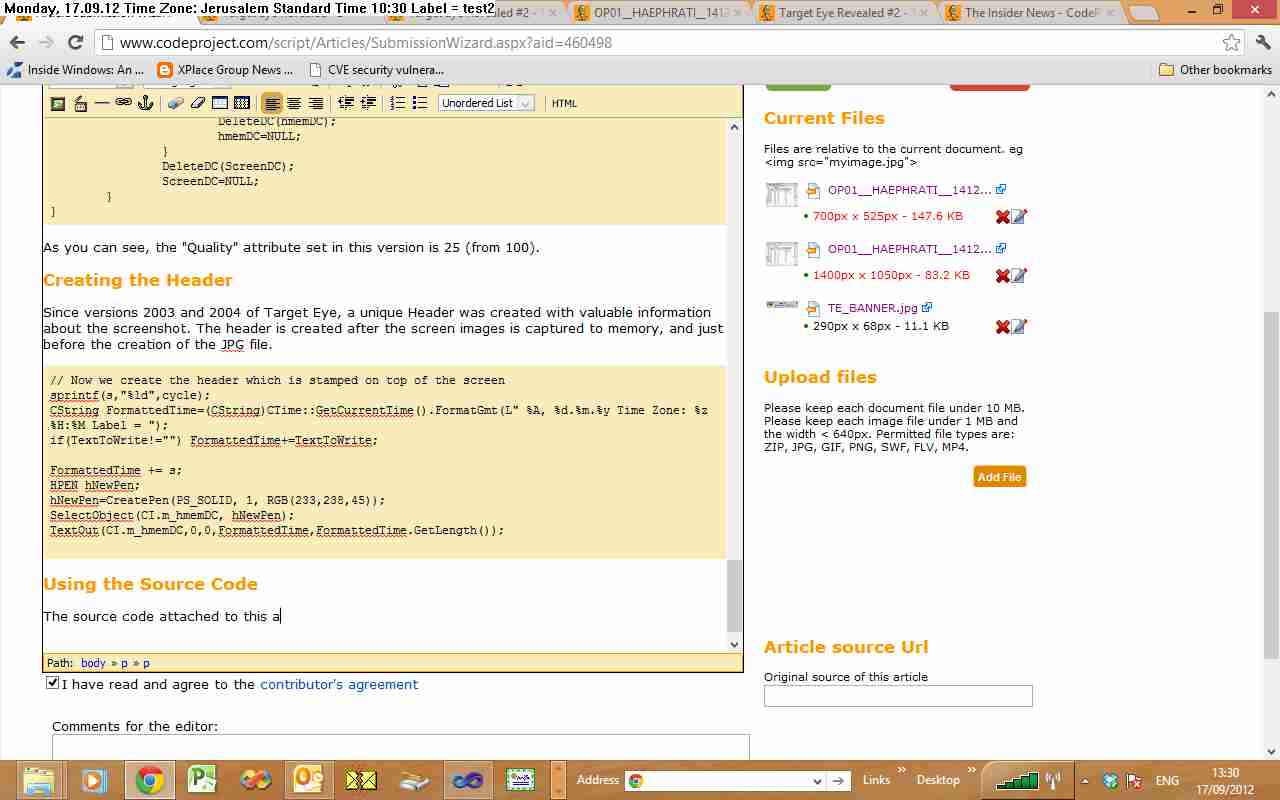

The source code attached to this article is based on a newer version of Target Eye which is 100% Win32API (with no use of MFC), and UNICODE support. The following screenshot was created with the attached code, with the exception that before publishing this source code, I have removed my own personal License Key, so screenshots will have a red X on top of them.

Running a computer game (Bear in the Big Blue House), borrowed from my daughter Emma for continuous days, made it possible to ensure the screen capturing functionality is stable enough with no memory leaks.
