Extend your VBA code with C#, VB.NET, or C++/CLI

Rate me:
Please Sign up or sign in to vote.
4.75/5 (13 votes)
23 Jun 2013CPOL8 min read
Interfacing VBA and .NET is a relatively straightforward process.


If you have an important VBA code base, you know how difficult it is to maintain it, not because VBA is inherently a bad or poor platform, but because the developers are often either end-users not aware of good development practices or professional developers not skilled enough in VBA development who have learnt it on the job. In both cases, more often than not, you end up with poor quality source code.

There are other forces that make VBA development less appealing, as the pressure of software vendors like Microsoft who’d like to sell you not just Office but Office + Visual Studio and then promote other technologies like .NET with languages such as C# and VB.NET. Just have a look at the evolution of the VBA editor design and capabilities since 10 years and you’ll understand that it does not benefit from fanatic development and promotion efforts.

It’s why you should avoid the headlong rush and restrict your VBA development efforts to the bare minimum: for new developments you should consider other languages and platforms like C# and VB.NET with the .NET framework as they seamlessly integrate with the Office suite, with little overhead compared to the direct integration of VBA, and give you access to a wealth of modern technologies. But don’t be fooled by the FUD about the dangers of keeping a legacy VBA code base and do your due diligence: will the guy who suggested you a full migration do it for free or is he paid for the job? ;) A full migration may be a necessity: not because the platform is VBA but because the application is buggy, undocumented, out of control and using it creates a true operational risk, and this is true for any application and technology including the newest.

Then, if you have a VBA application that is working perfectly, is documented and controlled, an alternative to both the headlong rush and the full migration is the integration of .NET components with VBA, you then use a future-proof technology to develop new features and/or replace legacy features as you go along, avoiding the big-bang effect.

So now you know what to do and right now I’ll show you how to make this seamless transition from VBA to greener pastures by implementing a simple API with three popular .NET languages: C# (the king), VB.NET (the prince) and C++/CLI (the Jack of all trades, master of none).

Presentation of the .NET API

The .NET API we’re going to build is a basic market-data provider that uses the Yahoo finance API as its back-end. The API provides four methods:

  • Three unitary methods: GetBid, GetAsk, GetCapitalization, for retrieving the bid price, ask price and the capitalization of a stock, respectively,
  • A bulk method: GetValues, for retrieving any set of fields (check this list of available fields to have an idea of which data you can get).

The code is minimal, with no error handling, to avoid any distraction.

We’ll write usual C#,VB.NET, and C++/CLI code with some COM stuff: the GUID attribute to uniquely identify our COM-visible types and the ClassInterface attribute to control the way the COM interface is generated: “None” means we use the first interface explicitly implemented by the class.

If you don’t want to write any code or command-lines, you can download this ZIP archive where I’ve packaged: the source-codes, a CMD script that builds and registers the API, and a demo Excel spreadsheet with VBA code (in the “mYahoo” VBA module). You should just have to run the CMD script with administrator privileges from a Visual Studio Command Prompt, open the sample spreadsheet and click the “Load“ button.

The C# Implementation

When it comes to selecting a language for .NET development, C# is the default choice if you have no constraints because it was designed and is promoted as the flagship of the .NET framework. As such, it benefits from a great development effort and a huge community.

Here is the C# implementation of our API:

using System.Net; // WebClient
using System.Runtime.InteropServices; // Guid, ClassInterface, ClassInterfaceType
using System.Globalization; // CultureInfo
public interface IYahooAPICS
    double GetBid(string symbol);
    double GetAsk(string symbol);
    string GetCapitalization(string symbol);
    string[] GetValues(string symbol, string fields);
public class YahooAPICS : IYahooAPICS
    private static readonly WebClient webClient = new WebClient();
    private const string UrlTemplate = "{0}&f={1}";
    private static double ParseDouble(string value)
         return double.Parse(value.Trim(), CultureInfo.InvariantCulture);
    private static string[] GetDataFromYahoo(string symbol, string fields)
        string request = string.Format(UrlTemplate, symbol, fields);
        string rawData = webClient.DownloadString(request).Trim();
        return rawData.Split(',');
    public double GetBid(string symbol)
        return ParseDouble(GetDataFromYahoo(symbol, "b3")[0]);
    public double GetAsk(string symbol)
        return ParseDouble(GetDataFromYahoo(symbol, "b2")[0]);
    public string GetCapitalization(string symbol)
        return GetDataFromYahoo(symbol, "j1")[0];
    public string[] GetValues(string symbol, string fields)
        return GetDataFromYahoo(symbol, fields);

We compile it using the CSC C# compiler:

csc /target:library FinanceCS.cs
Microsoft (R) Visual C# Compiler version 4.0.30319.17929
for Microsoft (R) .NET Framework 4.5
Copyright (C) Microsoft Corporation. All rights reserved.

/target:library” asks CSC to generate a DLL rather than an EXE.

So we now have a “FinanceCS.dll” .NET DLL assembly.

The VB.NET Implementation

In the .NET world, VB.NET is your second choice if for any reason you have discarded C#. VB.NET is easier to grasp for VBA developers and can be an intermediate step on the road to full .NET applications: you won’t be distracted by a new language syntax and can concentrate on the .NET framework itself to get your productivity back quicker.

And this is what our API looks like in VB.NET:

imports System.Net ' WebClient
imports System.Runtime.InteropServices ' Guid, ClassInterface, ClassInterfaceType
imports System.Globalization ' CultureInfo
Public Interface IYahooAPIVBNet
    Function GetBid(symbol As String) As Double
    Function GetAsk(symbol As String) As Double
    Function GetCapitalization(symbol As String) As String
    Function GetValues(symbol As String, fields As String) As String()
End Interface
Public Class YahooAPIVBNet
Implements IYahooAPIVBNet
    Private Shared ReadOnly webClient As WebClient = new WebClient()
    Private Const UrlTemplate As String = "{0}&f={1}"
    Private Shared Function ParseDouble(value As String) As Double
        return Double.Parse(value.Trim(), CultureInfo.InvariantCulture)
    End Function
    Private Shared Function GetDataFromYahoo(symbol As String, fields As String) As String()
        Dim request As String = String.Format(UrlTemplate, symbol, fields)
        Dim rawData As String = webClient.DownloadString(request).Trim
        return rawData.Split(New [Char]() {","})
    End Function
    Public Function GetBid(symbol As String) As Double Implements IYahooAPIVBNet.GetBid
        return ParseDouble(GetDataFromYahoo(symbol, "b3")(0))
    End Function
    Public Function GetAsk(symbol As String) As Double Implements IYahooAPIVBNet.GetAsk
        return ParseDouble(GetDataFromYahoo(Symbol, "b2")(0))
    End Function
    Public Function GetCapitalization(symbol As String) As _
           String Implements IYahooAPIVBNet.GetCapitalization
        return GetDataFromYahoo(symbol, "j1")(0)
    End Function
    Public Function GetValues(symbol As String, fields As String) _
           As String() Implements IYahooAPIVBNet.GetValues
        return GetDataFromYahoo(symbol, fields)
    End Function
End Class

As with C#, compilation is straightforward, this time using the VBC VB.NET compiler:

vbc /target:library FinanceVBNet.vb
Microsoft (R) Visual Basic Compiler version 11.0.50709.17929
Copyright (c) Microsoft Corporation.  All rights reserved.

As you’ve guessed “/target:library” has the same meaning for VBC and CSC: generating a DLL assembly rather then an EXE assembly.

And we get a “FinanceVBNet.dllDLL.

The C++/CLI Implementation

Why do I nickname C++/CLI the “Jack of all trades, master of none“? “Jack of all trades” because it has the unique ability to talk to and be used by both native and managed components. It (almost) seamlessly mixes the two worlds in one place, what makes me consider C++/CLI as one of the most brilliant piece of software I’ve ever seen. “Master of none” because C++/CLI is not your best choice for either .NET or native development:

  • If you have no particular constraints and want a powerful language that integrates seamlessly with all the managed technologies (e.g., WPF), then your obvious choice is C#
  • If you need high performance, then you’ll go the native C++ way for your critical numerical code and let C# do the soft job

So, nowadays, C++/CLI is mainly pertinent as a great integration layer between the native and managed worlds (typically between C/C++ and C#): you’ll use it to build dumb wrappers, the plumbing that fills the gap between these two worlds.

I’ve decided to use C++/CLI here for educational purposes:

  • First, this is the rare occasion to put side by side C#, VB.NET, and C++/CLI codes, which should hopefully help those who use one or two of these languages and want to discover another one,
  • Second, for those who had the occasion to develop Excel extensions with native C++, it will demonstrate how easy it is now to build them with C++/CLI,
  • Third, it will illustrate how the use of a common platform, .NET, will make the three seemingly different versions of the API deployable and usable in a single manner.

So here is the C++/CLI creature:

#using <system.dll>
using namespace System; // String
using namespace System::Net; // WebClient
using namespace System::Runtime::InteropServices; // Guid, ClassInterface, ClassInterfaceType
using namespace System::Globalization; // CultureInfo
public interface class IYahooAPICPP
    double GetBid(String^ symbol);
    double GetAsk(String^ symbol);
    String^ GetCapitalization(String^ symbol);
    cli::array<String^>^ GetValues(String^ symbol, String^ fields);
public ref class YahooAPICPP : IYahooAPICPP
    private: static initonly WebClient^ webClient = gcnew WebClient();
    private: literal String^ UrlTemplate = "{0}&f={1}";
    private: static double ParseDouble(String^ s)
        return double::Parse(s->Trim(), CultureInfo::InvariantCulture);
    private: static cli::array<String^>^ GetDataFromYahoo(String^ symbol, String^ fields)
        String^ request = String::Format(UrlTemplate, symbol, fields);
        String^ rawData = webClient->DownloadString(request)->Trim();
        return  rawData->Split(',');
    public: virtual double GetBid(String^ symbol)
        return ParseDouble(GetDataFromYahoo(symbol, "b3")[0]);
    public: virtual double GetAsk(String^ symbol)
        return ParseDouble(GetDataFromYahoo(symbol, "b2")[0]);
    public: virtual String^ GetCapitalization(String^ symbol)
        return GetDataFromYahoo(symbol, "j1")[0];
    public: virtual cli::array<String^>^ GetValues(String^ symbol, String^ fields)
        return GetDataFromYahoo(symbol, fields);

Not too frightening, except some oddities like these “^” everywhere and the magic “cli” namespace.

We compile it using the CL C++ compiler:

cl /clr:safe /LD FinanceCPP.cpp
Microsoft (R) C/C++ Optimizing Compiler Version 16.00.40219.01
for Microsoft (R) .NET Framework version 4.00.30319.18034
Copyright (C) Microsoft Corporation.  All rights reserved.
Microsoft (R) Incremental Linker Version 10.00.40219.01
Copyright (C) Microsoft Corporation.  All rights reserved.

/clr:safe” is for generating a pure .NET assembly (by default CL generates native binaries while we want a CIL binary). “/LD” asks CL to generate a DLL rather than an EXE.

This gives us our third DLL assembly: “FinanceCPP.dll“.

COM Registration of the Libraries

What is great with managed platforms like Java and .NET is that once you have your byte-code binaries, you can use a single process to rule them all. So here are the COM-registration commands for the 3 implementations of the API (you’ll need to run them with administrator privileges):

regasm /codebase /tlb FinanceCS.dll
regasm /codebase /tlb FinanceVBNet.dll
regasm /codebase /tlb FinanceCPP.dll

Some explanations:

  • /codebase” tells regasm to reference the assemblies full path into the registry, not only its name; otherwise your assembly should be put into the GAC which in this case is useless and would be pure over-engineering (but sometimes, for assemblies shared by many applications, the GAC can be useful)
  • /tlb” tells regasm to generate and register a TLB file for the DLLs: a TLB file holds some metadata that will be consumed by the clients of our API to allow for a more user-friendly usage especially by allowing auto-completion in the VBA editor.
If you're using Visual Studio then to automatically register your TLB and DLL check the "Register for COM interop" option in the "Build/Output" section of your project's properties.

Our API is now ready to get used by VBA.

Using the API

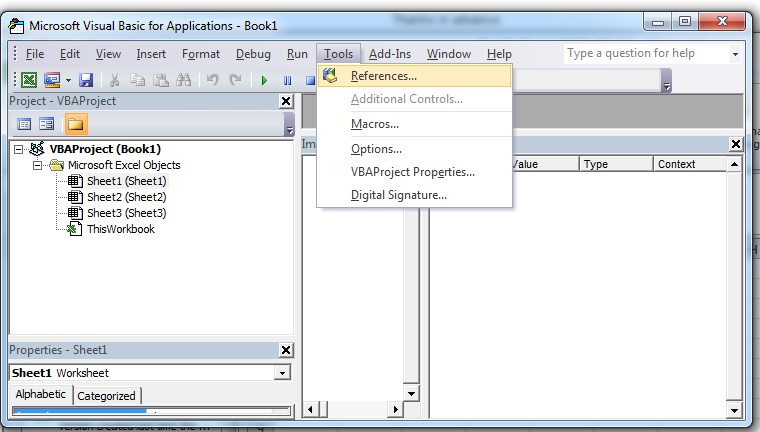

The first thing we need to do is referencing our three libraries TLBs: go to the Excel VBA editor (shortcut: ALT-F11) and open the “References popup:

VBA Tools References

VBA Tools References

Then locate and select the FinanceCS, FinanceVBNet, and FinanceCPP references.

You can now transparently use our YahooAPICS, YahooAPIVBNet, and YahooAPICPP classes as if they were native VBA types. Here is a basic example that retrieves and displays the bid price of Google using the C# implementation of the API:

Dim yahooAPI As New YahooAPICS
Call MsgBox("Google bid is: " & yahooAPI.GetBid("GOOG"))

(message for pedantic geeks: yes I know that As New is evil but I couldn’t resist ;) )

Note: First call can be quite slow if you use IE automatic settings detection, so if you don’t need this feature disable it (see this thread for instructions).

Here is a more complete sample that you’ll find in the example spreadsheet in the mYahoo VBA module:

Sub loadDataFromCS(output As Range)
    Dim yahoo As FinanceCS.YahooAPICS
    Set yahoo = New FinanceCS.YahooAPICS
    output.Cells(1, 1).Value2 = yahoo.GetBid("GOOG")
    output.Cells(1, 2).Value2 = yahoo.GetAsk("GOOG")
    output.Cells(1, 3).Value2 = yahoo.GetCapitalization("GOOG")
    Dim bidAskCapi As Variant
    bidAskCapi = yahoo.GetValues("GOOG", "b3b2j1")
    output.Cells(1, 4) = bidAskCapi(0)
    output.Cells(1, 5) = bidAskCapi(1)
    output.Cells(1, 6) = bidAskCapi(2)
End Sub
Sub loadDataFromVBNet(output As Range)
    Dim yahoo As FinanceVBNet.YahooAPIVBNet
    Set yahoo = New FinanceVBNet.YahooAPIVBNet
    output.Cells(1, 1).Value2 = yahoo.GetBid("GOOG")
    output.Cells(1, 2).Value2 = yahoo.GetAsk("GOOG")
    output.Cells(1, 3).Value2 = yahoo.GetCapitalization("GOOG")
    Dim bidAskCapi As Variant
    bidAskCapi = yahoo.GetValues("GOOG", "b3b2j1")
    output.Cells(1, 4) = bidAskCapi(0)
    output.Cells(1, 5) = bidAskCapi(1)
    output.Cells(1, 6) = bidAskCapi(2)
End Sub
Sub loadDataFromCPPCLI(output As Range)
    Dim yahoo As FinanceCPP.YahooAPICPP
    Set yahoo = New FinanceCPP.YahooAPICPP
    output.Cells(1, 1).Value2 = yahoo.GetBid("GOOG")
    output.Cells(1, 2).Value2 = yahoo.GetAsk("GOOG")
    output.Cells(1, 3).Value2 = yahoo.GetCapitalization("GOOG")
    Dim bidAskCapi As Variant
    bidAskCapi = yahoo.GetValues("GOOG", "b3b2j1")
    output.Cells(1, 4) = bidAskCapi(0)
    output.Cells(1, 5) = bidAskCapi(1)
    output.Cells(1, 6) = bidAskCapi(2)
End Sub
Sub GetDataButton_Click()
    Dim dataSheet As Worksheet
    Set dataSheet = Sheets("Data")
    dataSheet.Range("B2").Resize(3, 6).ClearContents
    Call loadDataFromCS(dataSheet.Range("B2"))
    Call loadDataFromVBNet(dataSheet.Range("B3"))
    Call loadDataFromCPPCLI(dataSheet.Range("B4"))
End Sub

As you see, whatever the language used, the objects declaration, instantiation and usage are strictly the same, you just use different classes: YahooAPICS, YahooAPIVBNet, and YahooAPICPP.


Here is what you get when using the demo spreadsheet included into the archive attached with this article:

VBA Yahoo .Net API demo

VBA Yahoo .NET API demo


I hope this article has helped you realize that interfacing VBA and .NET is a relatively straightforward process: implement with the language you want, compile, register, and enjoy!

Of course, there is more to .NET development than this, but adding additional features like error-handling, logging, or graphical user interfaces, is much more convenient within the .NET environment (especially with Visual Studio which is a great IDE) than it is in the more limited world of VBA.

If you have any questions, issues or suggestions, please feel free to let a comment, I’ll do my best to answer it in a timely fashion.

If you have any issue with your addin, have a look at the "Excel addins troubleshooting guide" because hopefully the answer is already there. :)


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


About the Author

Instructor / Trainer Pragmateek
France (Metropolitan) France (Metropolitan)
To make it short I'm an IT trainer specialized in the .Net ecosystem (framework, C#, WPF, Excel addins...).
(I'm available in France and bordering countries, and I only teach in french.)

I like to learn new things, particularly to understand what happens under the hood, and I do my best to share my humble knowledge with others by direct teaching, by posting articles on my blog (, or by answering questions on forums.

Comments and Discussions

QuestionVB.Net Modul is not a standart module in VBA Pin
anemos_7830-Apr-17 12:39
Memberanemos_7830-Apr-17 12:39
QuestionMake assembly COM visible Pin
jacktric10-Feb-16 22:14
Memberjacktric10-Feb-16 22:14
AnswerRe: Make assembly COM visible Pin
Pragmateek11-May-16 10:36
professionalPragmateek11-May-16 10:36
PraiseReally useful! Pin
ExcelVBAMaster26-Jan-16 10:43
MemberExcelVBAMaster26-Jan-16 10:43
GeneralRe: Really useful! Pin
Pragmateek31-Jan-16 10:53
professionalPragmateek31-Jan-16 10:53
QuestionThank you for this tutorial Pin
smithyc26-Dec-14 19:35
Membersmithyc26-Dec-14 19:35
AnswerRe: Thank you for this tutorial Pin
Pragmateek27-Dec-14 0:45
professionalPragmateek27-Dec-14 0:45
GeneralRe: Thank you for this tutorial Pin
smithyc27-Dec-14 16:26
Membersmithyc27-Dec-14 16:26
GeneralRe: Thank you for this tutorial Pin
Pragmateek28-Dec-14 1:07
professionalPragmateek28-Dec-14 1:07
GeneralRe: Thank you for this tutorial Pin
smithyc28-Dec-14 11:20
Membersmithyc28-Dec-14 11:20
QuestionHugh Thanks: ChecksumAPINet Pin
Member 1107880712-Sep-14 11:27
MemberMember 1107880712-Sep-14 11:27
AnswerRe: Hugh Thanks: ChecksumAPINet Pin
Pragmateek12-Sep-14 11:43
professionalPragmateek12-Sep-14 11:43
GeneralVB,VBA...VB.Net? Pin
Member 1107768312-Sep-14 1:02
MemberMember 1107768312-Sep-14 1:02
GeneralRe: VB,VBA...VB.Net? Pin
Pragmateek12-Sep-14 3:05
professionalPragmateek12-Sep-14 3:05
GeneralRe: VB,VBA...VB.Net? Pin
Member 1107768312-Sep-14 5:44
MemberMember 1107768312-Sep-14 5:44
QuestionCan´t register dlls Pin
eduinge22-Aug-14 6:18
Membereduinge22-Aug-14 6:18
AnswerRe: Can´t register dlls Pin
Pragmateek22-Aug-14 6:36
professionalPragmateek22-Aug-14 6:36
GeneralRe: Can´t register dlls Pin
eduinge22-Aug-14 9:30
Membereduinge22-Aug-14 9:30
GeneralRe: Can´t register dlls Pin
Pragmateek22-Aug-14 9:41
professionalPragmateek22-Aug-14 9:41
GeneralRe: Can´t register dlls Pin
eduinge22-Aug-14 9:59
Membereduinge22-Aug-14 9:59
GeneralRe: Can´t register dlls Pin
Pragmateek22-Aug-14 10:02
professionalPragmateek22-Aug-14 10:02
Questionpolymorphism Pin
Sam Gerené3-Jun-14 2:23
MemberSam Gerené3-Jun-14 2:23
AnswerRe: polymorphism Pin
Pragmateek3-Jun-14 11:29
professionalPragmateek3-Jun-14 11:29
GeneralRe: polymorphism Pin
Sam Gerené3-Jun-14 21:33
MemberSam Gerené3-Jun-14 21:33
GeneralRe: polymorphism Pin
Pragmateek3-Jun-14 23:23
professionalPragmateek3-Jun-14 23:23

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
