Fast by tens malloc() and free() at 25% memory cost

Rate me:
Please Sign up or sign in to vote.
4.89/5 (24 votes)
11 Nov 2013CPOL6 min read
An insigth in the heap "C" memory system.


One of the main actions in a C program, (which underlies many other programming languages) is memory management. When the scope of this resource is global (remains after function exit) but is unknown at compile time, we use the malloc(), calloc(), realloc() set of resources, or their new() dispose() C++ avatars. if we are programming Java code, a hidden gnome does that for us.

To fully understand the importance of this subject, let us think about terms like "trash collection", "smart pointers" or "Java" itself. Such very productive, but time wasting and past prone to errors technologies are built among other reasons to deal with this subject.


Where does "C" language come from? "C" language is a bit above assembler and started to run in low resource computers, where memory was really valuable. Even nowadays, you can find "C" or a subset of "C++" code running in tiny microcontrollers like your car keyfob, washing machine or shaver. Programming microcontrollers is great delight for me, but we must understand that saving 32 bytes of memory when you only has 2.000 is not the same thing as when you have Well, it seems the compiler does not mind this subject, and the algorithm is almost the same in both cases. There is little optimization. In fact malloc() takes memory in chunks not smaller than a chosen power of two (16, 32, 64, ... bytes) mainly for alignment purposes, which made processor more efficient. You must include the size of the internal control data in the block. This is one of the reasons your program does not hang when you ask for a bit less memory than you need (forgetting the trailing null size in a string, for example) and also the reason of packages like valgrind to detect this fact in your code.

Fresh memory allocation is not a problem. libc only needs to take a piece of memory on the top of the heap and shorten the remaining block. The problem comes when you free a used memory block, not located on the top. This creates a "hole" which must be reused. The heap solves this keeping a linked list of deleted blocks. When you need a new block, malloc() must iterate this list, in search for your block. Additionally, adjacent blocks are merged together to keep the heap as unfragmented as possible.


To prevent you from stop reading, and make sure you do your homework, here you are an snapshot of my test program (included on article). Look at the improve column. It shows the increase of speed compared to standard memory functions, and the use is the amount of memory used by program in our version.

A funny fact is that vc6 is 120 times faster, and MinGW "only" times 21 than standard malloc(), but in realloc() the ratios are 45 .. 300 times. The reason is explored below, but realloc() is not as important as malloc(), free(), because in real programs (especially underlying new() and delete() in C++ ) is almost no used.

Compiled under Visual Studio:

 Image 1

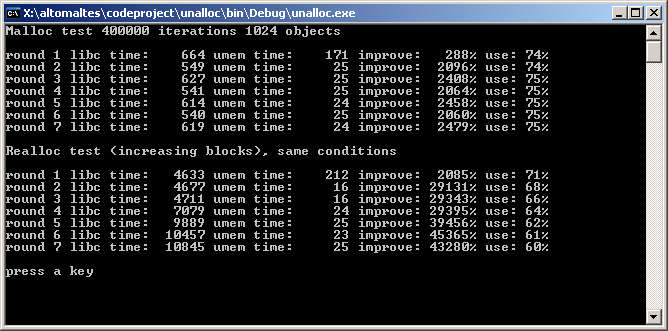

Compiled under mingw:

Image 2

As you can see, Visual Studio  does fast reallocs also, this made me suspect they does no "real" reallocs also, but always growing reallocs.

Proposed improvement.

Let's take an speculative approach to this issue. malloc()-free() are normally used in a particular fashion from all possible situations. Both functions underlies new() and delete() operators, and the type of objects we have in a real program is limited. An examination of the heap as C++ program "warms" will show that the size of blocks is organized in sets of fixed sizes, corresponding to objects. alternated by free memory blocks of  those sizes, form deleted objects. when you request a block, malloc() steps the linked deleted list in search for a big enough block. free() concerns on keeping the memory unfragmented, merging adjacent free blocks becomes useless many times, because the fixed nature of the blocks requested.

I propose to use only blocks of fixed sizes (powers of two) and keep the freed blocks in single linked lists in a LIFO fashion. This allows that both inserting (free) and removing (alloc) of a block can be done in a single step, highly improving the speed of operations. When the memory block needed is not present, will be requested to standard malloc() and once in the list never exited (till the program end).

The cost of this way, is the not used memory is each block is more or less a 25% of the total block size. As a lateral effect the realloc() is a hundred times faster in the benchmark.

Image 3

This is a memory layout based in power of two chunk sizes. There are another possible layouts with bigger chunk tables and so, less unused pad memory. This is a table showing possibilities for several combinations, allowing allocating memory block sizes from 32 bytes to 8 MB.

Chunk table size Average used memory
10 pointers75% ( this example )
20 pointers88%
40 pointers93%
80 pointers 97%

Above table possibilities, needs a little more coding (not covered in this article), and this will penalize speed a little on unalloc(). The realloc() function is also compromised on growing blocks, since the possibility of need of moving increases at more accurate blocks. free() remains almost unaffected. The theory is simple. More block sizes to choose from means<code> more accurate adjustment to the requested size, and so less unused pad size.

Using the code

That's really simple. You must use unalloc(), unfree(), and unrealloc() instead of malloc(), free(), and realloc(). Here you are the code I've used to do the test, which may be a good working example. Win32 lacks times() and so you have a workaround in the demo code to emulate it.

#define POOL_SIZE   1024
#define ITERATIONS  1000000
#define ROUNDS      7
unsigned randSize( ) { unsigned rnd= rand(); return(( rnd & 0x7FFF      ) << 1 ); }
unsigned randIdx(  ) { unsigned rnd= rand(); return(  rnd & (POOL_SIZE-1)      ); }
void mallocTest( int round )
{ static void *   buffer[ POOL_SIZE ];  // Zero init
  static void * unbuffer[ POOL_SIZE ];
  int loop;
  unsigned tm1,tm2;
  for( loop= 0, tm1= times( NULL )
     ; loop < ITERATIONS
     ; loop++ )
  { int idx= randIdx();
    if ( buffer[ idx ] )
    { free( buffer[ idx ] );
    buffer[ idx ]= malloc( randSize() );
  tm1= times( NULL ) - tm1;
  for( loop= 0, tm2= times( NULL )
     ; loop < ITERATIONS
     ; loop++ )
  { int idx= randIdx();
    if ( unbuffer[ idx ] )
    { unfree( unbuffer[ idx ] );
    unbuffer[ idx ]= unalloc( randSize() );
  tm2= times( NULL ) - tm2;
  printf("round %d libc ticks: %6u umem ticks: %6u ", round, tm1, tm2 );
  tm1 *= 100; tm1 /= tm2; tm1-=100;
  printf("improving: %5u%%\n", tm1 );

You can try several values for POOL_SIZE 1024 and ITERATIONS and randSize() to test the improvements.

The reason I think realloc() is so fast in VC6 is that this compiler uses yet the "non shrinking size" optimization, so there are no need of move blocks of memory, that is time consuming. This is only a theory.

You can start both MinGW and VC6 executables and blame MS for it.

File list

Files included in

  • main.c: Test program
  • memory.c: Source code for
  • memory.h: Include file for above
  • windows.c: Windows emulation for UNIX times() function
  • unalloc.cbp: Project file for code:::blocks
  • build.bat: Build file for windows.
  • build: Build file for UNIX.
  • bin/debug/unalloc.exe: MinGW 32 bit executable
  • vc6: Visual Studio project
  • vc6/debug/unalloc.exe: Visual Studio 32 bit executable

Files included in

  • mingw.exe: MinGW 32 bit executable
  • vc6.exe: MinGW 32 bit executable

Points of Interest

This is a subset of a bit bigger project. The main goal of the complete code is give the "C++" delete() concept ( execute shutdown code before free memory resources) to "C" code, implement also a "cascade disposal" tree, by giving a parental relationship among objects, and when you destroy one of the items, all of their children will be also destroyed, and a system to recover the memory freed by globally allocated objects no longer needed, but this is another history.


One of the reason of writing articles in this programmers forum is making stronger my communication skills. This is a job I've done successfully in my native language, but using another language with no loss of hues and nuances is challenging. I would like for a several years technological work experience abroad for a time and showing some of my hidden cards might help.


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

Written By
Software Developer (Senior)
Spain Spain
Involved in tecnology since 18, especially in "low level program". Started with electronics, z80 assembler, i86 assembler, PASCAL, C (microcontrollers), C++. Some awards won in electronic magazines. Some interesting m2m projects. Using and teaching linux since 1995. Degree in electronics.
Creative temperament. This made me well know at work by every folk soon.
Got fun in nature and travelling.
